Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation

KKaushal Kumar28 Feb 2023
CFDHTML

Aim: To study the effect of wedge angle and the Boundary Conditions on the simulation of an axisymmetric laminar flow in a cylindrical pipe.

Angles to test:

  • 10o
  • 25o
  • 45o

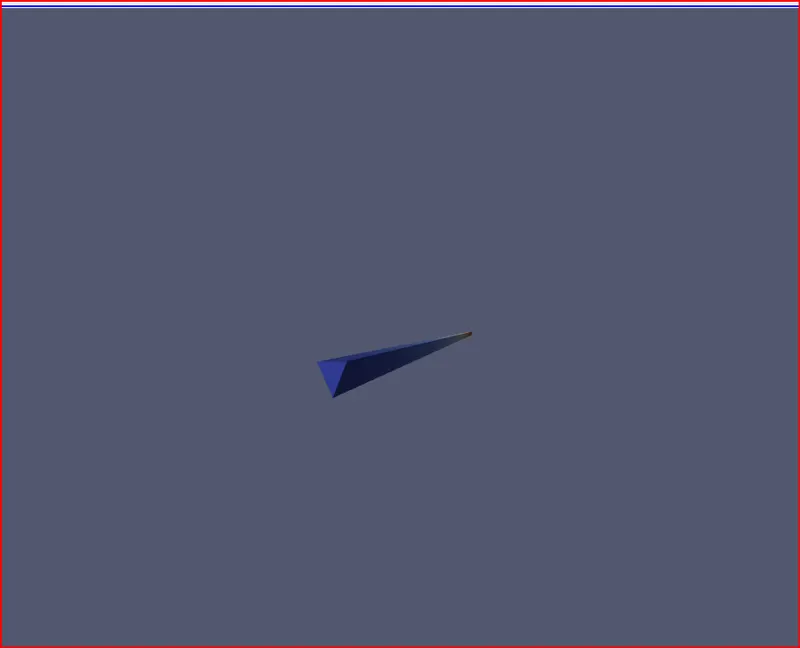

Wedge Boundary Condition:

Matlab code:

clear all
close all
clc

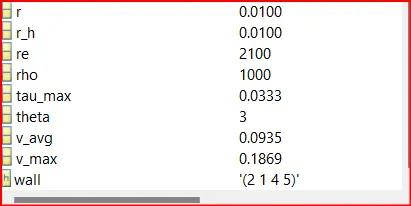

% Flow variables

rho = 1000;    % Density
mu = 0.00089;  % Dynamic Viscosity
nu = mu/rho;
re = 2100;     % Reynolds Number
d = 0.02;     % Dia of Pipe

alpha = 10;     % wedge angle <5
a = pi/4*d^2;
p = pi*d;       % wetted perimeter
d_h = 4*a/p;    % Hydraulic Dia of pipe
r_h = d_h/2;    %Hydralic radius of pipe

v_avg = (re*mu)/(rho*d_h);     % Avg velocity
v_max = 2*v_avg;               %Fully developed V max
tau_max = 2*mu*v_max/r_h;

l_e = 0.06*re*d_h;

l =l_e+0.18;        % Meters length of Pipe

%Daracy Friction factory --> for Laminar Circular pipe flow
f = 65/re;

%Haigen Poiseuille Eqn

P = (32*mu*(l-l_e)*v_avg)/(d^2);
g = 9.81;
h_loss = P/(rho*g); %head loss
P_kinematicPress = P/rho;
theta = 3; %3 degree wedge angle
r=r_h;


% Coordinates of the wedge

p0 = [0 0 0];
p1 = [0 r*cosd(alpha/2) r*sind(alpha/2)];
p2 = [0 r*cosd(alpha/2) -r*sind(alpha/2)];
p3 = [l 0 0];
p4 = [l r*cosd(alpha/2) r*sind(alpha/2)];
p5 = [l r*cosd(alpha/2) -r*sind(alpha/2)];

line1 ='/*--------------------------------*- C++ -*----------------------------------*\';
line2 = '  =========                 |';
line3 = '  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox';
line4 = '   \\    /   O peration     | Website:  https://openfoam.org';
line5 = '    \\  /    A nd           | Version:  10';
line6 = '     \\/     M anipulation  |';
line7 = '\*---------------------------------------------------------------------------*/';
line8 = 'FoamFile';
line9 = '{';
line10 = 'format      ascii;';
line11 = 'class       dictionary;';
line12 = 'object      blockMeshDict;';
line13 = '}';
line14 = '// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //';
line15 = '';
line16 = 'convertToMeters 1;';
line17 = 'vertices';
line18 = '(';
line19 = ');';


f1=fopen('blockMeshDict','w');
fprintf(f1,'%s\n',line1);
fprintf(f1,'%s\n',line2);
fprintf(f1,'%s\n',line3);
fprintf(f1,'%s\n',line4);
fprintf(f1,'%s\n',line5);
fprintf(f1,'%s\n',line6);
fprintf(f1,'%s\n',line7);
fprintf(f1,'%s\n',line8);
fprintf(f1,'%s\n',line9);
fprintf(f1,'\t %s \n',line10);
fprintf(f1,'\t %s \n',line11);
fprintf(f1,'\t %s \n',line12);
fprintf(f1,'%s\n',line13);
fprintf(f1,'%s\n',line14);
fprintf(f1,'%s\n',line15);


fprintf(f1,'%s\n\n',line16);
fprintf(f1,'%s\n',line17);
fprintf(f1,'%s\n',line18);

% Writing the vertices

fprintf(f1,'\t(%d %d %d)\n',p0(1), p0(2), p0(3));
fprintf(f1,'\t(%d %d %d)\n',p1(1), p1(2), p1(3));
fprintf(f1,'\t(%d %d %d)\n',p2(1), p2(2), p2(3));
fprintf(f1,'\t(%d %d %d)\n',p3(1), p3(2), p3(3));
fprintf(f1,'\t(%d %d %d)\n',p4(1), p4(2), p4(3));
fprintf(f1,'\t(%d %d %d)\n',p5(1), p5(2), p5(3));
fprintf(f1,'%s\n\n',line19);
% blocks
line20 = 'blocks';
line21 = '(';
line22 = 'hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.2 1)';
line23 = ');';
fprintf(f1,'%s\n',line20);
fprintf(f1,'%s\n',line21);
fprintf(f1,'\t%s\n',line22);
fprintf(f1,'%s\n\n',line23);

% Edges
arc1 = ' arc 2 1' ;
arc2 = 'arc 4 5';
fprintf(f1,'%s\n','edges');
fprintf(f1,'%s\n',line21);
fprintf(f1,'\t%s (%d %d %d)\n',arc1,0,r,0);
fprintf(f1,'\t%s (%d %d %d)\n',arc2,l,r,0);
fprintf(f1,'%s\n\n',line23);

% Boundary
line24 = 'Boundary';
line25 = '(';
line26 = 'Inlet';
line27 = '{';
line28 = '}';
line29 = ');';
inlet = '(0 1 2 0)';
outlet = '(3 5 4 3)';
fprintf(f1,'%s\n',line24);
fprintf(f1,'%s\n',line25);
fprintf(f1,'\t%s\n',line26);
fprintf(f1,'\t%s\n',line27);
fprintf(f1,'\t\t %s \n', 'type  patch;');
fprintf(f1,'\t\t %s \n', 'faces');
fprintf(f1,'\t\t %s \n', line25);
fprintf(f1,'\t\t\t %s \n', inlet);
fprintf(f1,'\t\t %s \n', line29);
fprintf(f1,'\t %s \n\n', line28);

% Outlet

fprintf(f1,'\t%s\n','Outlet');
fprintf(f1,'\t%s\n',line27);
fprintf(f1,'\t\t %s \n', 'type  patch;');
fprintf(f1,'\t\t %s \n', 'faces');
fprintf(f1,'\t\t %s \n', line25);
fprintf(f1,'\t\t\t %s \n', outlet);
fprintf(f1,'\t\t %s \n', line29);
fprintf(f1,'\t %s \n\n', line28);

% Walls
wall = '(2 1 4 5)';
fprintf(f1,'\t%s\n','fixedWalls');
fprintf(f1,'\t%s\n',line27);
fprintf(f1,'\t\t %s \n', 'type  wall;');
fprintf(f1,'\t\t %s \n', 'faces');
fprintf(f1,'\t\t %s \n', line25);
fprintf(f1,'\t\t\t %s \n', wall);
fprintf(f1,'\t\t %s \n', line29);
fprintf(f1,'\t %s \n\n', line28);

% Axis
Axis = '(0 3 3 0)';
fprintf(f1,'\t%s\n','axis');
fprintf(f1,'\t%s\n',line27);
fprintf(f1,'\t\t %s \n', 'type  wall;');
fprintf(f1,'\t\t %s \n', 'faces');
fprintf(f1,'\t\t %s \n', line25);
fprintf(f1,'\t\t\t %s \n', Axis);
fprintf(f1,'\t\t %s \n', line29);
fprintf(f1,'\t %s \n\n', line28);
fprintf(f1,'%s \n',');');
fprintf(f1,'\n');

%front
front=[1 0 3 4];
back=[0 2 5 3];
fprintf(f1,'\t%s\n','front');
fprintf(f1,'\t%s\n','{');
fprintf(f1,'\t\t%s\n','type wedge');
fprintf(f1,'\t\t%s\n','faces');
fprintf(f1,'\t\t%s\n','(');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',front);
fprintf(f1,'\t\t%s\n',');');
fprintf(f1,'\t%s\n','}');

%back
fprintf(f1,'\t%s\n','back');
fprintf(f1,'\t%s\n','{');
fprintf(f1,'\t\t%s\n','type wedge');
fprintf(f1,'\t\t%s\n','faces');
fprintf(f1,'\t\t%s\n','(');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',back);
fprintf(f1,'\t\t%s\n',');');
fprintf(f1,'\t%s\n','}');
fprintf(f1,'%s\n',');');


fprintf(f1,'%s \n','mergePatchPairs');
fprintf(f1,'%s \n \n','(');
fprintf(f1,'%s \n \n',');');
fprintf(f1,'\n');

last_line = '// ************************************************************************* //';
fprintf(f1,'%s \n',last_line);

fclose(f1);

BlockmeshDict File

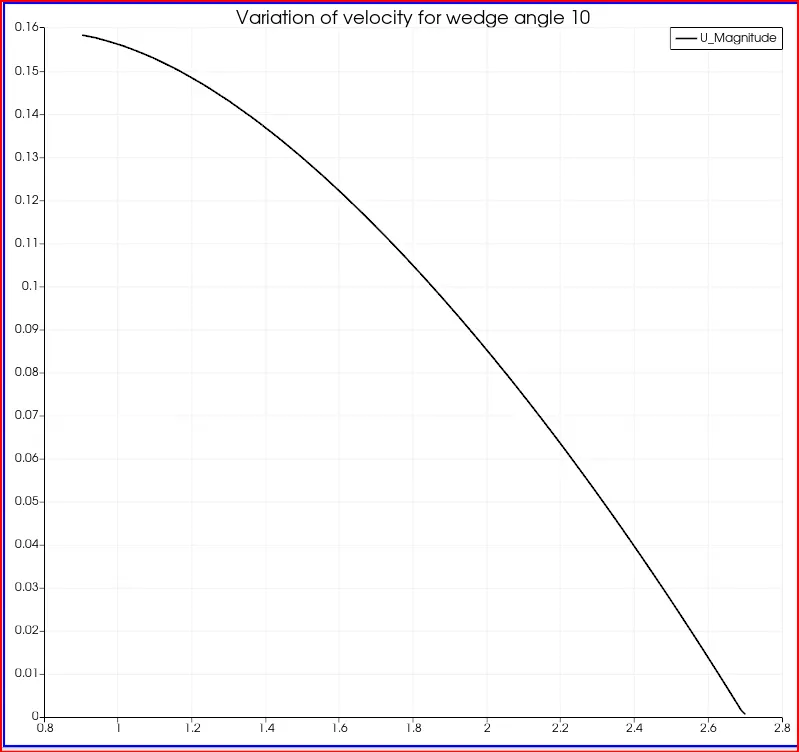

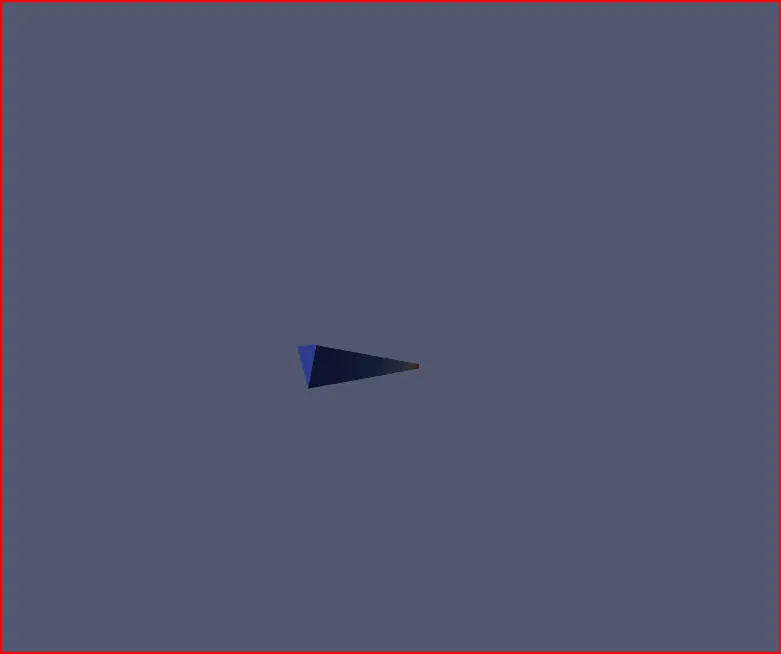

For wedge angle 10

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	 format      ascii;
	 class       dictionary;
	 object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

convertToMeters 1;

vertices
(
	(0 0 0)
	(0 9.961947e-03 8.715574e-04)
	(0 9.961947e-03 -8.715574e-04)
	(2.700000e+00 0 0)
	(2.700000e+00 9.961947e-03 8.715574e-04)
	(2.700000e+00 9.961947e-03 -8.715574e-04)
);

blocks
(
	hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.2 1)
);

edges
(
	 arc 2 1 (0 1.000000e-02 0)
	arc 4 5 (2.700000e+00 1.000000e-02 0)
);

Boundary
(
	Inlet
	{
		 type  patch;
		 faces
		 (
			 (0 1 2 0)
		 );
	 }

	Outlet
	{
		 type  patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	 }

	fixedWalls
	{
		 type  wall;
		 faces
		 (
			 (2 1 4 5)
		 );
	 }

	axis
	{
		 type  wall;
		 faces
		 (
			 (0 3 3 0)
		 );
	 }

);

	front
	{
		type wedge
		faces
		(
			(1 0 3 4)
		);
	}
	back
	{
		type wedge
		faces
		(
			(0 2 5 3)
		);
	}
);
mergePatchPairs
(

);


// ************************************************************************* //

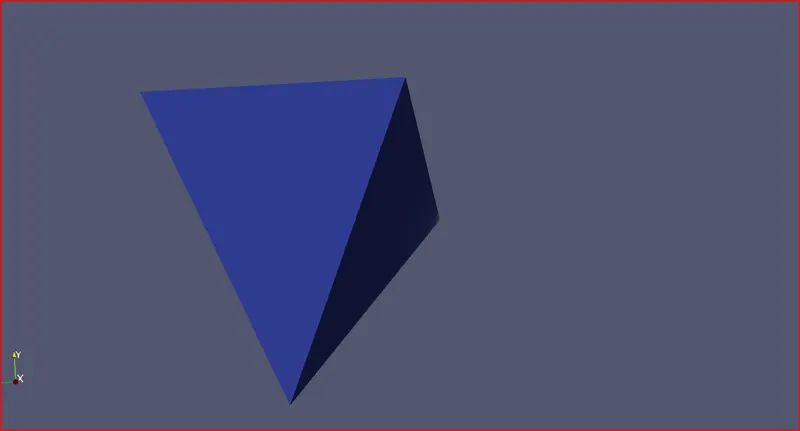

For wedge angle 25

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	 format      ascii;
	 class       dictionary;
	 object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

convertToMeters 1;

vertices
(
	(0 0 0)
	(0 9.762960e-03 2.164396e-03)
	(0 9.762960e-03 -2.164396e-03)
	(2.700000e+00 0 0)
	(2.700000e+00 9.762960e-03 2.164396e-03)
	(2.700000e+00 9.762960e-03 -2.164396e-03)
);

blocks
(
	hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.2 1)
);

edges
(
	 arc 2 1 (0 1.000000e-02 0)
	arc 4 5 (2.700000e+00 1.000000e-02 0)
);

Boundary
(
	Inlet
	{
		 type  patch;
		 faces
		 (
			 (0 1 2 0)
		 );
	 }

	Outlet
	{
		 type  patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	 }

	fixedWalls
	{
		 type  wall;
		 faces
		 (
			 (2 1 4 5)
		 );
	 }

	axis
	{
		 type  wall;
		 faces
		 (
			 (0 3 3 0)
		 );
	 }

);

	front
	{
		type wedge
		faces
		(
			(1 0 3 4)
		);
	}
	back
	{
		type wedge
		faces
		(
			(0 2 5 3)
		);
	}
);
mergePatchPairs
(

);


// ************************************************************************* //

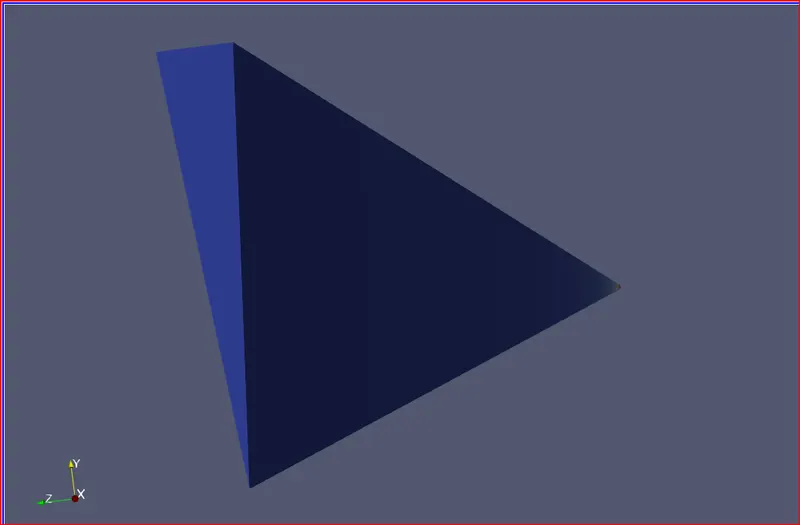

For wedge angle 45

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	 format      ascii;
	 class       dictionary;
	 object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

convertToMeters 1;

vertices
(
	(0 0 0)
	(0 9.238795e-03 3.826834e-03)
	(0 9.238795e-03 -3.826834e-03)
	(2.700000e+00 0 0)
	(2.700000e+00 9.238795e-03 3.826834e-03)
	(2.700000e+00 9.238795e-03 -3.826834e-03)
);

blocks
(
	hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.2 1)
);

edges
(
	 arc 2 1 (0 1.000000e-02 0)
	arc 4 5 (2.700000e+00 1.000000e-02 0)
);

Boundary
(
	Inlet
	{
		 type  patch;
		 faces
		 (
			 (0 1 2 0)
		 );
	 }

	Outlet
	{
		 type  patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	 }

	fixedWalls
	{
		 type  wall;
		 faces
		 (
			 (2 1 4 5)
		 );
	 }

	axis
	{
		 type  wall;
		 faces
		 (
			 (0 3 3 0)
		 );
	 }

);

	front
	{
		type wedge
		faces
		(
			(1 0 3 4)
		);
	}
	back
	{
		type wedge
		faces
		(
			(0 2 5 3)
		);
	}
);
mergePatchPairs
(

);


// ************************************************************************* //

Control Dict File

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    location    "system";
    object      controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

application     icoFoam;

startFrom       startTime;

startTime       0;

stopAt          endTime;

endTime         50;

deltaT          0.01;

writeControl    timeStep;

writeInterval   200;

purgeWrite      0;

writeFormat     ascii;

writePrecision  6;

writeCompression off;

timeFormat      general;

timePrecision   6;

runTimeModifiable true;


// ************************************************************************* //

Pressure

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inlet
    {
        type		zeroGradient;
    }

    outlet
    {
        type            fixedValue;
        value           uniform 0;
    }

    fixedWalls
    {
        type            wall;
    }

    axis
    {
        type            empty;
    }

    front
    {
        type            wedge;
    }

    back
    {
        type            wedge;
    }
}

// ************************************************************************* //

Velocity

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0 0 0);

boundaryField
{
    inlet
    {
        type		fixedValue;
        value           uniform (0.0935 0 0);
    }

    outlet
    {
        type            zeroGradient;
    }

    fixedWalls
    {
        type		noSlip;
	//type            fixedValue;
	//value		uniform (0 0 0);
    }

    axis
    {
        type            empty;
    }
    front
    {
        type            wedge;
    }

    back
    {
        type            wedge;
    }
}

// ************************************************************************* //

Results:

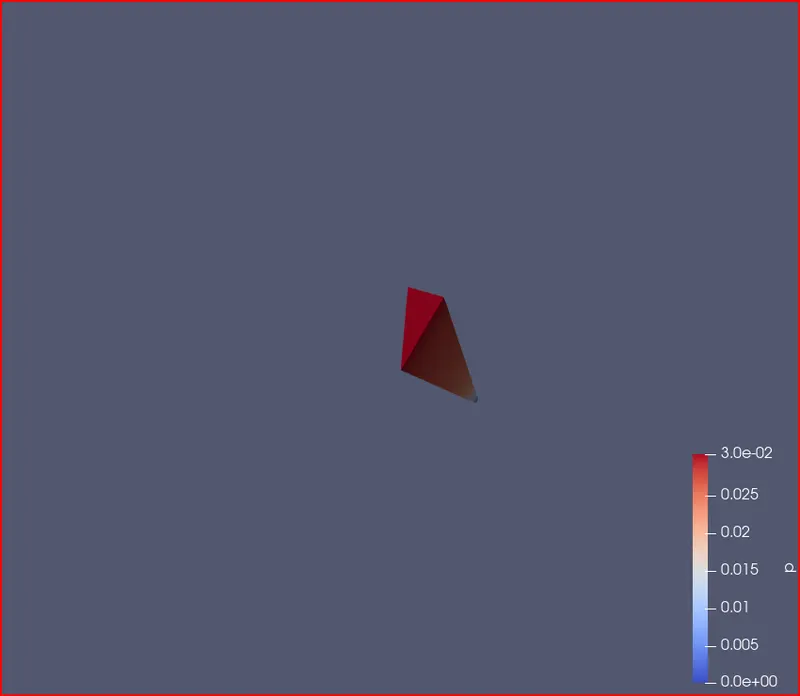

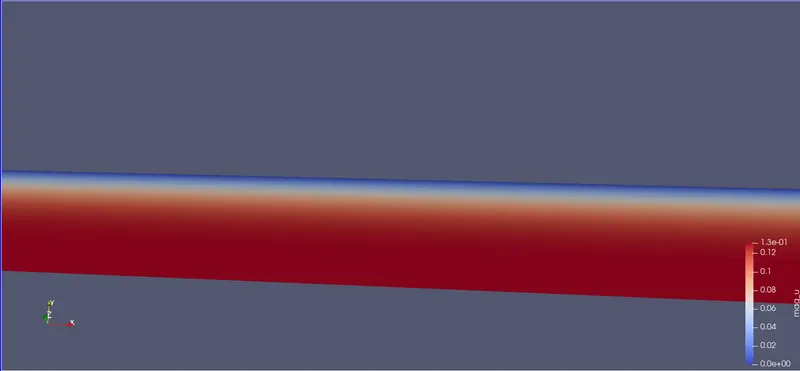

For wedge angle 10

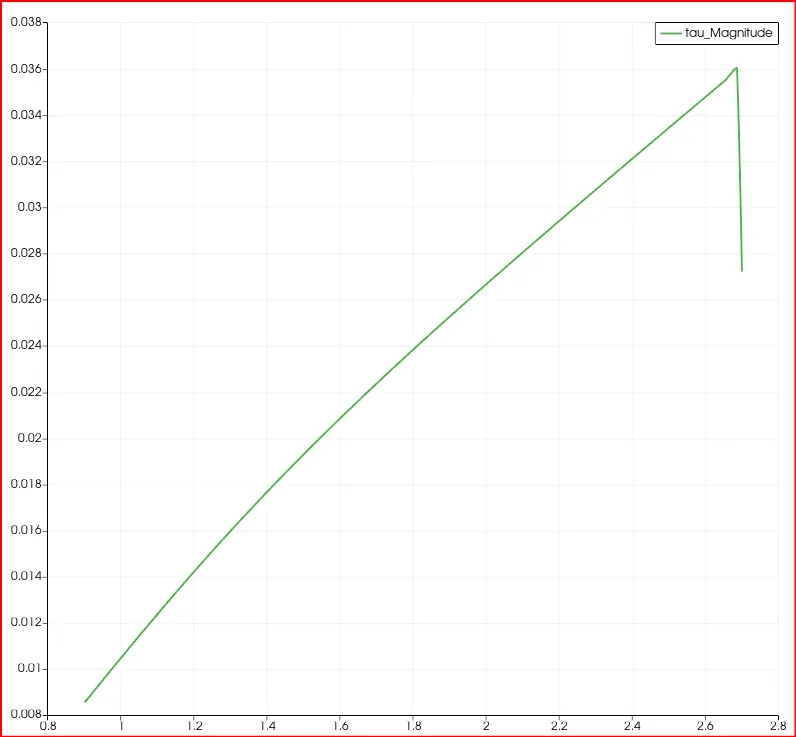

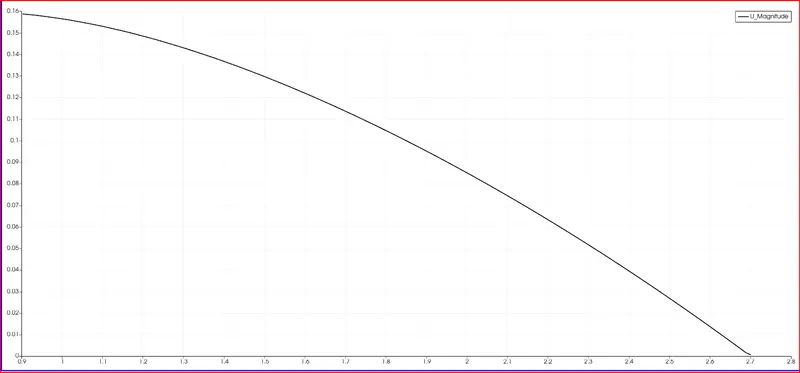

For wedge angle 25

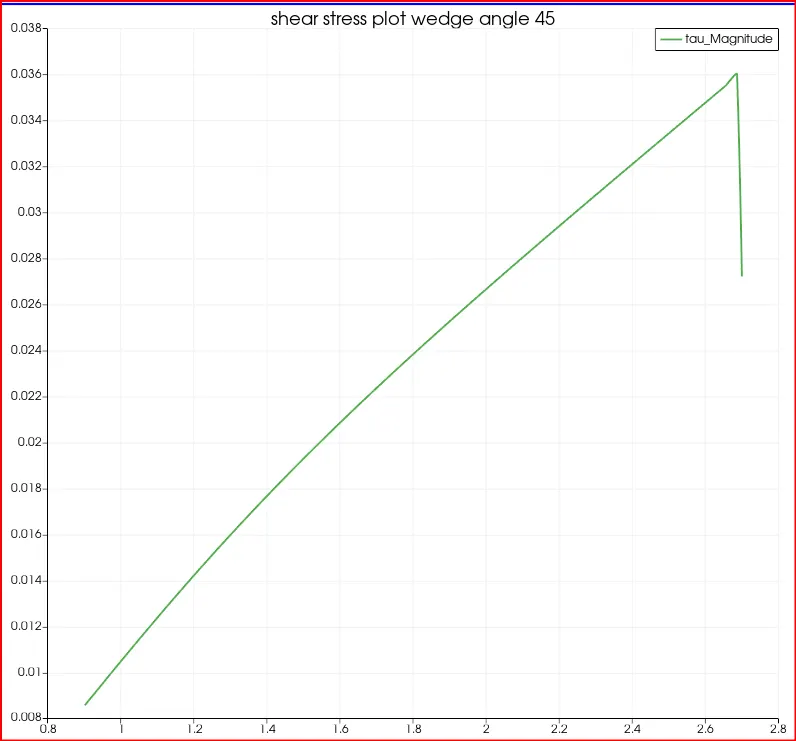

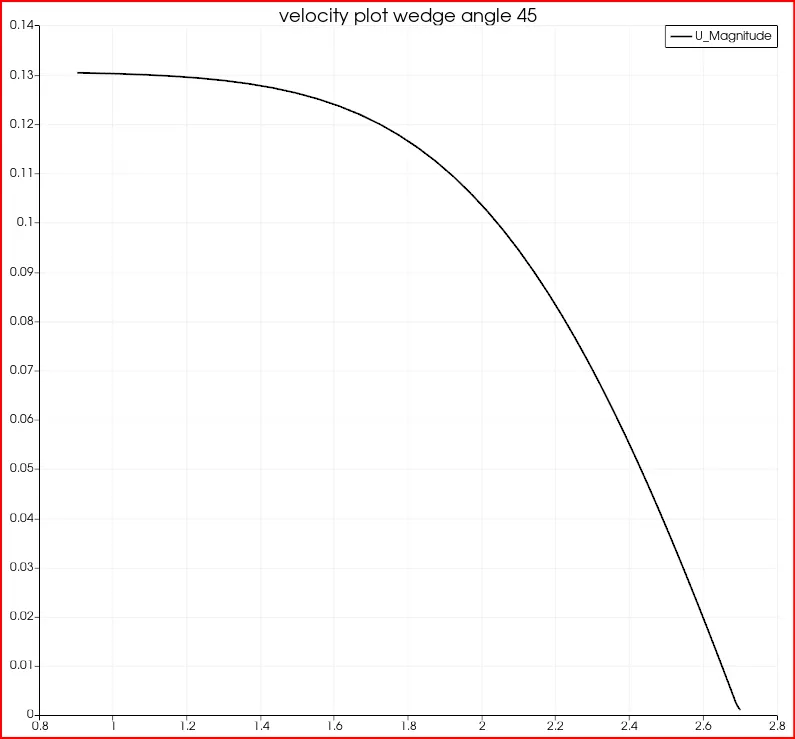

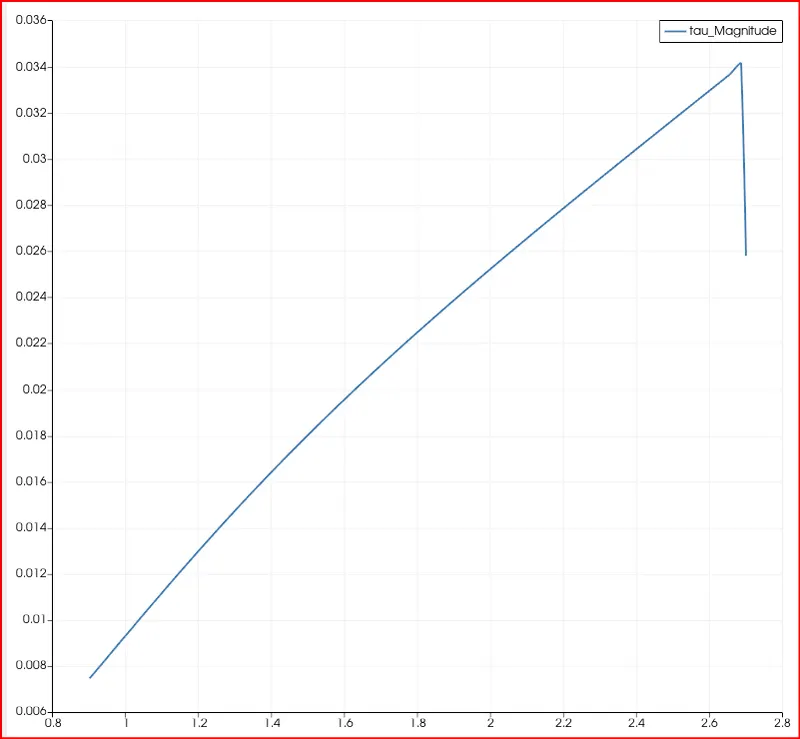

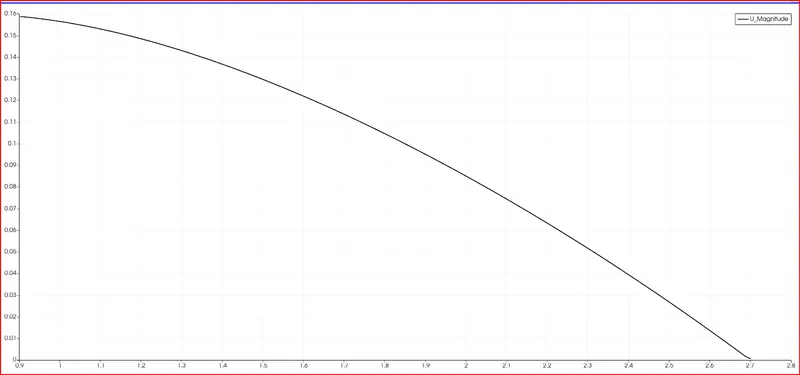

For wedge angle 45

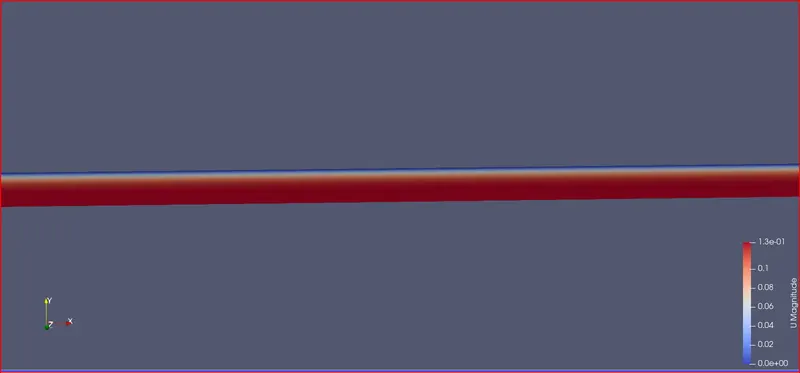

For Symmetry Boundary Condition:

BlockMesh Dict File

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  7
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       dictionary;
    object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *//
convertToMeters 1;

vertices
(
   (0 0 0)
	(0 9.762960e-03 2.164396e-03)
	(0 9.762960e-03 -2.164396e-03)
	(2.700000e+00 0 0)
	(2.700000e+00 9.762960e-03 2.164396e-03)
	(2.700000e+00 9.762960e-03 -2.164396e-03)
);

blocks
(

    hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.2 1)
);

edges
(
   arc 1 2 (0 1e-02 0)
   arc 4 5 (2.7 1e-02 0)
);

boundary
(
    inlet
    {
        type patch;
        faces
        (
            (0 1 2 0)
        );
    }

    outlet
    {
        type patch;
        faces
        (
	    (3 5 4 3)
        );
    }

    fixedWalls
    {
        type wall;
        faces
        (
            (2 1 4 5)
        );
    }

    axis
    {
        type empty;
        faces
        (
            (0 3 3 0)
        );

    }

    front
    {
	type symmetry;
	faces
	(
           (0 3 4 1)
	);
    }

    back
    {
   	type symmetry;
	faces
	(
           (0 2 5 3)
	);
    }
);

mergePatchPairs
(
);

// ************************************************************************* //

Control Dict File

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    location    "system";
    object      controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

application     icoFoam;

startFrom       startTime;

startTime       0;

stopAt          endTime;

endTime         50;

deltaT          0.01;

writeControl    timeStep;

writeInterval   200;

purgeWrite      0;

writeFormat     ascii;

writePrecision  6;

writeCompression off;

timeFormat      general;

timePrecision   6;

runTimeModifiable true;


// ************************************************************************* //

Pressure

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inlet
    {
        type		zeroGradient;
    }

    outlet
    {
        type            fixedValue;
        value           uniform 0;
    }

    fixedWalls
    {
        type            zeroGradient;
    }

    axis
    {
        type            empty;
    }

    front
    {
        type            symmetry;
    }

    back
    {
        type            symmetry;
    }
}

// ************************************************************************* //

Velocity

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0 0 0);

boundaryField
{
    inlet
    {
        type		fixedValue;
        value           uniform (0.0935 0 0);
    }

    outlet
    {
        type            zeroGradient;
    }

    fixedWalls
    {
        type		noSlip;
	//type            fixedValue;
	//value		uniform (0 0 0);
    }

    axis
    {
        type            empty;
    }
    front
    {
        type            symmetry;
    }

    back
    {
        type            symmetry;
    }
}

// ************************************************************************* //

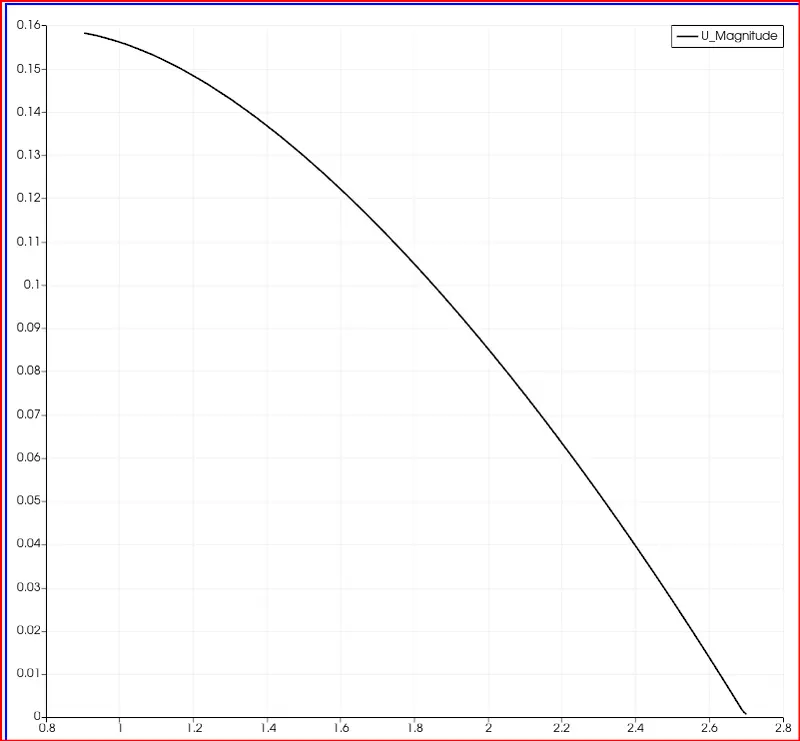

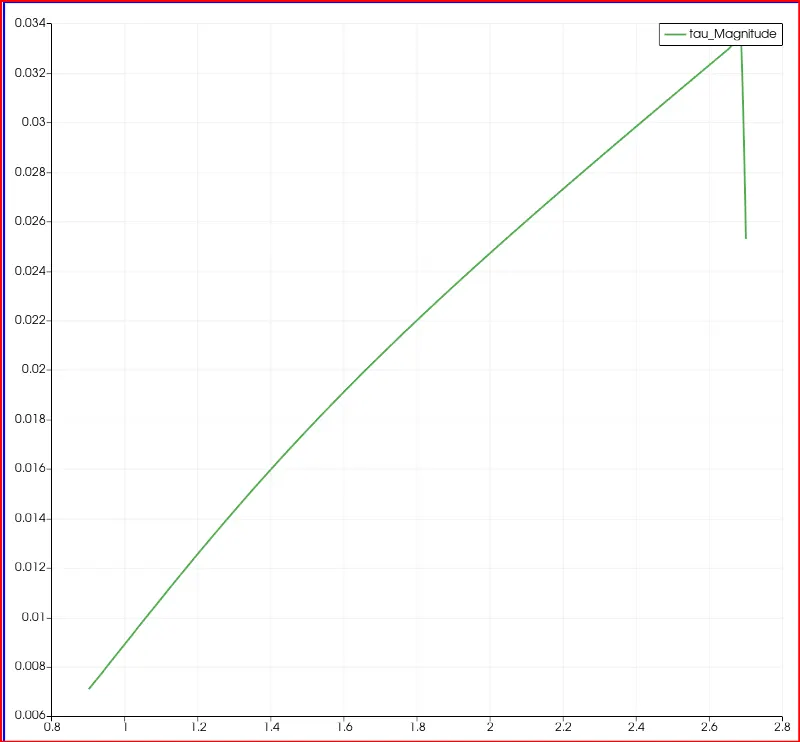

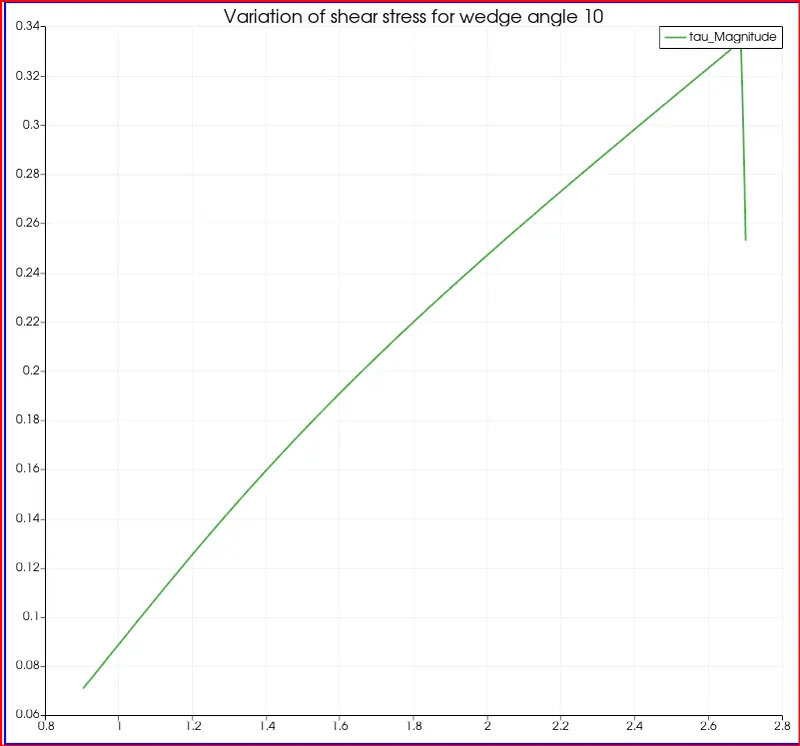

For 10 deg angle

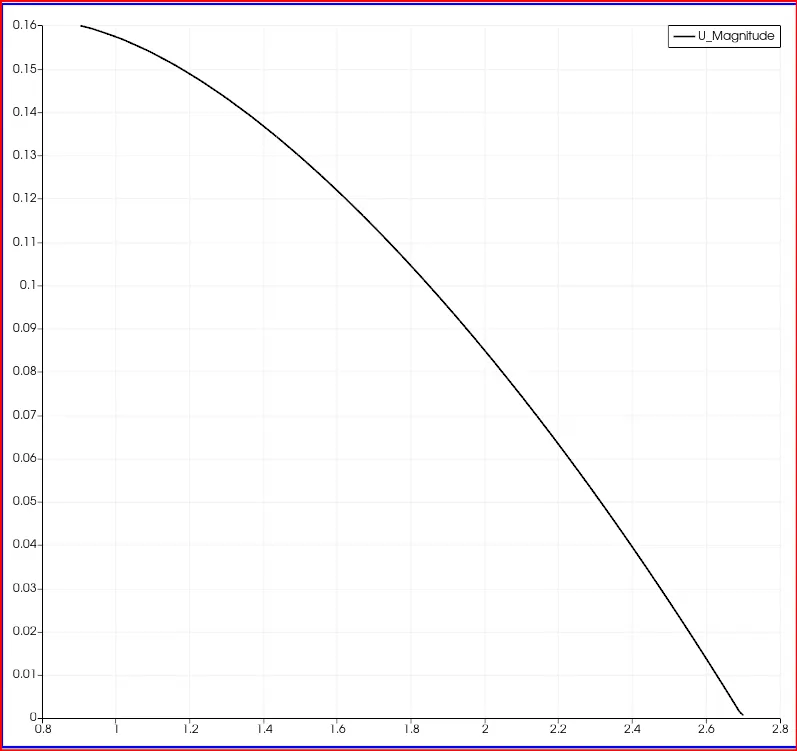

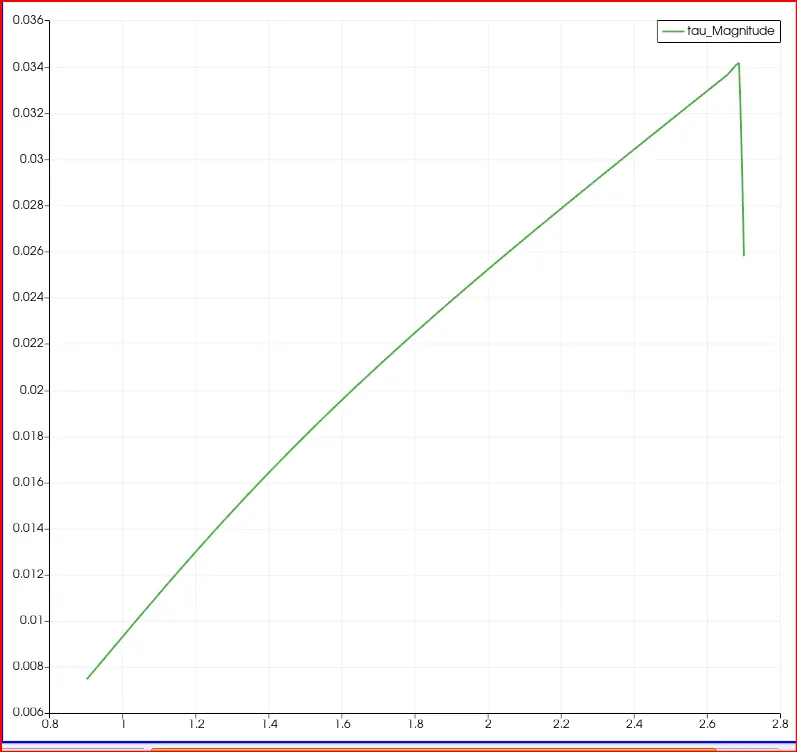

For 25 deg angle

For 45 deg angle

Conclusion:

Plot of shear stress and max velocity is plotted for both symmetry boundary condition as well as wedge boundary condition for various wedge angles.

Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
