Week 12 - Project 6 - Master Section Development

Surface Design of Switch Bezel

Aim: To create surface design and draft analysis using tooling axis for the given model class A surface using CatiaV5

In the Fig. 9.1, 2.2 & 3.3 shows the Sketch solving status, Tree Structure and 3D model and 1.4 shows the Draft analysis

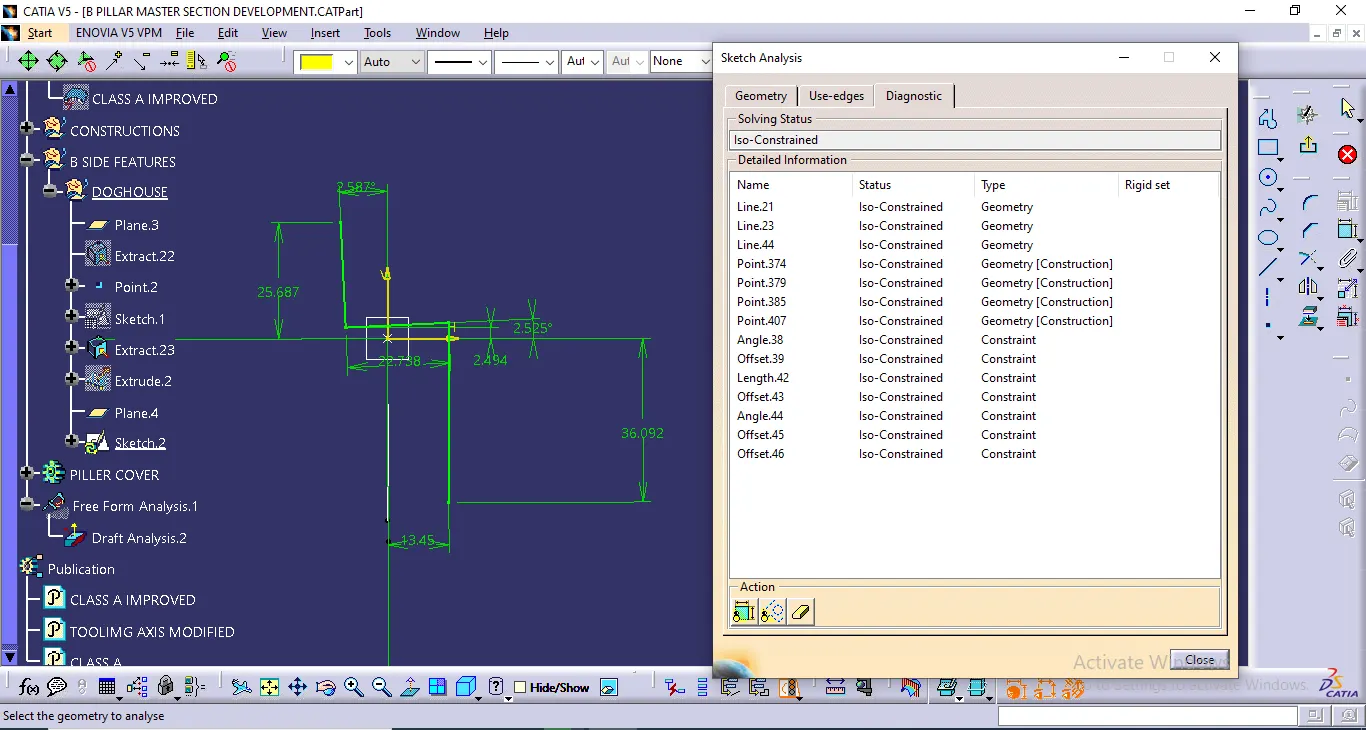

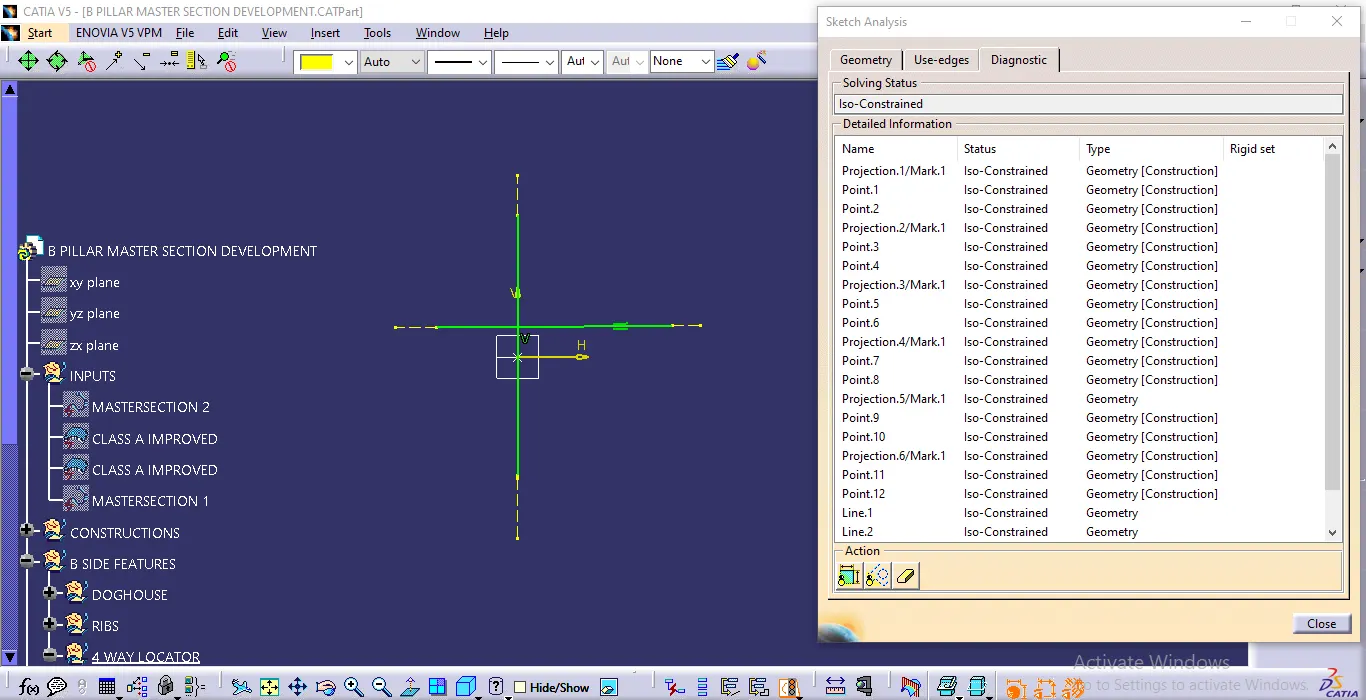

Fig. 1.1: Sketch solving Status

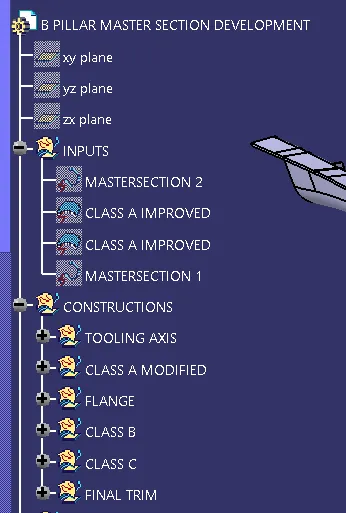

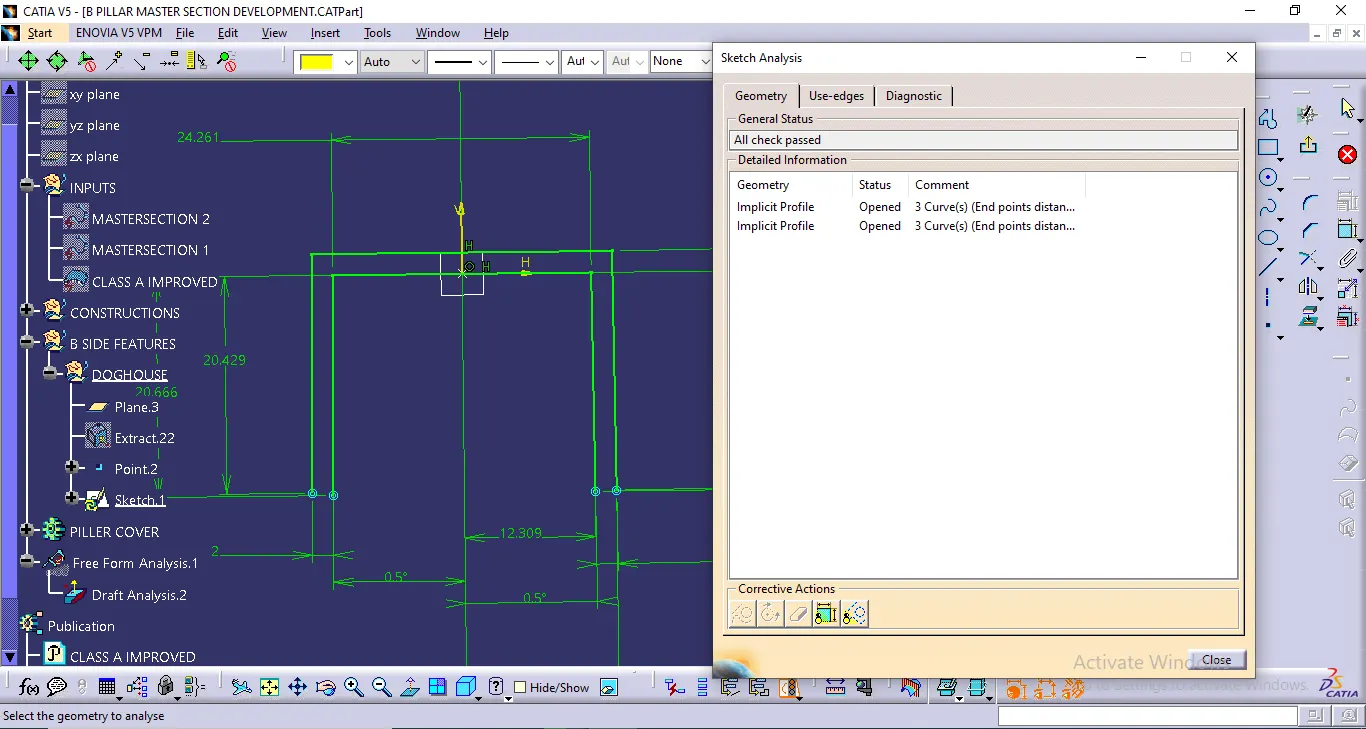

Fig. 1.2: Tree Structure

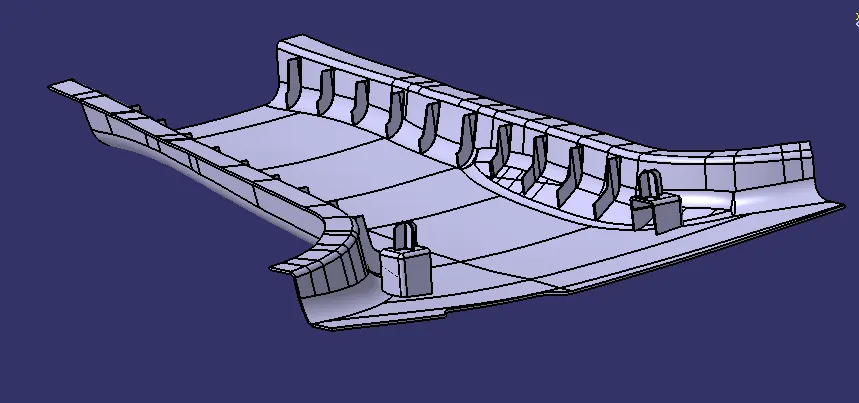

Fig. 1.3: 3D Model

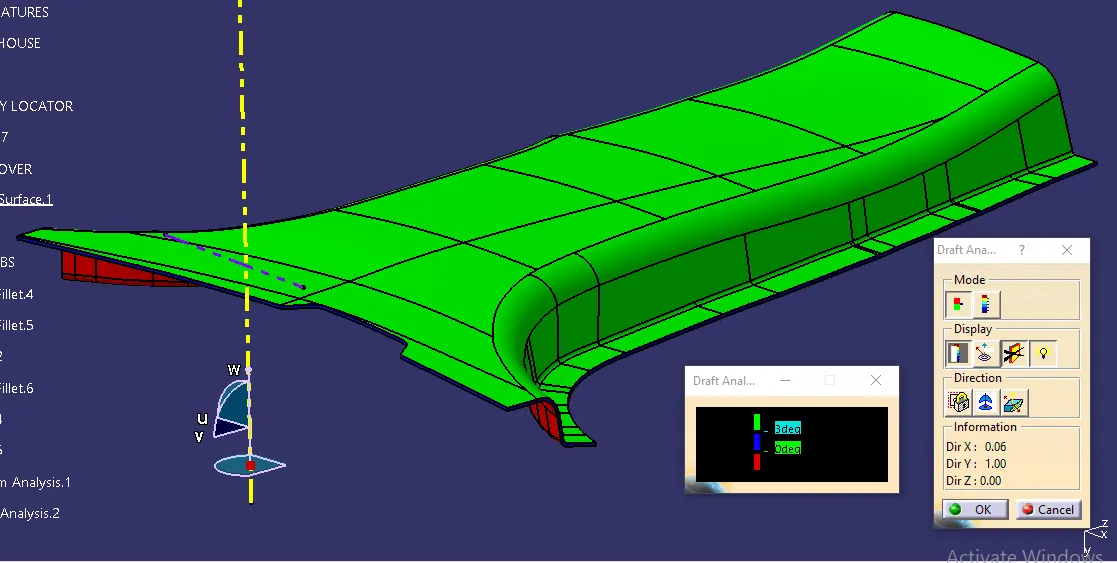

Fig. 1.4: Draft Analysis
