Week 12:Project 2-Meshing of Rear Wheel Holder challenge
AIM:To mesh the given side-door panel plastic component by the following quality criteria and assign thickness.
Target Element Length = 4mm
S.N Quality Criteria Value
1 Aspect Ratio 5
2 Skewness 45
3 Warping 15
4 Taper 0.5
5 Min. Length 2mm
6 Max. Length 6mm
7 Min angle Quad 45
8 Max angle Quad 135
9 Min angle Tria 20
10 Max angle Tria 120
10 Tria % 10
OBJECTIVE:
1. To geometrically clean the given surface for any errors in it.
2.To extract a proper midsurface for the component.
3.To clean the midsurface so as to avoid any minimum length errors in it.
4.To mesh the component with minimum number of tria elements and cleaning all the quality crieteria set for the model.
5.To assign thickness to the various parts in the model.
PROCEDURE:
STEP 1 :- Component Study
- Its a car's floor panel.
- The given component is a plastic component. So it will be having varying thickness.
- The main part of the component is of 7.5 thickness.
-tire is placed in this component.

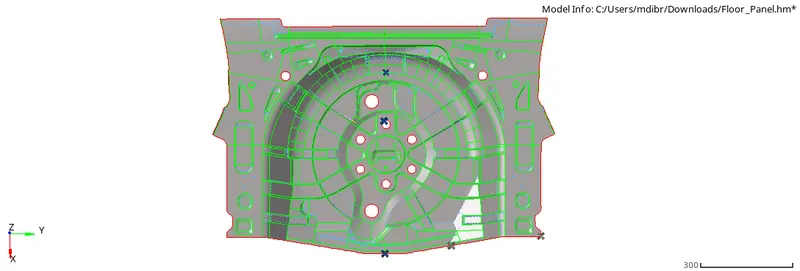

- While going through the parent geometry we can see that there are many deformations formed while importing the geometry to hypermesh.
STEP 2: Opening the File:
-The File given is a ‘.hm’ File. It can be opened directly by following the steps.
-open the downloaded file.
-after opening the file to view the model click f key.
-Change the mode to topo.
STEP 3: Geometry cleanup:
-After importing the model we can Check for deformation.
a) We can easily fix this by using Filler Surface.
b) Go to Quick Edit in Geometry.
c) Use Filler Surf tool click on the boundary of the gap. Then you can see the gap is filled and the boundary of the gap will be toggled.
STEP 4: Mid surface generation and its geometry cleanup of mid surface.
A. Auto mid-surface (Just for referance while making manual Mid-surface)
- There is Auto Midsurface option but we cannot use that in here because it will delete some features that we needed. But we can first create one to know about the shape which our manual mid surface will be almost be looking like.
-For Auto midsurface go to Geometry>Midsurface
-Go to extraction options then choose skin offset for better offset

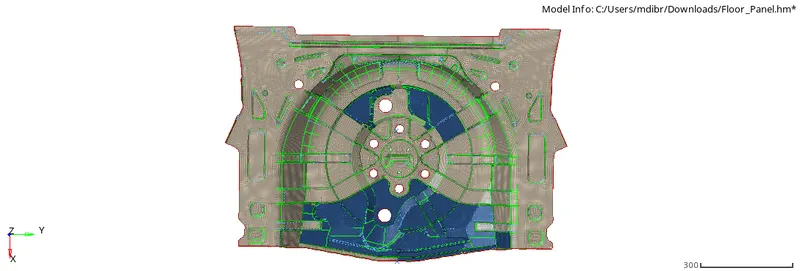

-Then go back to auto extraction, Select the parent surface body which we want to create auto mid surface. Duplicate it. Then click on extract.
-After sometime we get the auto midsurface
-Mnual midsurface is also imployed sometimes for tricky surfaces.
Cleaning up of the mid surface
- Small gaps and unnecessary hole can be filled using Filler surface tool in quick edit
- Small deformations can be made good using Replace points in quick edit

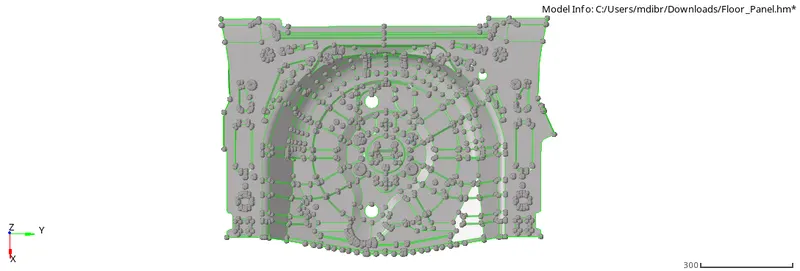

-Lines which will be failing for minimum length error can be eliminated using toggle edge in quick edit.
-Proper connection shall be established between lines.
STEP 5: Setting up Quality criteria-

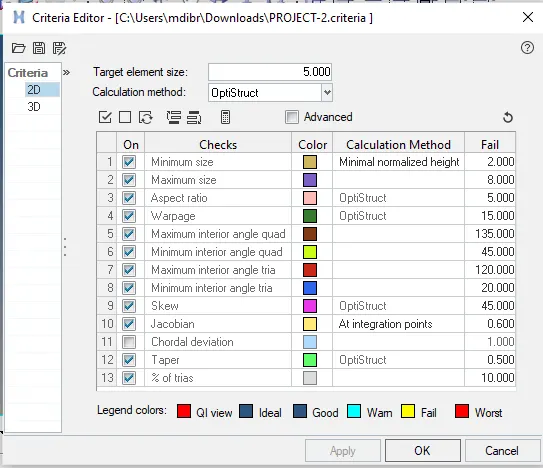

-For setting up the criterias as given the project we need to go to Criteria editor.
- For that go to Preferences> Criteria file settings
- In that tick in the boxes near which all the criteria we wanted and give the values for each criteria.
- Save the Criteria file so that we dont need to enter it each time.
- Click on Apply
-Click on Ok.
STEP 6:- Meshing:
- After setting up the Quality criteria we can start the meshing process.

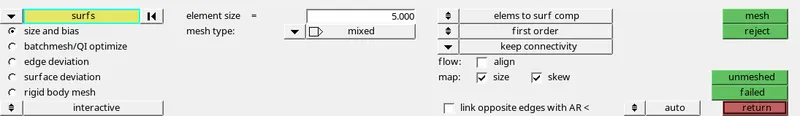

- 2D> Automesh.
- After clicking on the surface box Select the surfaces needed to be meshed.
- Give element size as 4 as in the question
- Give the mesh type as Mixed.
- Elements to surface component is choosen to add the mesh to the surface component
- Keep connectivity is given to keep the mesh connectivity
- Check the Align and size to get a good mesh flow.
- Click on mesh.
- We can change the surface to elements and select the elements we want to remesh and click on Mesh to remesh the elements

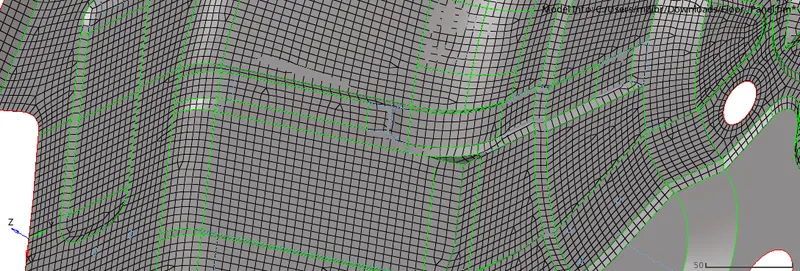

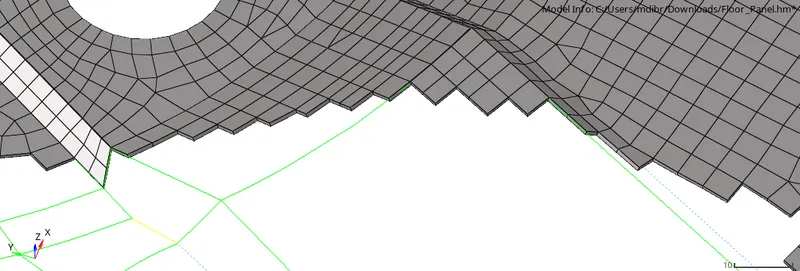

- The mesh we get will have a huge number of trias, fixed trias and rotational quads. also the mesh flow wont be in a good pattern.
- Inorder to make it a good mesh. We will reduce the number of trias ( removing the unwanted trias)
- This can be achived be going to 2D> Quality Index> Cleanup tools.
- We can remove trias and get good mesh flow by using the cleanup tools

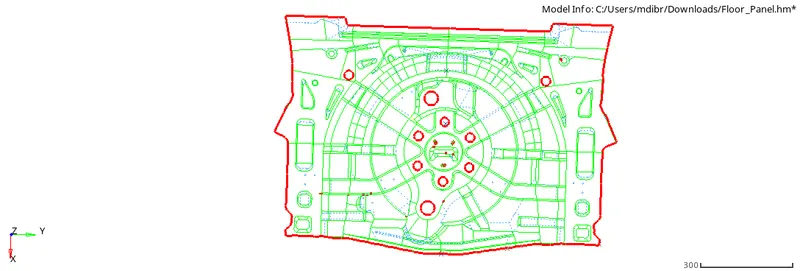

To check Free Edges:
-For checking normal we need to go to Tool> Edges
-Choose Elements> the select the whole elements.
-Click on Find edges.
-Now Hide other parts and Make edges mesh only visible.
-Now check if there is red line on any area which is not a boundary.
STEP 9: Assigning thickness
-After the whole meshing is done we can assigin thickness to the mesh inorder to make the 2dmesh exact as the real product.
-First step for assigining thickness is to move parts with same thickness to the same component.
-To create a component . Right click on the Model view area> Create > component.
-Now rename the component with Thickness value for easy workflow.
-Move the parts to its assigned components based on the thickness.
-Tools> Organise> Collectors.
-Select elements and choose elements that we want to move.
-In destination component choose the component to where we want to move these elements.
-Click on move.
-After making the whole components, we need to make the properties for each thickness.
-To make property. Right click on Model view area > Create> Property.
-Rename the property with the thickness value.
-Also set the thickness of the property. By clicking on property we can see its details below.
- In that we can see a T which represents the thickness give the thickness value . Click on enter.
-To Apply the property to the Components. Right click on component
-Select assign. Choose the property of the component from the pop up dialogue box
-Click on Apply. Click on Ok.
-----------------------------------------------XXXXXXXXXXXXXXXXXXXXXXXX-------------------------------------
