Week 12:Project 2-Meshing of Rear Wheel Holder challenge
AIM:
To Mesh the given "REAR WHEEL HOLDER MODEL" by satisfying the given quality criteria and with a target element size of "5mm".
OBJECTIVE:
To Follow the mentioned quality criteria, mesh the component given with a target element size of "5mm" and assign thickness:
PROCEDURE:
STEP-1: EXTRACTING MID SURFACE FOR THE GIVEN COMPONENTS:

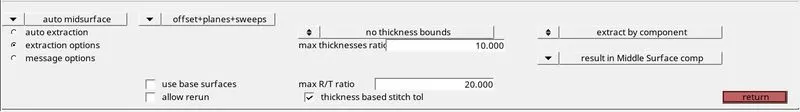

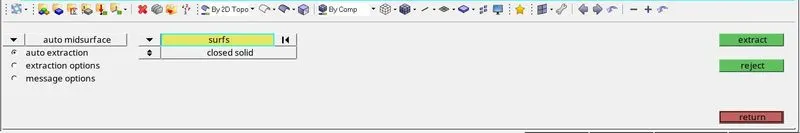

GOTO: 'Geom' >> 'Midsurface' >> 'Select auto extraction' >> 'Select the component of which the mid surface to be extracted' >> 'Hit extract'

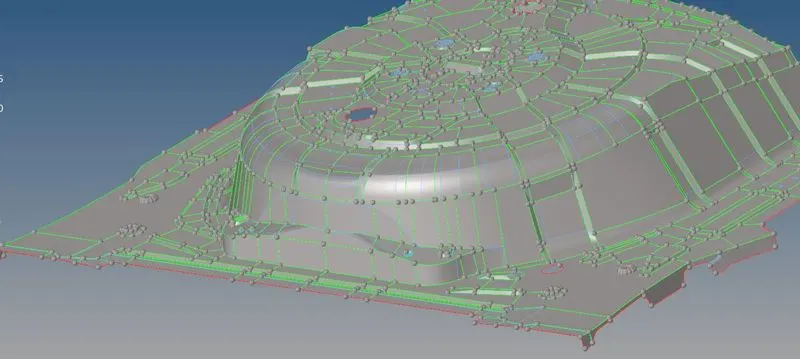

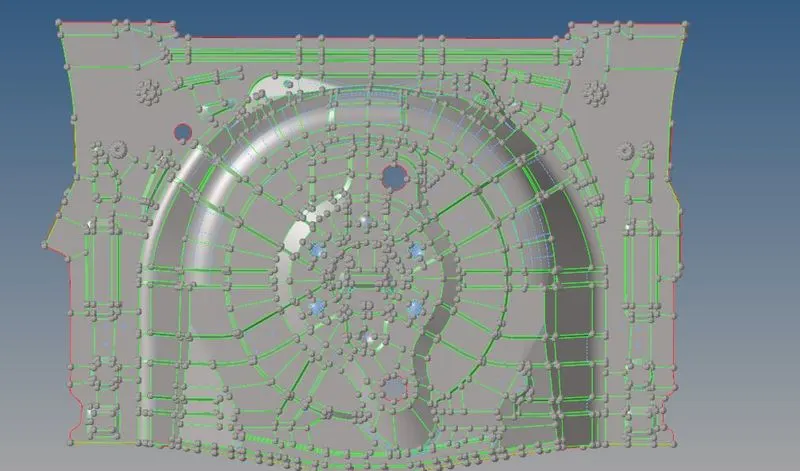

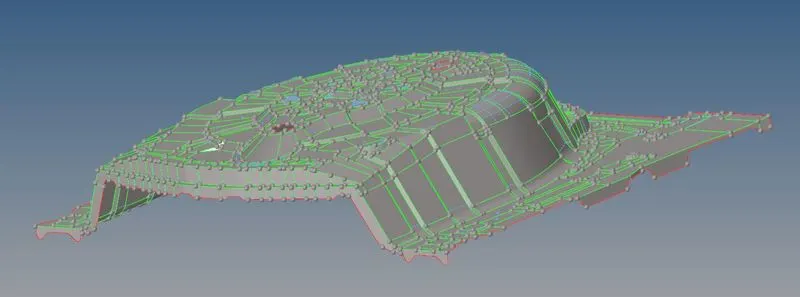

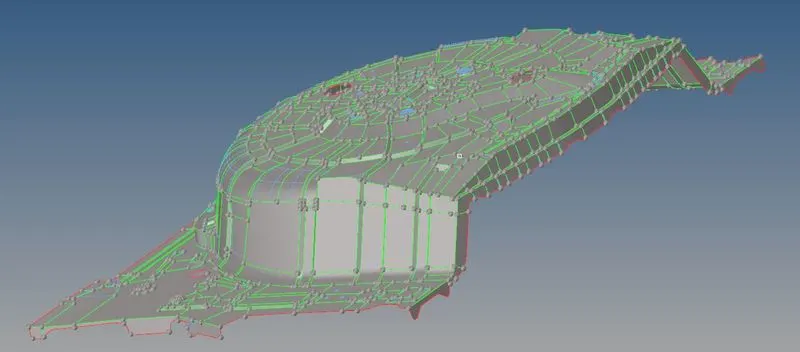

1. MID SURFACE OF REAR WHEEL HOLDER MODEL :
IMAGE-1:
IMAGE-2:
IMAGE-3:
IMAGE-4:
STEP-2: TO SET MESH QUALITY CRITERIA BEFORE STARTING MESHING AS SHOWN BELOW:

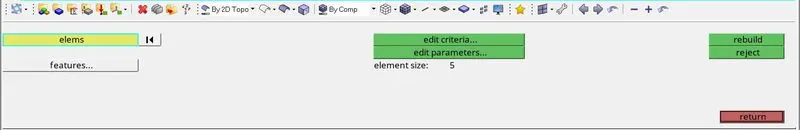

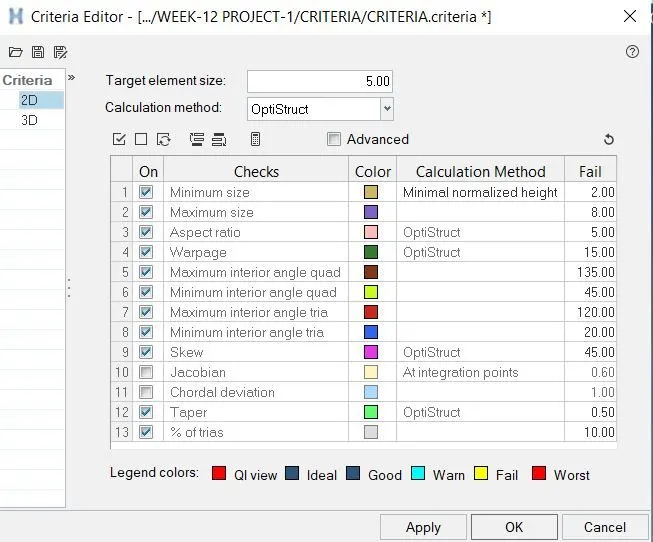

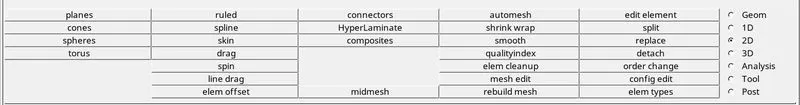

GOTO: '2D' >> 'Elem cleanup' >> 'Edit criteria' >> 'To apply all the above given quality criteria values in the tabulated window as shown below' >> 'Hit apply and OK'

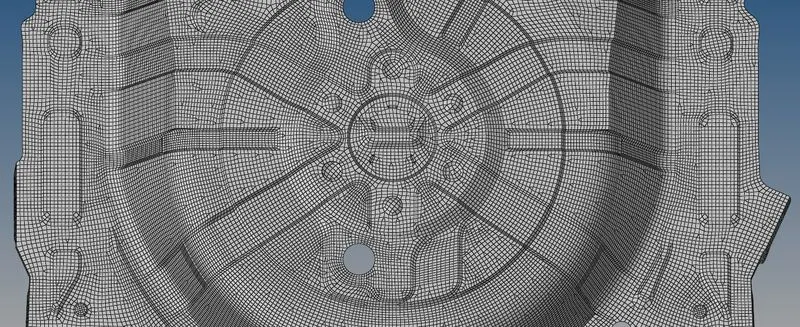

STEP-3: TO START MESHING:

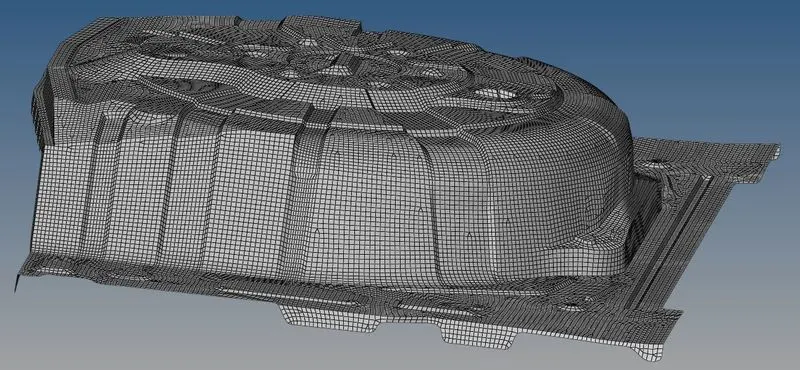

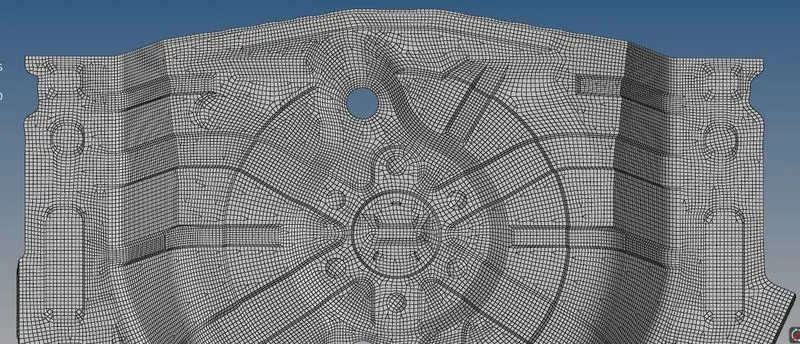

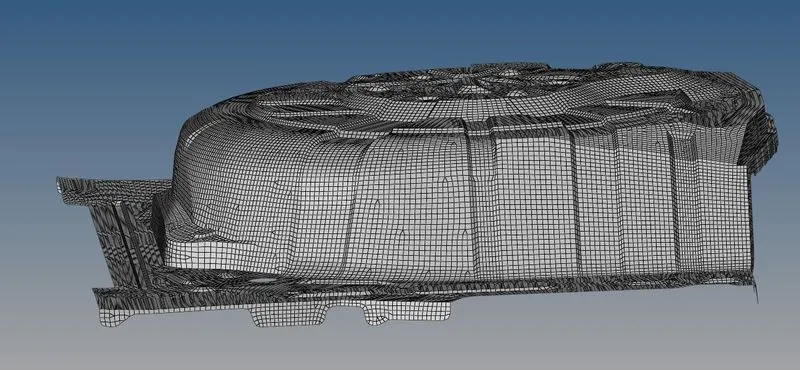

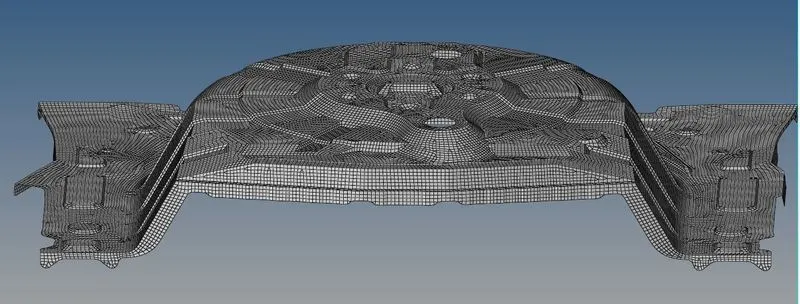

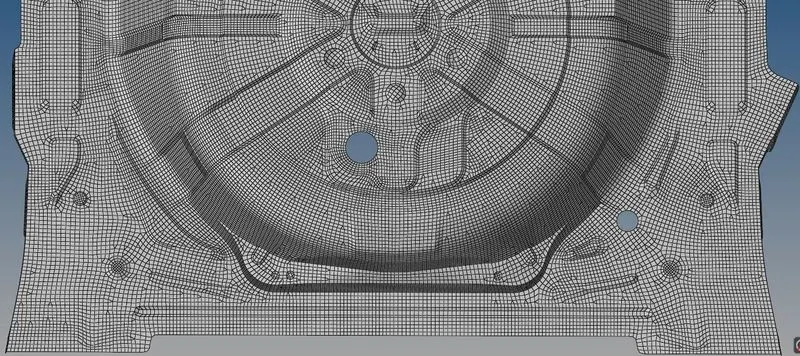

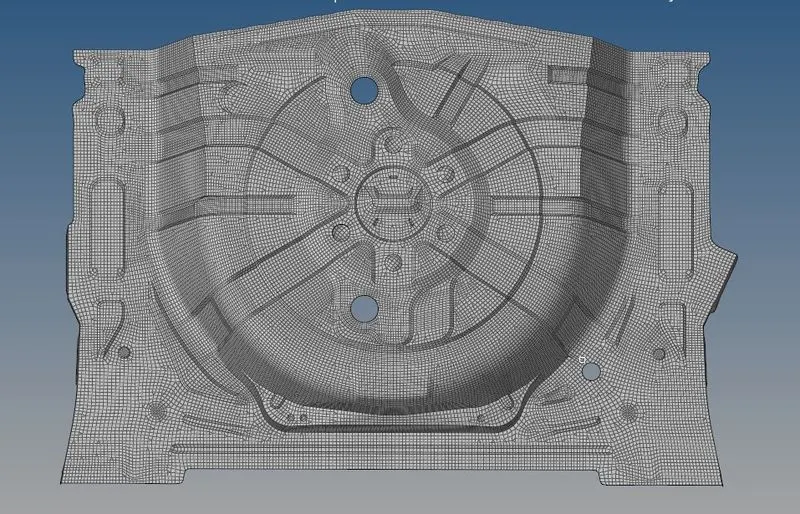

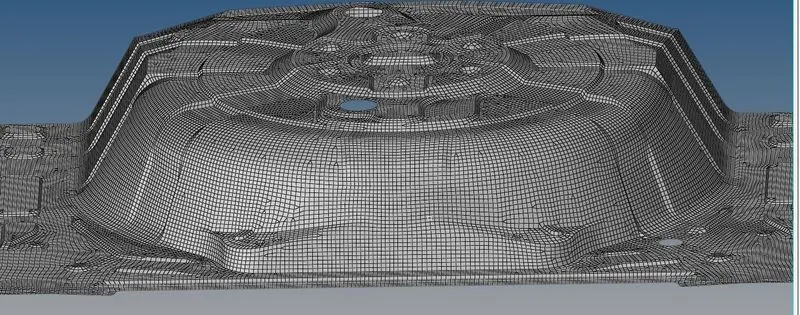

IMAGE-1:
IMAGE-2:
IMAGE-3:
IMAGE-4:
IMAGE-5:
IMAGE-6:
IMAGE-7:
IMAGE-8:
STEP-4: TO ASSIGN THICKNESS IN PROPERTIES FOR ALL THE RIBS WHICH ARE OF DIFFERENT THICKNESS:

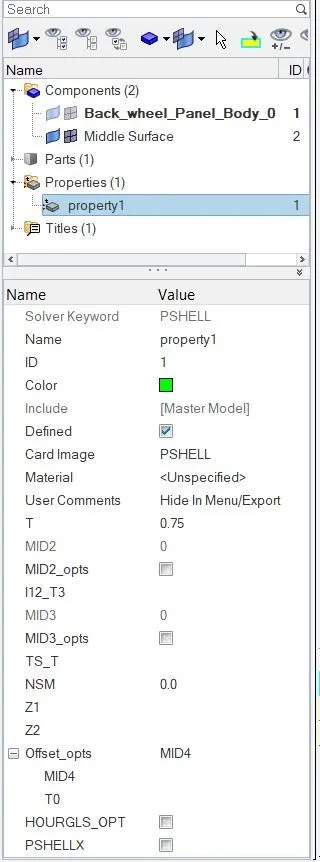

BELOW IMAGE SHOWS THE THICKNESS ASSIGNED IN THE PROPERTIES:
TOOLS USED WHILE MESHING THE ABOVE COMPONENTS:
1.2D TOOLS:

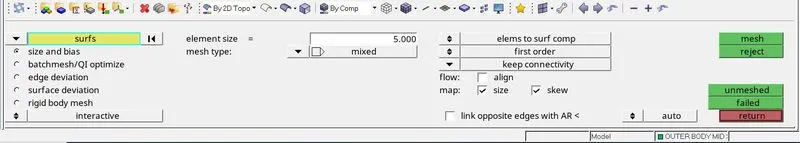

2. AUTOMESH TOOL:

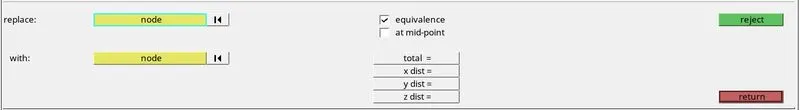

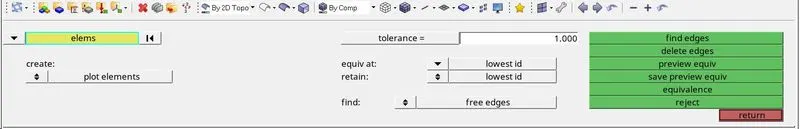

3. EDGES TOOL TO EQUIVALENCE THE NODES CONNECTIVITY:

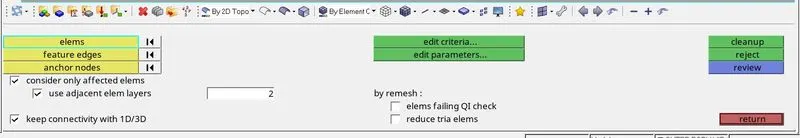

4. ELEMENT CLEAN UP TOOL:

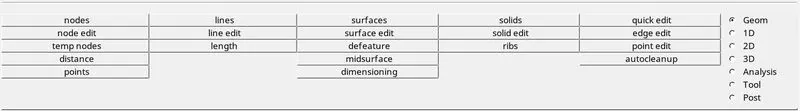

5. GEOM TOOLS:

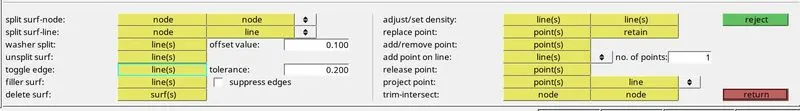

6. GEOMETRY CLEAN UP TOOLS:
7. MESH REBUILD TOOL:
8. MID SURFACE TOOL 1:
9. MID SURFACE TOOL 2:
10. ORGANIZE TOOL:

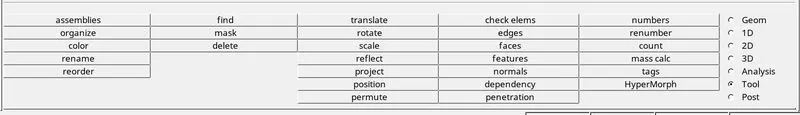

11. TRANSLATE, PROJECT, EDGES, REFLECT, CHECK ELEMS TOOLS:

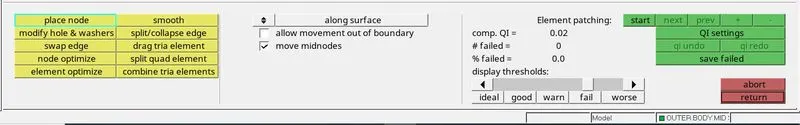

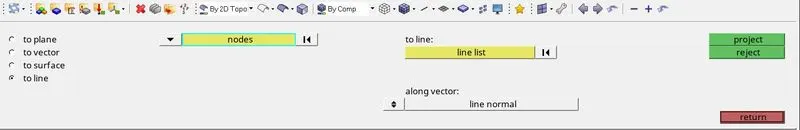

12. PROJECT TOOL: TO PROJECT NODES TO A SPECIFIC LINE:
13. QUALITY INDEX TOOL:

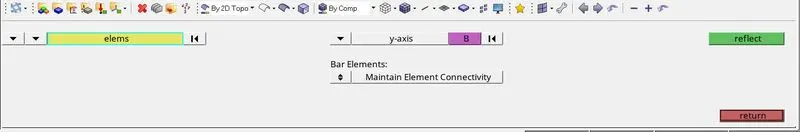

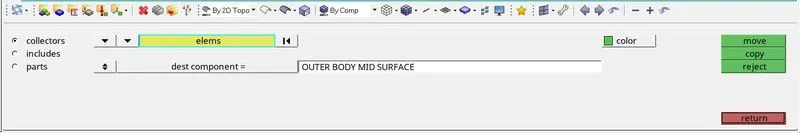

14. REFLECT TOOL USED TO REFLECT THE ELEMENTS:
15. REPLACE TOOL:

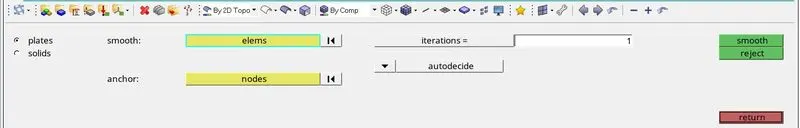

16. SMOOTH TOOL:

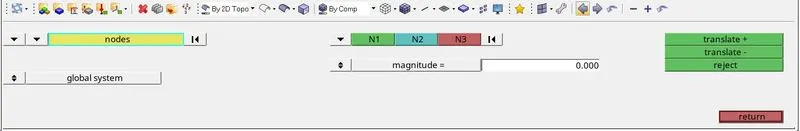

17. TRANSLATE TOOL:
