Aim:

To make mid surface, mesh as per mentioned quality criteria then assign thickness:

Procedure:

1.check the model thickness. If more then 6mm go with solid meshing or below that make midsurface.

2.check any surface damage is there. If there creat that surface and use auto meshing. For given component was more surface damge.so make offect methode for outer surface.

3.Make new quality file for given Quality Criteriasave as new file.

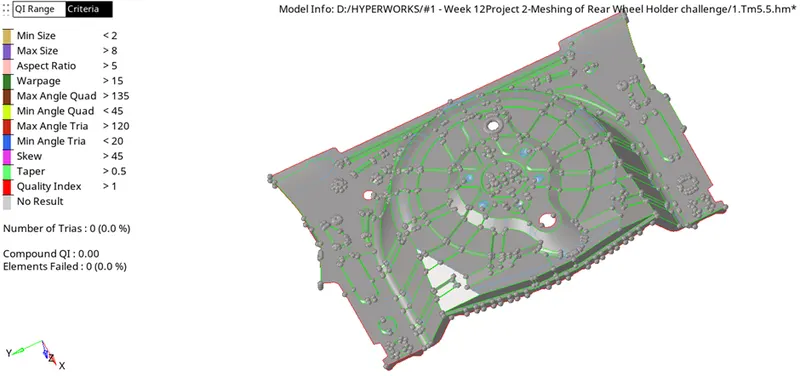

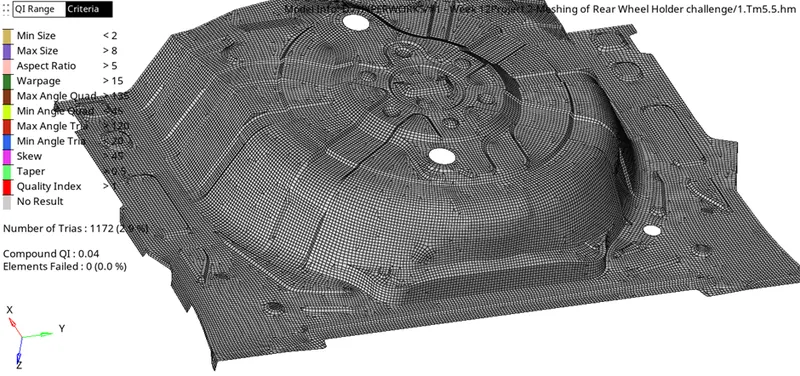

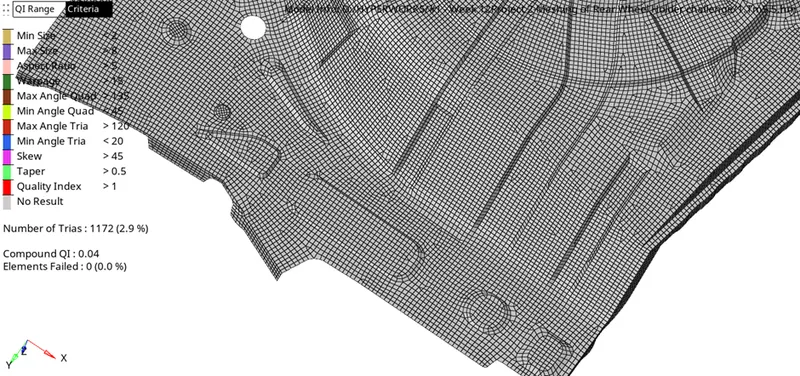

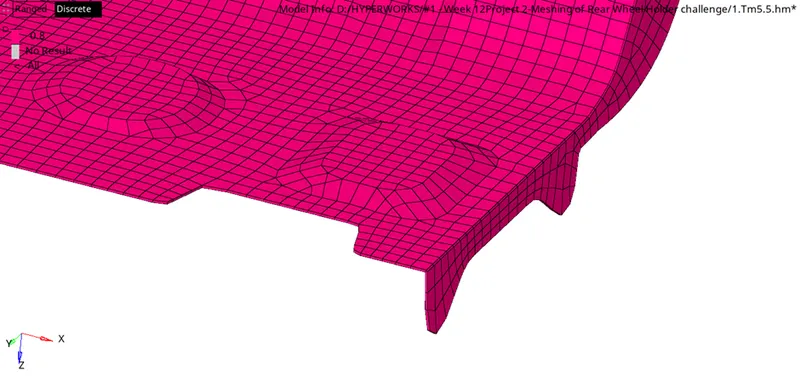

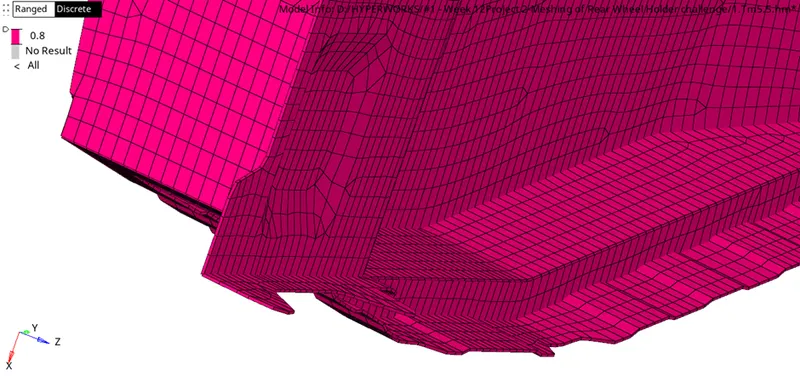

4.Make mesh for given mid surface as per quality criteria.

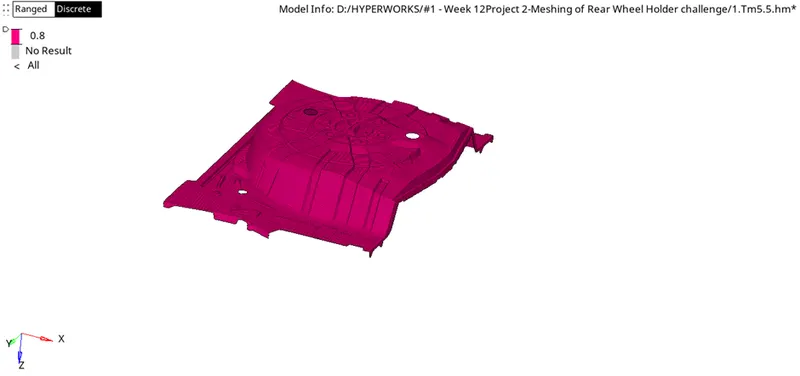

Result:

This given model did as per quality and assign thickness.
