Week 12:Project-1-Meshing of Door Inner Panel Challenge
REPORT ON PROJECT_1: Meshing of Door Inner Panel Challenge
AIM: To mesh the following component and assign thickness with given quality criteria:
|
S.N |
Quality Criteria |
Value |
|
1 |
Aspect Ratio |
5 |
|
2 |
Skewness |
45 |
|
3 |
Warping |
15 |
|
4 |
Taper |
0.5 |
|
5 |
Min. Length |
2 Units |
|
6 |
Max. Length |
6 Units |
|
7 |
Min angle Quad |
45 |
|
8 |
Max angle Quad |
135 |
|
9 |
Min angle Tria |
20 |
|
10 |
Max angle Tria |
120 |
|
11 |
Tria % |
10 |
|
12 |
Target Element Length |
4 Units |

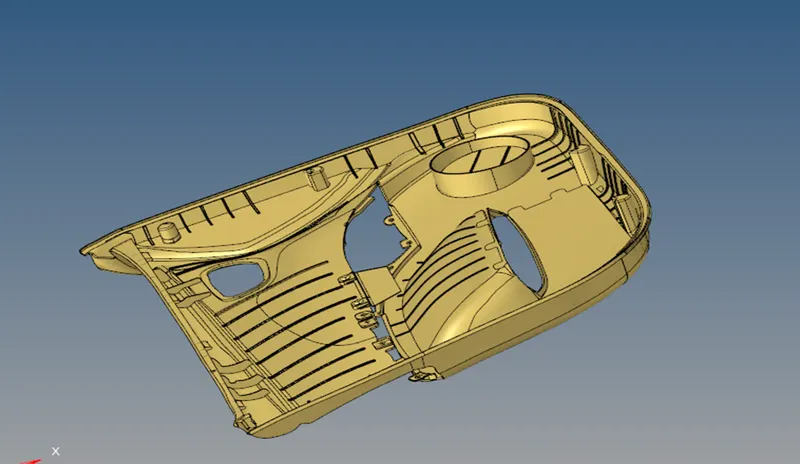

MODEL:
PROCEDURE:

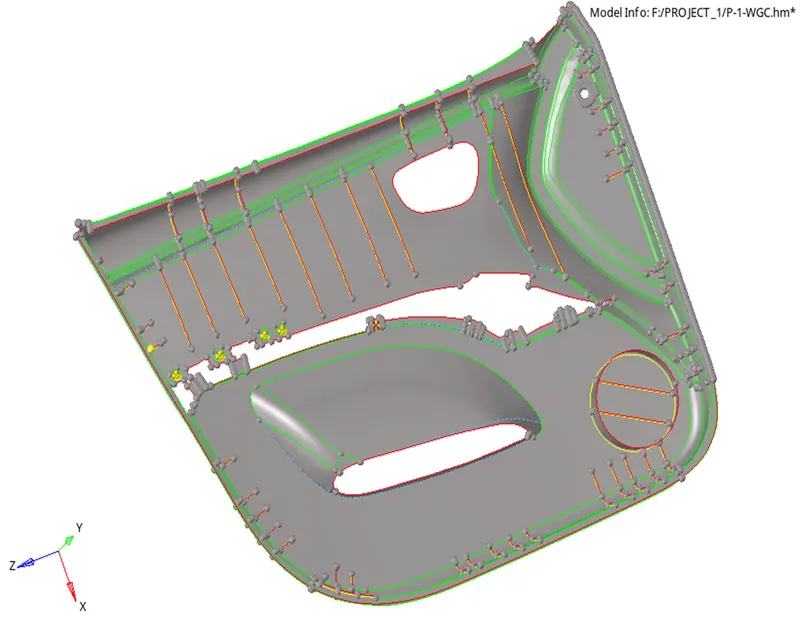

MID-SURFACE GENERATION: This process is divided into two parts.

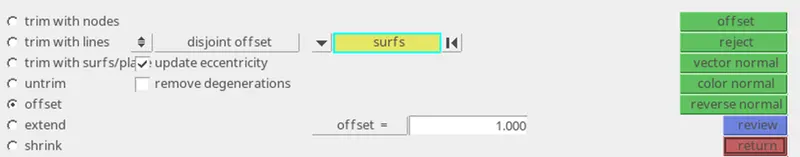

- For A-surface manual offset method is used for mid surface.

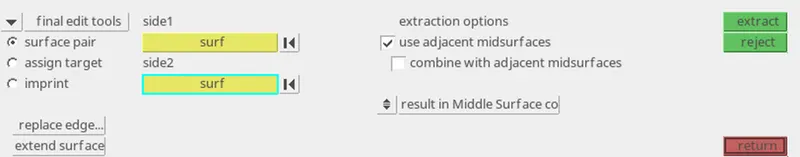

- For feature surfaces final edit tool in mid-surface command is used to extract the middle surface.

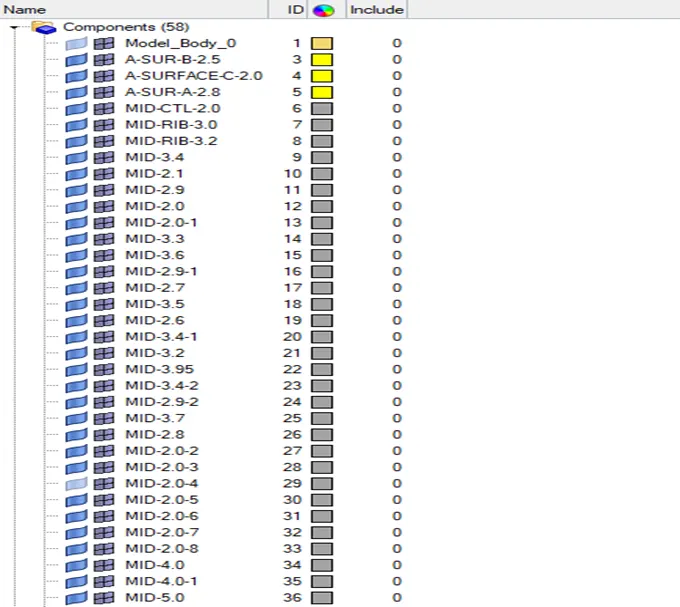

FOLLOWING MID-SURFACES ARE GENERATED WHICH ARE KEPT IN THE FOLLOWING CONTAINERS WITH RESPECT TO THEIR THICKNESS:
BUT SECTION WHICH HAVE THICKNESS ABOVE 6 M.M ARE NOT CONSIDERED IN THIS MODELLING APROACH.
MESHING PROCEDURE:
After extracting mid surface meshing was carried out here quality criteria and proper mesh flow was maintained.

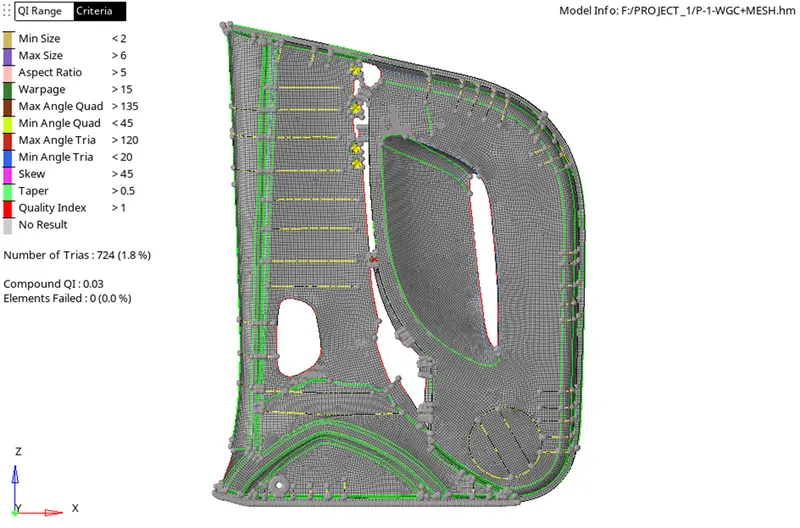

RESULTS:

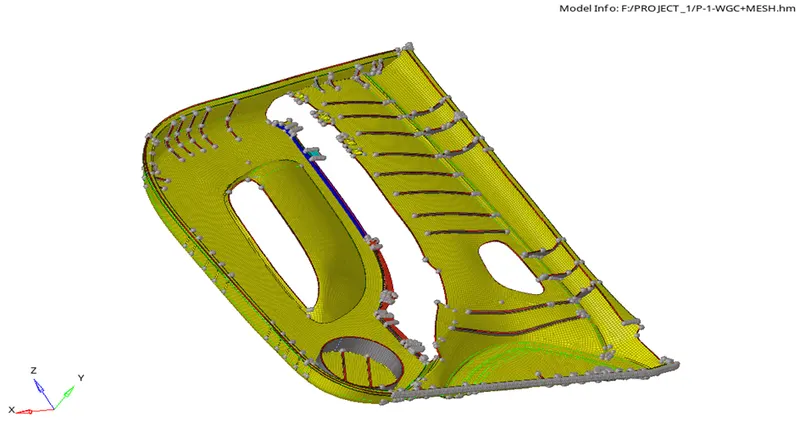

AFTER THICKNESS ASSIGNMENT:
