Week 12:Project-1-Meshing of Door Inner Panel Challenge

AIM: To Mesh the door inner panel (plastic component).

OBJECTIVE: To mesh the given component with the given criteria.

Target Element Length = 4 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Given component.

PROCEDURE:

• Import and cleanup the geometry.

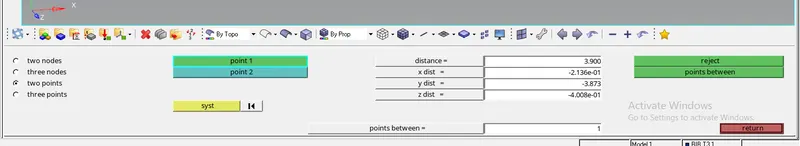

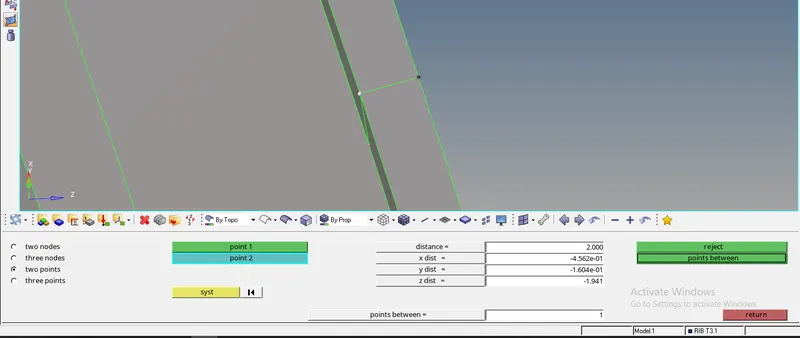

• Then, check the thickness of the geometry since the component is plastic so, it will be having varying thicknesses at the different parts. To check the thickness go to Geo > Distance>Two points

Likewise check for the thickness at different regions if no points are available Go to > quick edit panel> add points

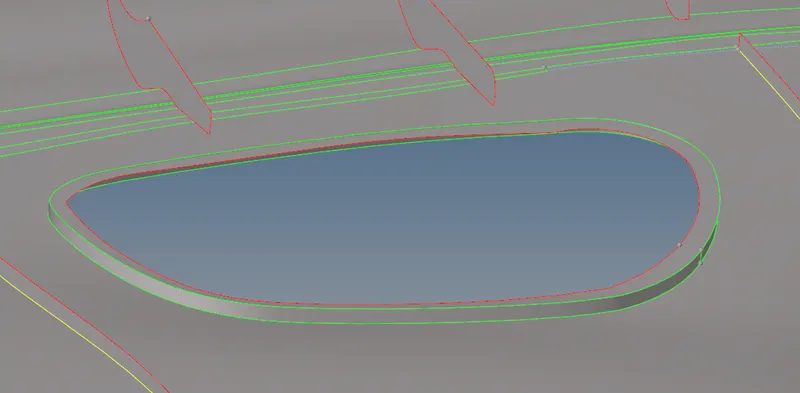

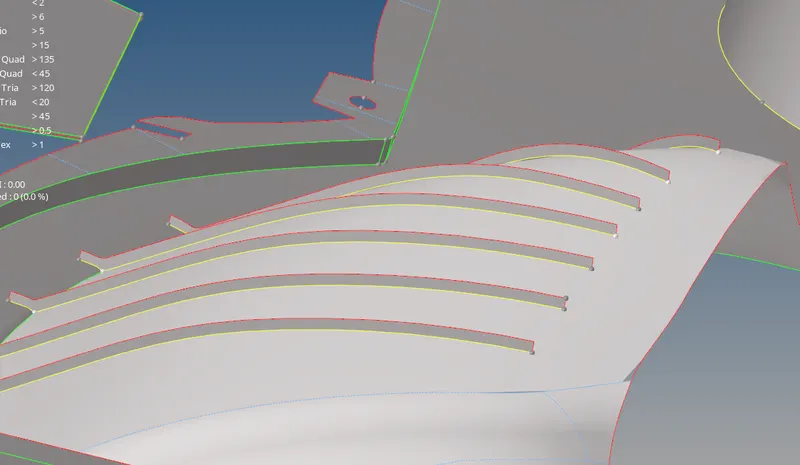

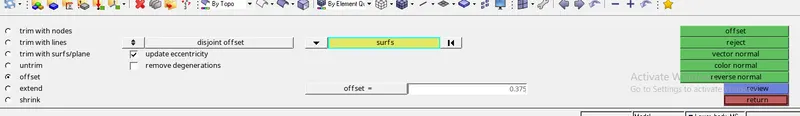

• Thickness of the given component seems almost same for the lower surface so, we can use surface offset option to extract the mid surface. To extract mid surface go to geo>surface edit>offset>select surface by face>offset

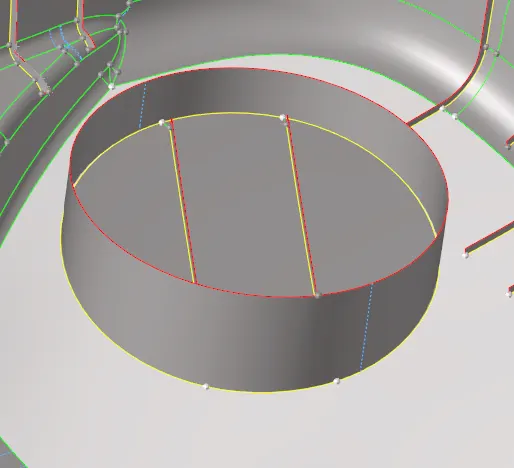

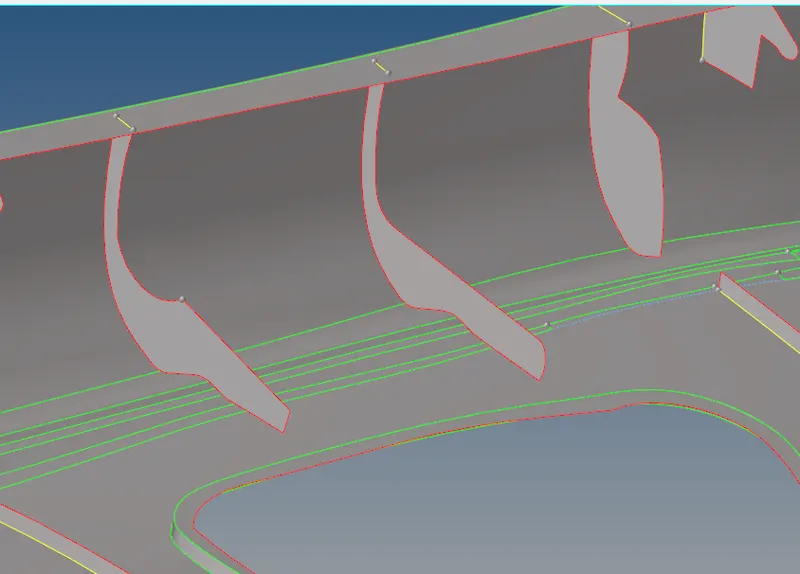

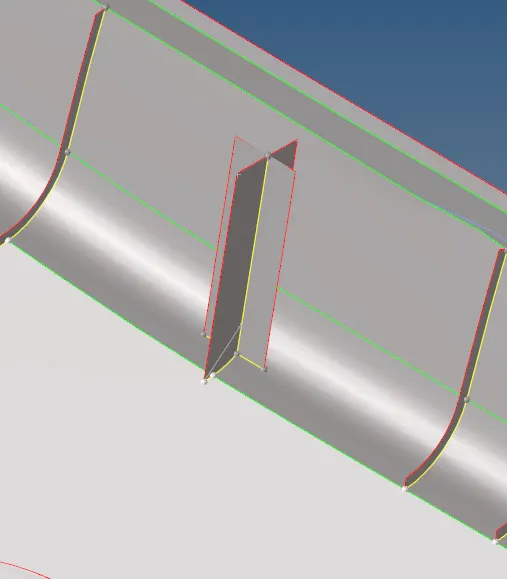

• For the remaining parts of the components which are having different thickness we can use surface pair option to extract the midsurface. for that go to geo>midsurface>final edit tool>surface pair>select surfaces >extract.

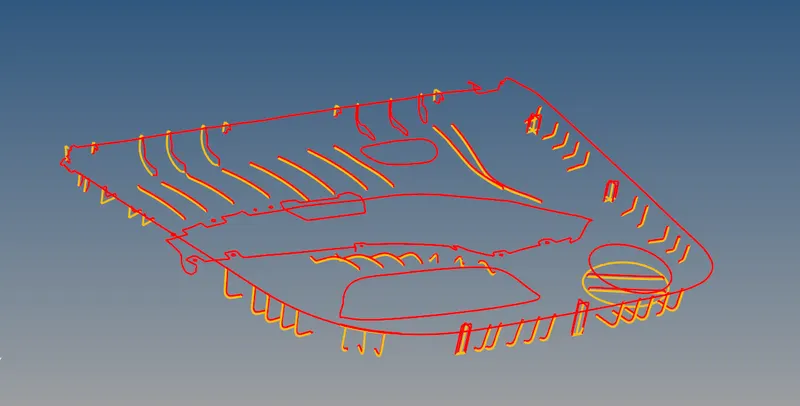

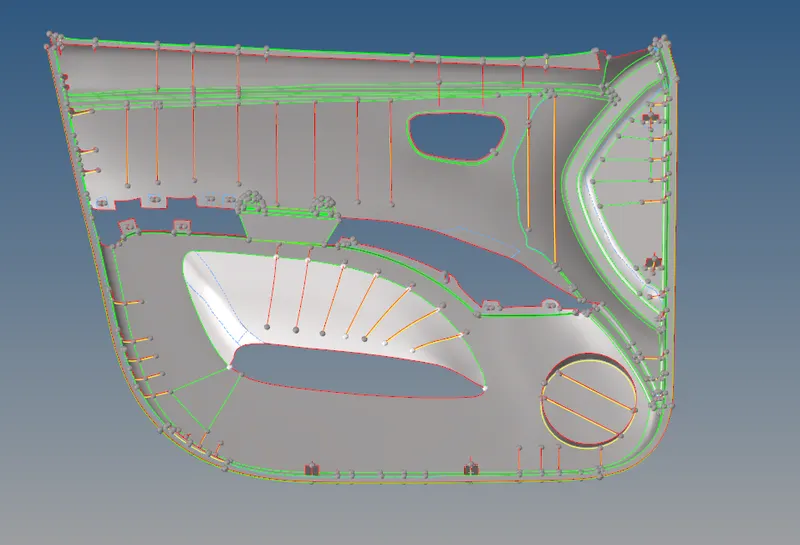

Extracted midsurface of the given component.

• Make the geometry cleanup to get a bettwe mesh quality. To mesh the component go to 2D>automesh>select surface>mesh. Before meshing set the quality criteria file as per the given parameters.

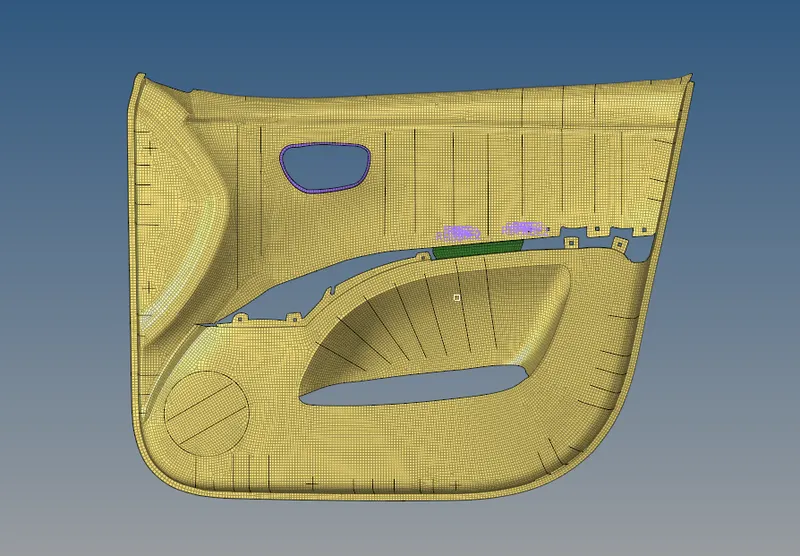

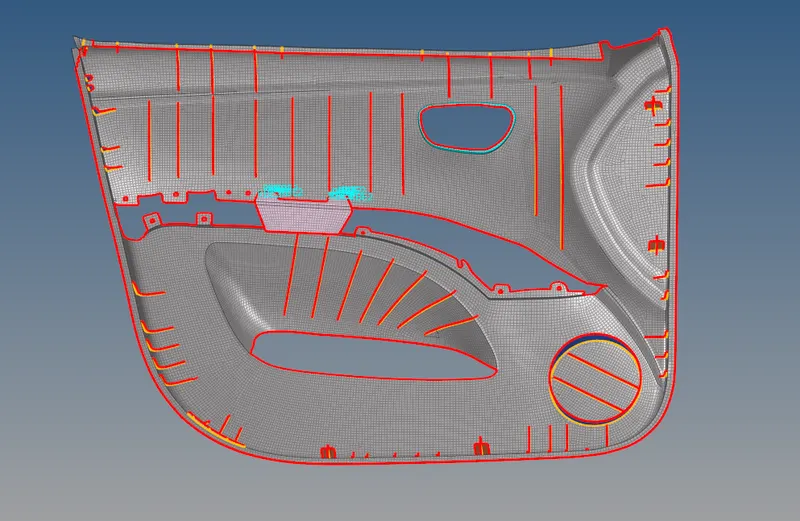

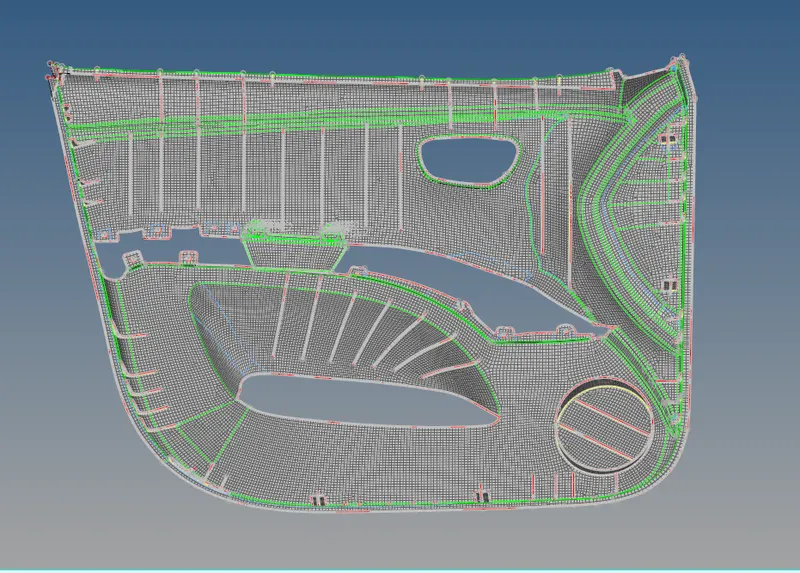

Meshed component.

• Check for the Free edges

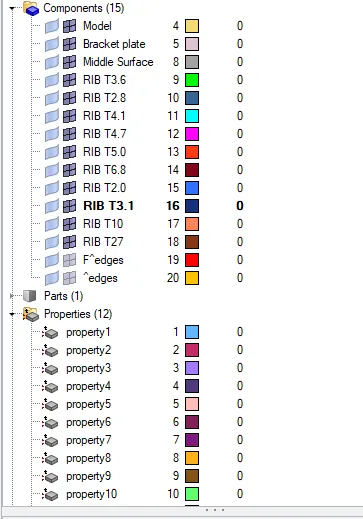

• After completing the meshing assign the thickness for particular ribs and other surfaces and parts of the component by measuring the particular parts thickness. To assign thickness create particular components and properties for particular parts of the component and in the property assign thickness.

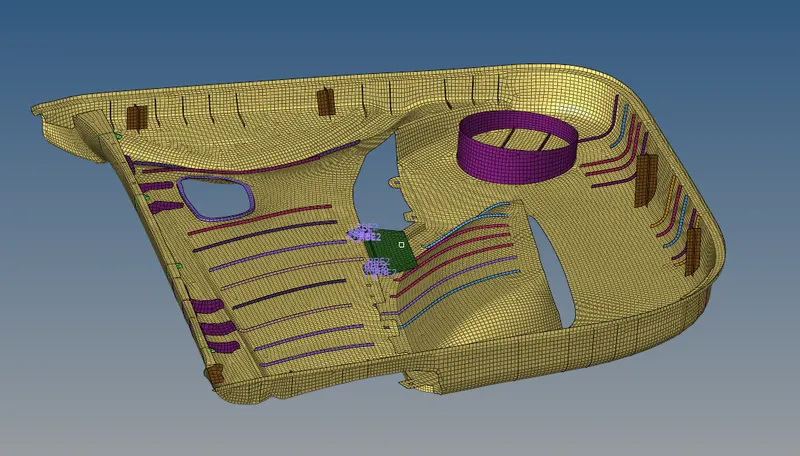

Component after assigning thickness.

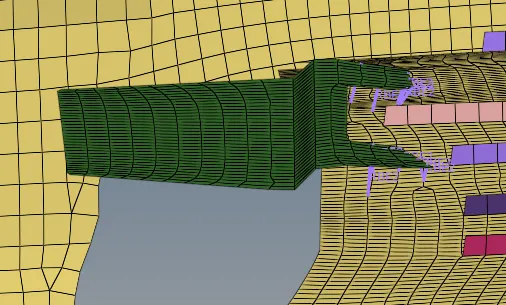

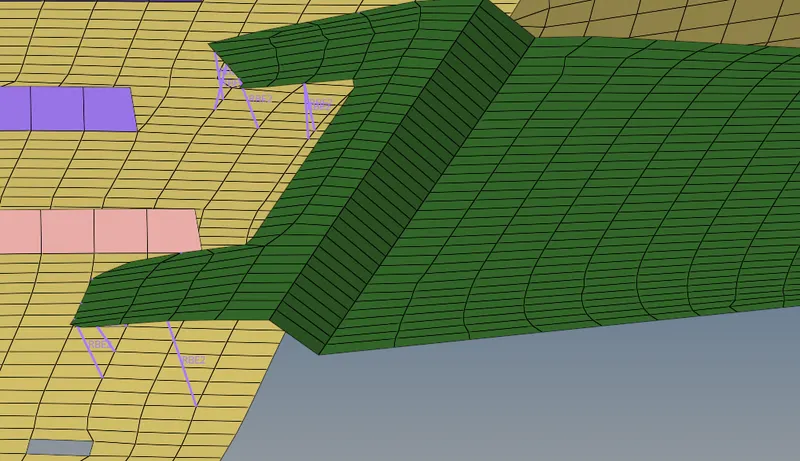

• Provide a Rigid link between the Bracket and the main body to maintain the mesh flow continuity.

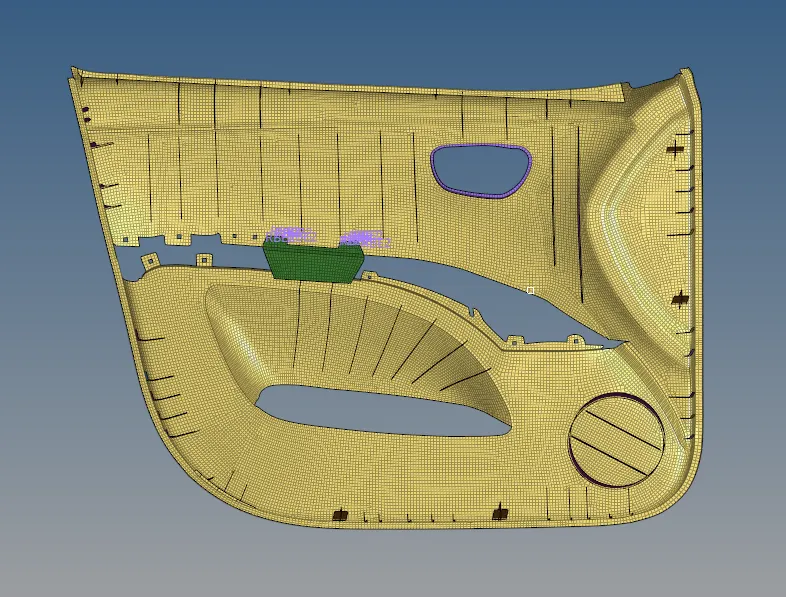

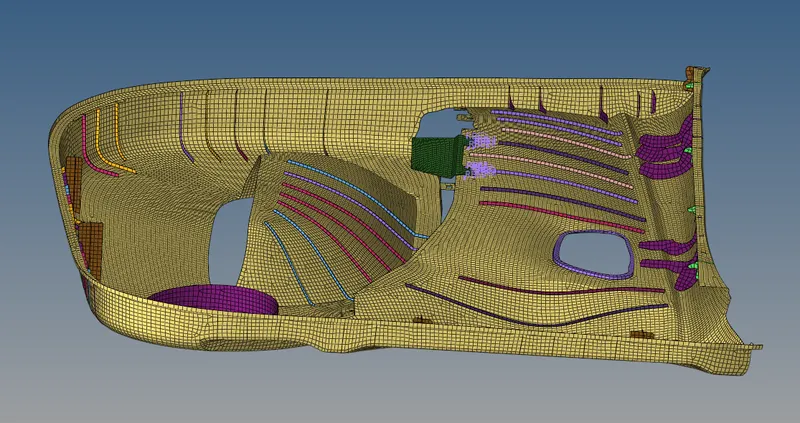

FINAL MODEL :

CONCLUSION:

Through this challenge I have learnt to mesh the plastic component having different thickness at different parts and learned some new commands like Final edit tool and etc.
