Week 12- Final project

Class A Surface is given

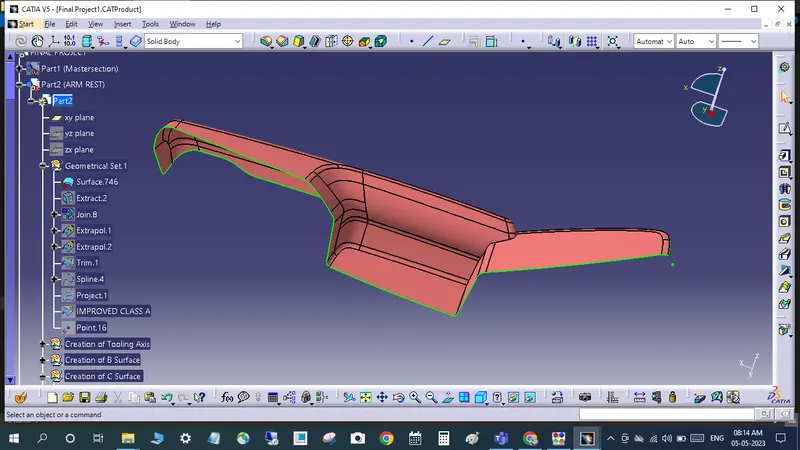

Improved class A surface

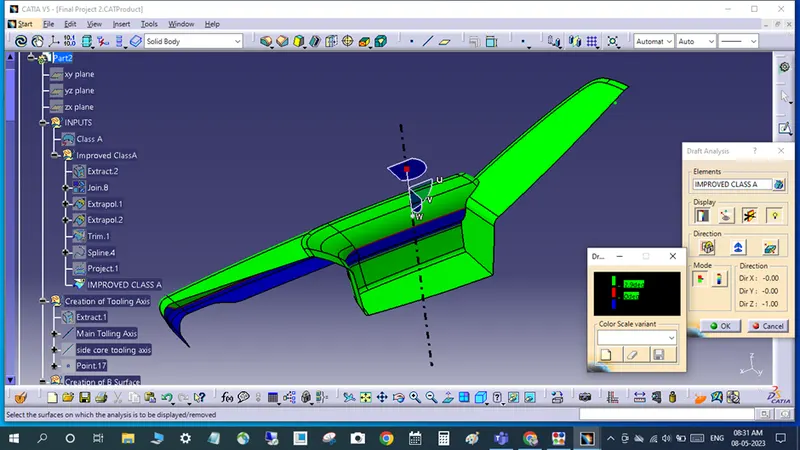

Improved Class A draft analysis 2.9 deg is given almost is clear in one side

Class B surface to create from improve class A surface is offset value 2.5 mm

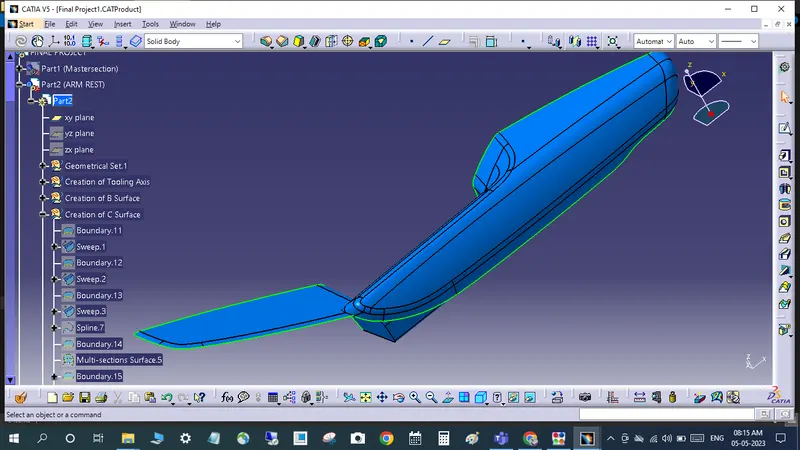

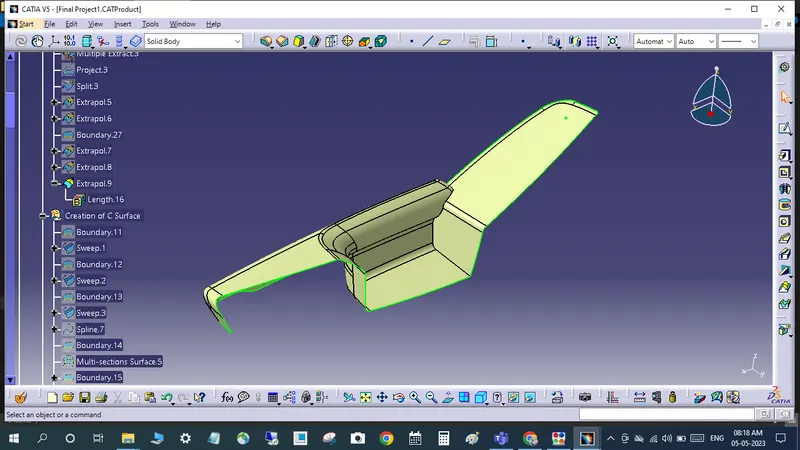

Class C surface for Arm rest part of door componet

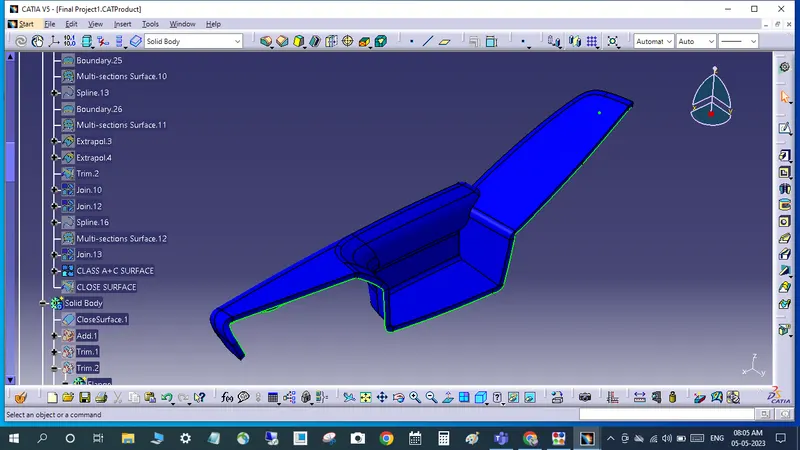

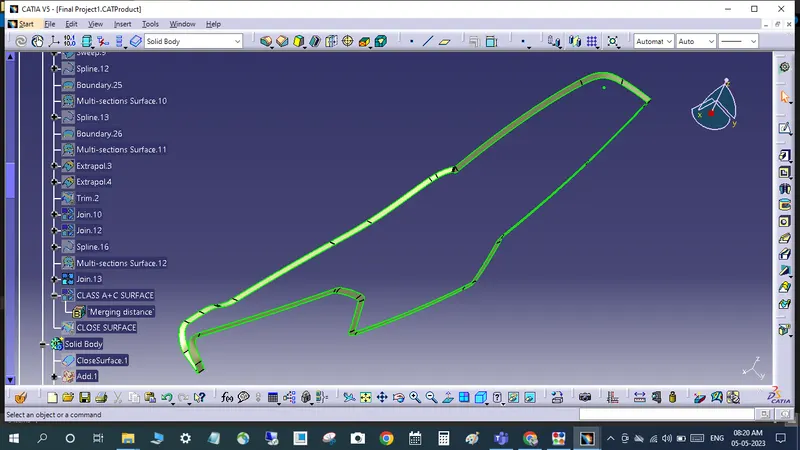

After create class C surface join with class A surface (Class A+C Surface )

After that trim with class B surface to create Closed surface

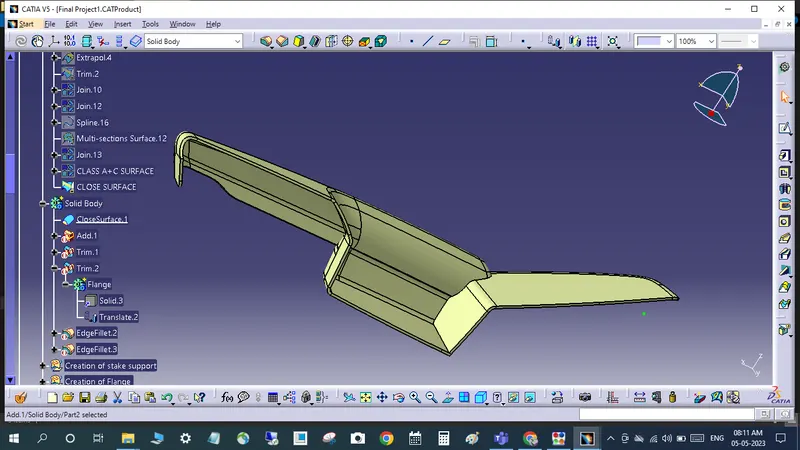

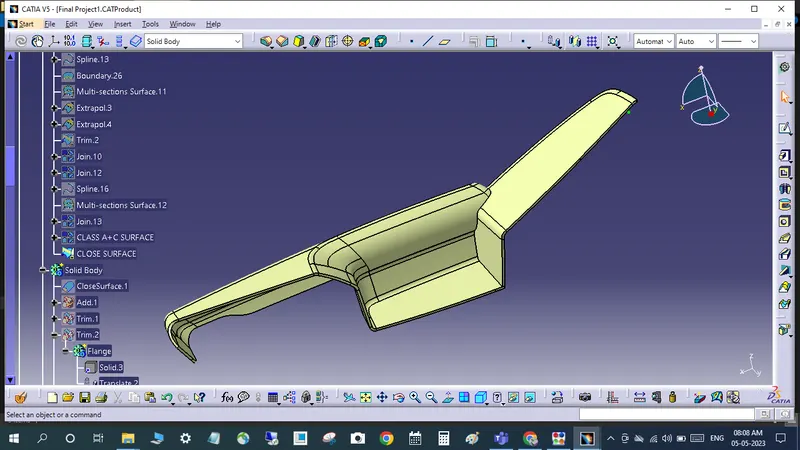

To create Closed Solid body using thiken command in part workbench

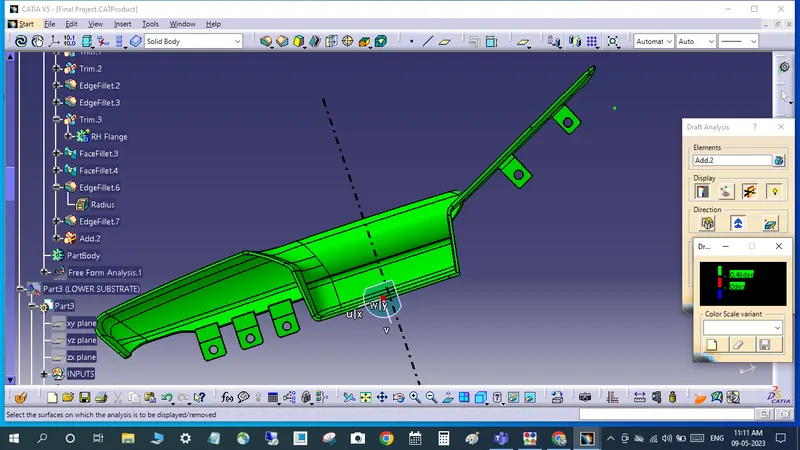

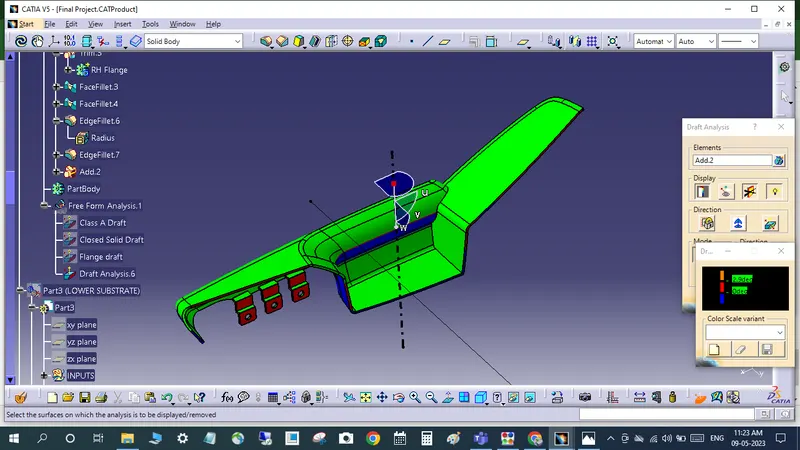

Draft analysis for Engineering Feature like flange 0.5 deg

Draft analysis for closed solid body 2.9 deg

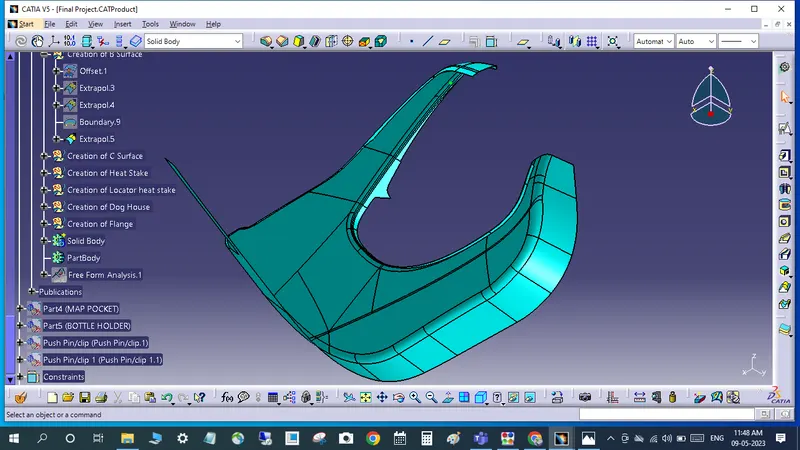

Class B surface Lower Substrate

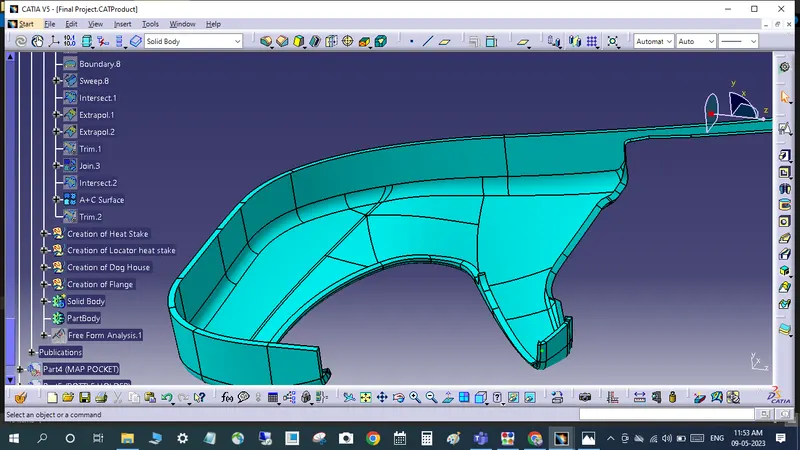

Class C surface for Lower substrate

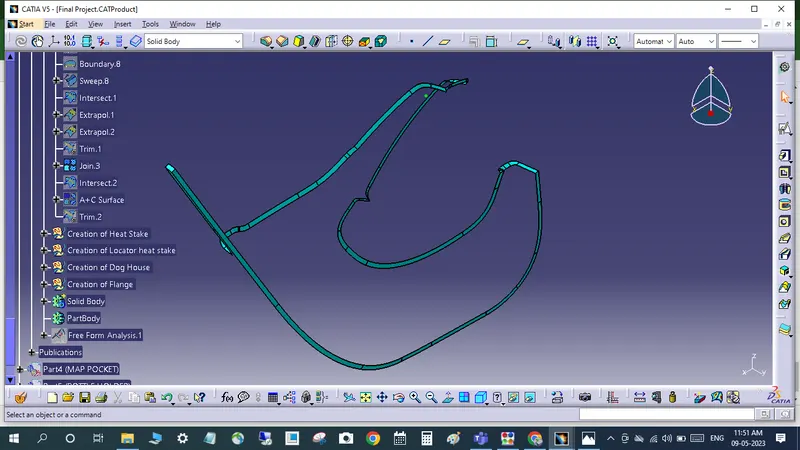

Class A+C surface

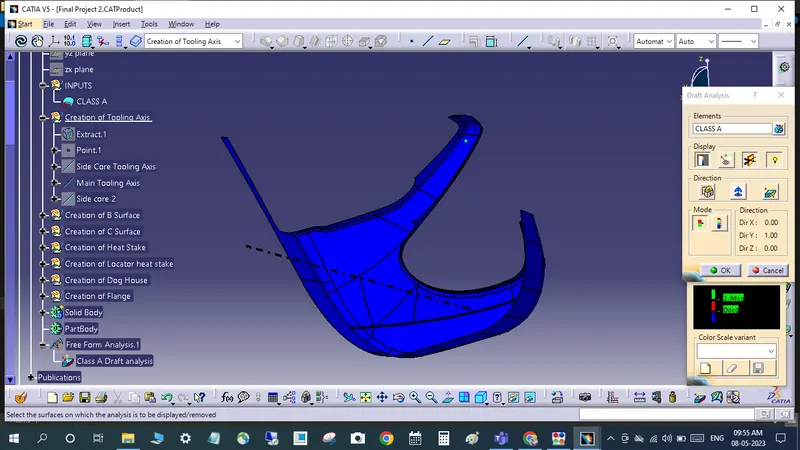

Class A draft analysis

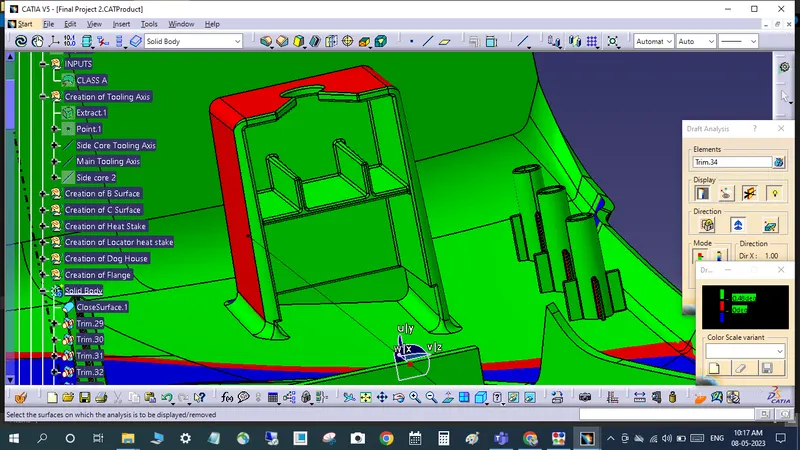

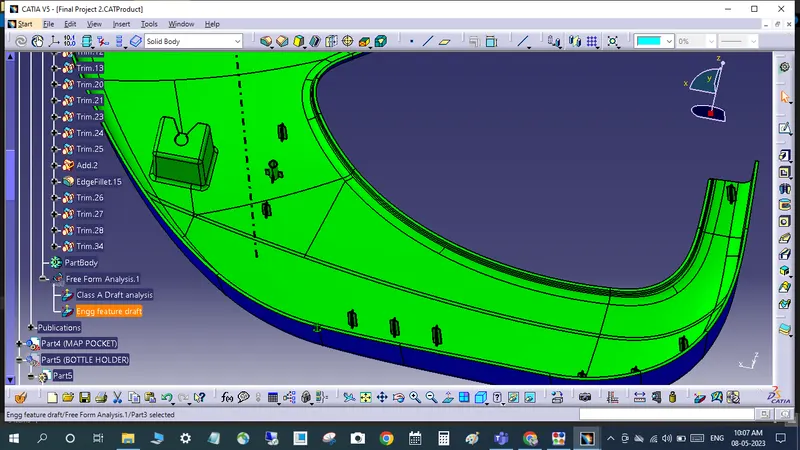

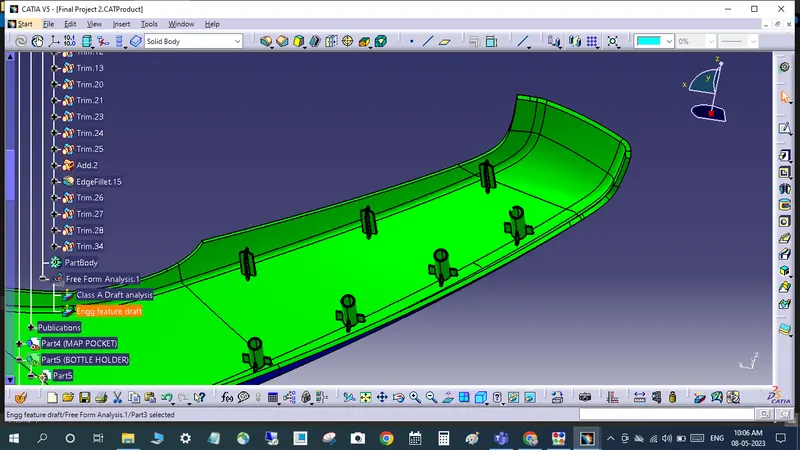

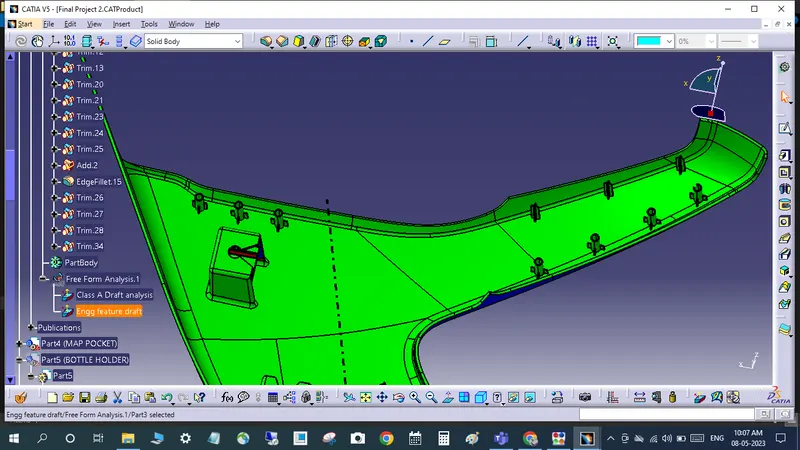

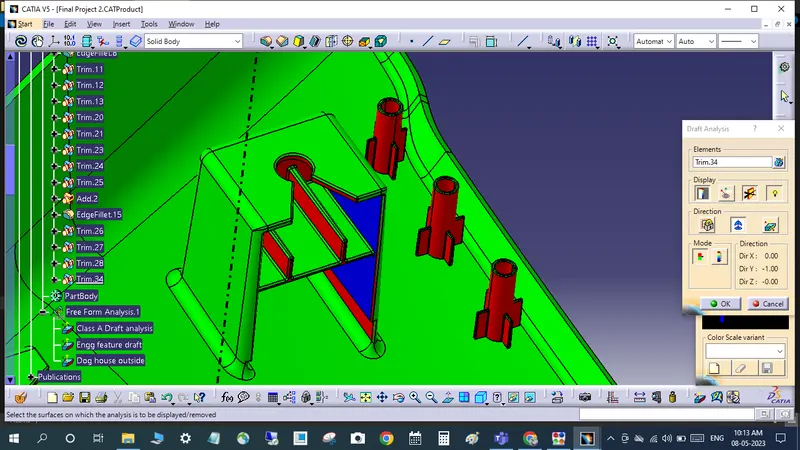

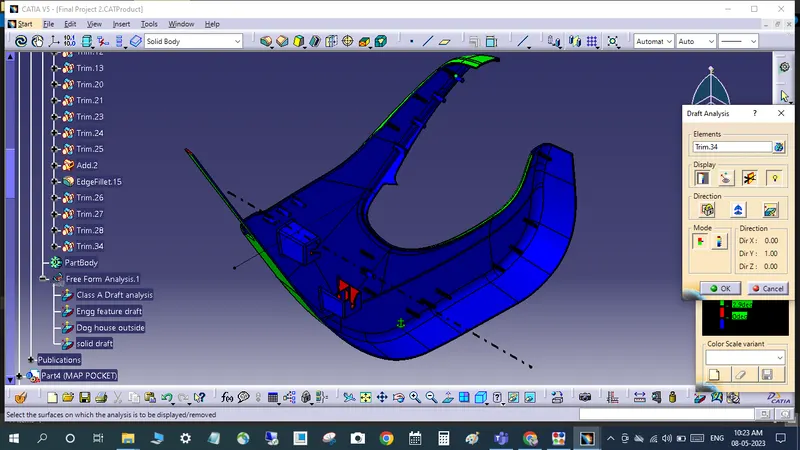

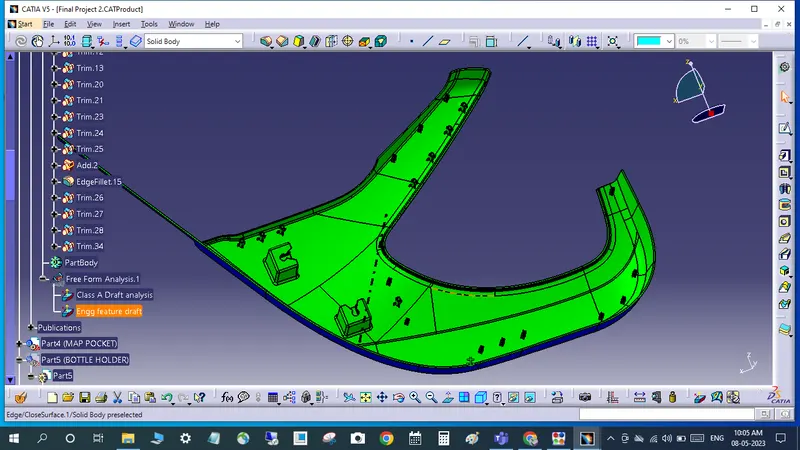

Engineering feature draft analysis like heat stake and locator and dog house

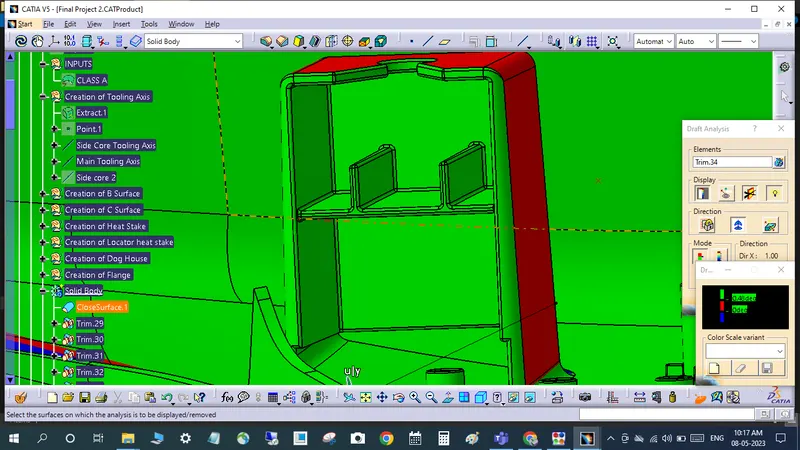

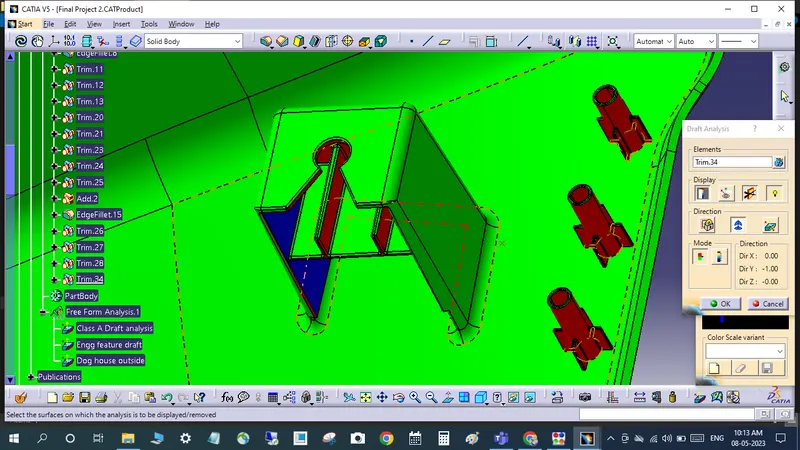

Dog House outer side draft 1.5 deg and inside 0.5 deg

Inside Dog house 0.5deg

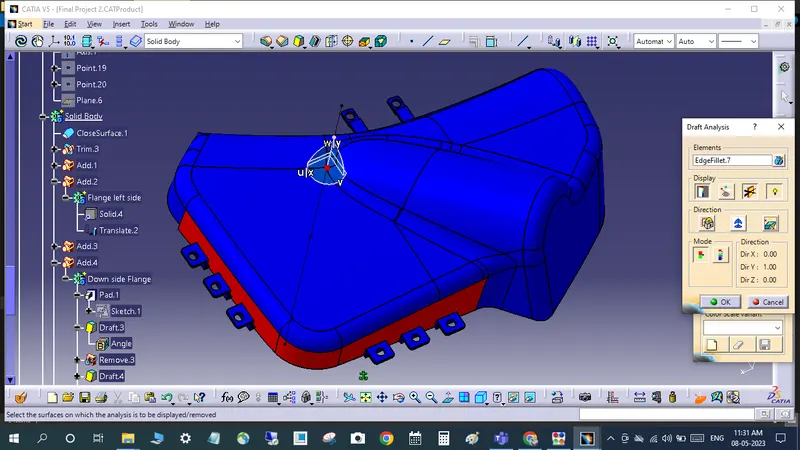

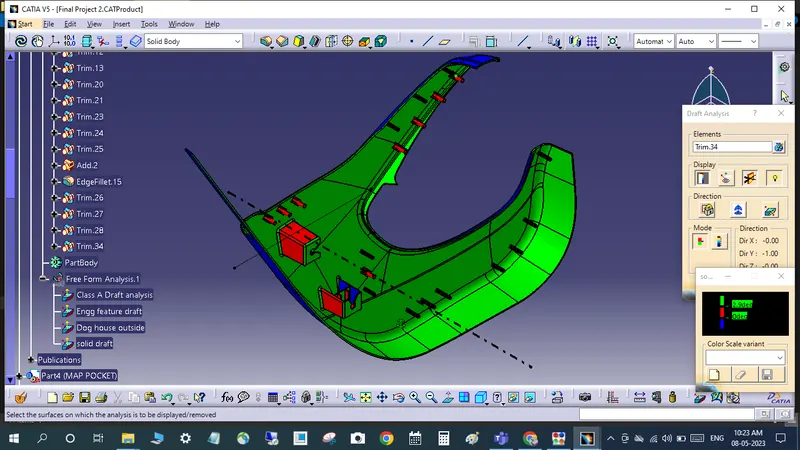

Closed Solid body draft analysis

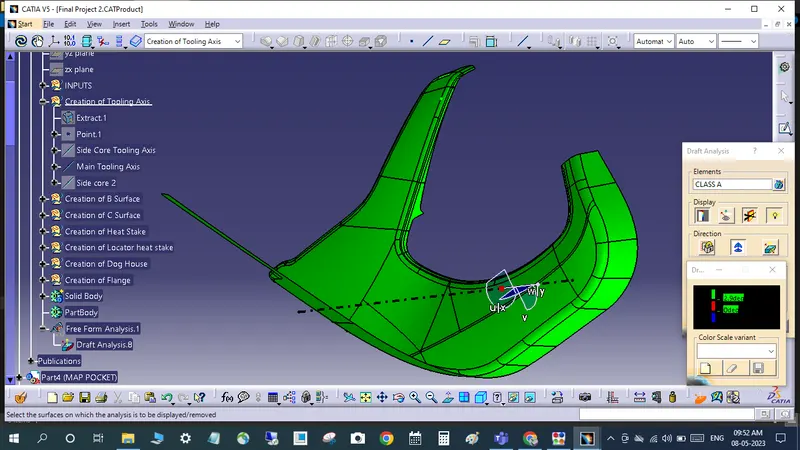

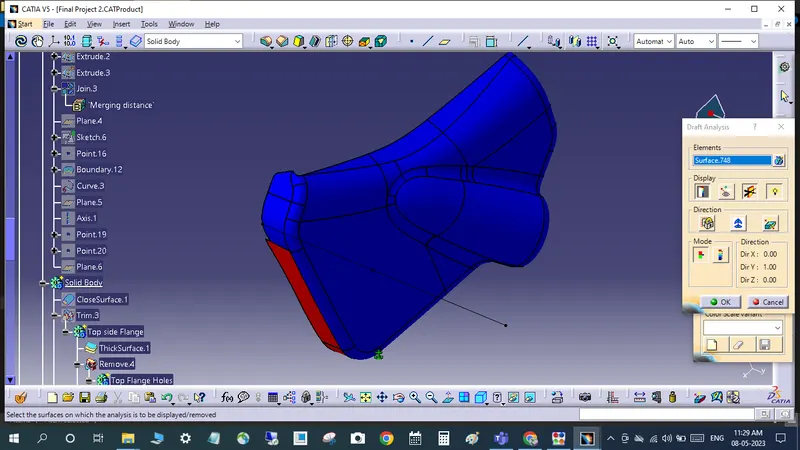

Map pocket class A Draft analysis

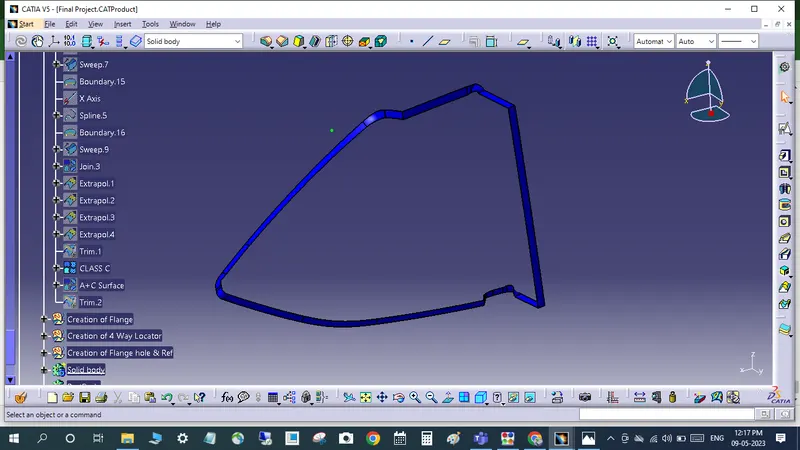

Class C surface

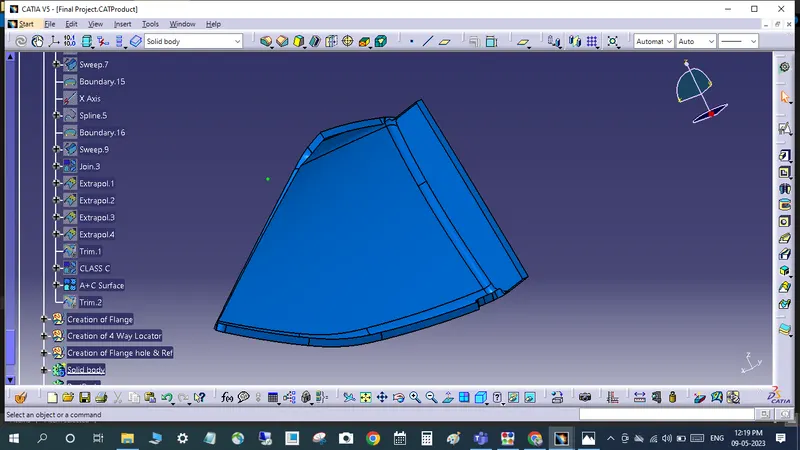

Class A+C surface

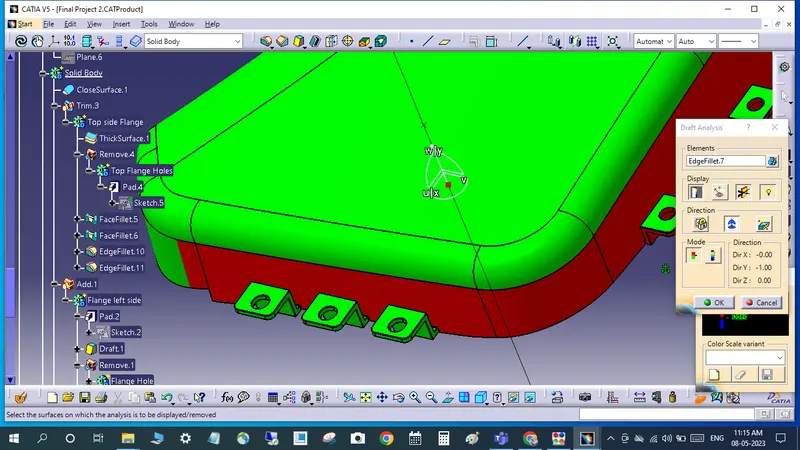

Closed Solid Body Draft analysis with engineering feature

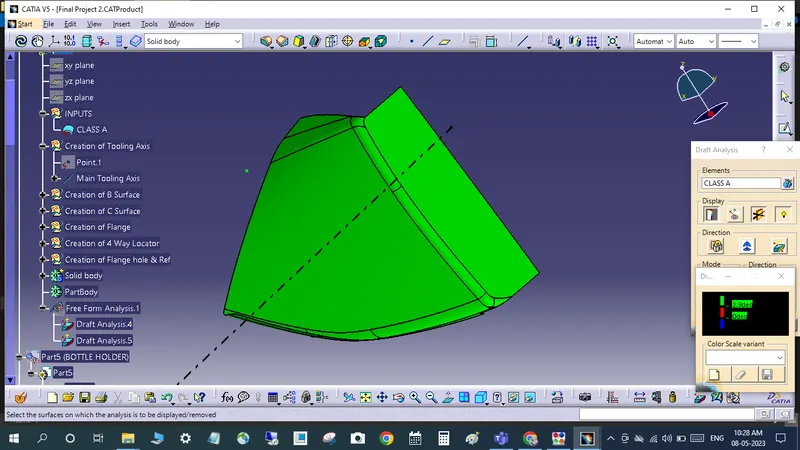

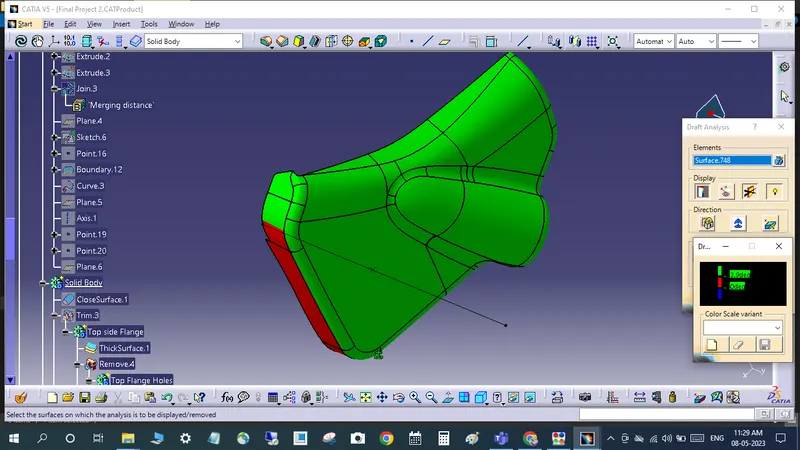

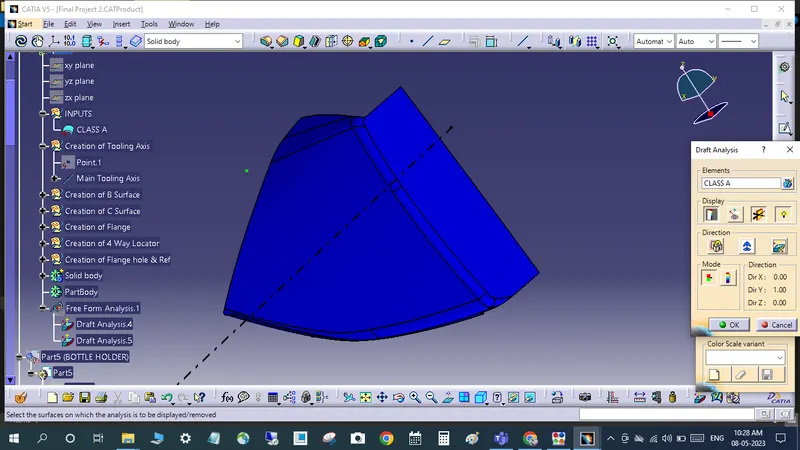

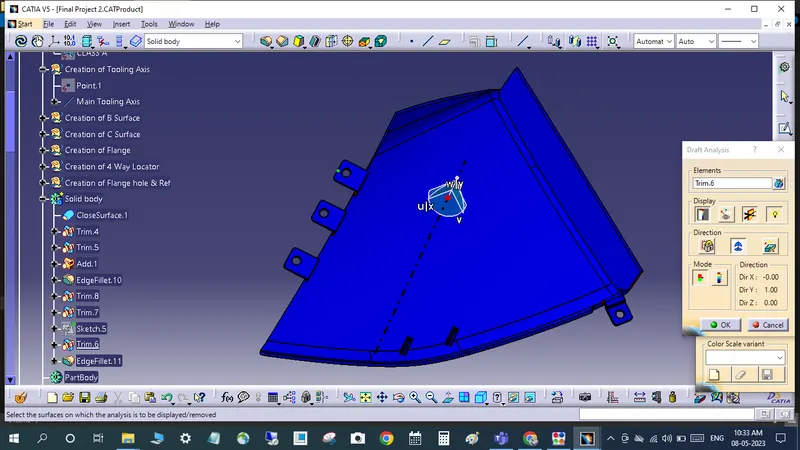

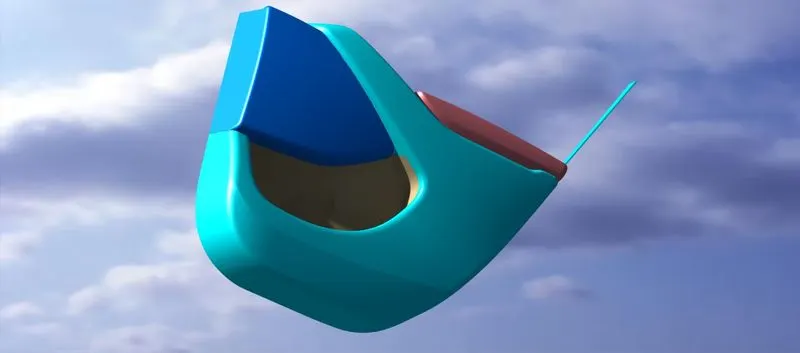

Bottle Holder class A surface draft analysis

Flange draft for bottle holder

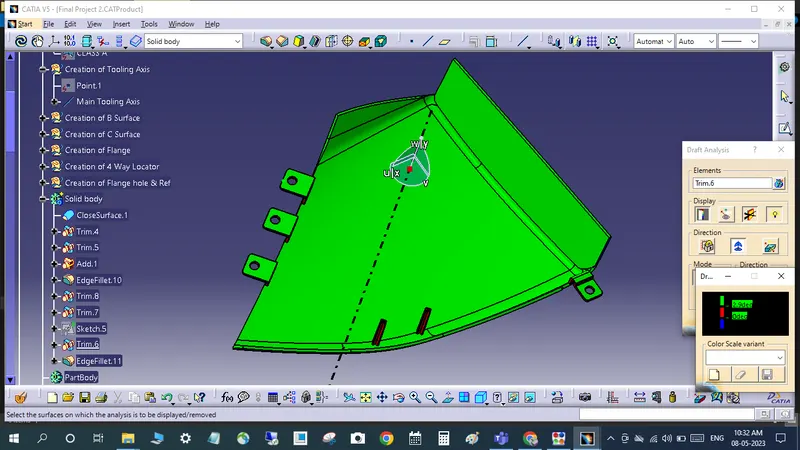

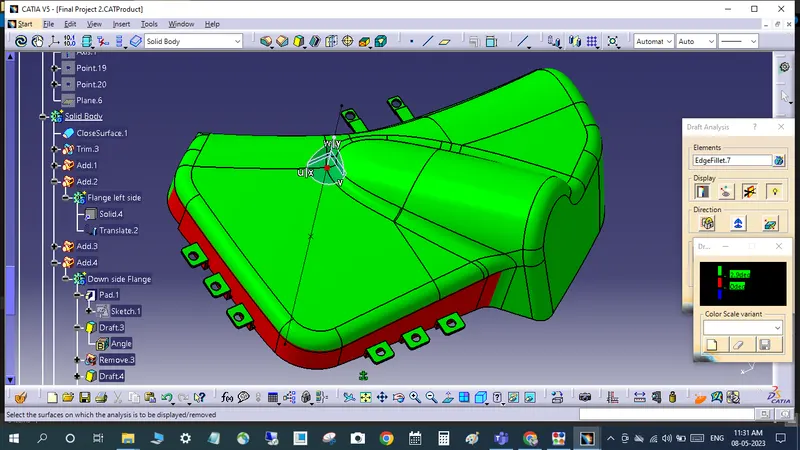

Closed Solid body draft analysis

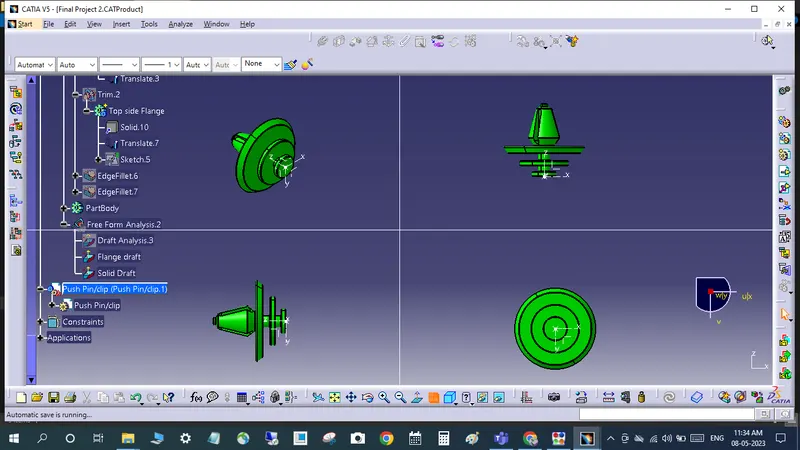

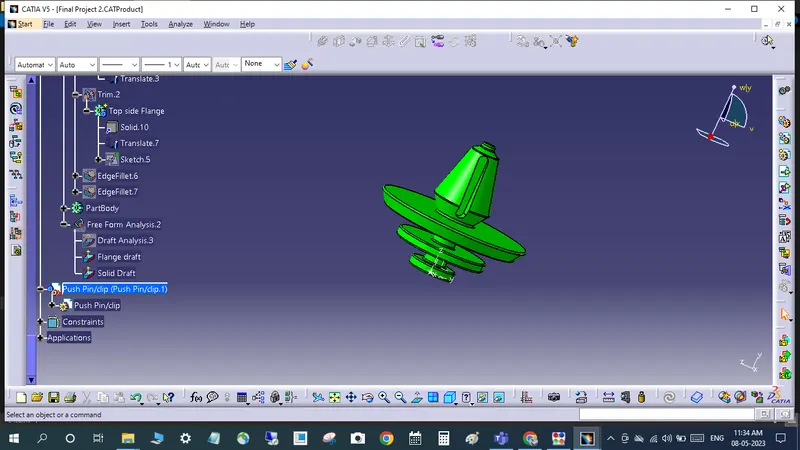

Push pin

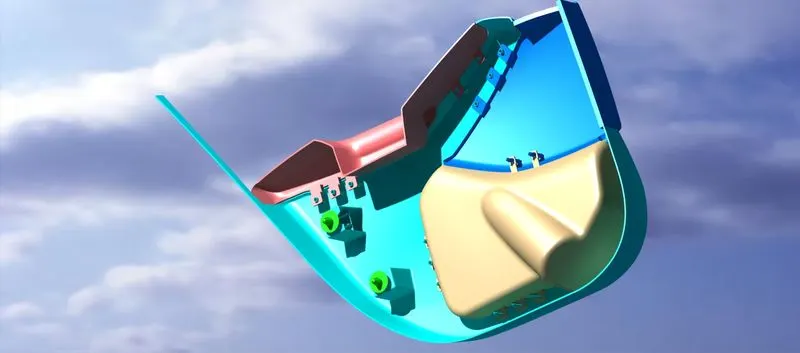

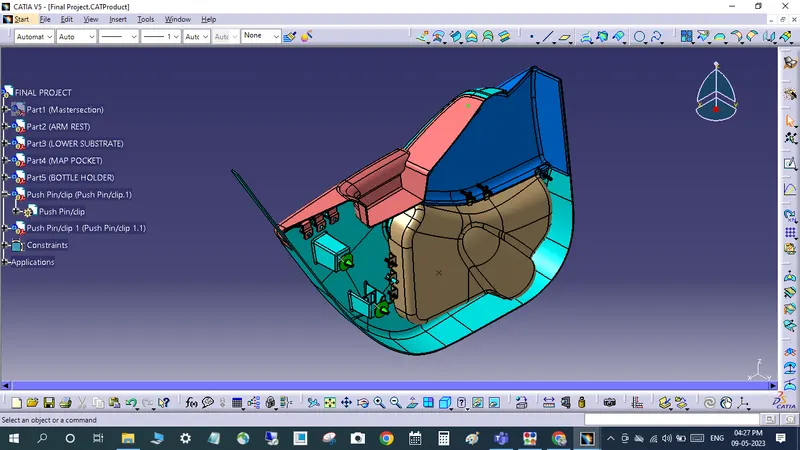

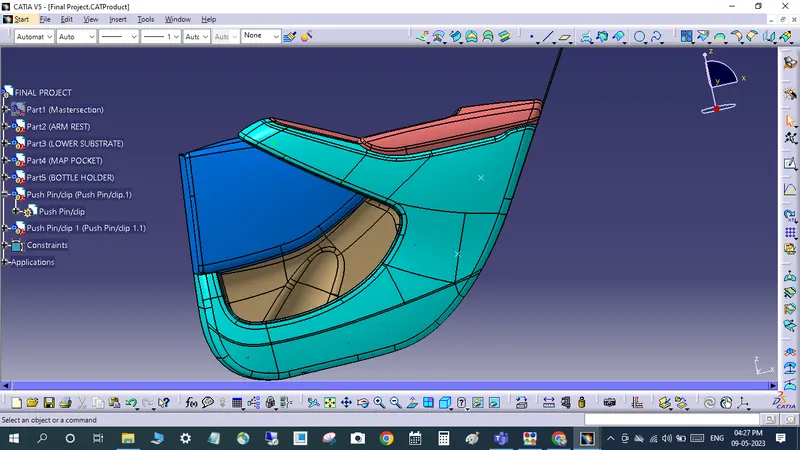

Finally i developed door trim panel
