Documentation

AIM:

Create a BOM and Hardware list (BOP) for the complete Fixture assembly

Introduction:

A bill of materials (BOM) is an extensive list of components, and instructions required to construct, manufacture, or repair a product or service. A bill of materials usually appears in a hierarchical format, with the highest level displaying the finished product and the bottom level showing individual components and materials.

A bill of materials (BOM) is a centralized source of information containing a list of items used to manufacture a product and instructions on how to do so.
Often shown in a hierarchical way, a bill of materials (BOM) lists the finished product at the top, down to individual components and materials.
Bills of materials (BOMs) can be presented as an explosion display or an implosion display.
The two main types of bills of materials (BOMs) are manufacturing bills of materials (BOMs) and engineering bills of materials (BOMs).

It also has the following benefits:
Calculate total costs of manufacturing a product
Plan for raw materials, workstations, and employees
Maintain consistent standards for a product across the factory.

Bill of Parts(BOP): A bill of parts is the list of standard items that are bought out from the supplier like pneumatic cylinders, stoppers, etc.

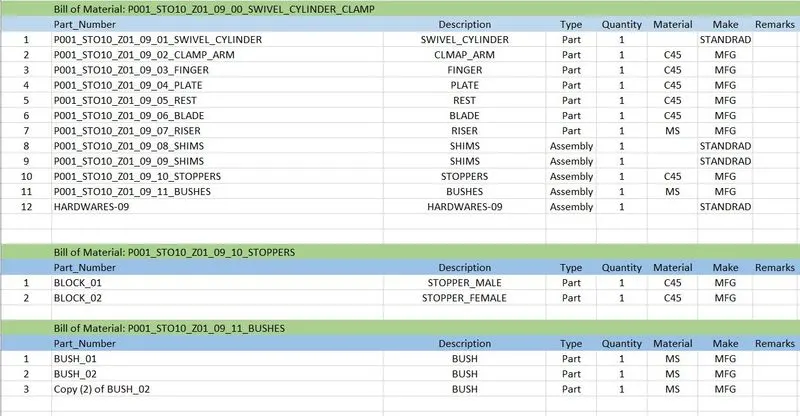

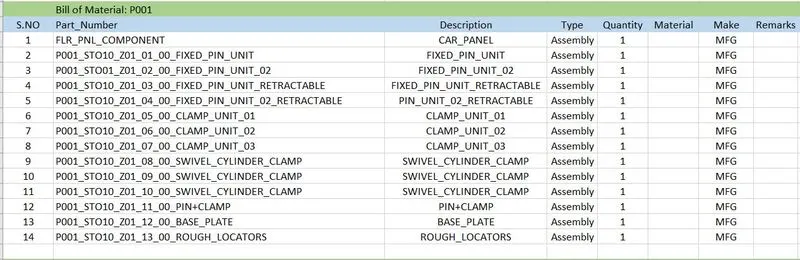

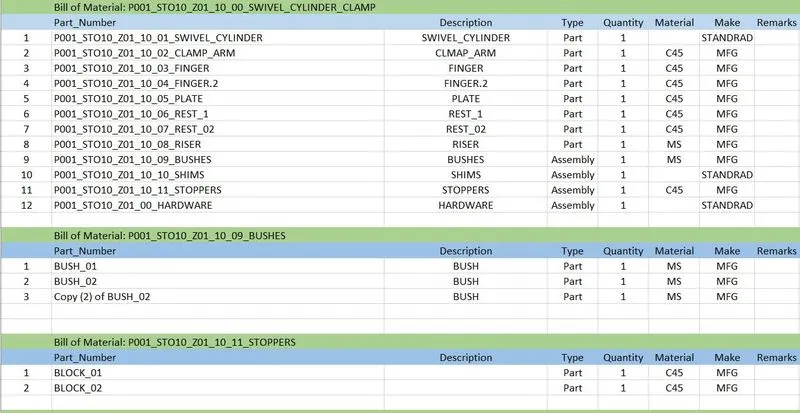

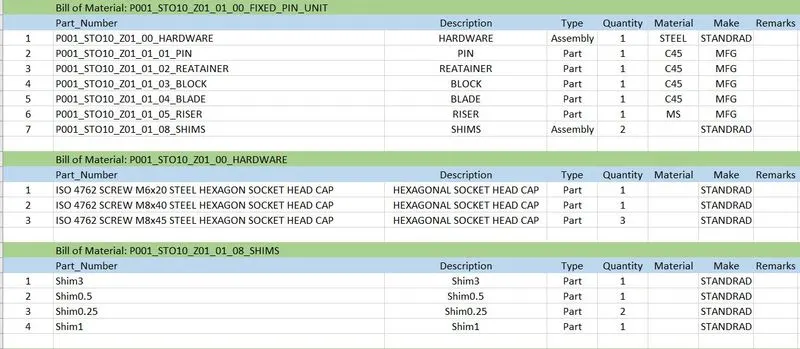

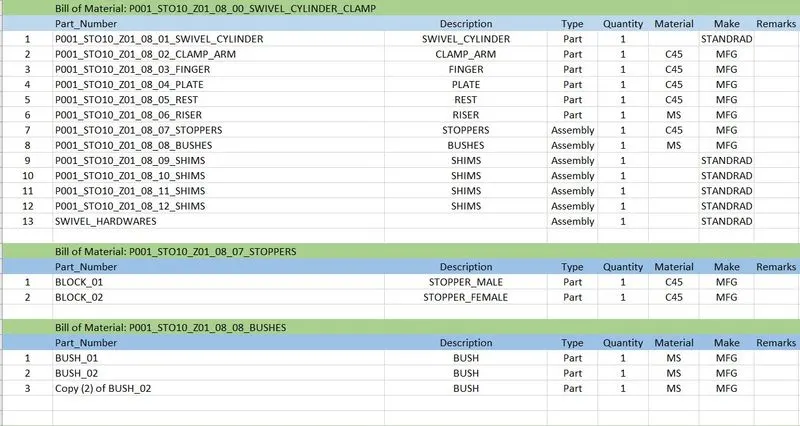

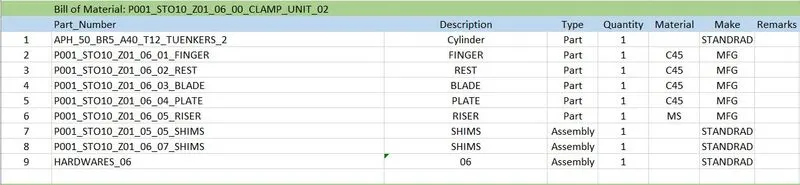

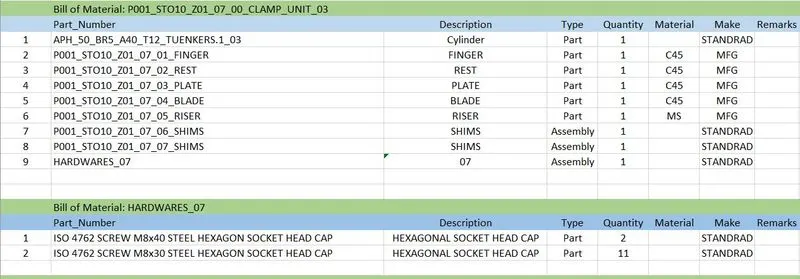

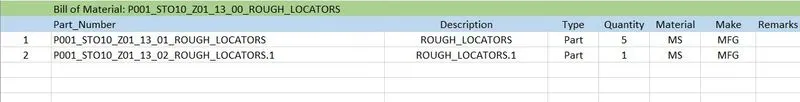

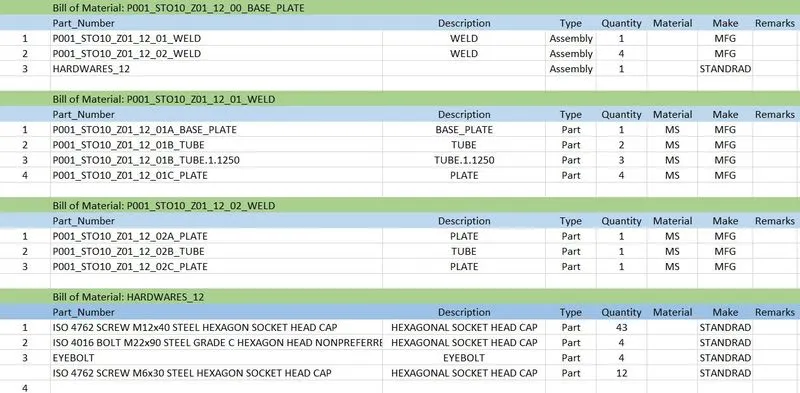

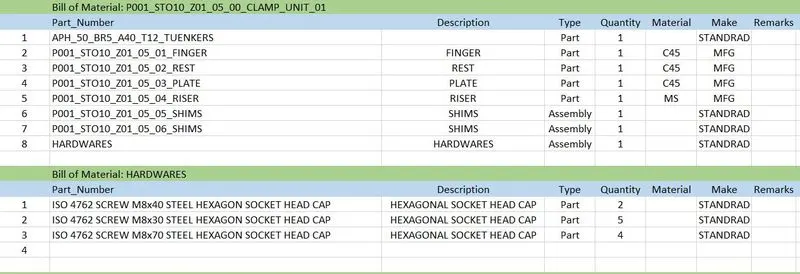

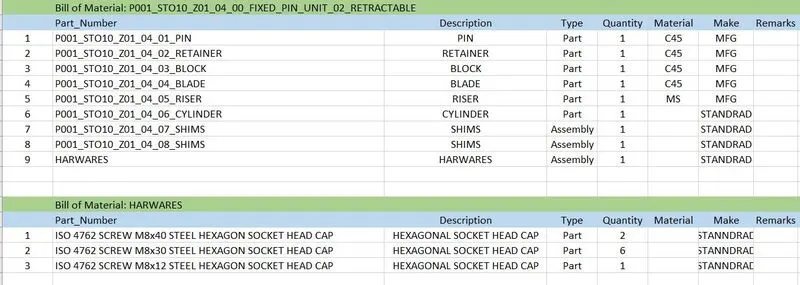

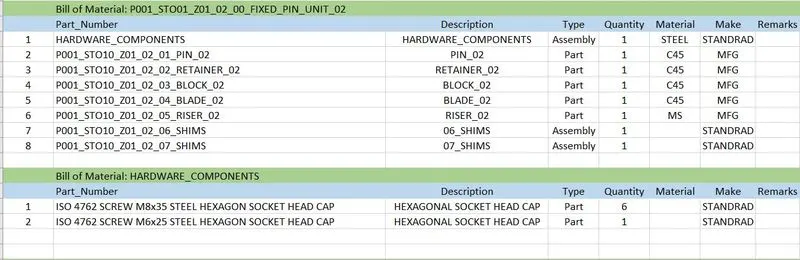

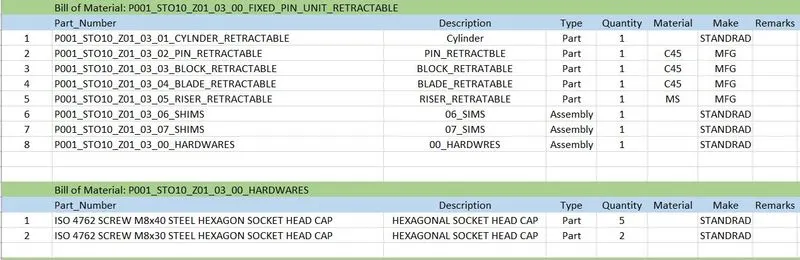

Bill of Materials

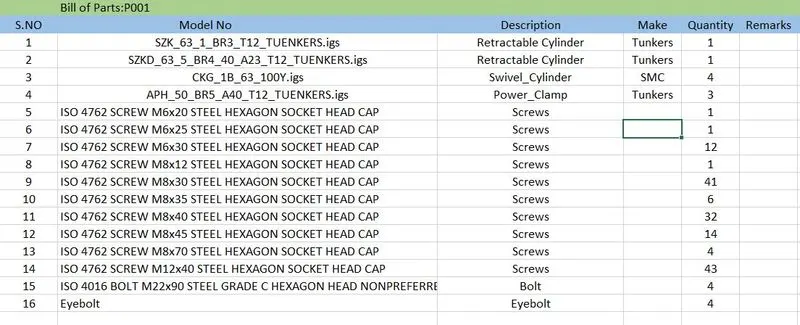

Bill of Parts:
