Week 11 - Project - A pillar Design with Master Section

Sir,

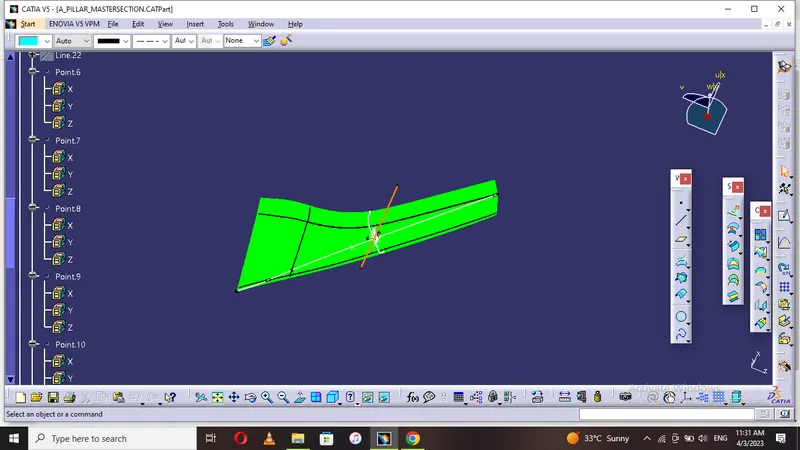

Initially from A surface,Tooling axis is created by bisecting method after Bisecting method ,Tooling axis is created with the help of the tooling axis draft analysis is performed in Class A surface.

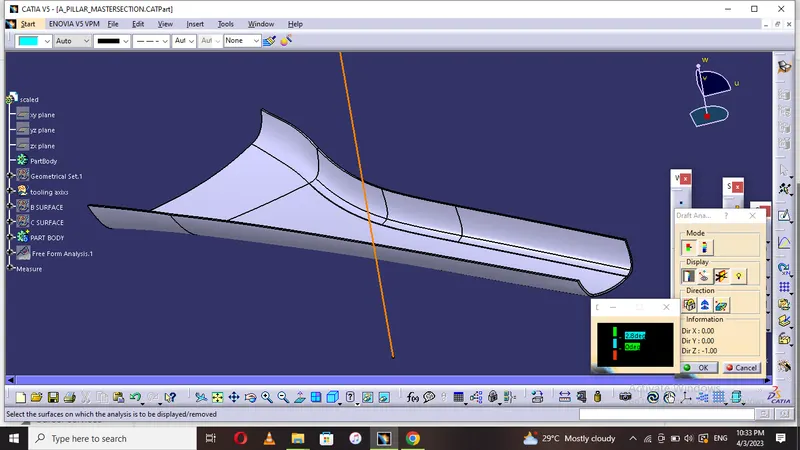

DRAFT ANALYSIS

After Draft analysis is cleared class B surface creation going to be started.

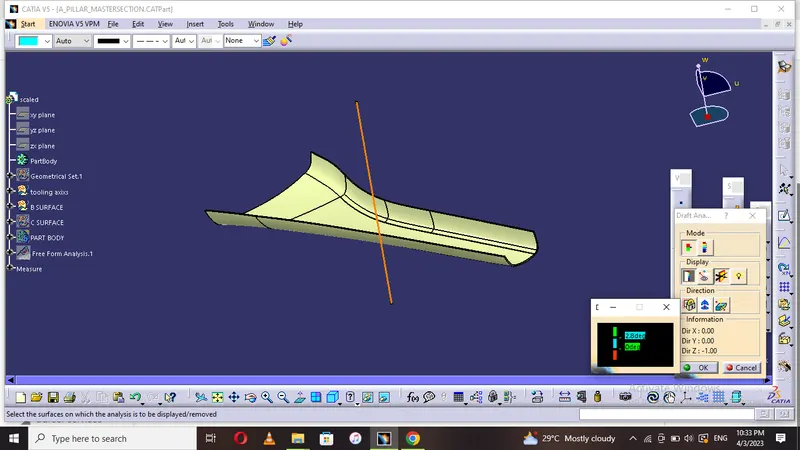

CLASS B

After Class B surface is completed ,class C surface is started.Then Class A and Class C is joined together

Then it is trimmed with B surface .

Then complete creation of the surface ,The surface is converted to solid .

After part surface is completed ,Then draft analysis is performed on the part analysis,

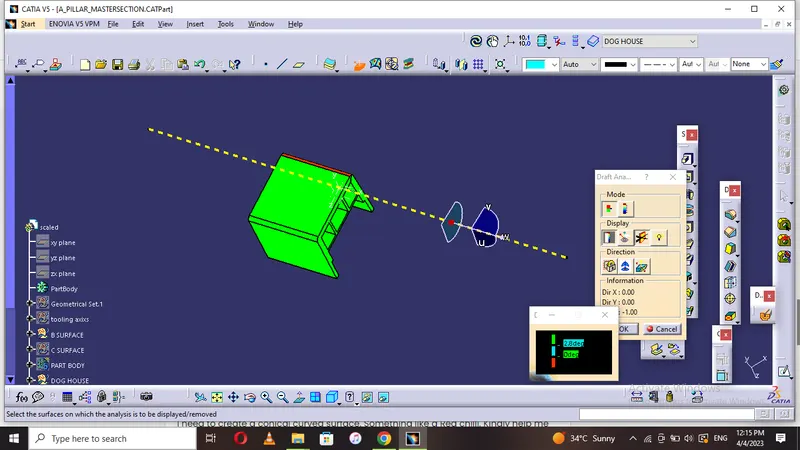

Dog house

Creation started,After Dog house is created It is converted to solid part,Lifter axis created ,with the help of tooling axis draft analyis is performed.

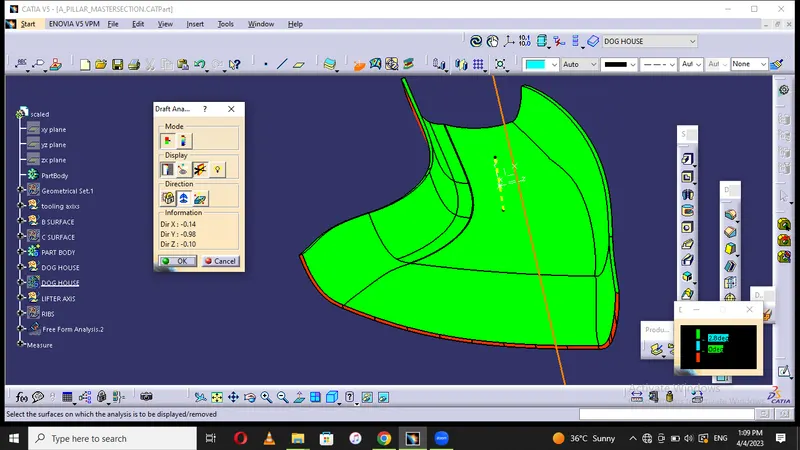

After master section created completely all process are finished finally Dog house is union trim with the main part body.

Regards,

Gowthaman.s
