Week 11 - Project - A pillar Design with Master Section

Tooling Direction Report:

Part Name: Part A

Tooling Direction: Tolling direction along class A surface

Minimum Tooling Axis: 3 degrees

Draft Analysis Results:

All class A surfaces meet the draft requirements.

There are no undercuts.

The surface complexity is minimal.

draft analysis for the dog house:

Minimum draft angle: 0.5 degrees

Side core axis: The side core axis is the axis that runs along the side of the dog house, from the front to the back.

Draft angle of the side core axis: The draft angle of the side core axis is 0.5 degrees, which meets the minimum requirement.

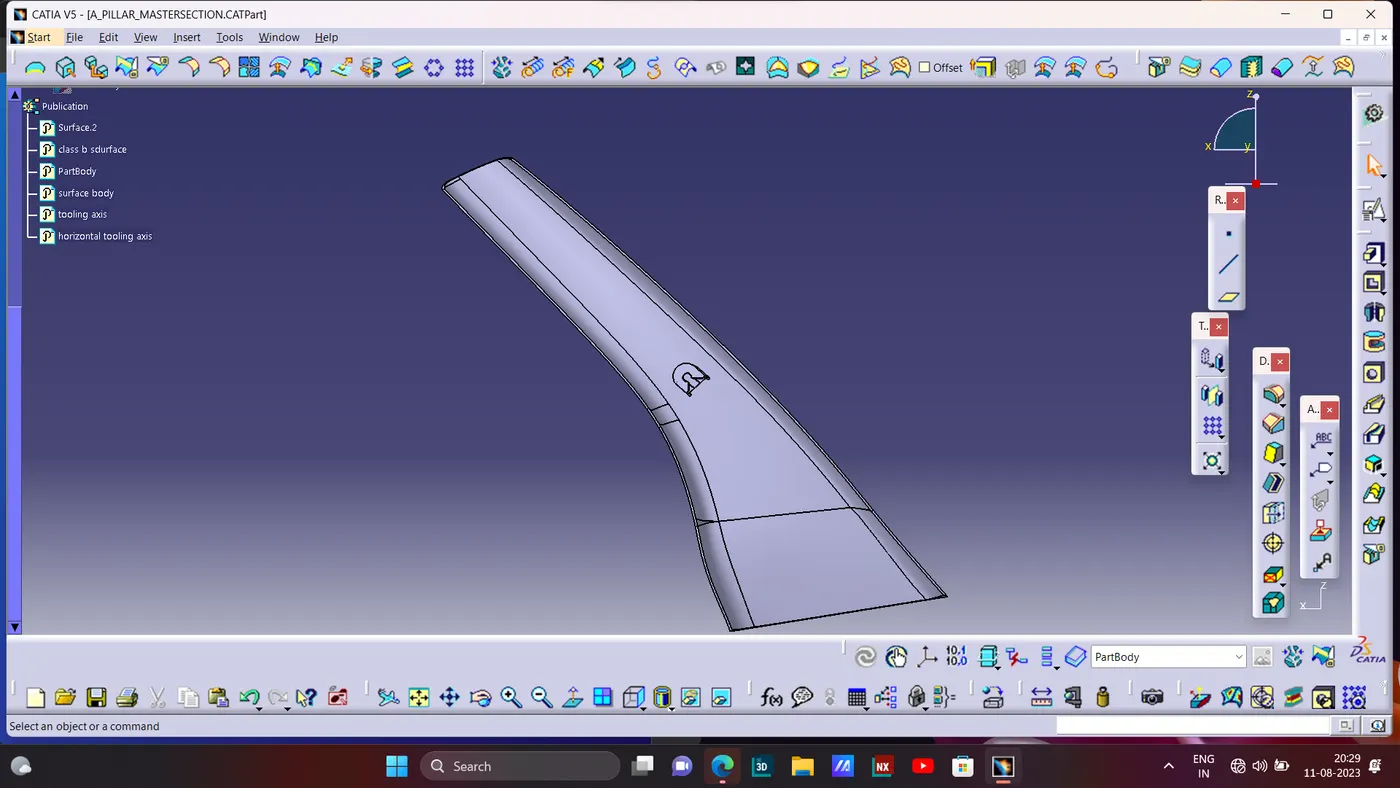

PART BODY OF A PILLAR:

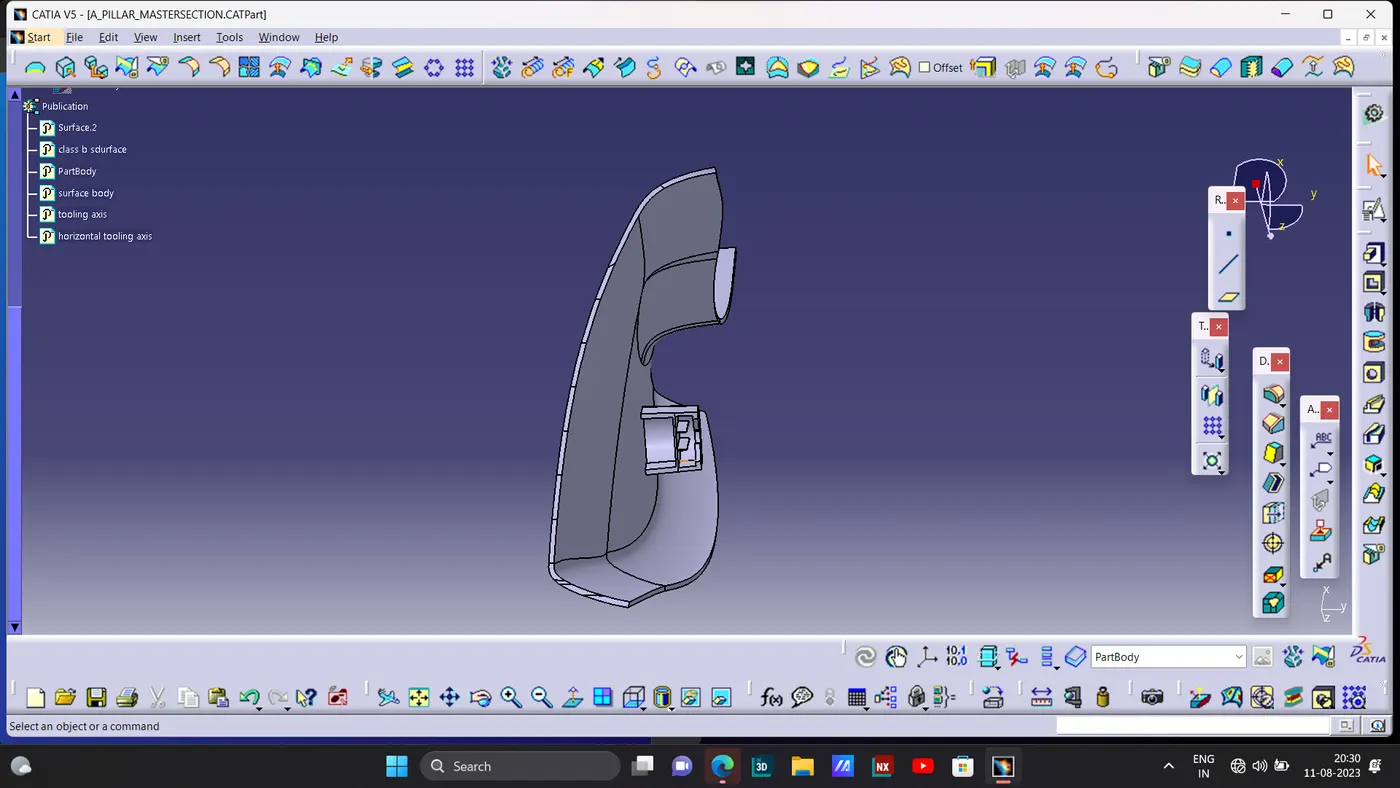

FRONT VIEW:

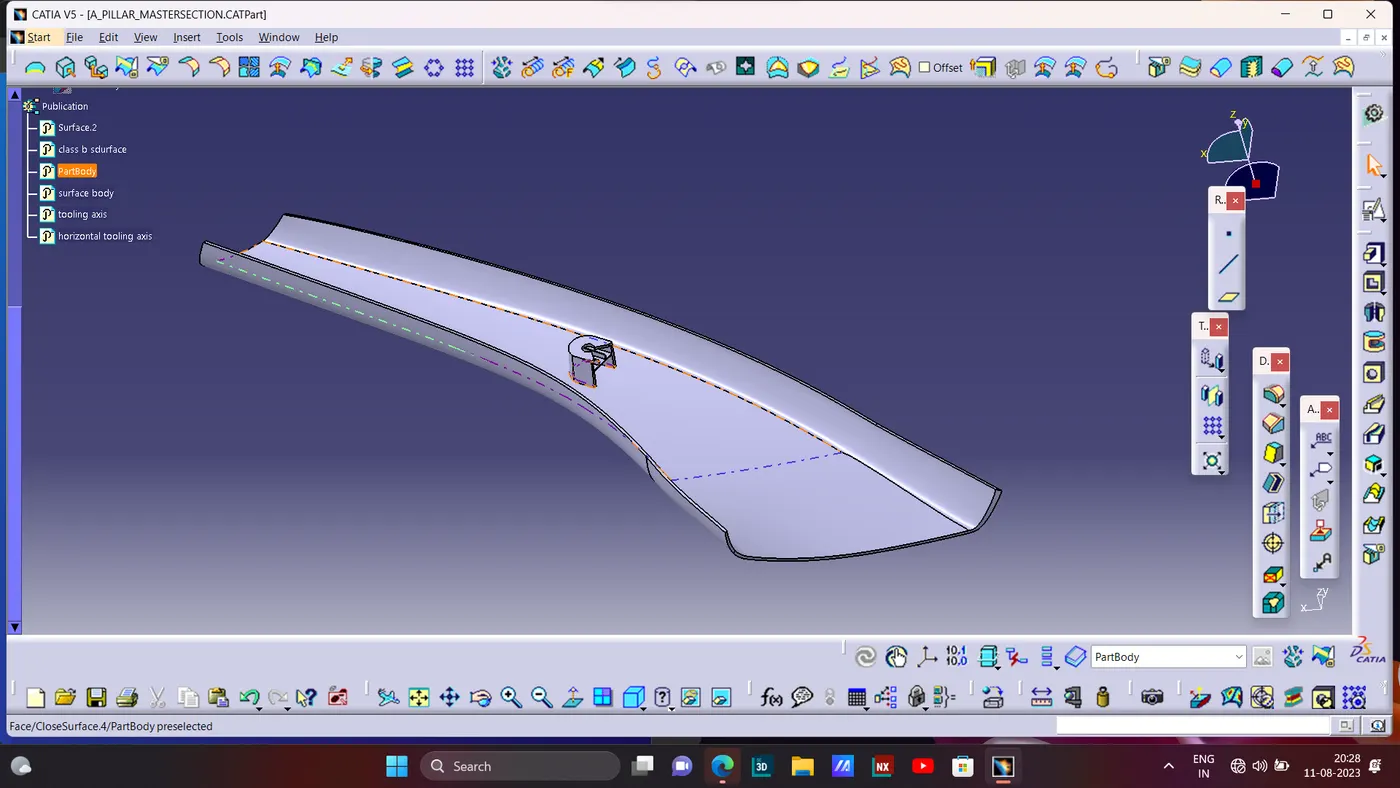

TOP VIEW:

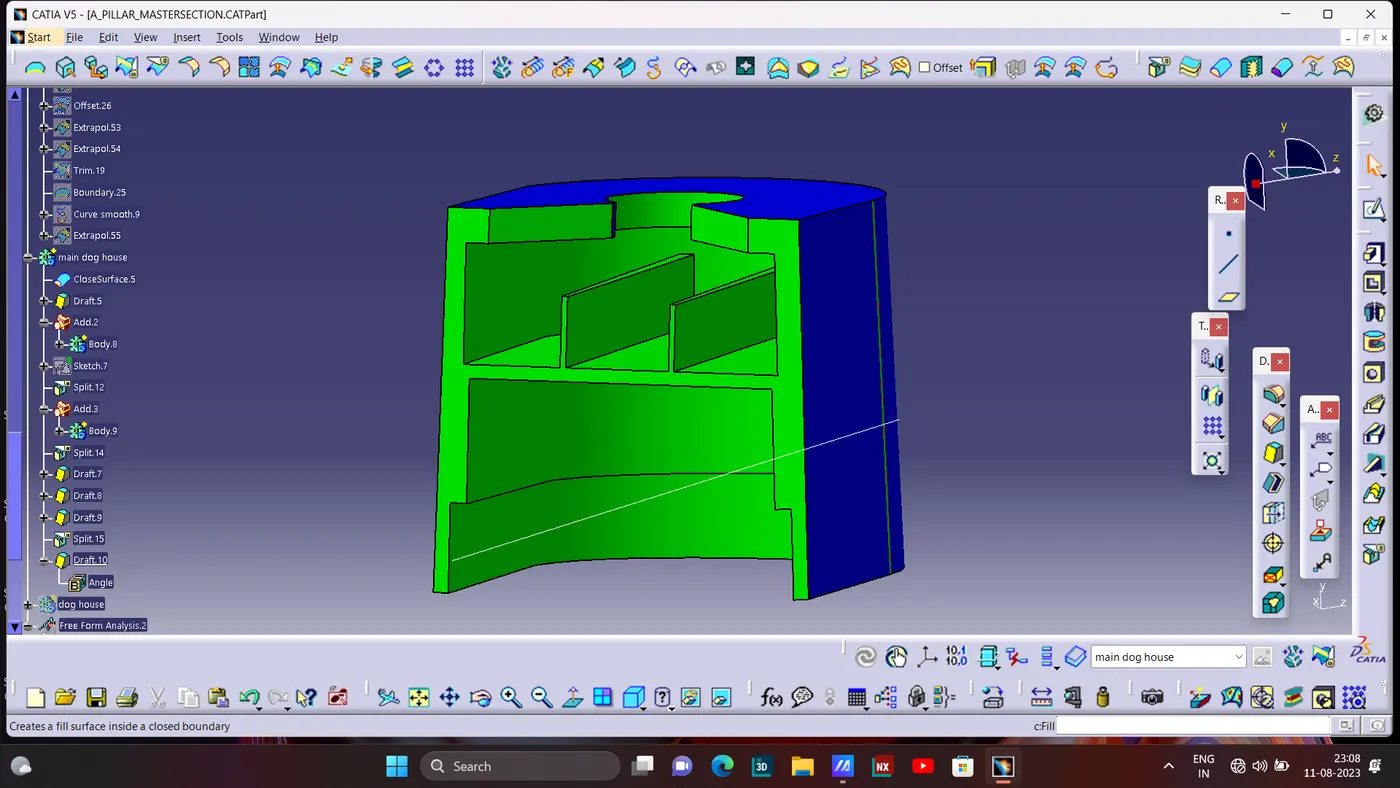

DRAFT ANALYSIS ON DOG HOUSE USING HORIZONTAL TOOLING AXIS:

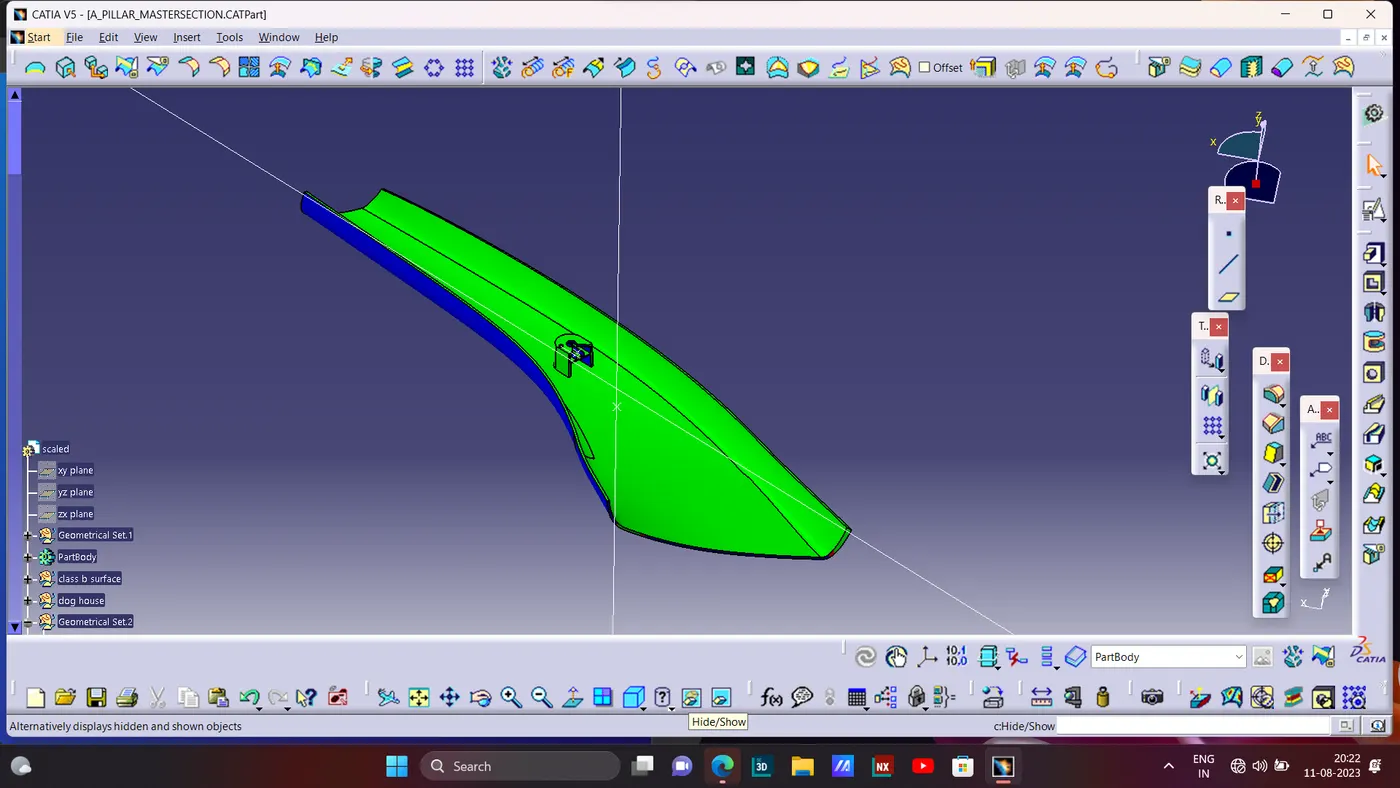

DRAFT ANALYSIS ON FINAL PART USING VERTICAL TOOLING AXIS:

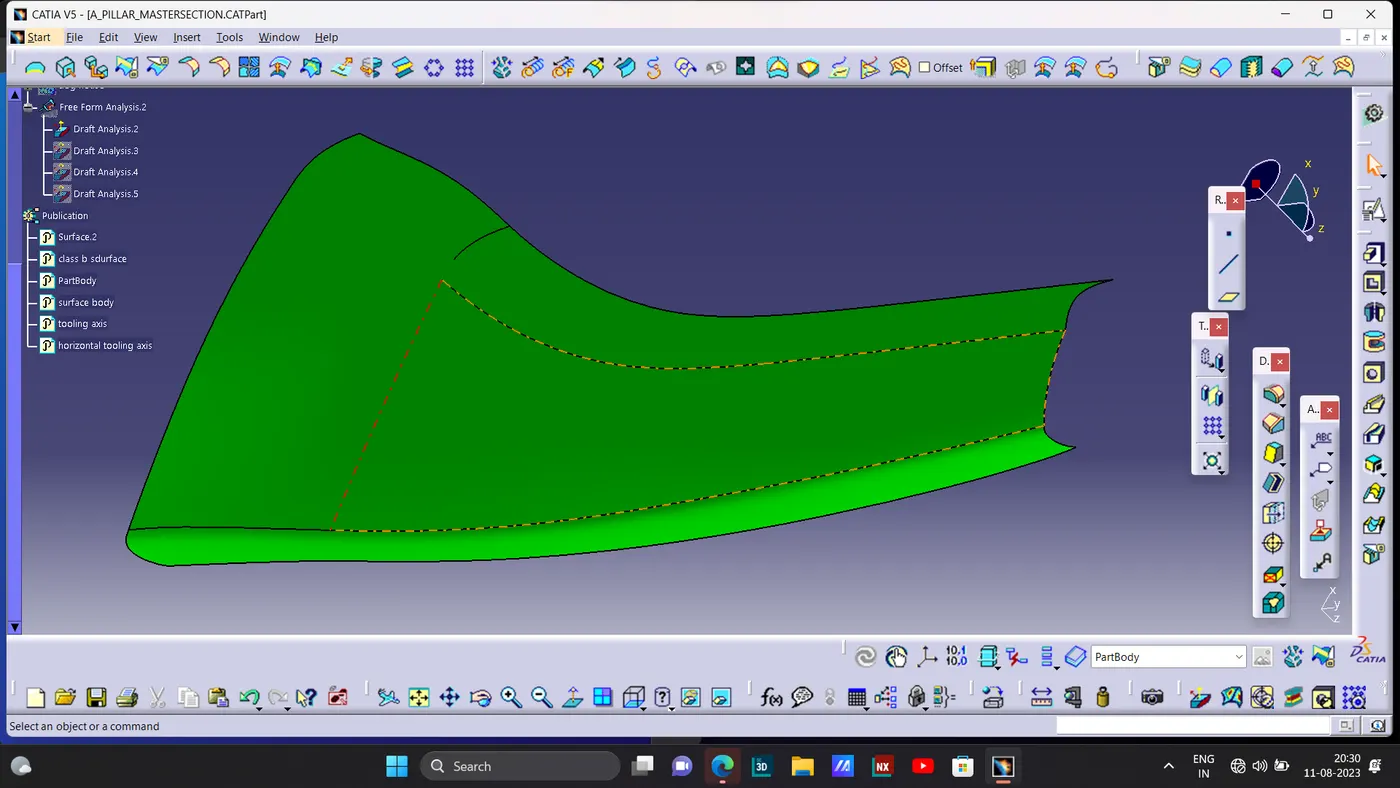

DRAFT ANALYSIS ON CLASS A SURFACE:
