Week 11 - Project - A pillar Design with Master Section

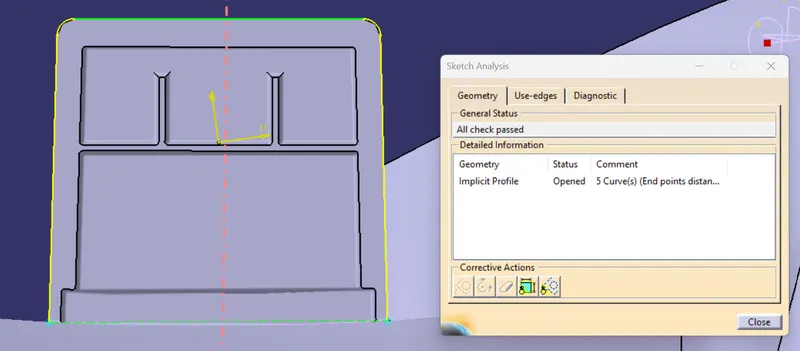

1) Picture of the sketches with Sketch solving status’s geometry tab

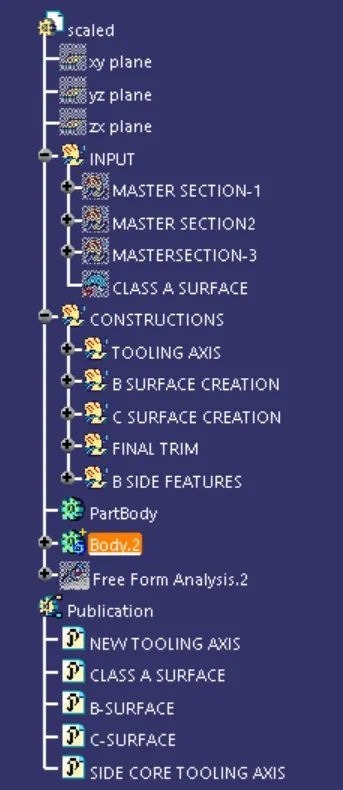

2) Picture of the Detailed tree structure.

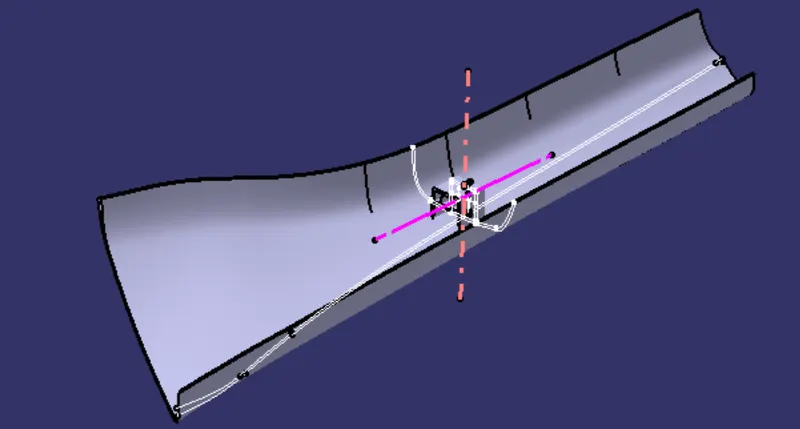

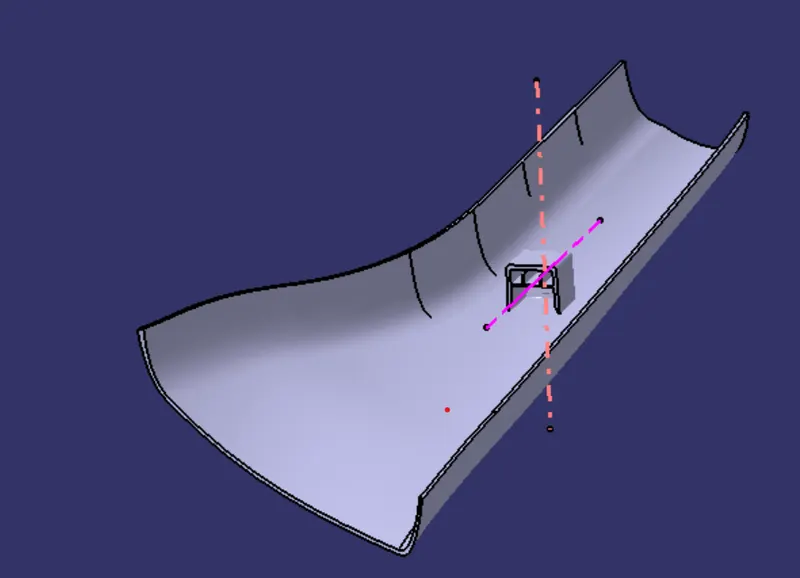

3) Picture of the 3D CAD

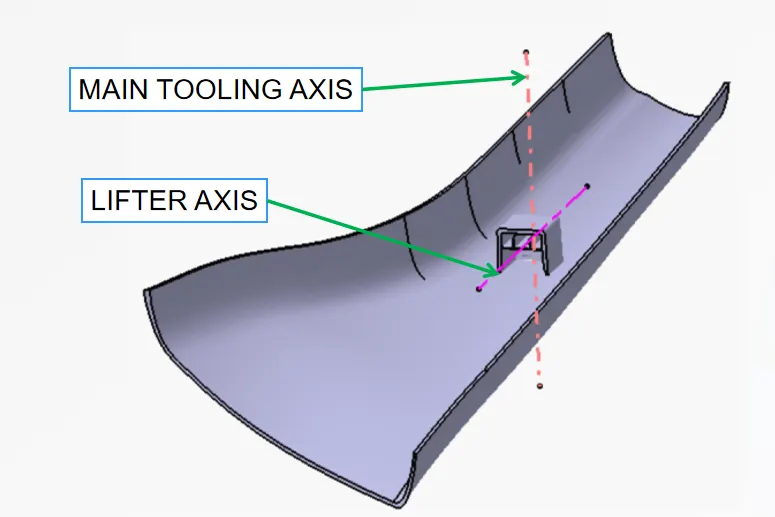

4) Create a tooling axis and follow design rules.

5) Follow the Master section to create a flange

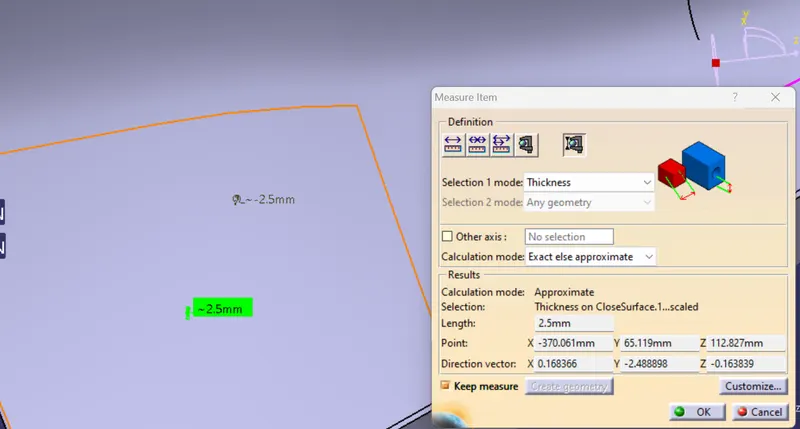

6) The thickness of the Plastic to be 2.5 mm

Ship work like this
in your own course.
