Week 11 - Final project
THE DETAIL REPORT OF DOOR TRIM PANEL
IN DOOR TRIM PANEL THEIR ARE 4 PARTS.
1.)ARM REST.
2.)BOTTEL HOLDER.
3.)MAP POCKET.
4.)LOWER UPSTRATE.
IN THIS 4 PARTS THE LOWER UPSTRATE IS THE BASE PART WHICH HOLDS ALL THE THREE PARTS (ARM REST,BOTTLE HOLDER,MAP POCKETS) BY THE SUPPORT OF HEATSTAKES,4 WAY LOCATORES.ALL THE HEAT STAKES WILL CREATED ON THE BASE OF THE PANEL THAT IS LOWER UPSTRATE,AND ALL FLANGES WILL BE CREATED ON THE REMAINING 3 PARTS FLANGES ARE USED TO HOLD THE HEATSTAKES AND 4 WAY LOCATORES.
1.) ARM REST

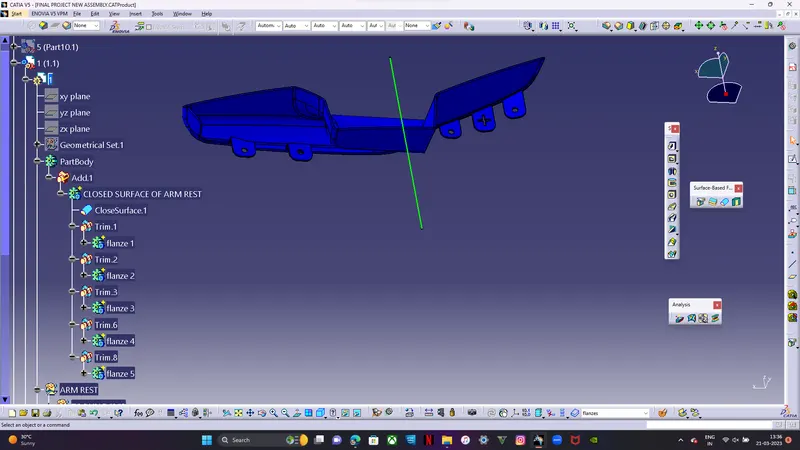

A.) ISOMETRIC VIEW OF ARM REST IN THIS VIEW THEIR ARE 5 FLANGES.ONE FLANGE IS CREATD BY USING MASTER SECTION AND BY USING ONE FLANGE I HAVE TRANSLIATED THEM POINT TO POINT IN ANOTHER 4 PLACES.THE HOLES AND 4 WAY LOCATORES ARE CREATED ON THE SURFACE OF THE FLANGES BY CREATING A POINT AND PLANE AND BY USING POSITIONED SKETCH AND I PAD THEM AND REMOVED FROM THE FLANGES.

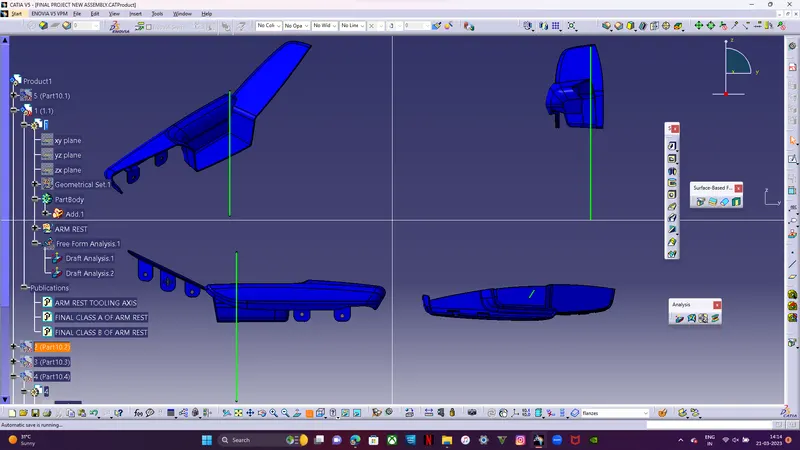

B.) ALL VIEWS OF ARM REST.

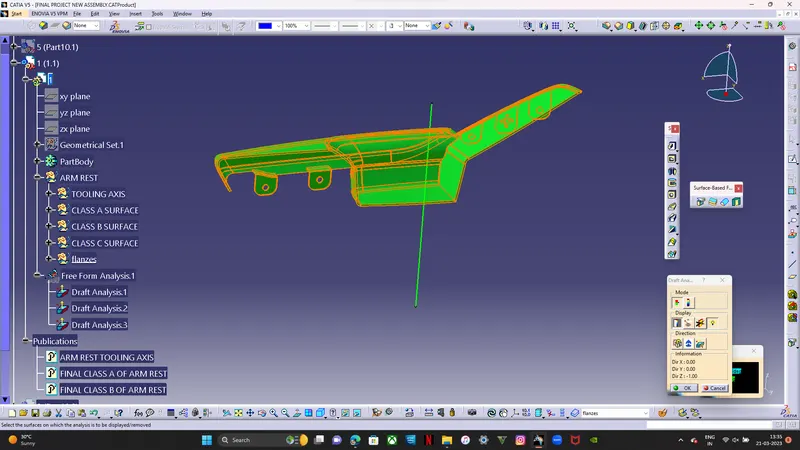

C.) DRAFT ANALYSIS OF ARM REST.

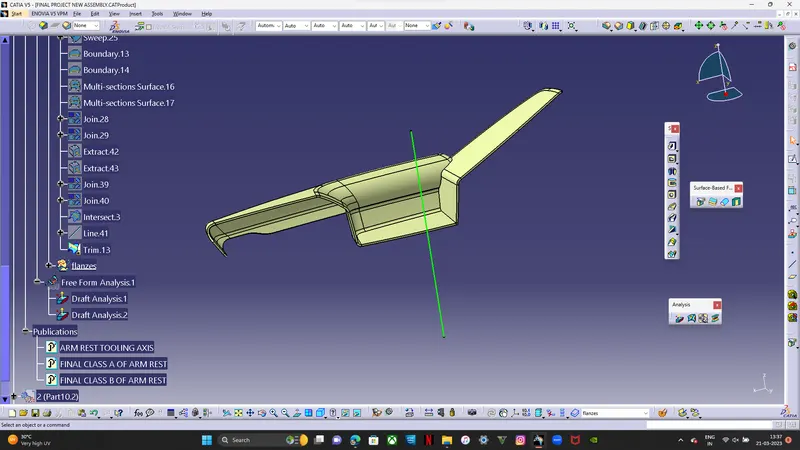

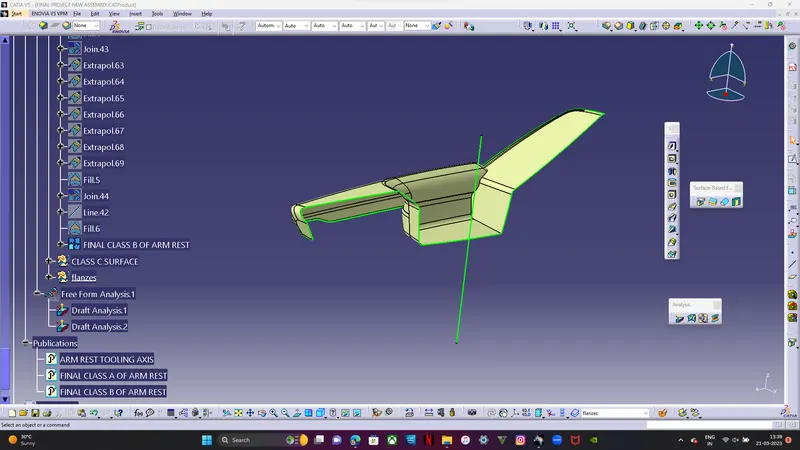

D.) ARM REST CLASS B SURFACE.
E.) ARM REST CLASS C SURFACE (THICKNESS 2mm).
2.) BOTTLE HOLDER

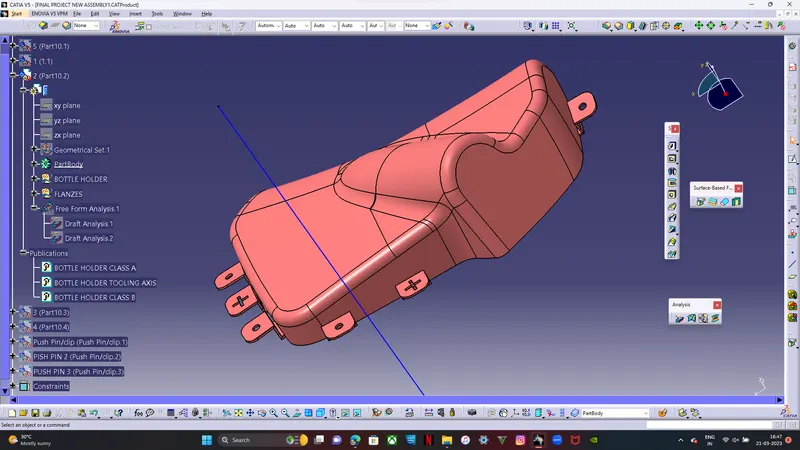

A.) ISOMETRIC VIEW OF BOTTLE HOLDER.IN THIS VIEW WE CAN SEE 6 FLANGES ARE ATTACHED TO THE BOTTLE HOLDER.THE FLANGES ARE CREATED BY USING SWEEP COMIND AND I USED PROFILE AS SKETCH AND GUIDE CURVE AS THE BOUNDRY THE HOLES AND 4 WAY LOCATORES ARE CREATED ON THE SURFACE OF THE FLANGES BY CREATING A POINT AND PLANE AND BY USING POSITIONED SKETCH AND I PAD THEM AND REMOVED FROM THE FLANGES.

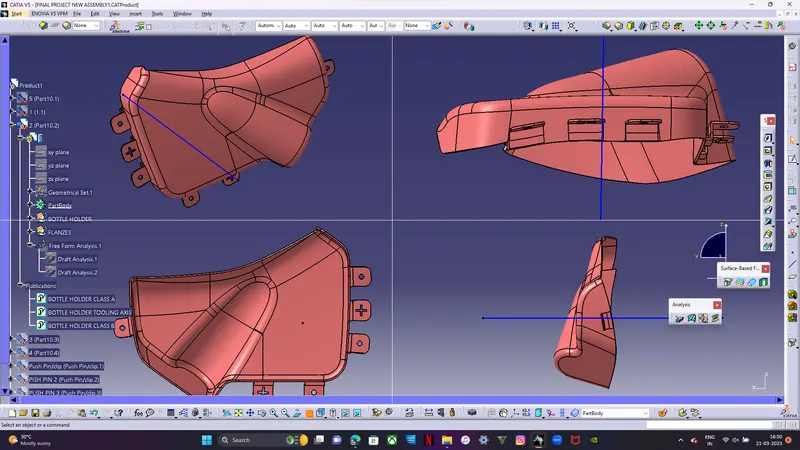

B.) ALL VIEWS OF BOTTLE HOLDER.

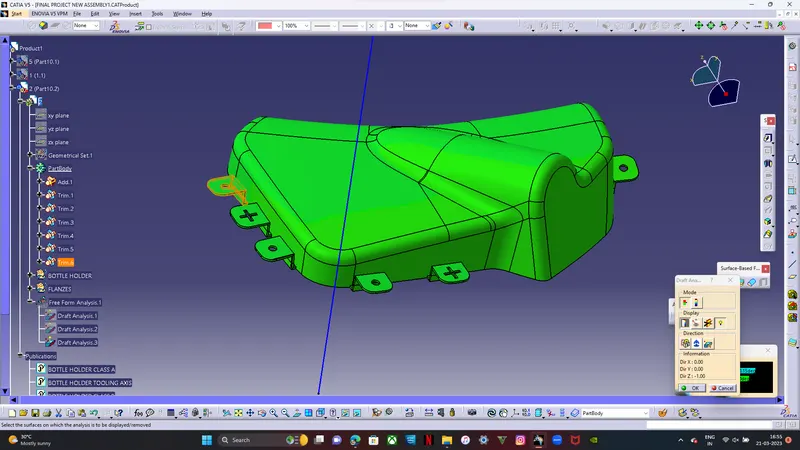

C.) BOTTLE HOLDER DRAFT ANALYSIS.

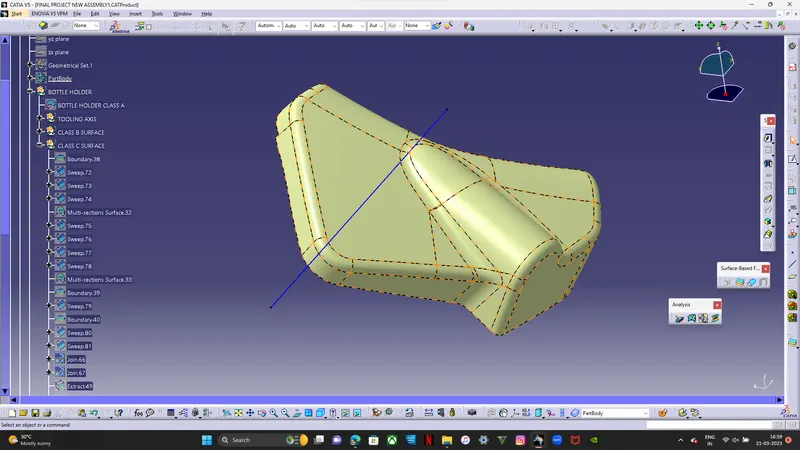

D.) BOTTLE HOLDER CLASS C SURFACE (THICKNESS 2mm).
3.)MAP POCKET

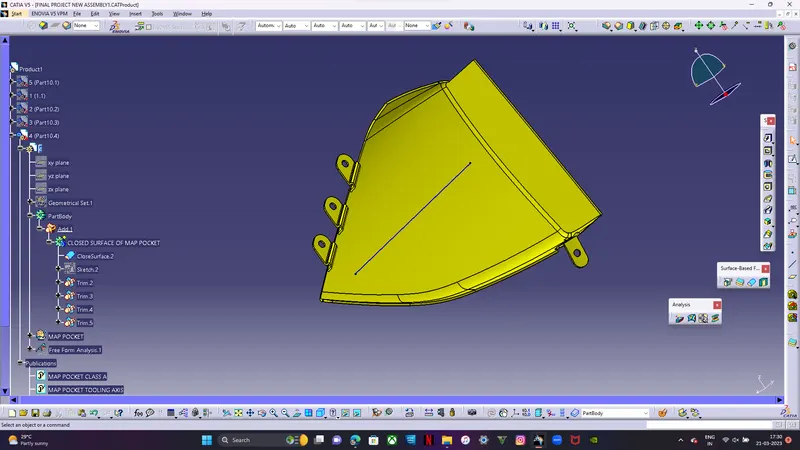

A.) ISOMETRIC VIEW OF MAP POCKET.IN THIS VIEW WE CAN SEE 4 FLANGES ARE ATTACHED TO THE MAP POCKET.THE FLANGES ARE CREATED BY USING SWEEP COMIND AND I USED PROFILE AS TH GIVEN MASTERSECTION AND GUIDE CURVE AS THE BOUNDRY THE HOLES AND 4 WAY LOCATORES ARE CREATED ON THE SURFACE OF THE FLANGES BY CREATING A POINT AND PLANE AND BY USING POSITIONED SKETCH AND I PAD THEM AND REMOVED FROM THE FLANGES.

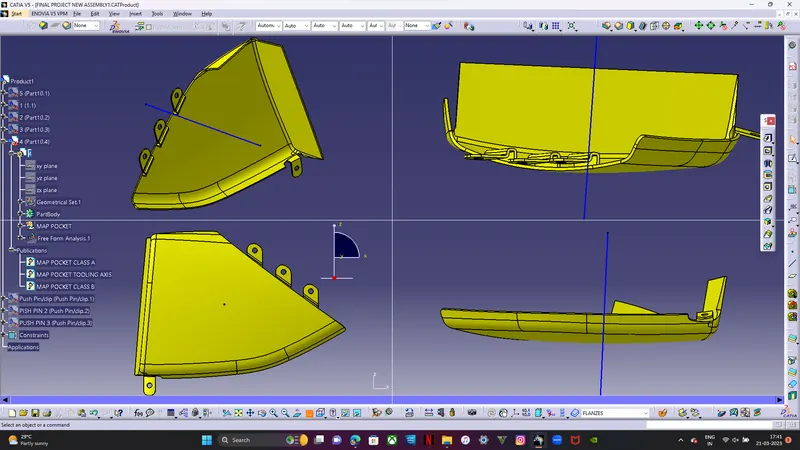

B.) ALL VIEWS OF MAP POCKET.

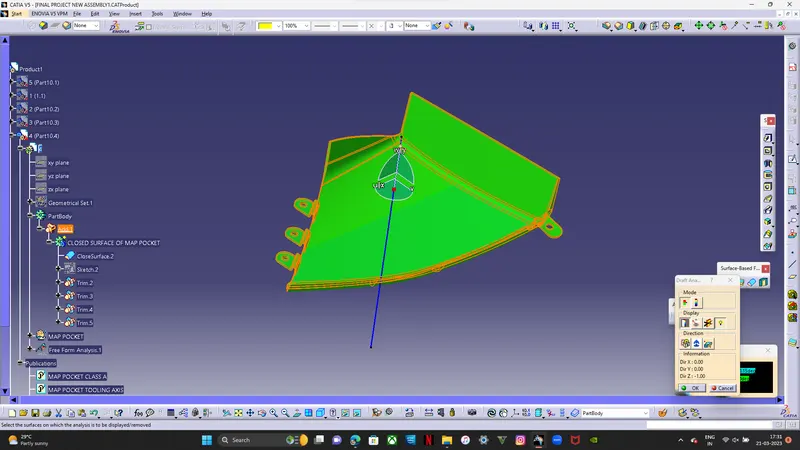

C.) DRAFT ANALYSIS OF MAP POCKET.

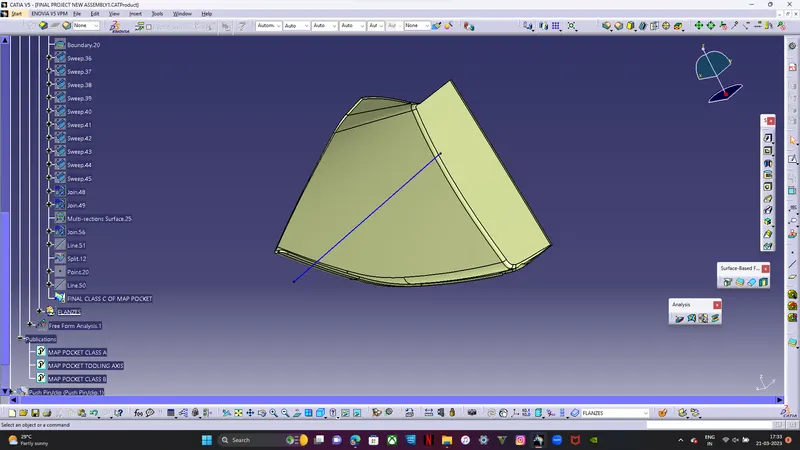

D.) CLASS C SURFACE OF MAP POCKETS (THICKNESS 2mm).
4.)LOWER UPSTRATE

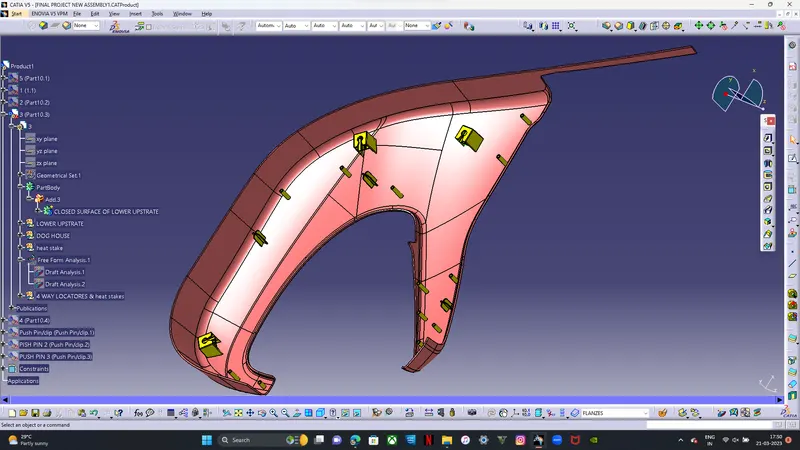

A.) ISOMETRIC VIEW OF LOWER UPSTRATE WE CAN SEE ALL THE DOG HOUSES,HEAT STAKE,4 WAY LOCATORES ARE CREATED ON THE LOWER UPSTRATE.THERE ARE 12 HEAT STAKES,3-4 WAY LOCATORS,3 DOG HOUSES.HEAT ARE CREATED BY MASTER SECTION AND IT IS TRANSLIATED FROM POINT TO POINT.

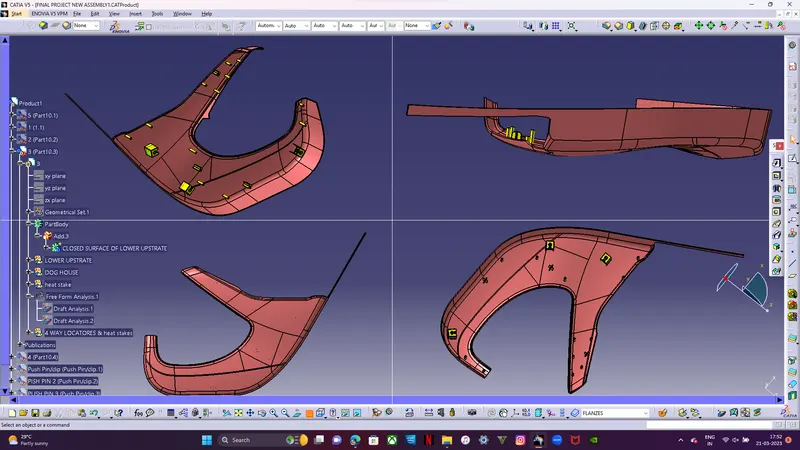

B.)LOWER UPSTRATE ALL VIEWS.

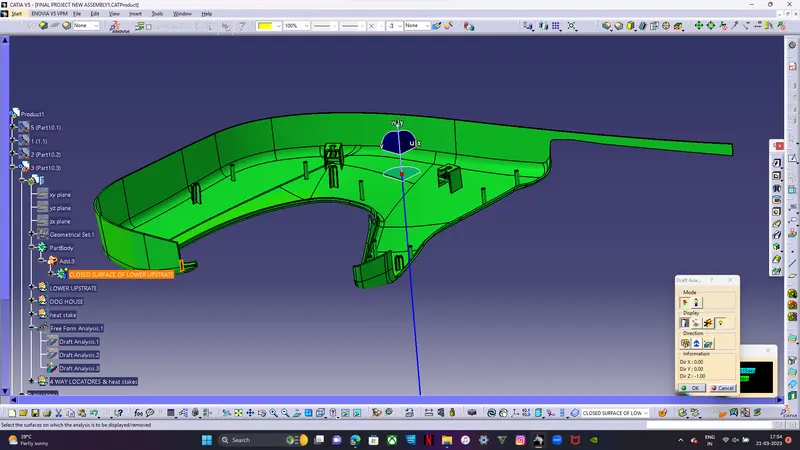

C.)LOWER UPSTRATE DRAFT ANALYSIS.

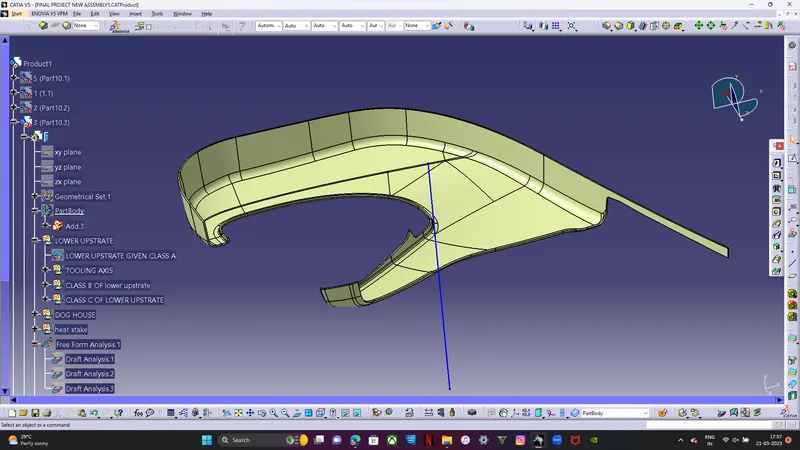

D.)LOWER UPSTRATE CLASS C SURFACE (THICKNESS 2mm).
B-SIDE FEATURES
1.) DOG HOUSE.
2.) HEAT STAKES.
3.) 4 WAY LOCATORS.
4.) FLANGES.
DOG HOUSE

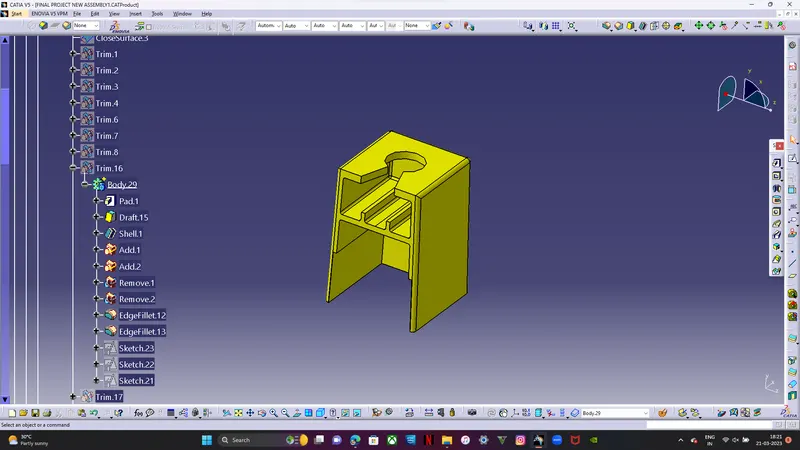

1.) DOG HOUSE IS OF 30mm HIGHT FROM THE SURFACE,25mm WIDTH FROM ALL SIDES,1.5mm THICKNESS DIVISION PART OF DOG HOUSE,TWO 1mm STIFFNERS ON TH DIVISION PART DRAFT ANGEL 1.5deg.

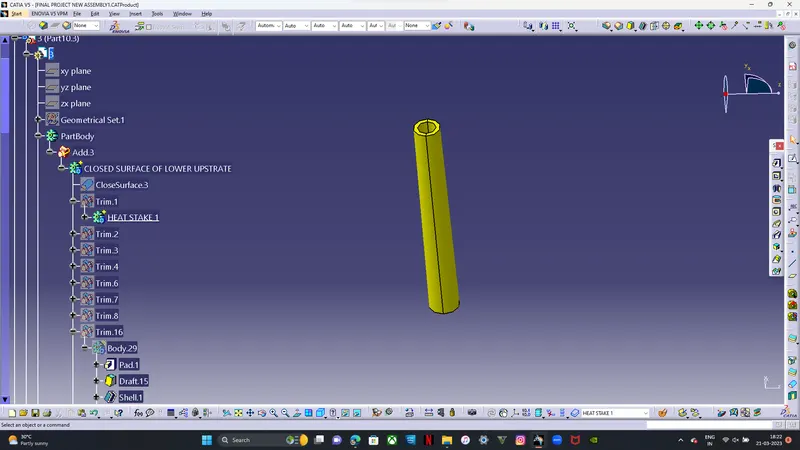

2.)HEAT STAKE THICKNESS 1.5mm,DRAFT ANGLE 0.5deg AND 7mm HIGHT FROM FLANGE

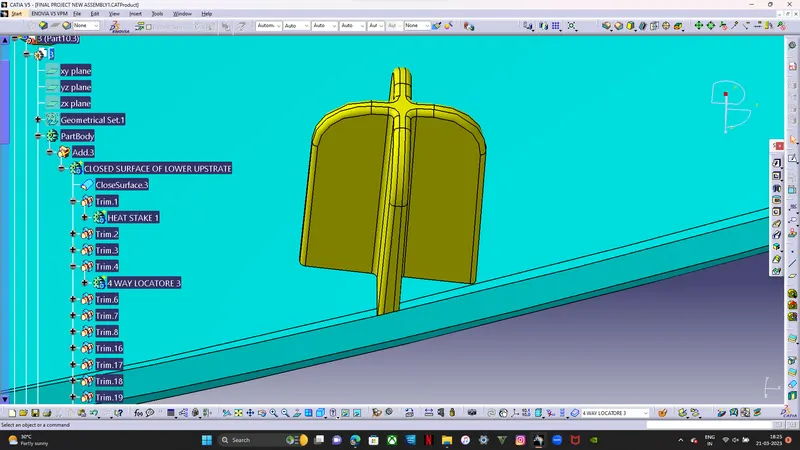

3.) 4-WAY LOCATORES THICKNESS OF 2mm,DRAFT ANGLE 0.5deg,TOP EDGE FILLET 5mm,SIDE EDGE FILLET 0.5mm

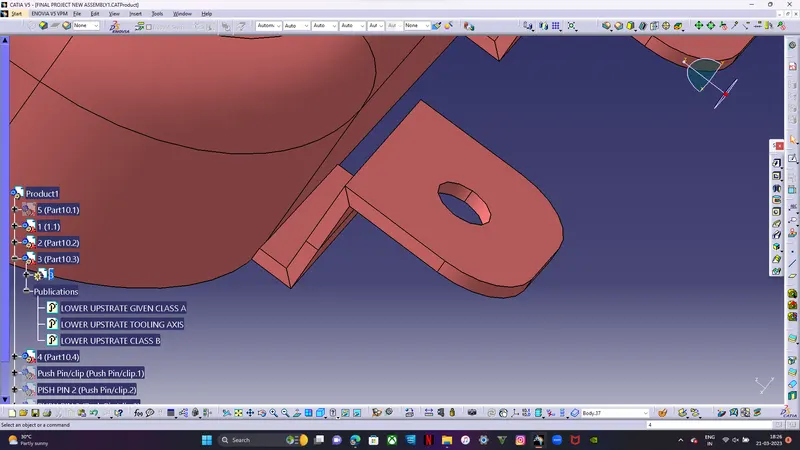

4.) FLANGE THICKNESS 2mm,EDGE FILLET 10mm HOLE DIAMETER 8mm

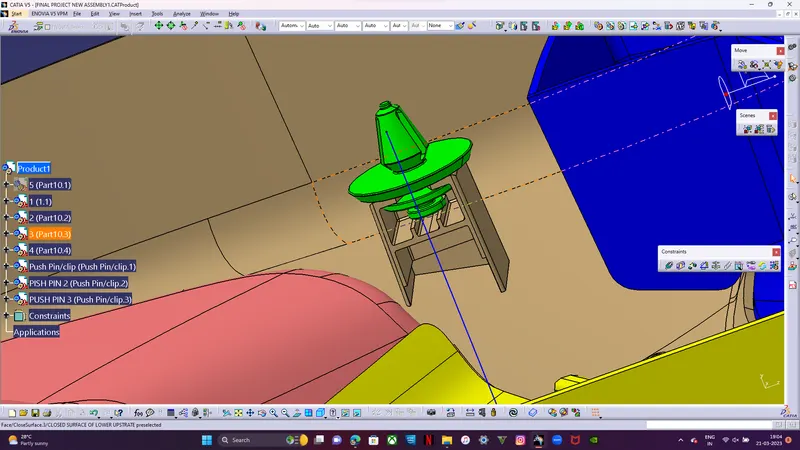

PUSH PIN ASSEMBLY FOR DOG HOUSE

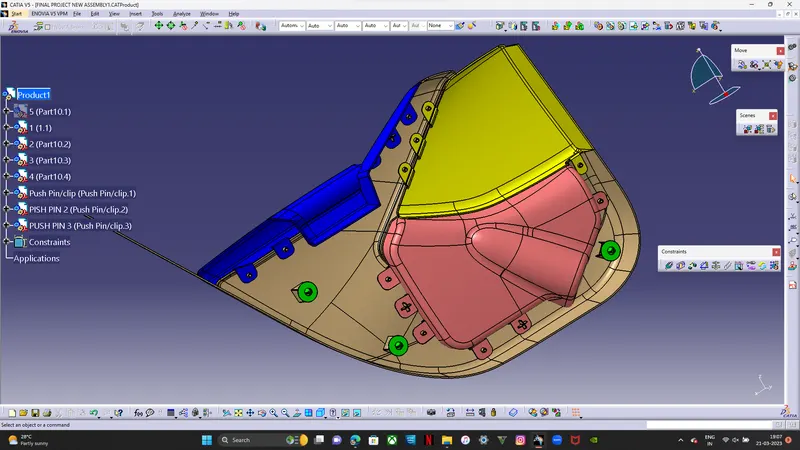

FINAL DOOR TRIM PANEL ASSEMBLY
1.) ISOMETRIC VIEW

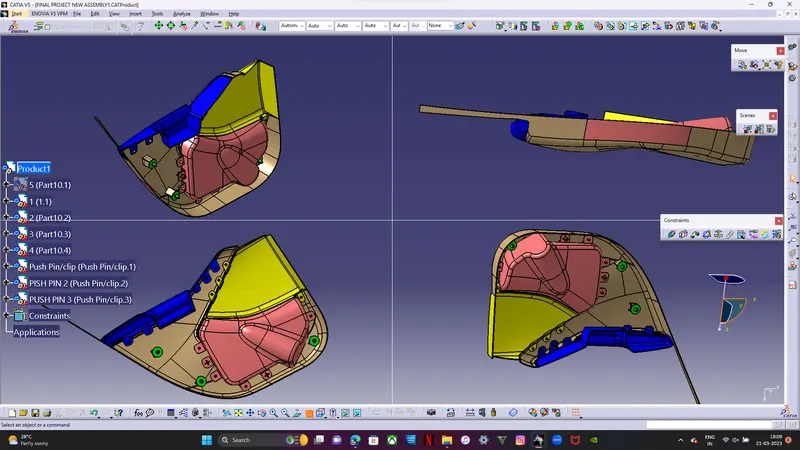

2.) ALL VIEWS
