Week 11 - Final project

TITLE- DOOR TRIM PANEL SOFTWARE USED- SIEMENS NX PROCEDURE 1-CREATING ALL PRODUCTS I)  LOWER SUBSTRATE II) LOWER MAP POCKET III) UPPPER MAP POCKET IV) DOOR ARM REST     2-CREATING TOOLING DIRECTION ACCORDING TO THE SHAPE AND STRUCTURE 3-CLOSING THE BODY WITH 2.5mm THICKNESS 4- ADDING HEAT STAKES…

The attached zip contains report of draft analysis and cat part of door applique

The zip file contains both cat part and report of draft analysis

the zip file contains model 1 ,2 and report of assembly workbench

The below attached ppt having all the master section developed part with b side features including ribs and dog house with 4 way locators

Attachment feature report     Dog house – This is an engineering feature which supports other feature to operate easily The above image shows the draft analysis on dog house in which the the surface is clearing the tooling with 1.5 degrees with the tooling axis   It is a front view which the front…

Objective – to design rib for coin holder     Tooling direction Draft analysiS  for solid and class a      rib design     RIB ROOT THICKNESS and other design rules for rib design   isometric , front, top view of the body

               STEPS INVOLVED FOR DRAFT ANALYSIS   CREATING TOOLING AXIS FOR THE COMPONENT AND CHECKING IN WHICH DIRECTION THE COMPONENT CLEARING THE DIRECTION FIRST FINDING THE FACES NOT CLEARING THE TOOLING AXIS AND MAKE IT CLEAR TO THE TOOLING DIRECTION BY MAKING…

                                 UPLOADED FOLLOWINGS DRAFT ANALYSIS REPORT CAT PART FOR SWITCH BEZEL AS PER INSTRUCTIONS GIVEN ABOVE I HAVE TRIED TO MAKE CORE AND CAVITY WITH BASE BRACKET ALSO AND ATTACHED IT .

                                                    switch bezel

                      week 8 challenge 2

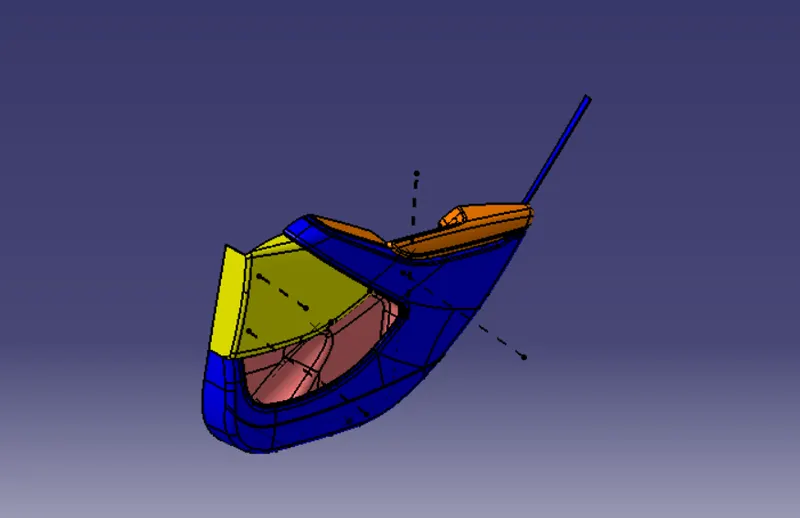

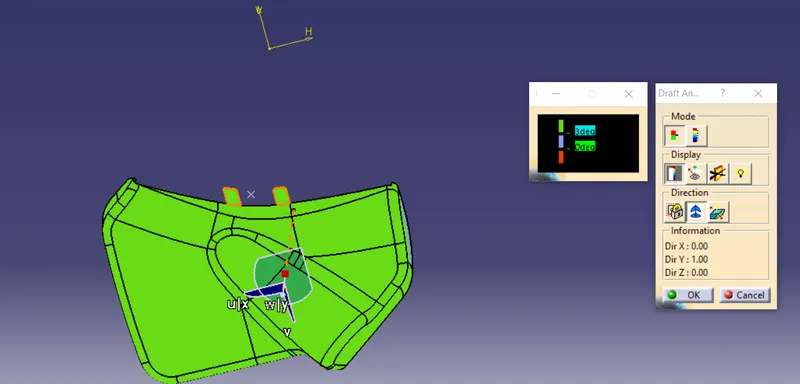

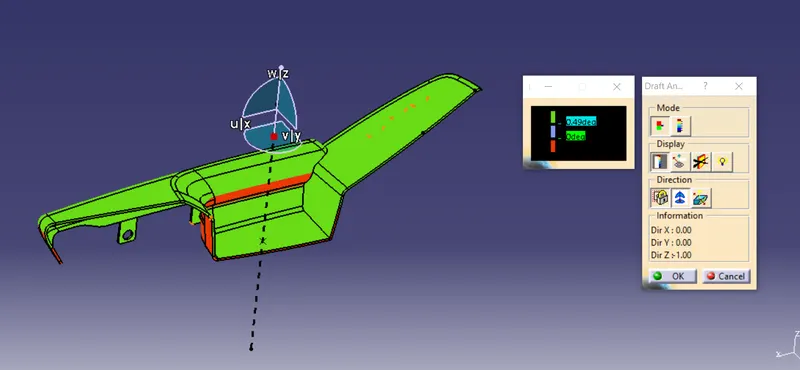

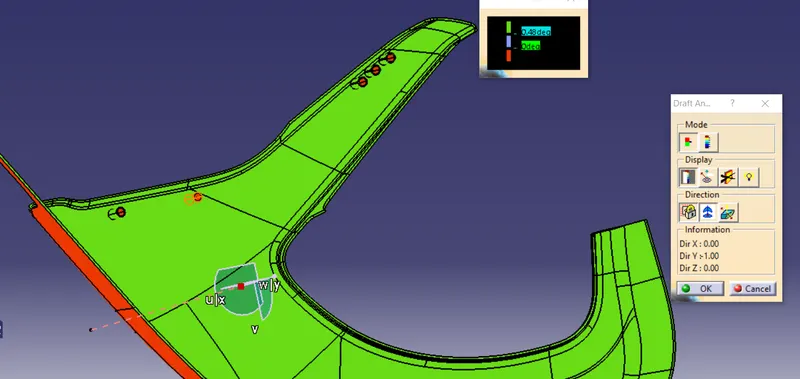

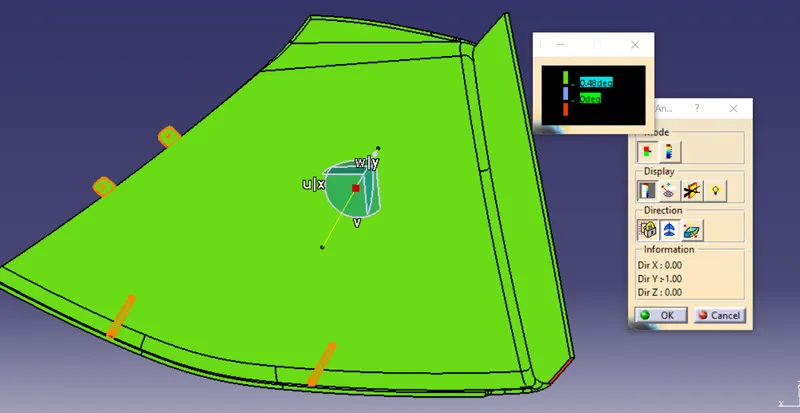

                               the above images are from the draft analysis performed

Week 7 Part-2

Base mount bracket
