Week 11 - Final project

REPORT:

AIM:

To create door panel and attachment features by using given master section and class A surface.

The plastic material is applied in the created solid surface.

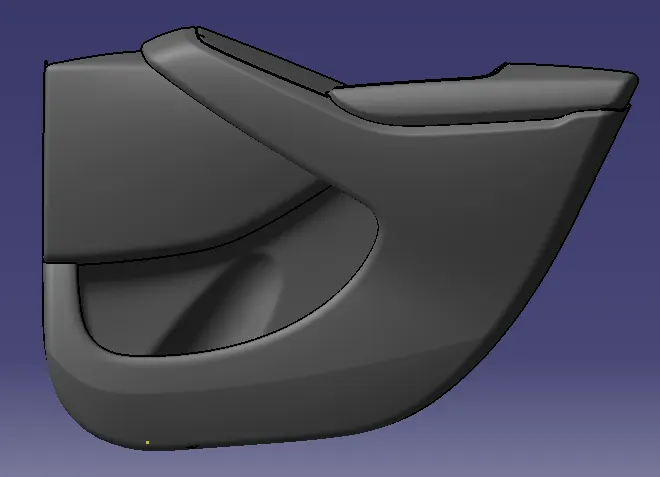

FULL BODY:

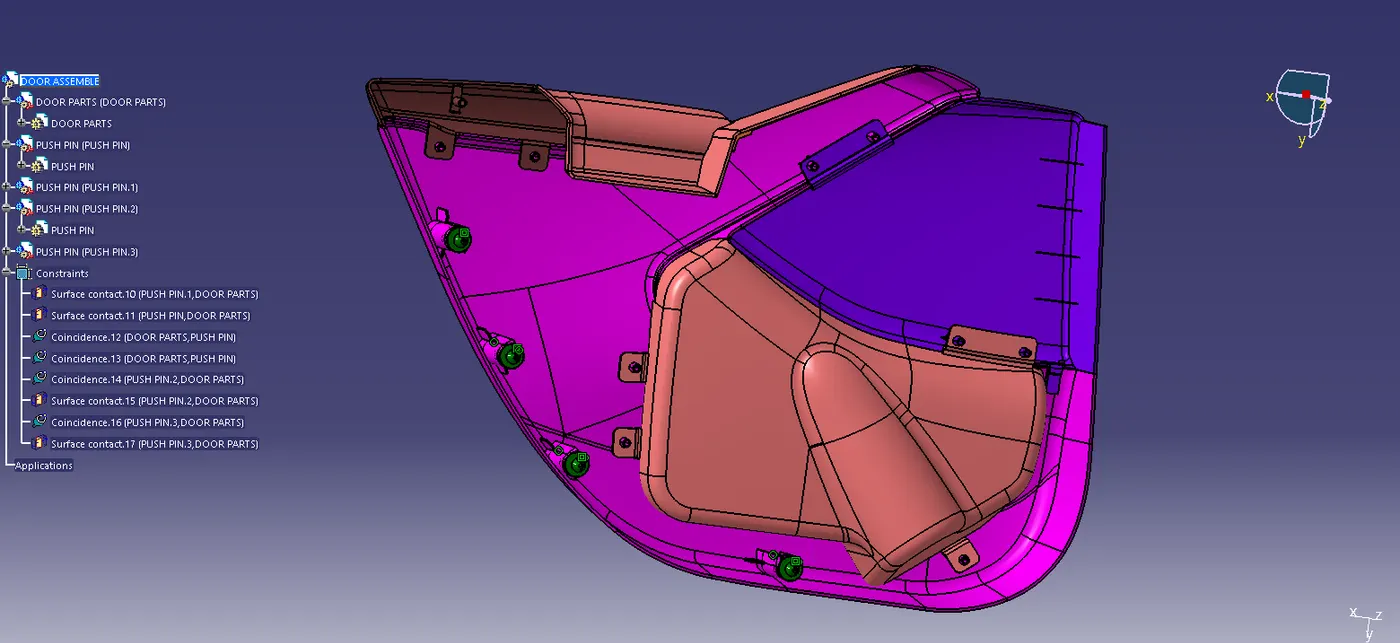

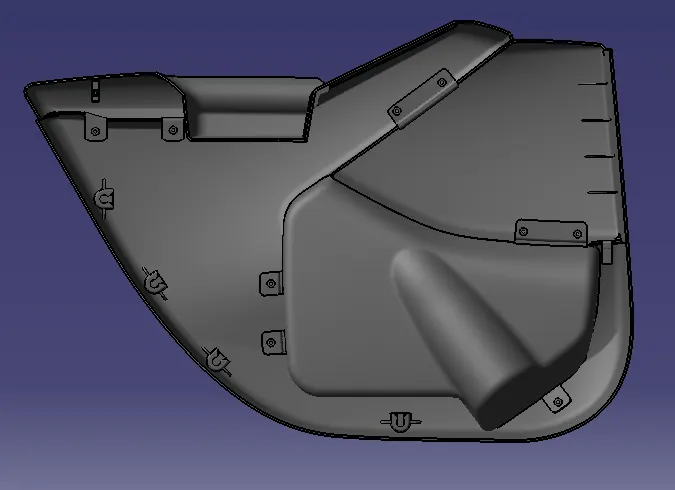

FULL BODY WITH PUSH PIN:

LOWER SUBSTRATE:

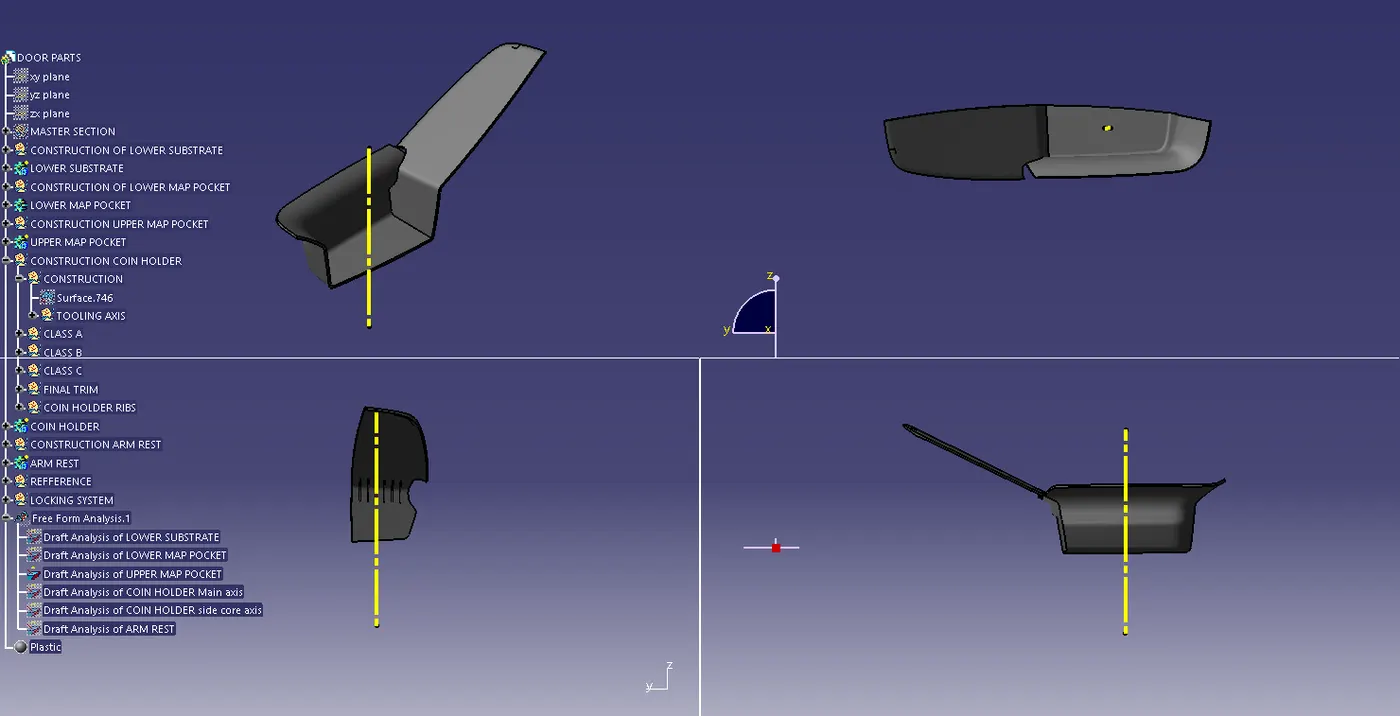

The tooling axis of the lower substrate is created from the mid point of the class A surface.The drafe analysis of the lower substrste is given belove.

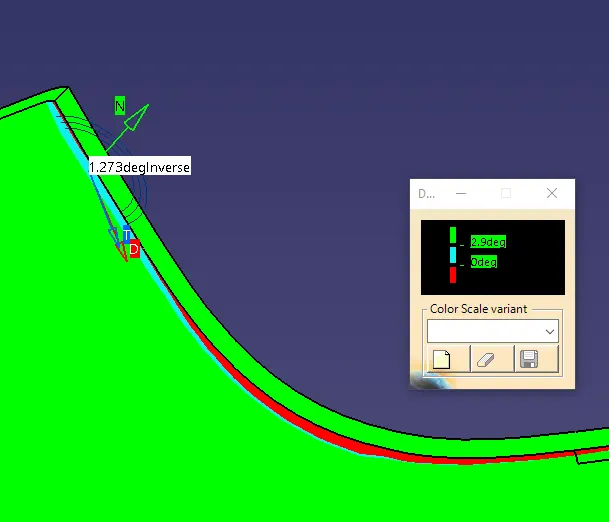

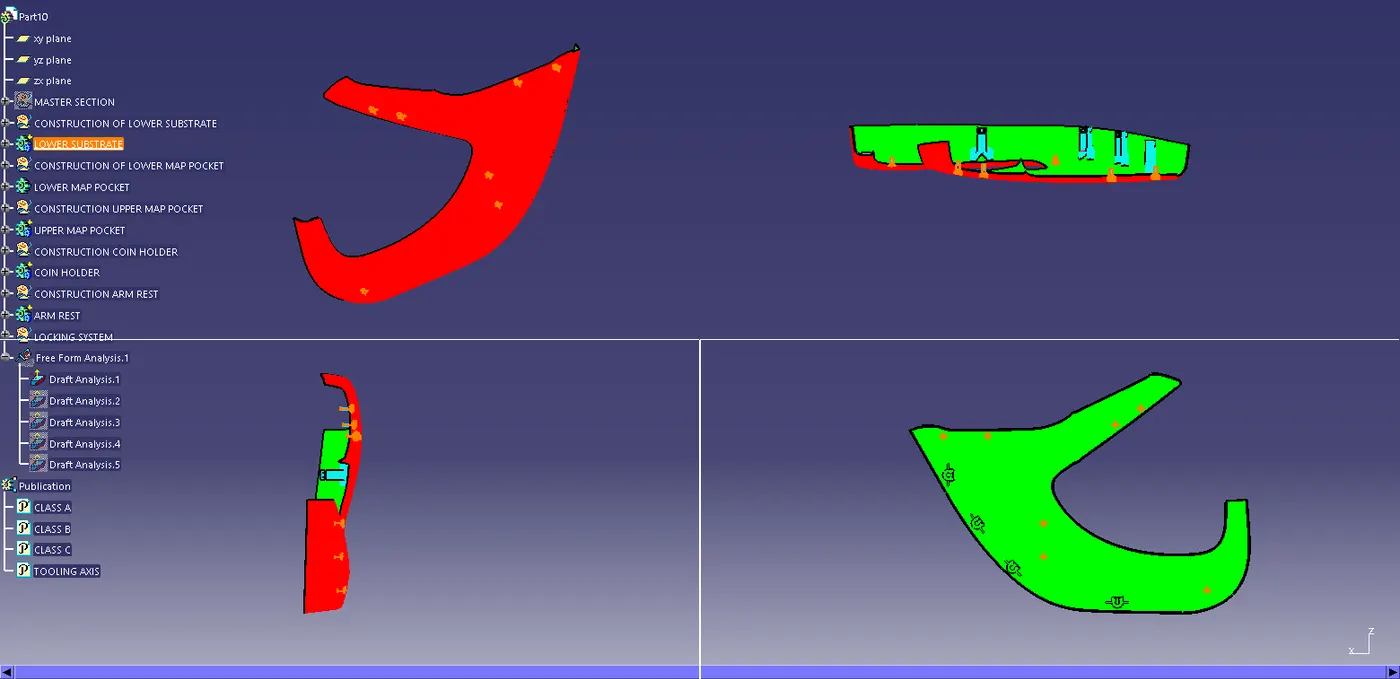

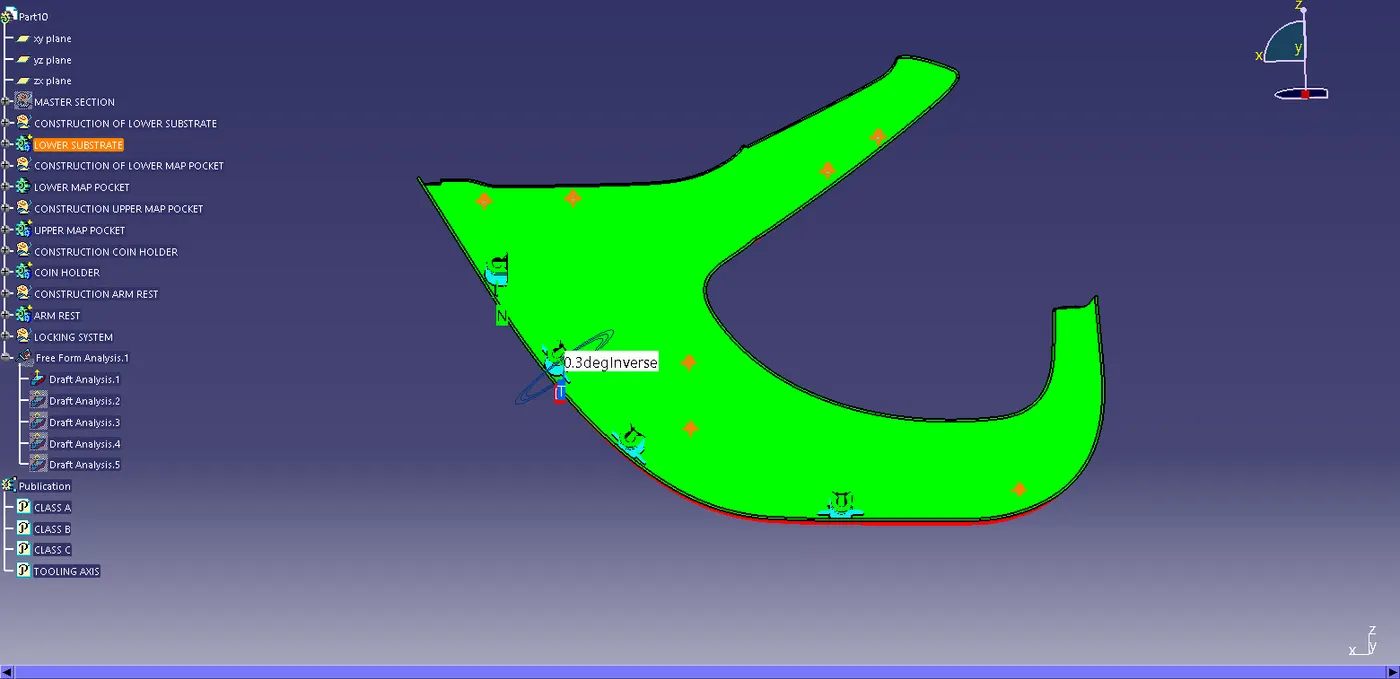

DRAFT ANALYSIS OF LOWER SUBSTRATE:

The draft analysis is taken from the main tooling axis of lower substrate .

The minimum draft angle is 0.3deg in b side feature

The maximum draft angle is 2.9deg

LOWER MAP POCKET:

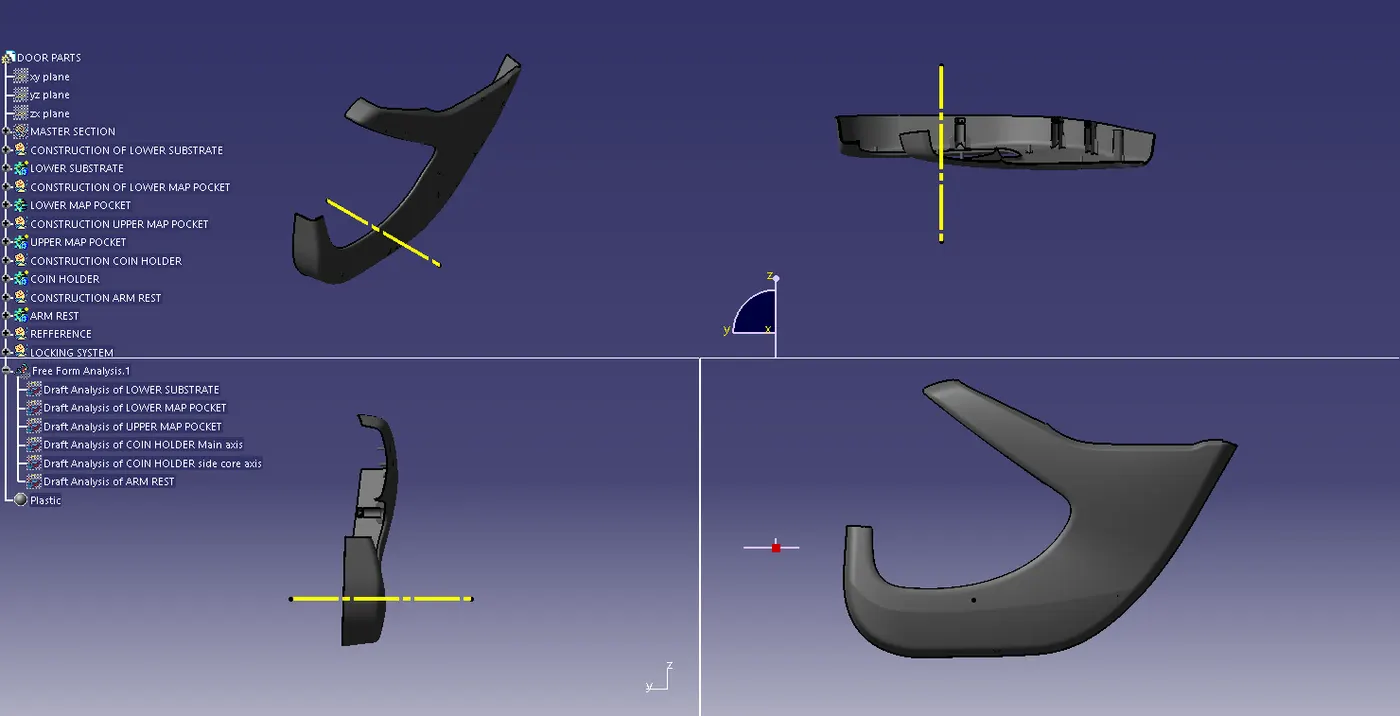

The tooling axis of the lower map pocket is created from the mid point of the class A surface.The drafe analysis of the lower map pocket is given belove.

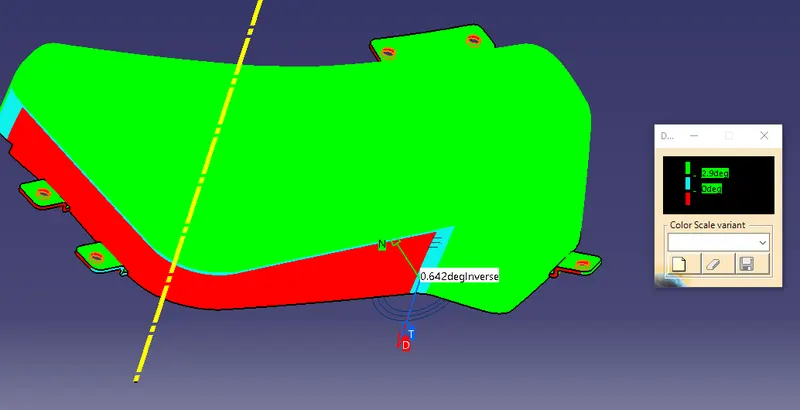

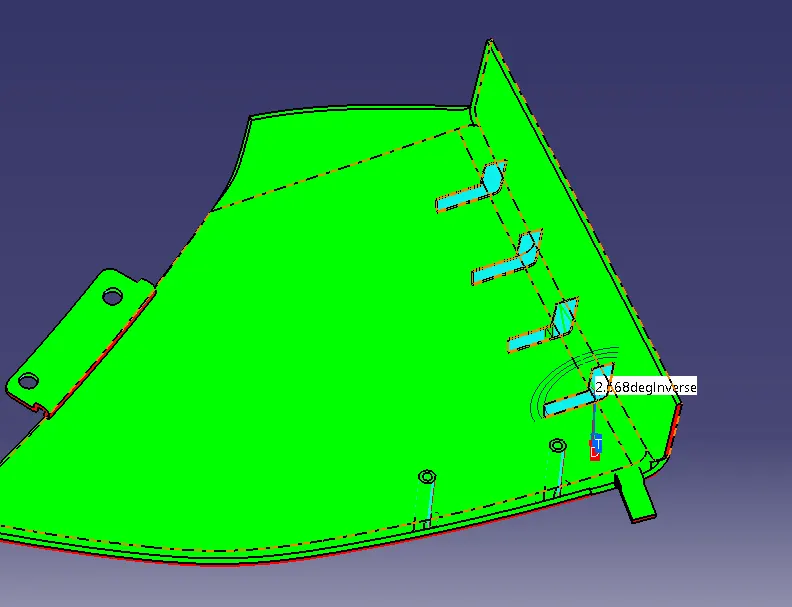

DRAFT ANALYSIS OF LOWER MAP POCKET:

The draft analysis is taken from the main tooling axis of lower map pocket .

The minimum draft angle is 0.642deg.

The maximum draft angle is 2.9deg.

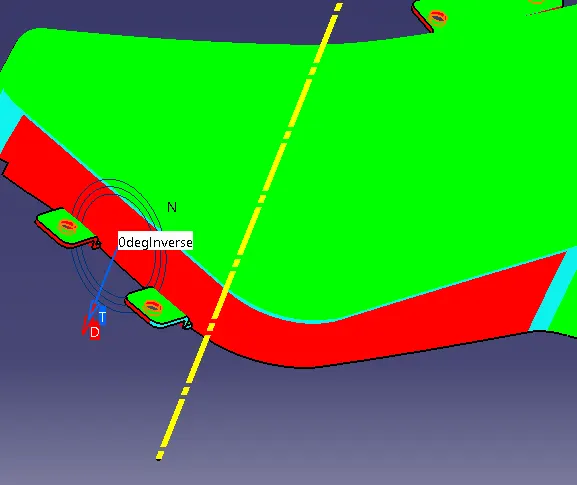

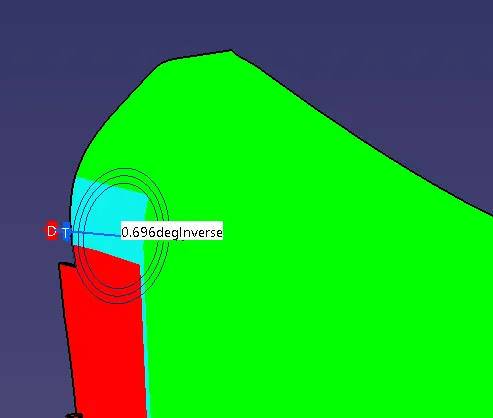

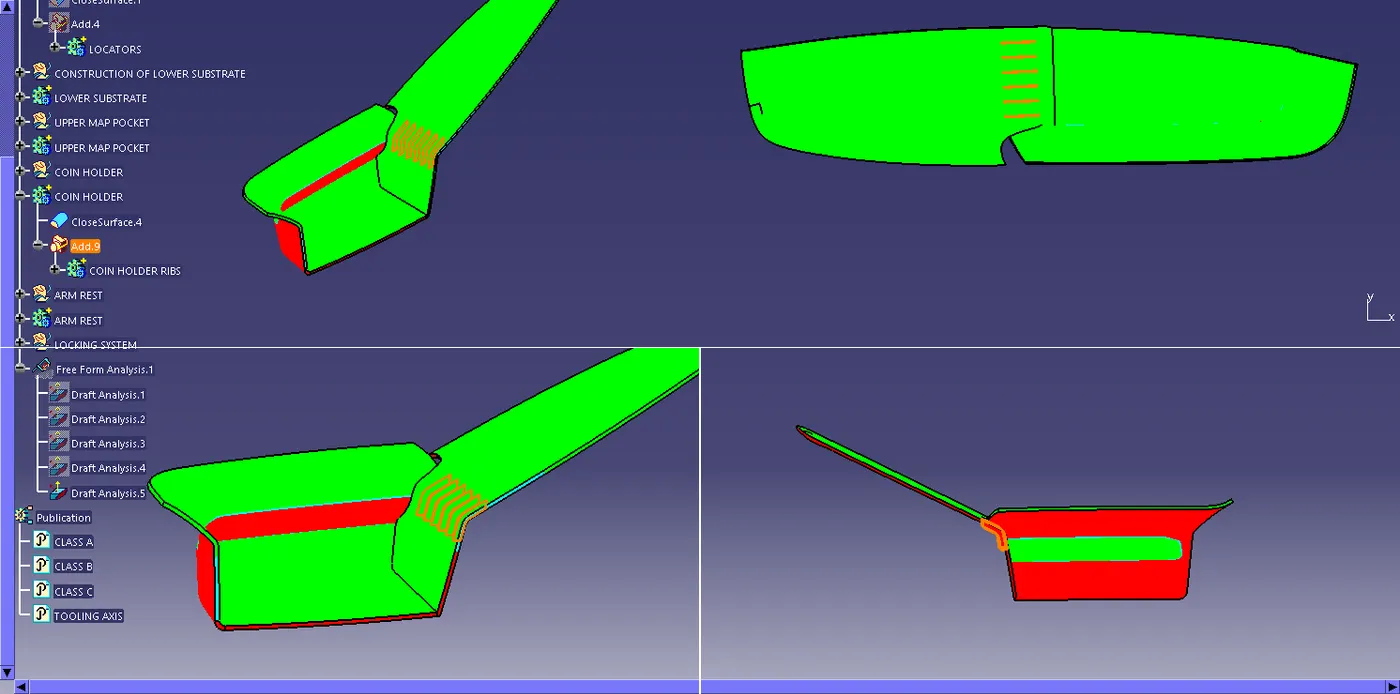

HAS TO IMPROVE AREA

The below portion has 0 deg dtaft in class A surface.

UPPER MAP POCKET:

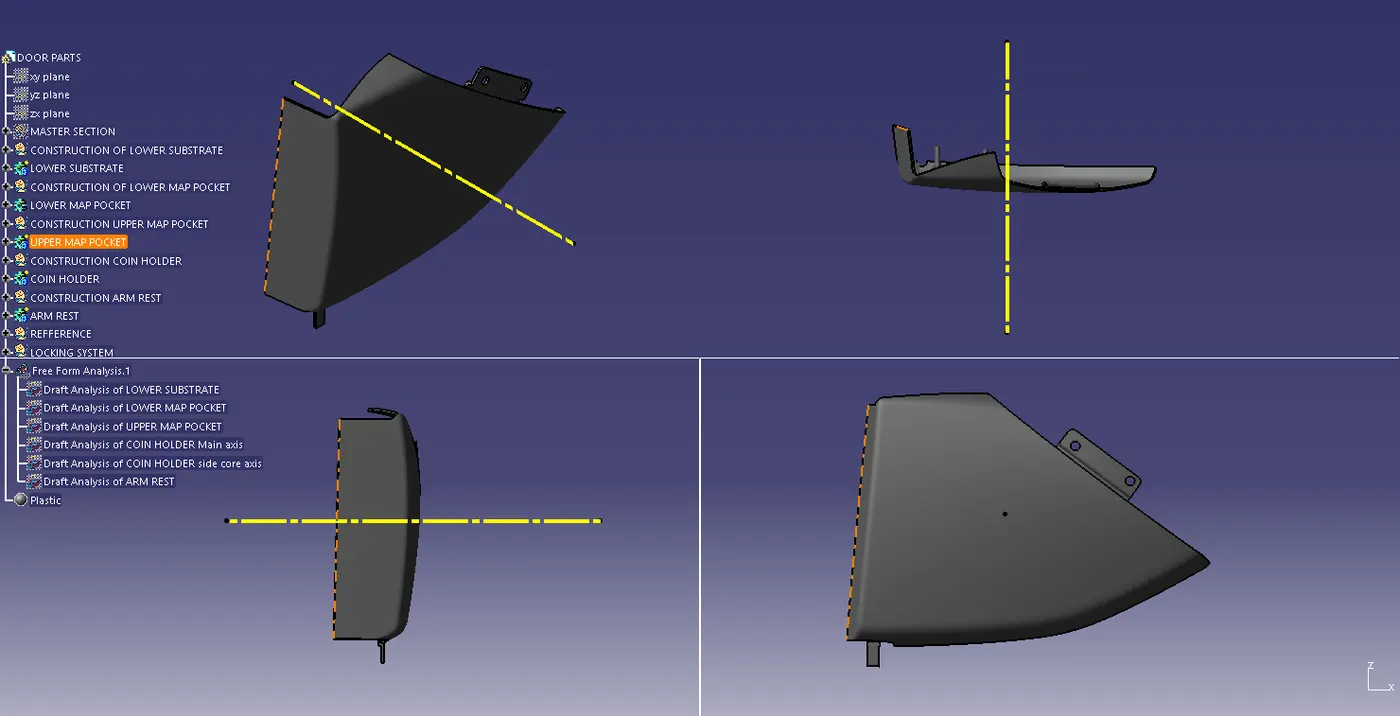

The tooling axis of the upper map pocket is created from the mid point of the class A surface.The drafe analysis of the upper map pocket is given belove.

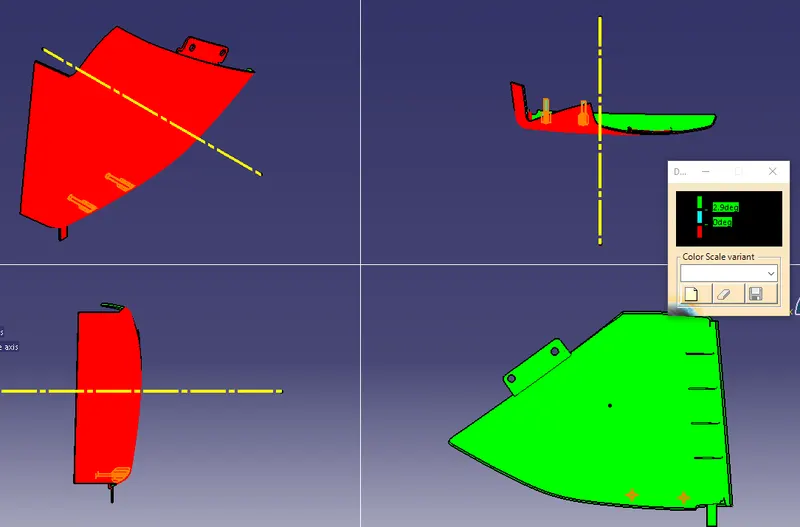

DRAFT ANALYSIS OF UPPER MAP POCKET:

The draft analysis is taken from the main tooling axis of upper map pocket .

The minimum draft angle is 2.69deg.

The maximum draft angle is 2.9deg.

COIN HOLDER:

The main tooling axis and side core axis of the coin holder is created from the different sides of class A surface.The drafe analysis of the upper map pocket is given belove.

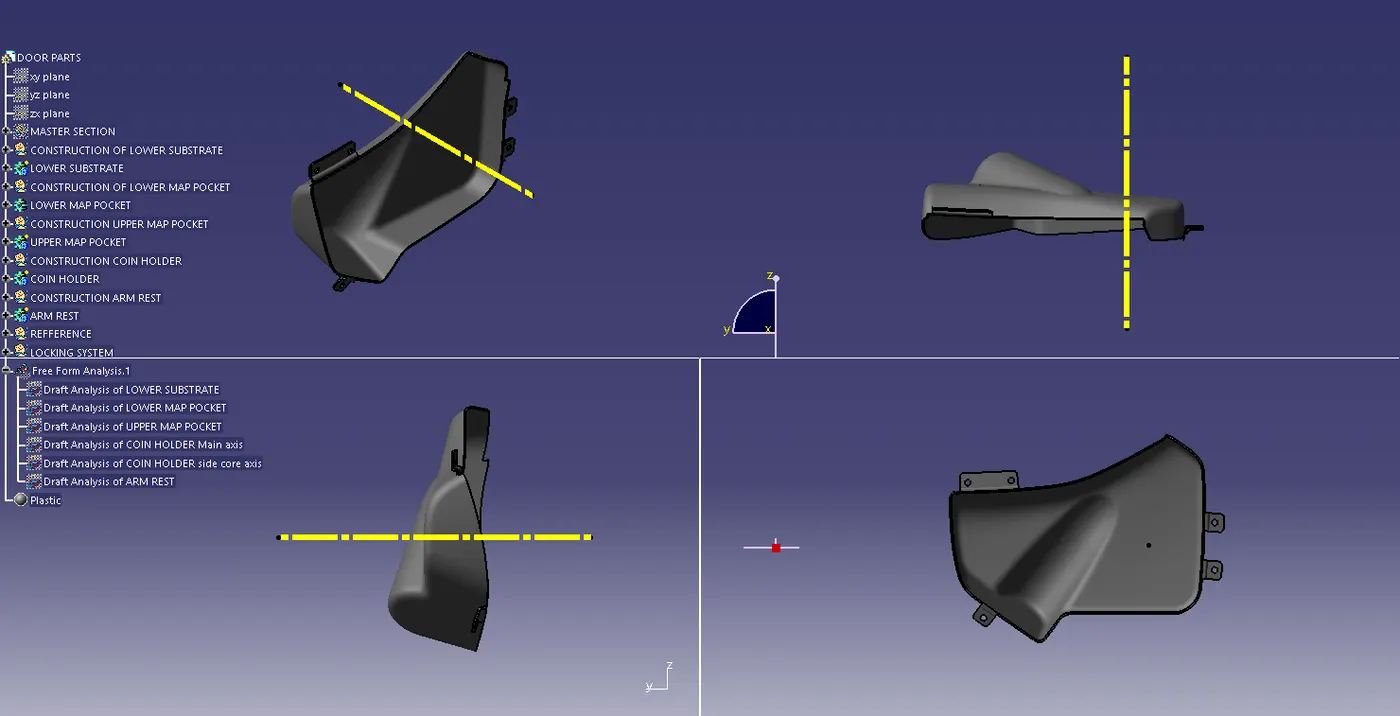

MAIN TOOLING AXIS:

SIDE CORE AXIS:

DRAFT ANALYSIS OF COIN HOLDER:

The draft analysis is taken from the main tooling axis of coin holder.

The minimum draft angle is 1.5deg.

The maximum draft angle is 2.9deg.

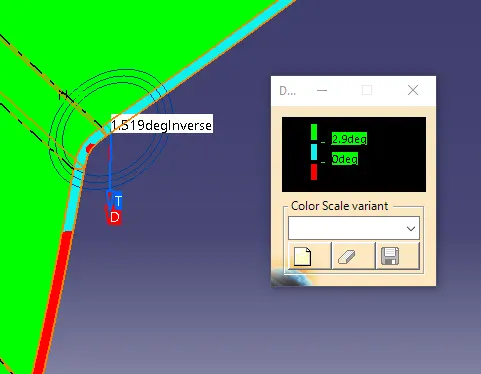

SIDE CORE AXIS DRAFT ANALYSIS:

The draft analysis is taken from the side core axis of coin holder.

The minimum draft angle is 2.4deg.

The maximum draft angle is 2.9deg.

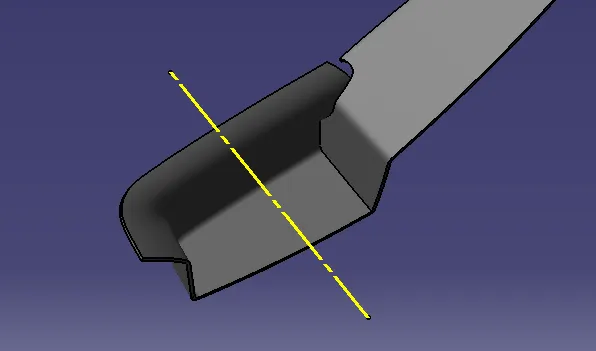

ARM REST:

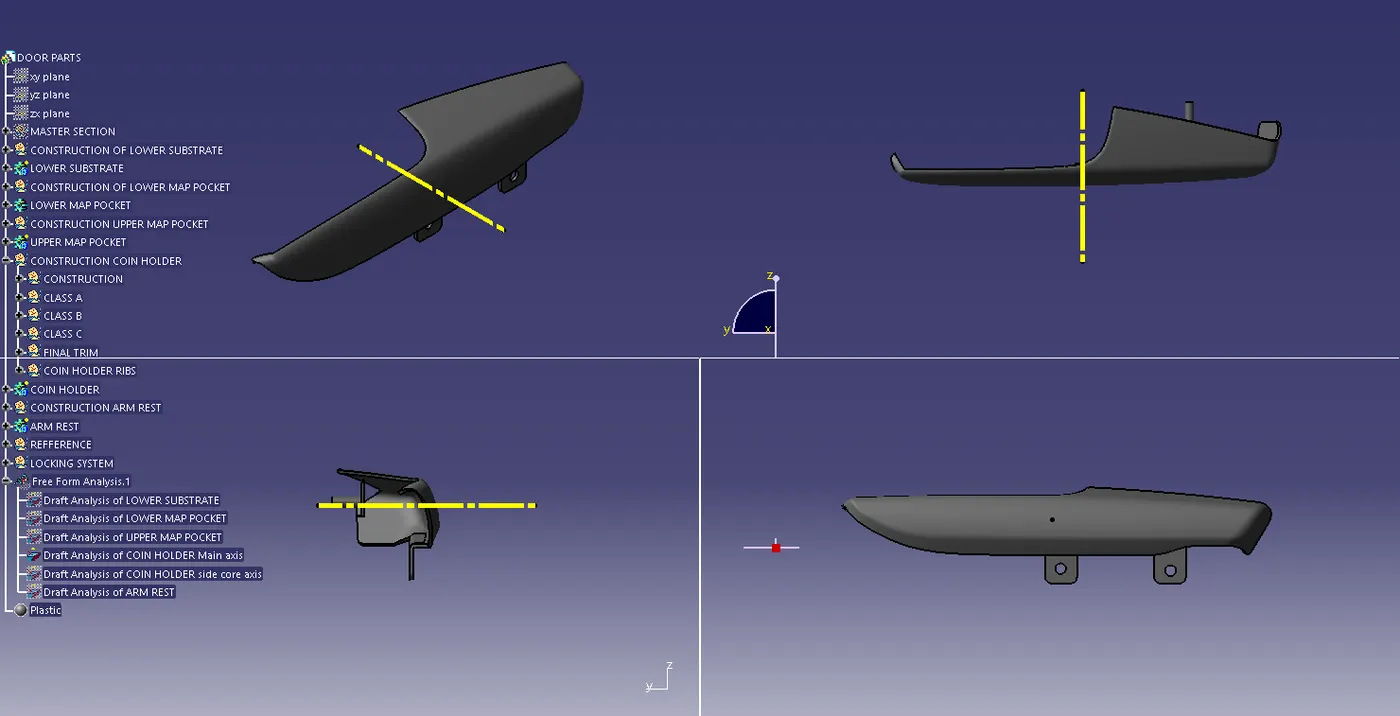

The tooling axis of the arm rest is created from the mid point of the class A surface.The drafe analysis of the arm rest is given belove.

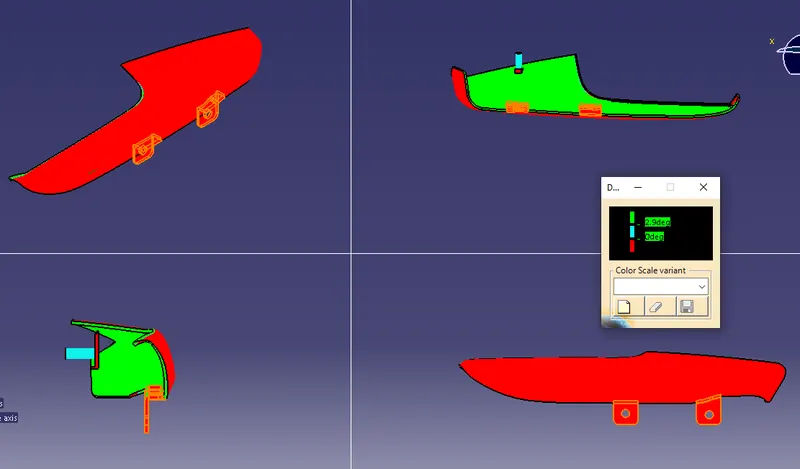

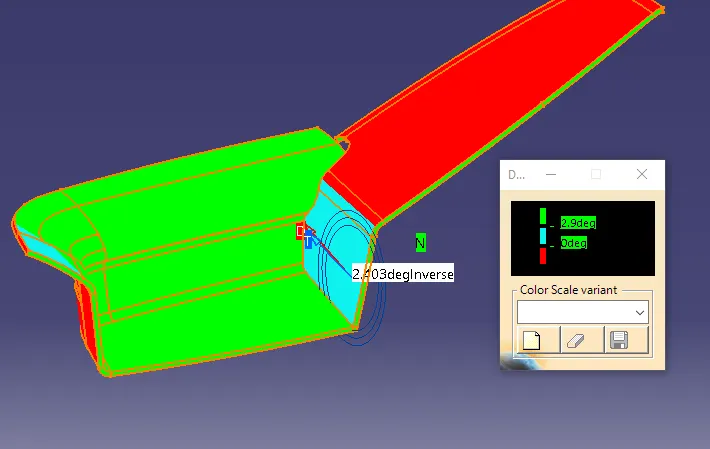

DRAFT ANALYSIS OF ARM REST:

The draft analysis is taken from the main tooling axis of arm rest.

The minimum draft angle is 1.2deg.

The maximum draft angle is 2.9deg.

HAS TO IMPROVE AREA

The below portion has less than 3 deg dtaft in class A surface.

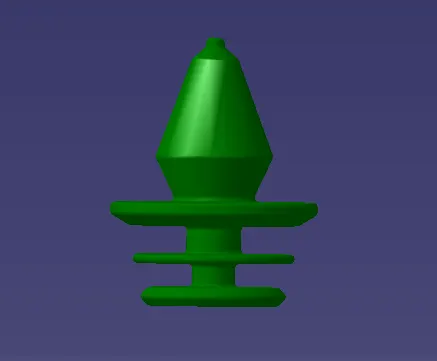

PUSH PIN:
