Week 11 - Final project

DEVELOPMENT OF A DOOR TRIM PANNEL

AIM : to create a cad model considering the following inputs as like in OEM and tier 1 companies.

a. class a surface

b. nominal thickness with refrence of master sections.

c. attachment stratagy.

INPUT :

1. class a surfcae

2. master sections.

STEPS INVOLVED:

1 . TOOLING AXIS

2. SURFACE THICKNESS

3 . ATTACHMENT CREATION

4. DRAFT ANALYSIS

5. TOOLING FEASIBILITY CHECK

PROCEDURE:

imported the given file in the catia

opened assembly work bench and importend the parts to the assembly

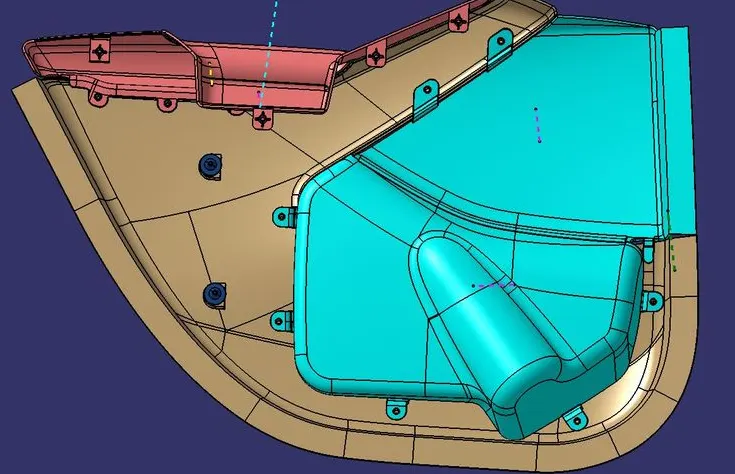

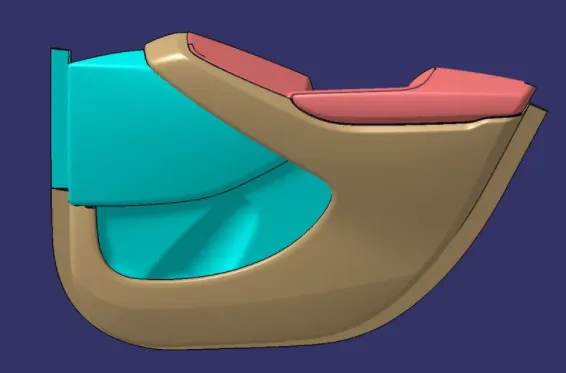

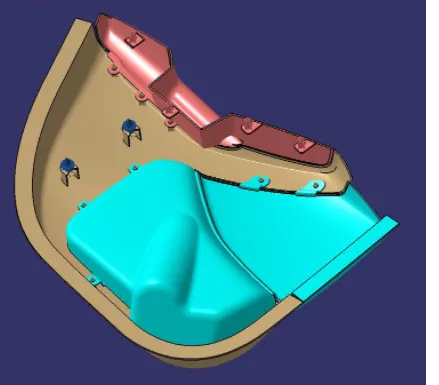

they are bottom substrate map pocket door arm rest.

1. TOOLING AXIS :

A LOWER SUBSTRATE:

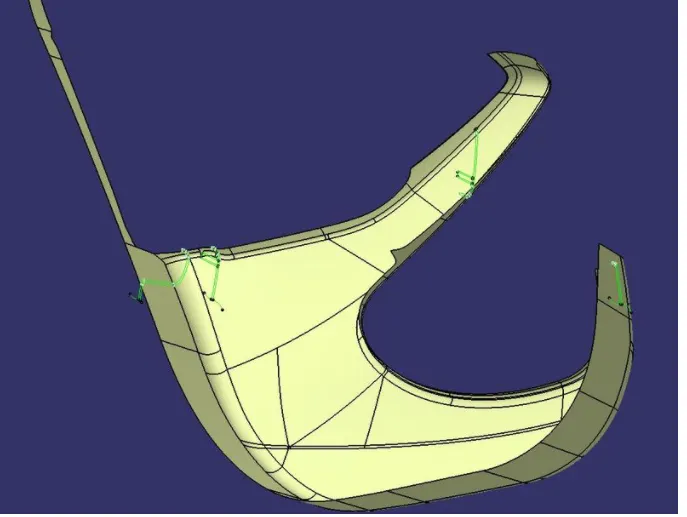

the given input of the lower substrate is as shown in figure.

* developed the class a surface according to the given master sections.

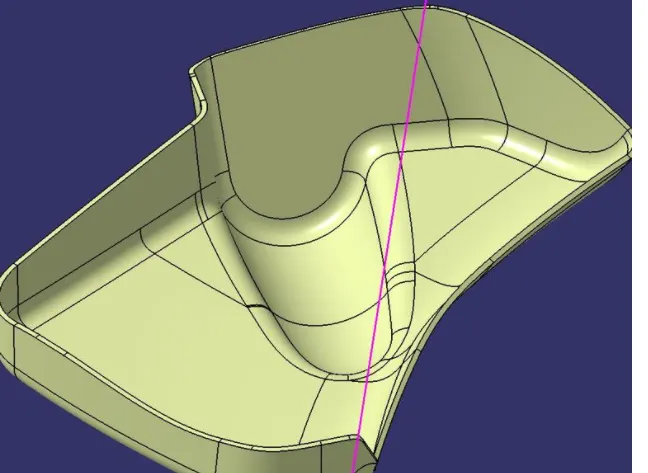

* the tooling direction for the class a surface is found out.

B. MAP POCKET:

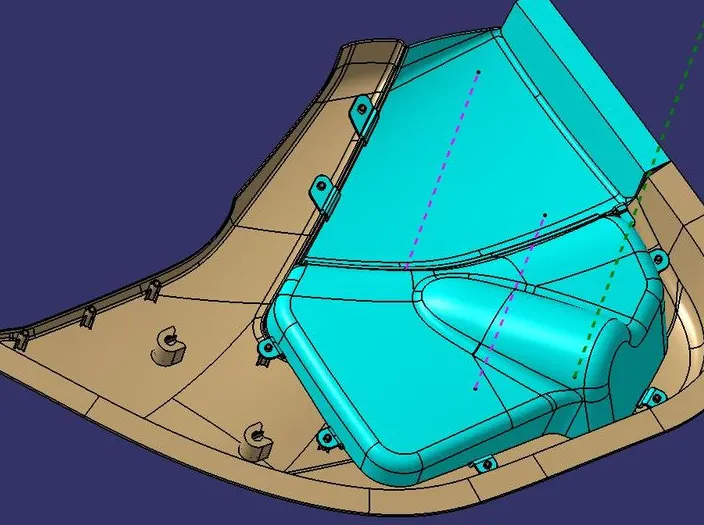

* . the given input contains master sections and surface.

* according to the master sections class a is developed with flanges.

* the tooling direction for the given part is not possible.

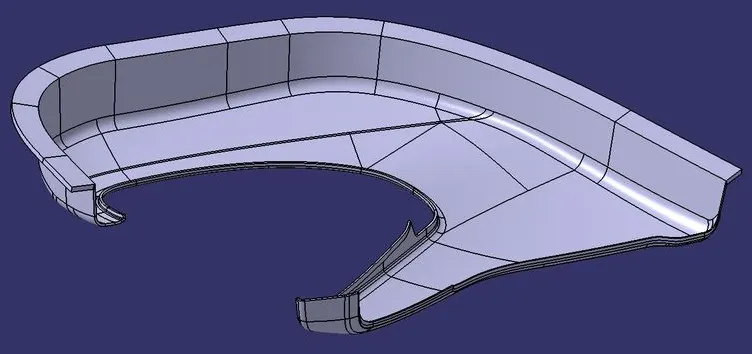

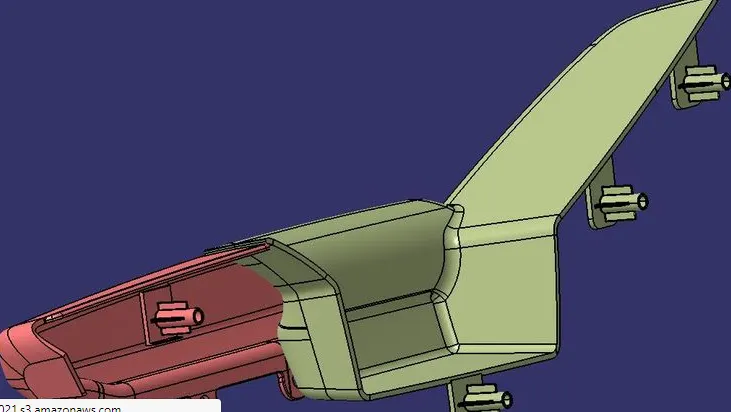

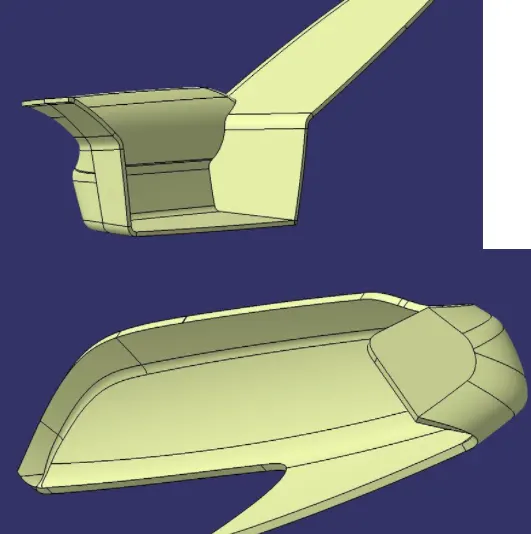

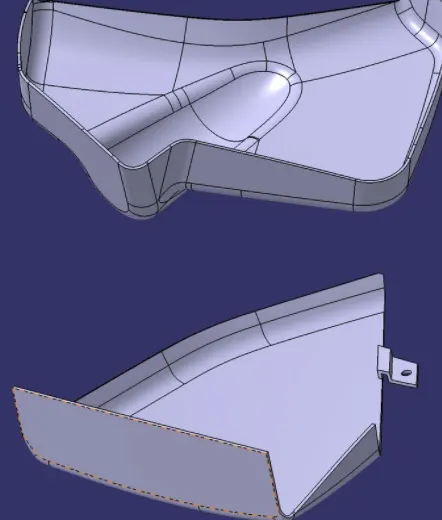

* so that the part is divided into two parts.

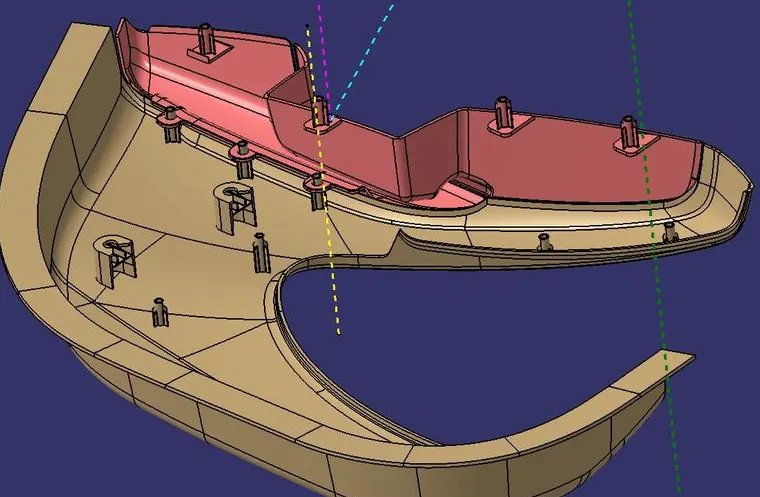

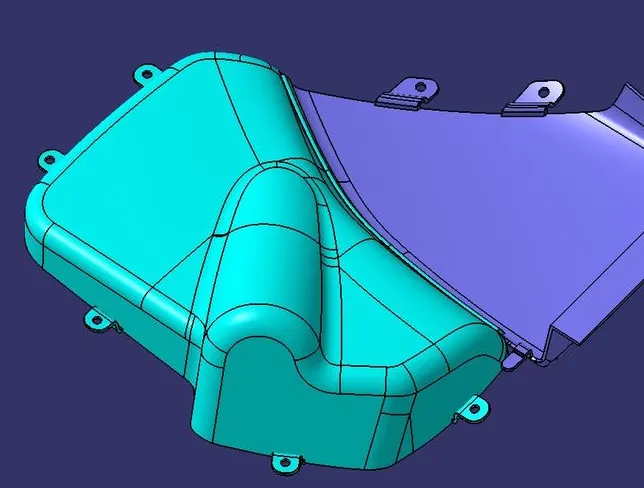

* tooling direction for each part is created.

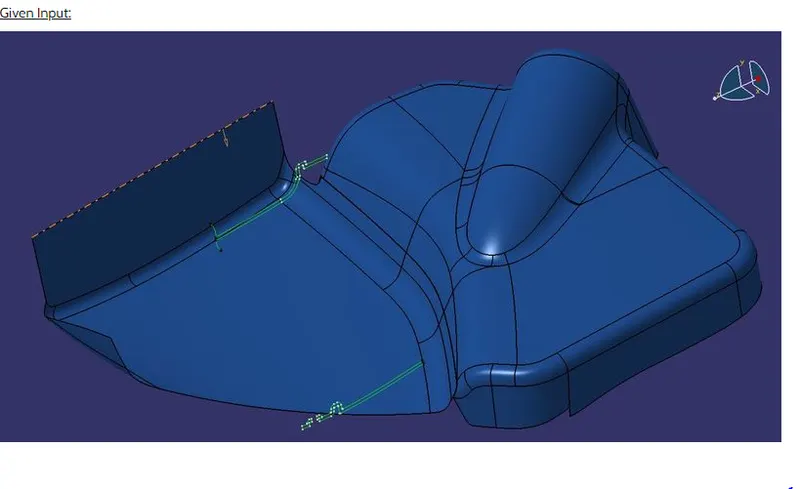

GIVEN INPUT:

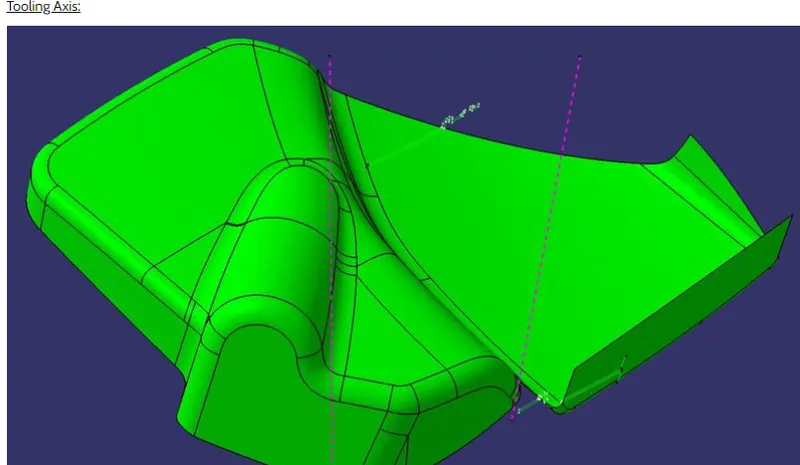

TOOLING AXIS

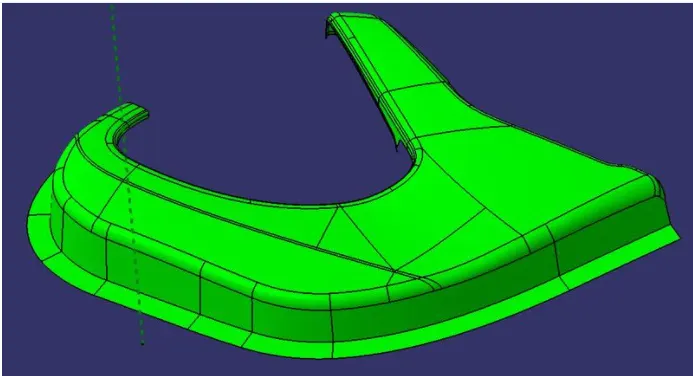

ARM REST

INPUT

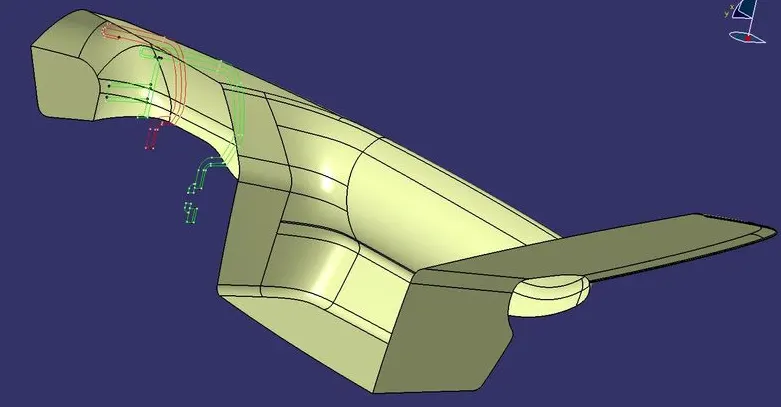

* the given input contains master sections and srface

* according to the master section class is developed with flanges .

* the tooling direction for the given part is not possible.

* so that the part is divided in to rwo parts .

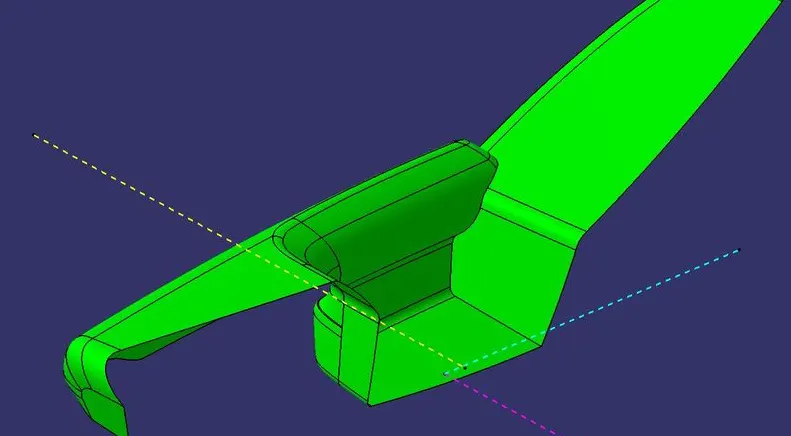

* tooling direction for eachparts is created.
