Week 11:- 2D Detailing Challenge 2

WEEK 11 2D DETAILING CHALLENGE

OBJECTIVE

• Create a 2D Drawing for each Clamp Unit with all child parts and also create a Child pard drawing for the same for the Fixture assembly created in challenge 8.
• Create a 2D Drawing for each Pin Units drawings with all child parts and also create a Child pard drawing for the same for the Fixture assembly created in challenge 8.

INTRODUCTION

• The fixture design after the 3D finishing process has to be done with 2D finishing before it is sent for manufacturing.
• All the dimensions of the fixture units and their child parts have to clearly mentioned in the drawing sheets.
• The detailing can be changed as per the requirement of the customer and company standards.
• All the views must be clearly visible and provided with dimensions in the drawing sheets.

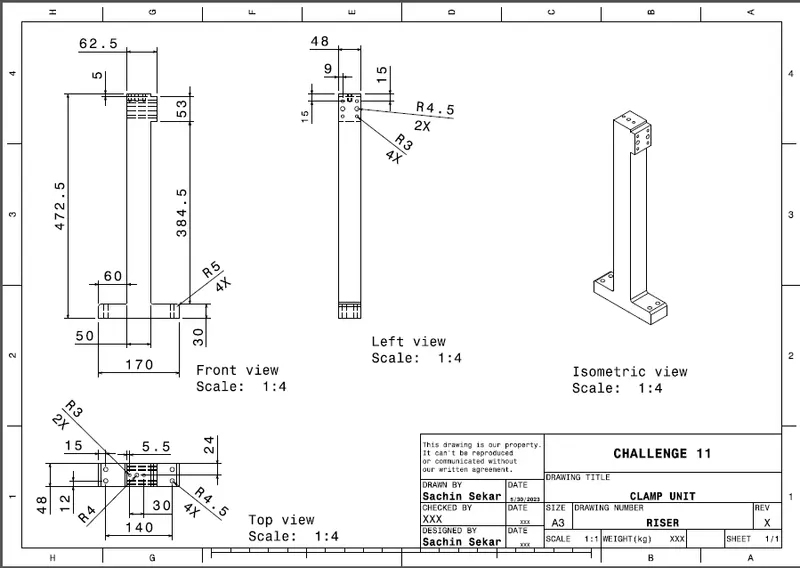

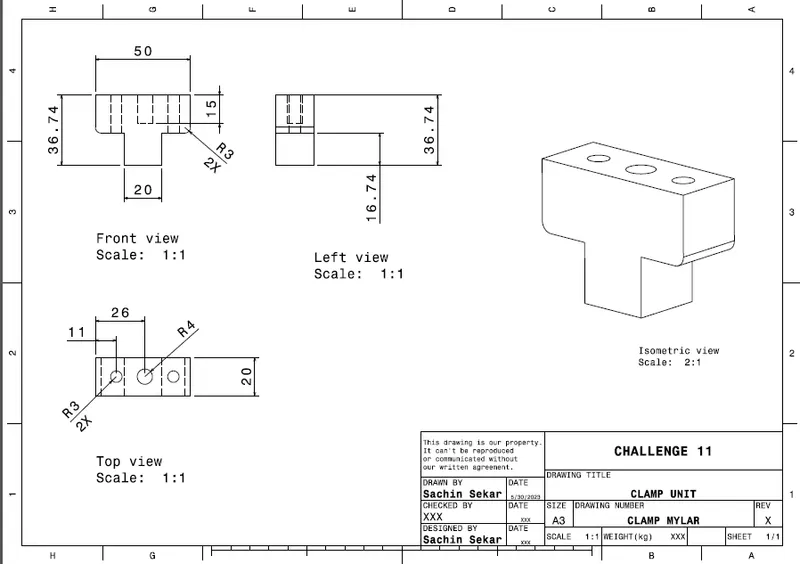

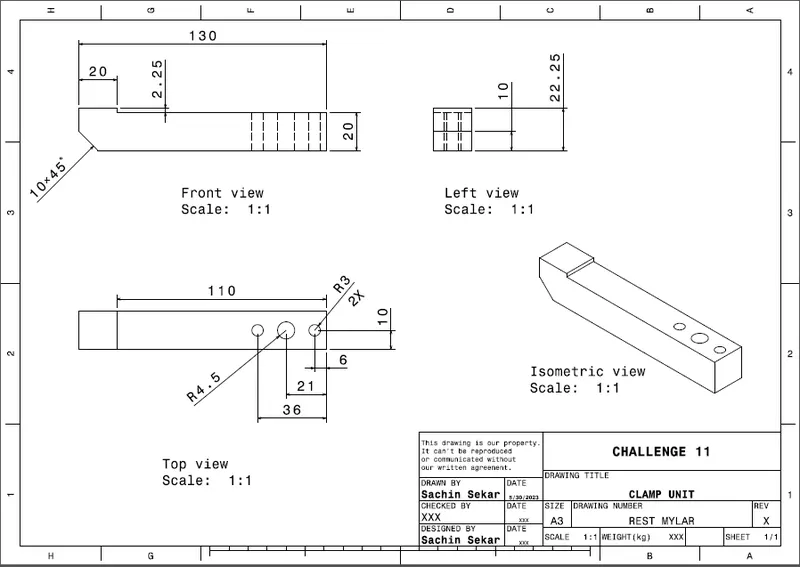

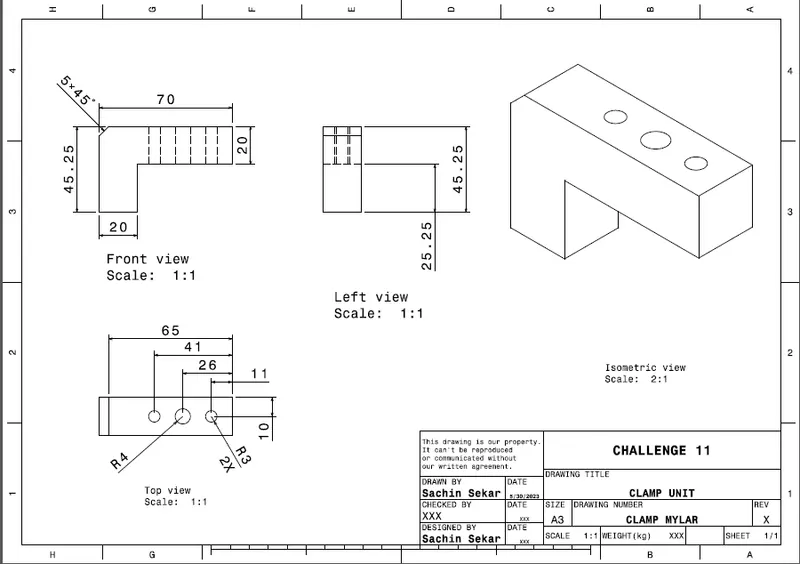

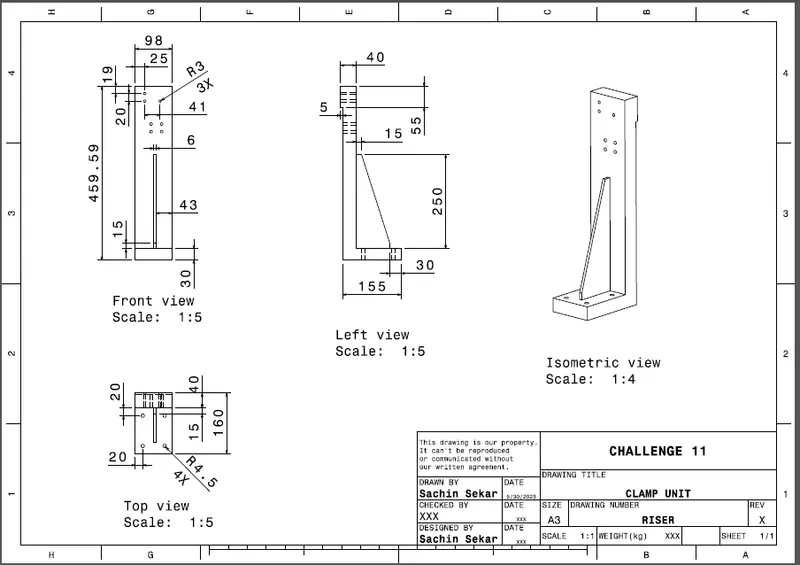

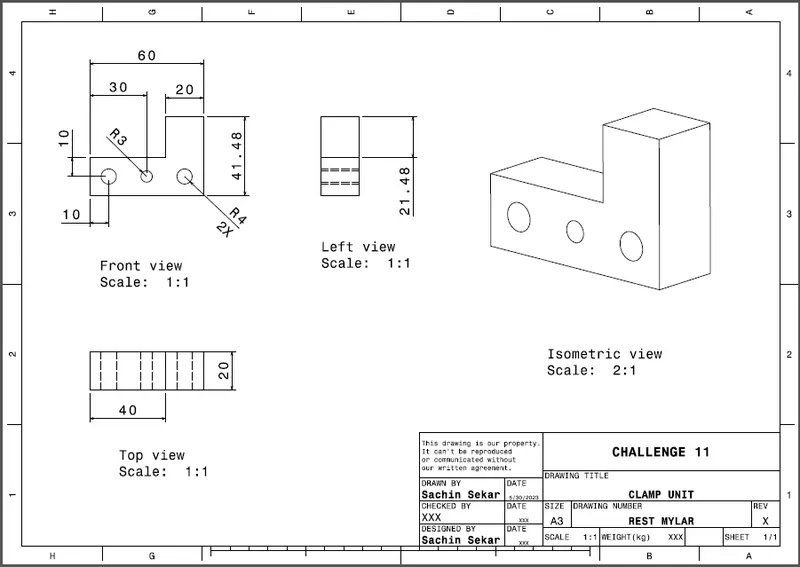

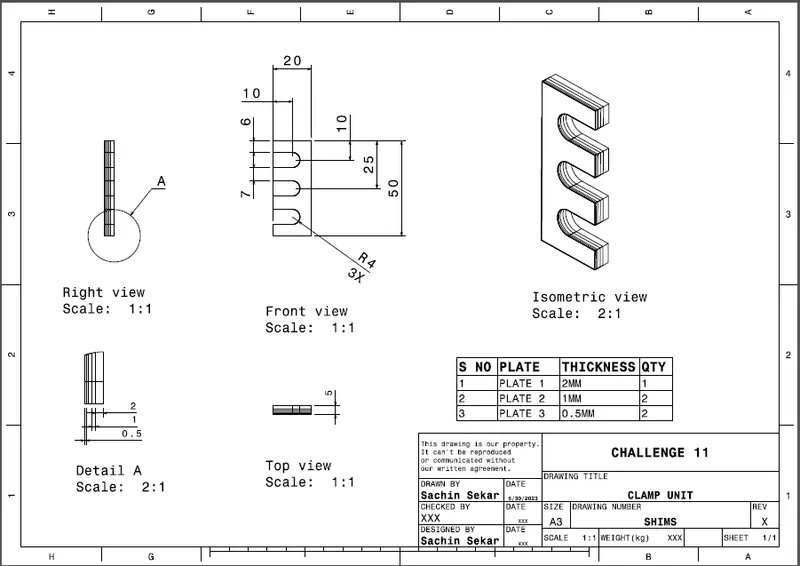

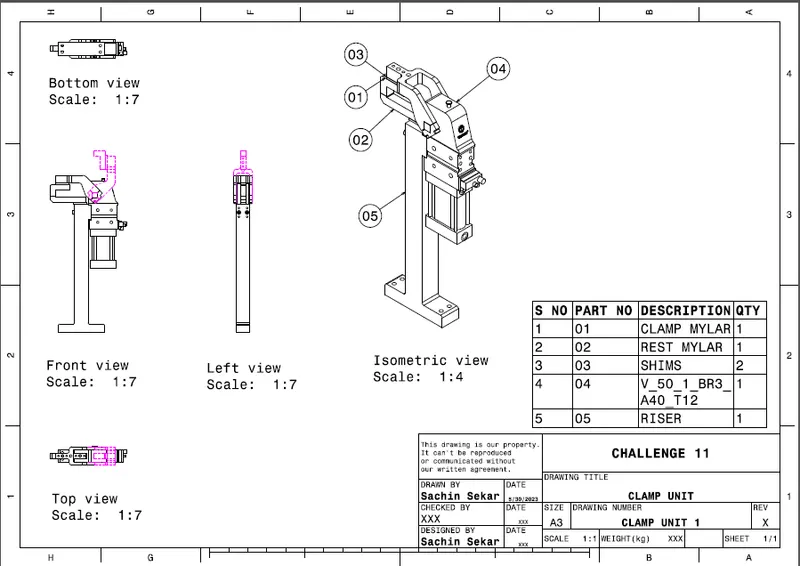

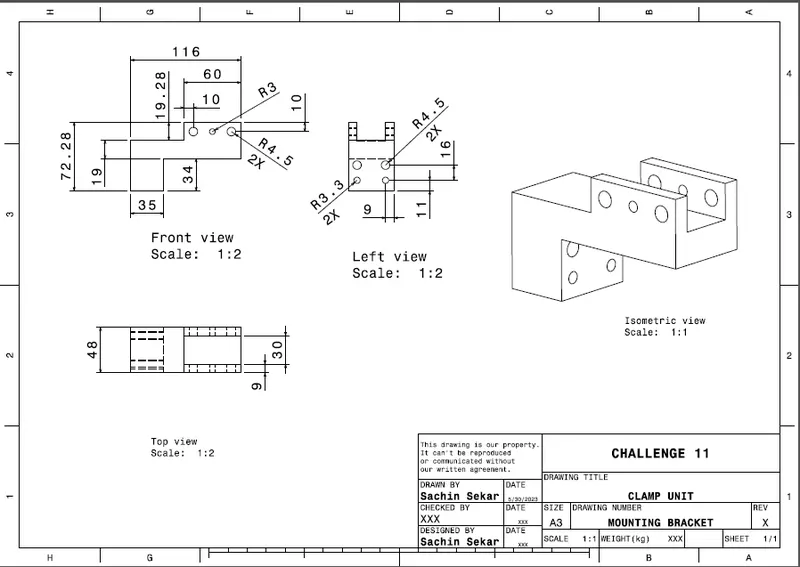

CLAMP UNIT 1

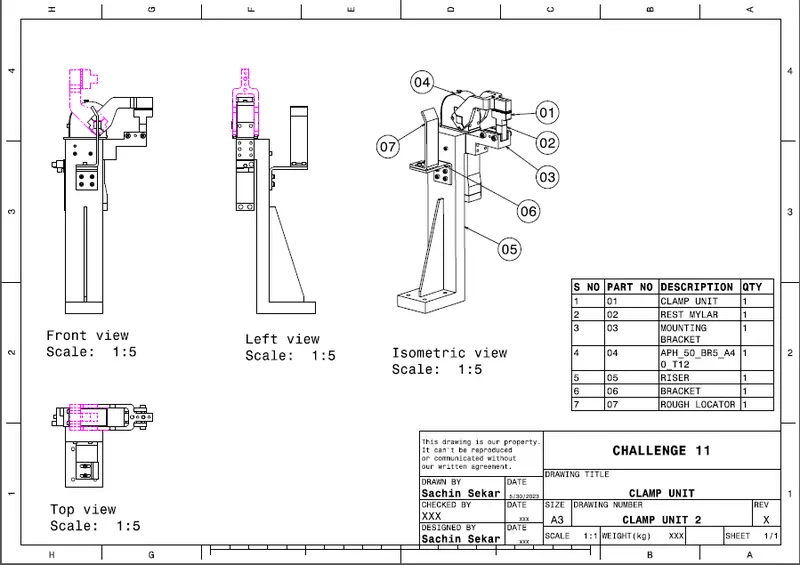

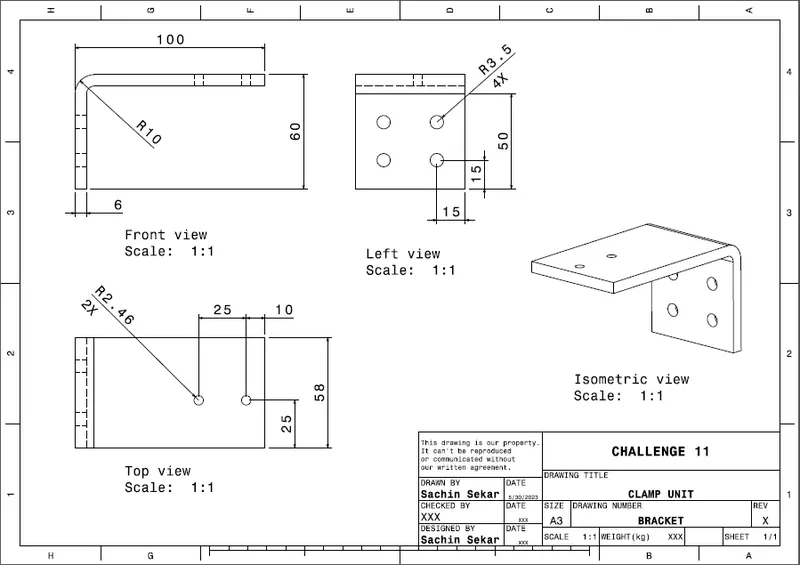

CLAMP UNIT 2

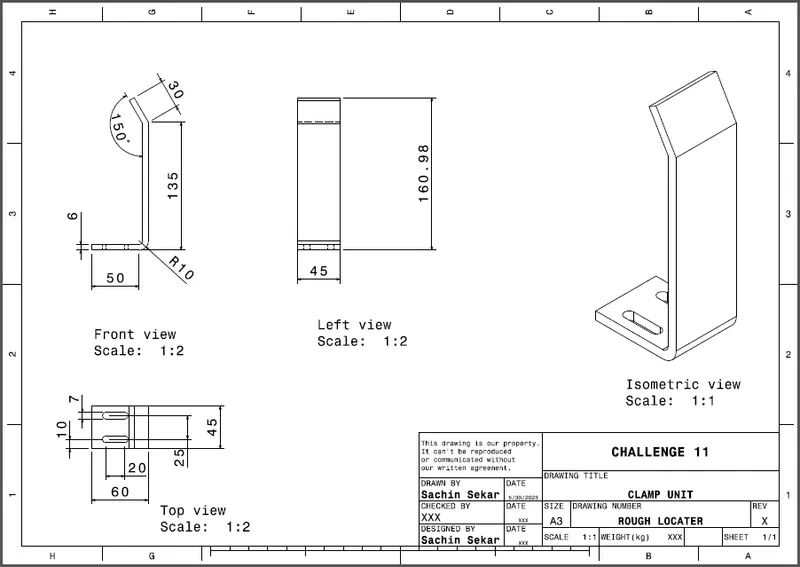

For clamp unit 3 it will be same as clamp unit 2 but there will be no rough locator used

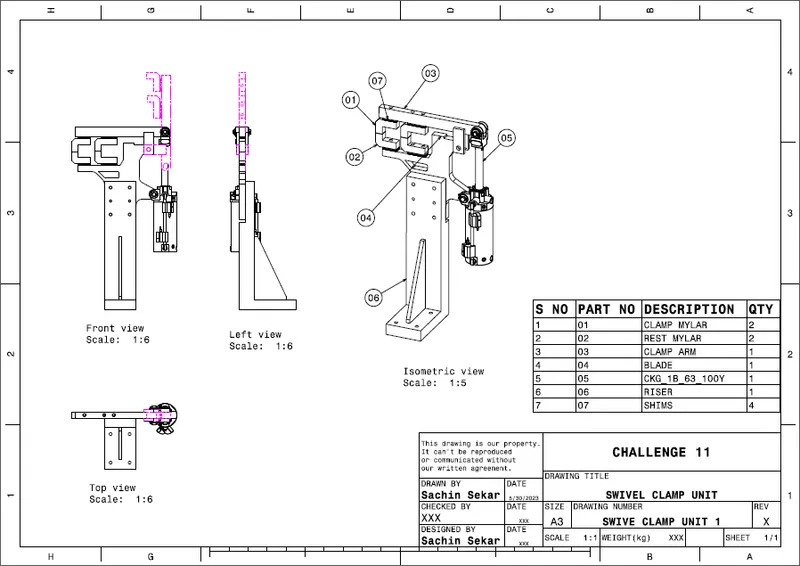

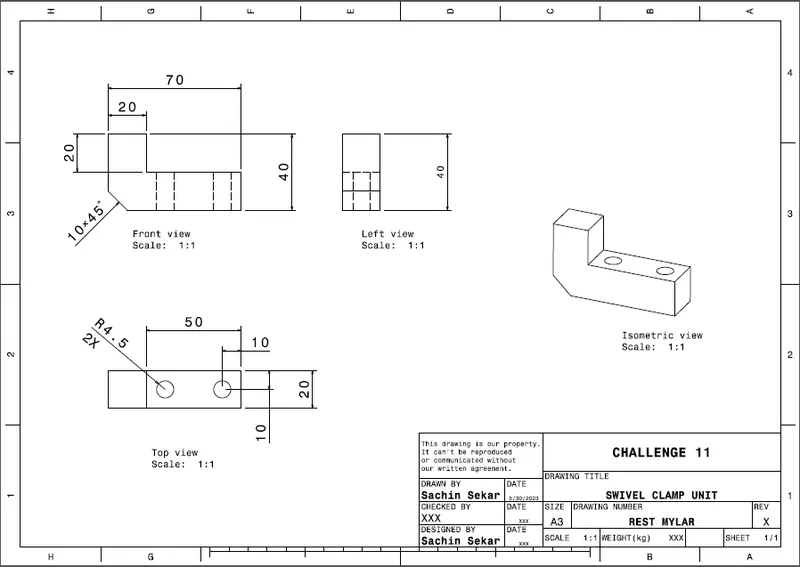

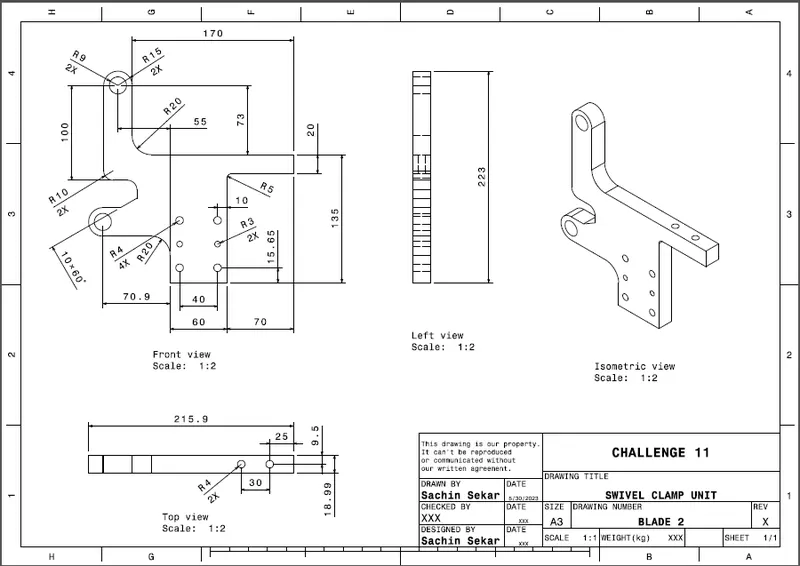

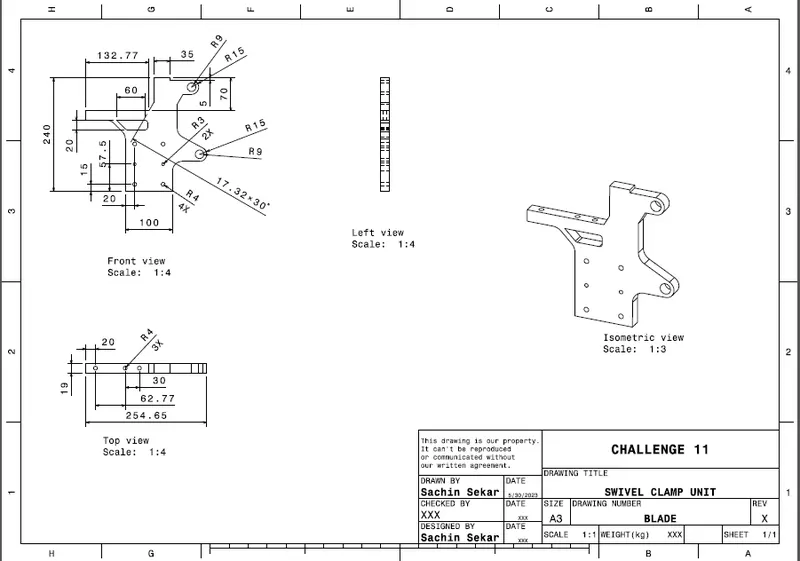

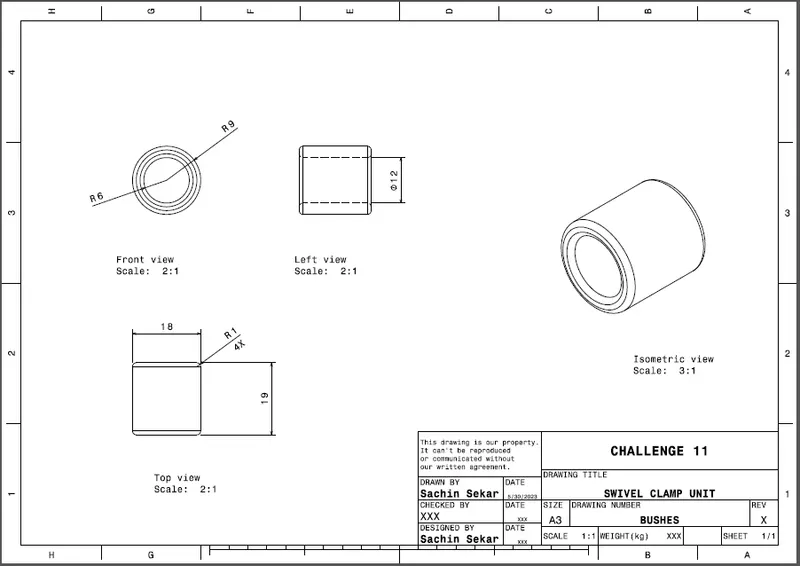

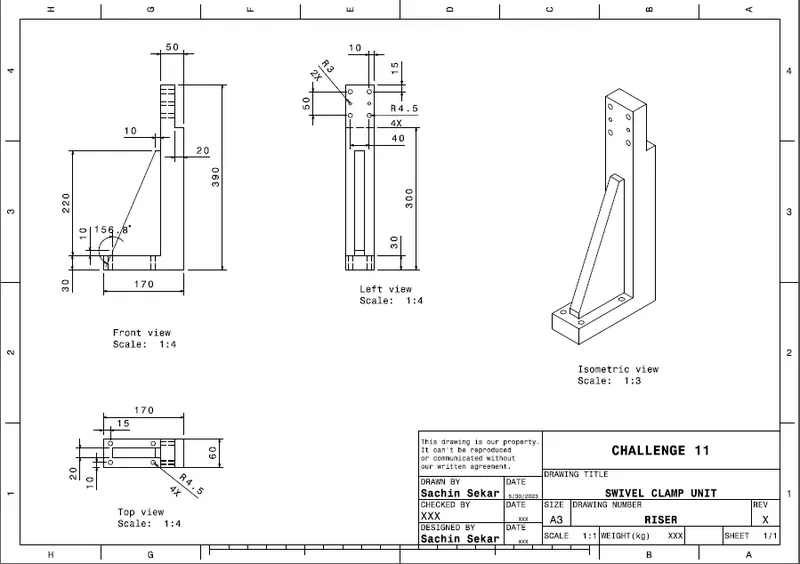

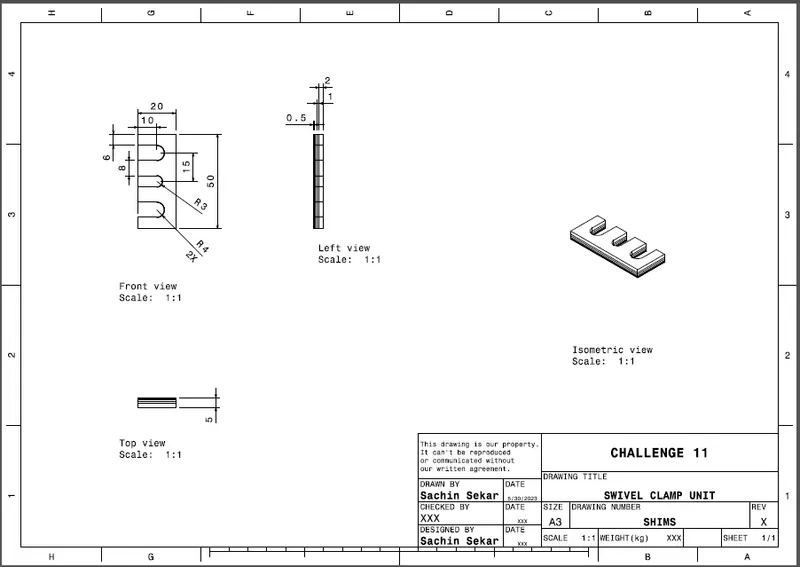

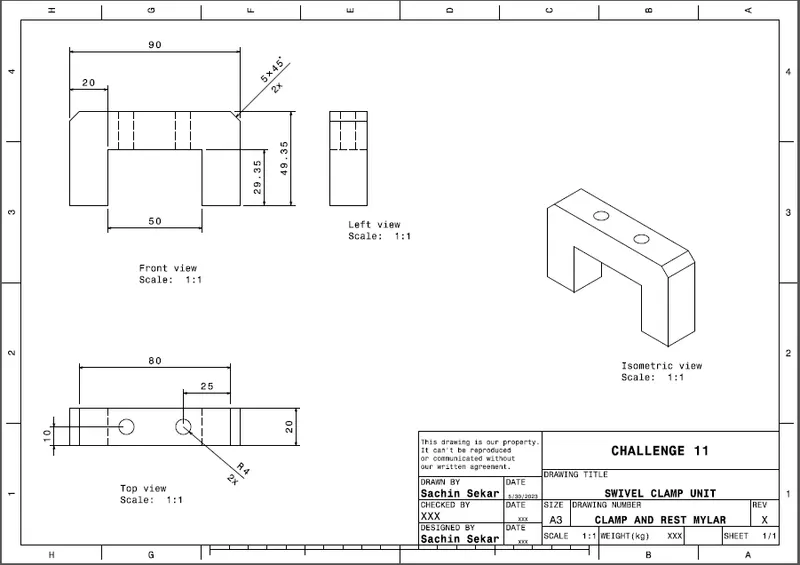

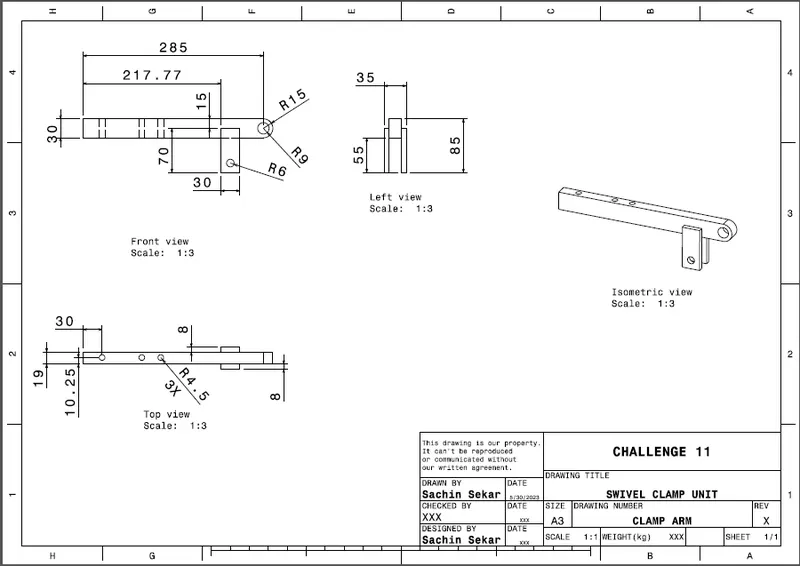

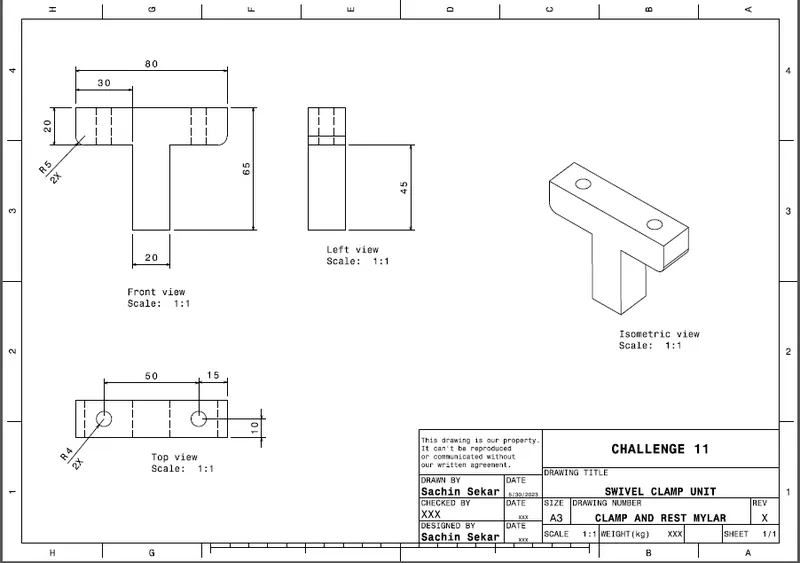

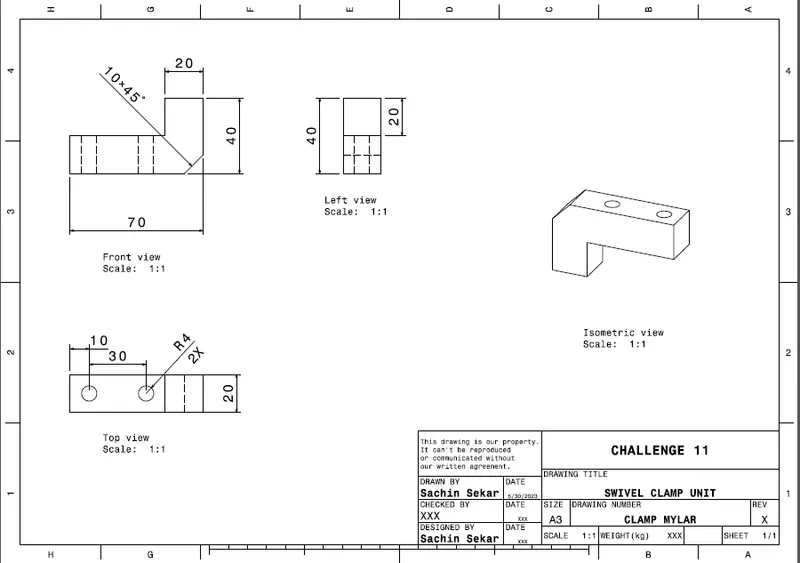

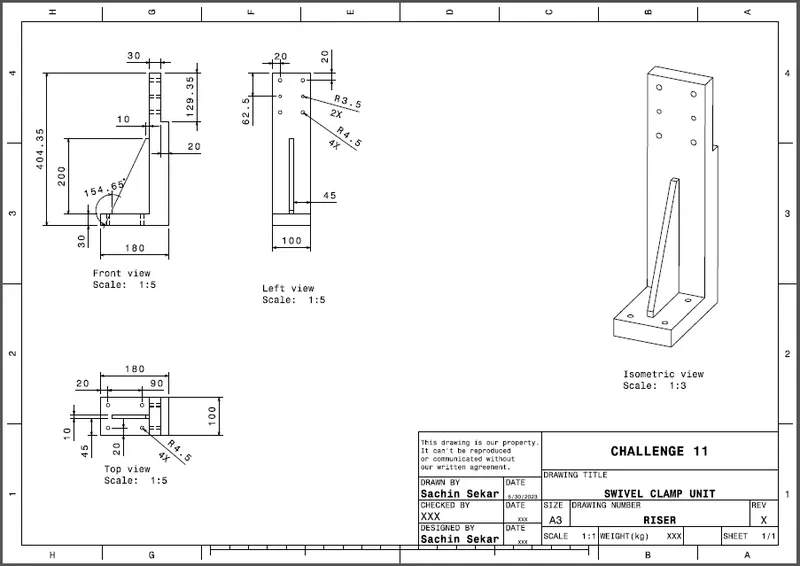

SWIVEL UNIT 1

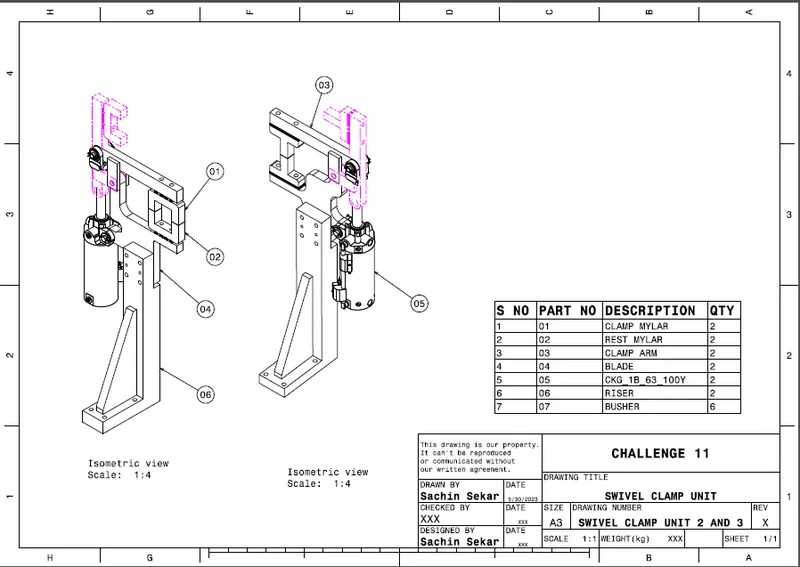

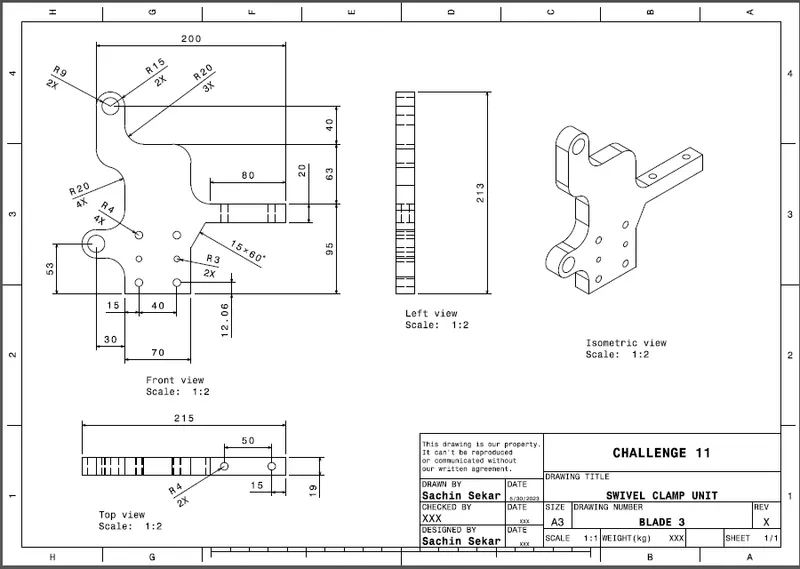

SWIVEL UNIT 2 AND 3

CONCLUSION

Hence, the Clamp unit drawings with all the child parts and the swivel clamp unit with all child parts for the complete Fixture assembly were completed.
