Week 11:- 2D Detailing Challenge 2

SSuraja Kudari29 Dec 2022

AIM

To Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly and to Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

INTRODUCTION

The fixture design after the 3D finishing process has to be done with 2D finishing before it is sent for manufacturing. All the dimensions of the fixture units and their child parts have to clearly mentioned in the drawing sheets. The detailing can be changed as per the requirement of the customer and company standards. GD&T must be used in order to reduce the cost of manufacturing.

All the views must be clearly visible and provided with dimensions in the drawing sheets.

2D Detailing of the Circular Pin Unit

P01_Z06_02_00_CIRCULAR_PIN_UNIT

The front view, top view, and right side view are shown for the clamp unit. The overall dimensions are provided also with the Isometric view of the Clamp Unit with all the subparts marked.

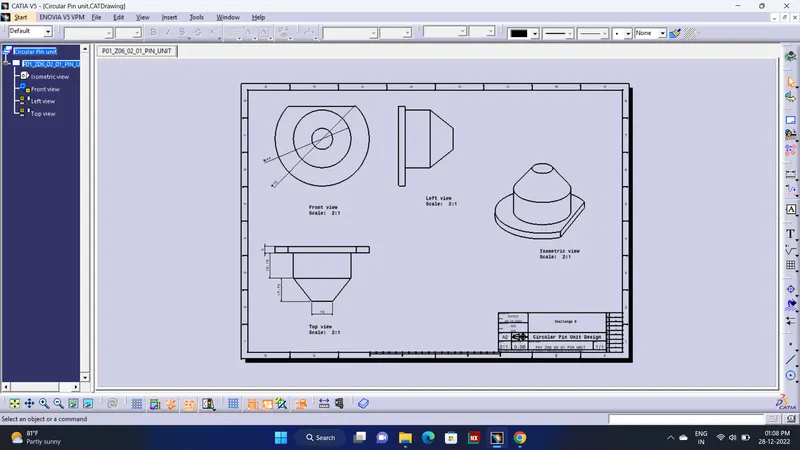

Detailing of the Circular Pin Unit.

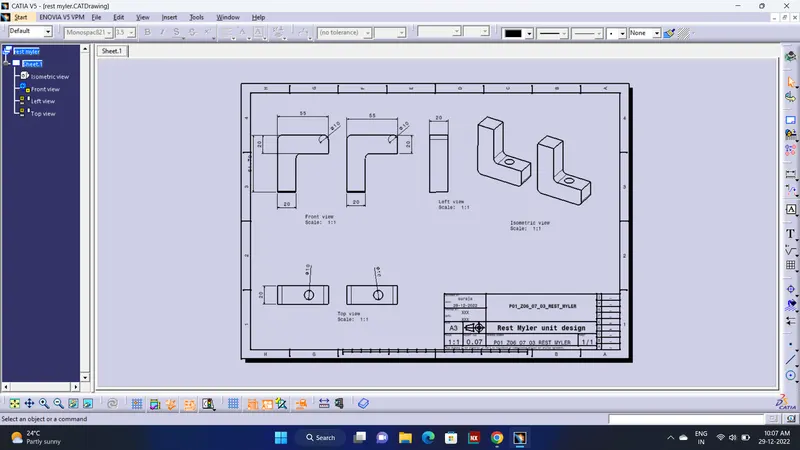

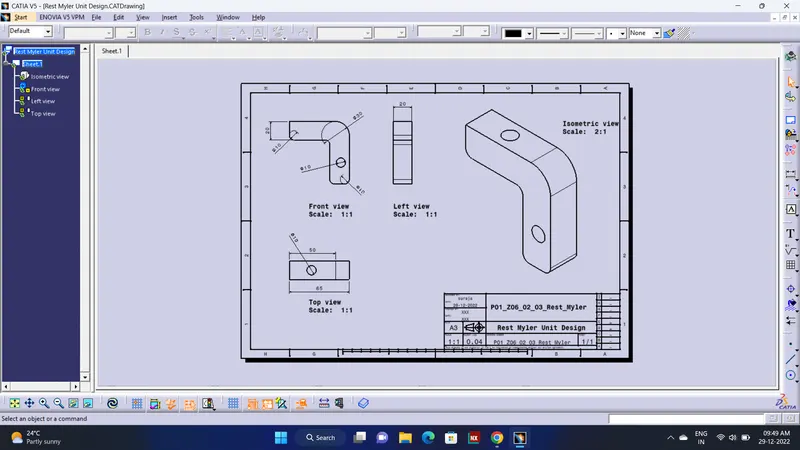

Detailing of the Rest Mylar.

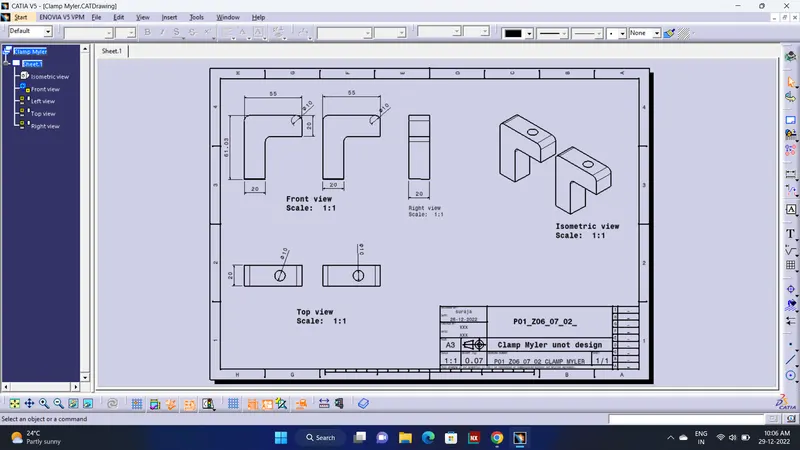

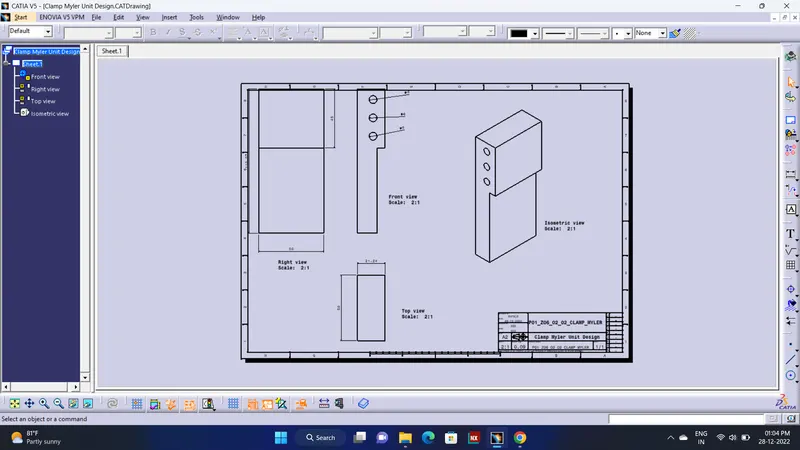

Detailing of the Clamp Mylar.

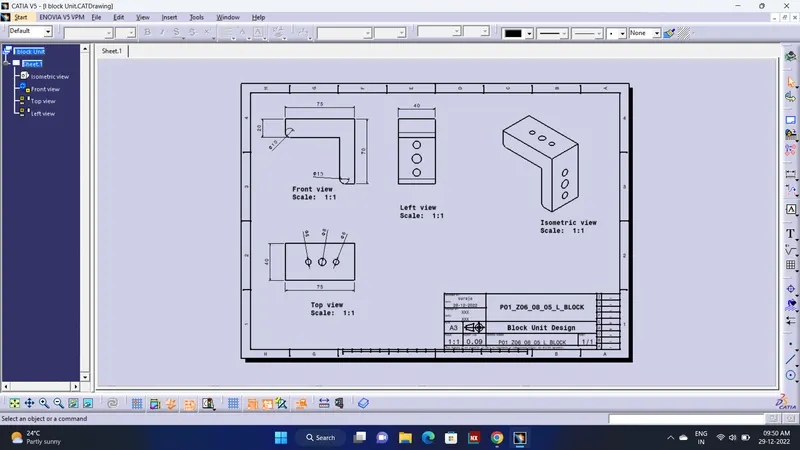

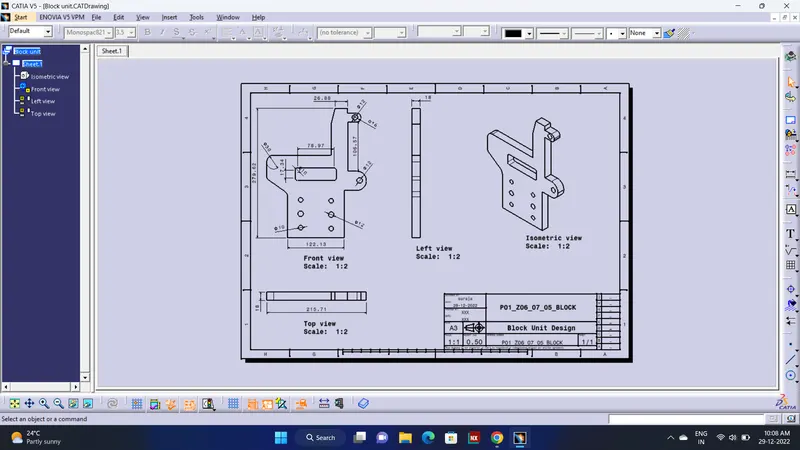

Detailing of the Block unit.

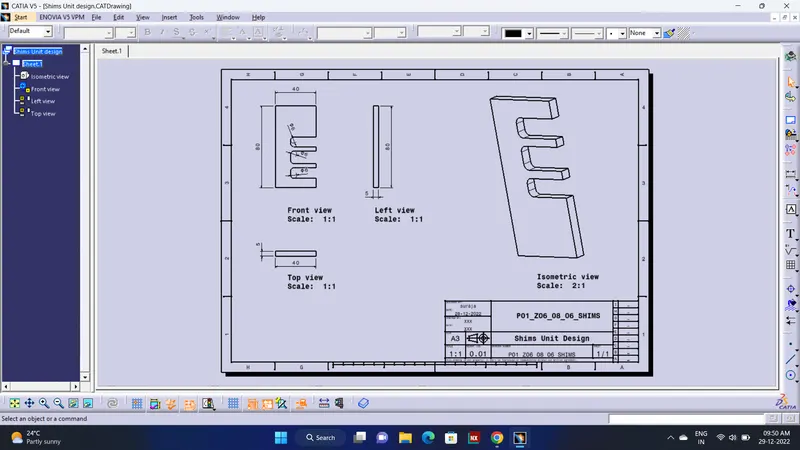

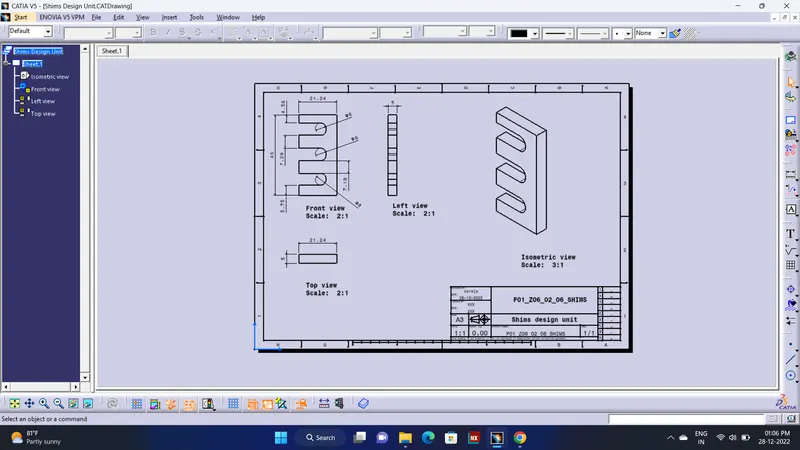

Detailing of the Shims Unit.

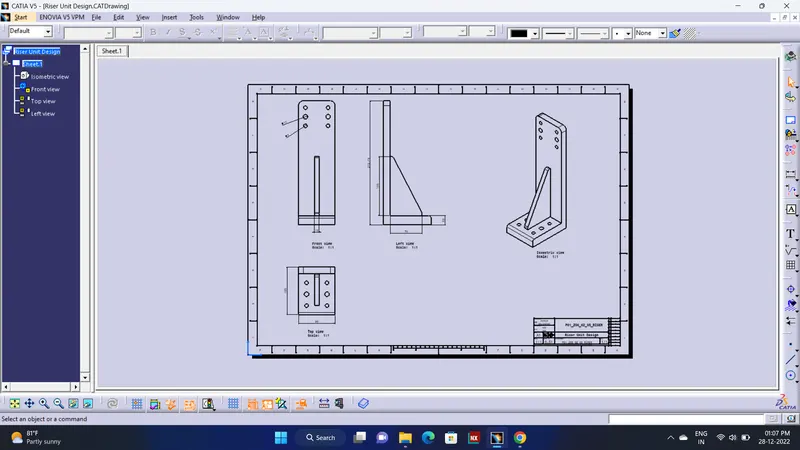

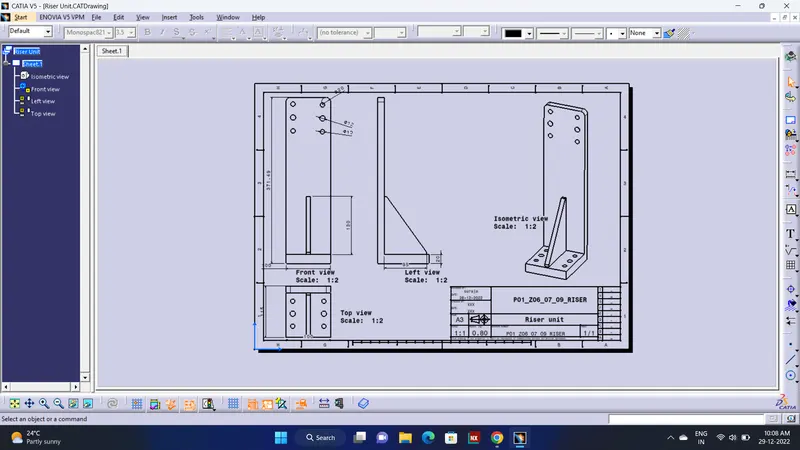

Detailing of the Riser Unit.

----------------------------------------------------------------------------------------------------------------------------------------------------

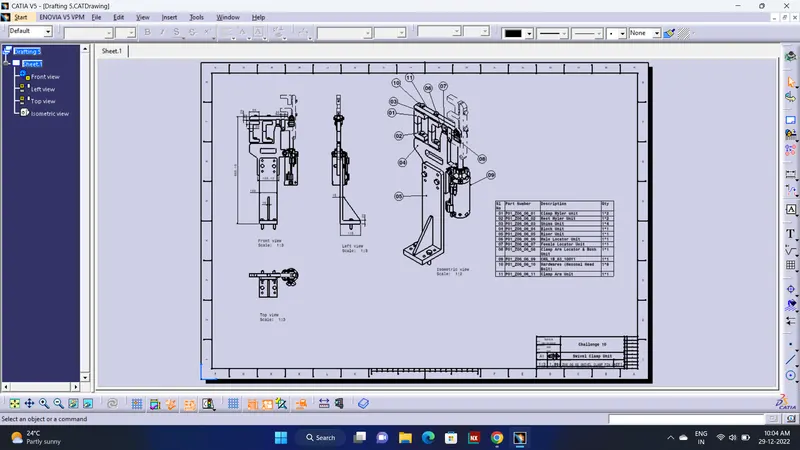

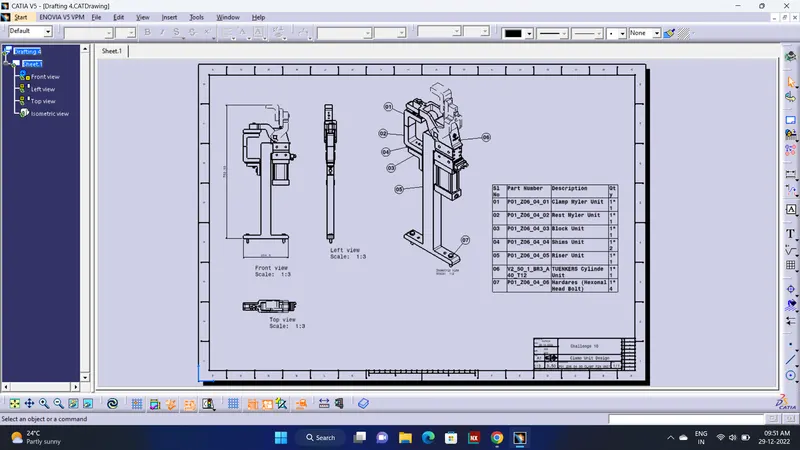

2D Detailing of the Clamp Pin Unit.

P01_Z06_04_00_CLAMP_UNIT
