Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

GGowthaman S5 Apr 2023

sir,

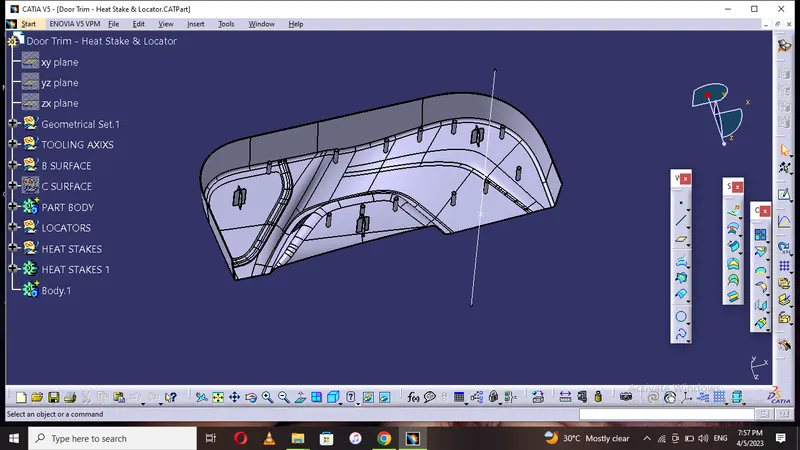

Initially from Class A surface,tooling axis and draft analysis all performed after all process done,class B surface creation started.Then class c surface creation started.Then Class A and class C joined togrther ,then it is trimmed with b surface then it is converted to part.

Then,

4 way locator and 2 way creation started ,heat stakes also created.

Regards

Gowthaman.s
