Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

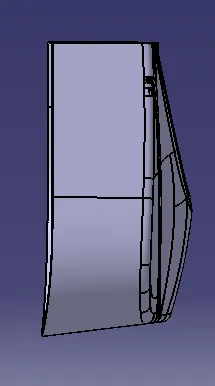

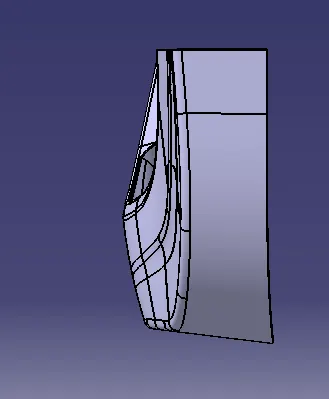

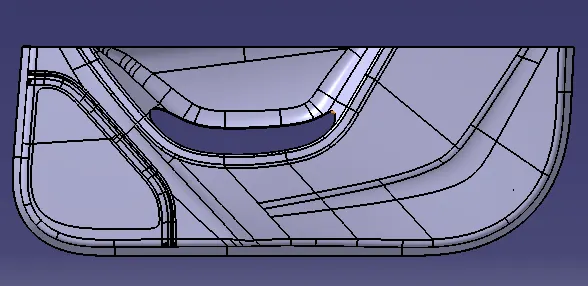

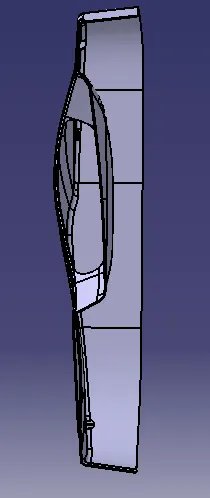

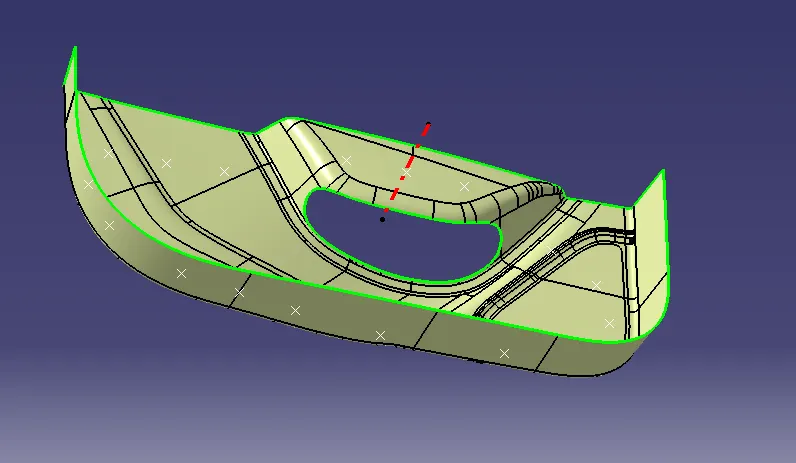

1. Open the given class A surface. Ensure that all its boundaries are connected.

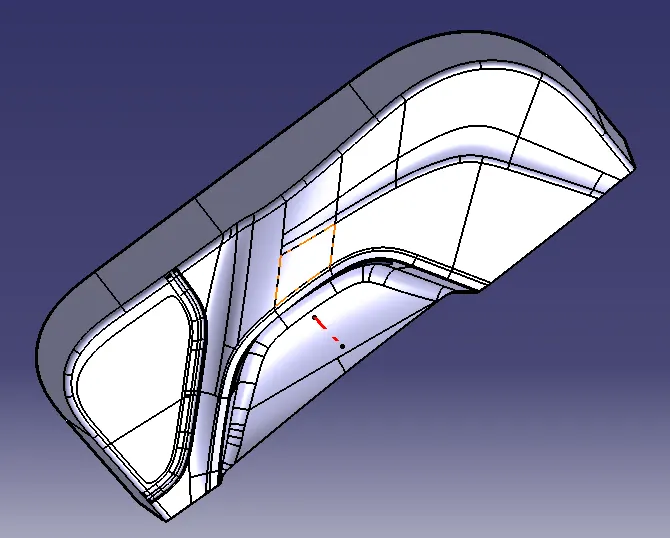

2. Tooling axis:

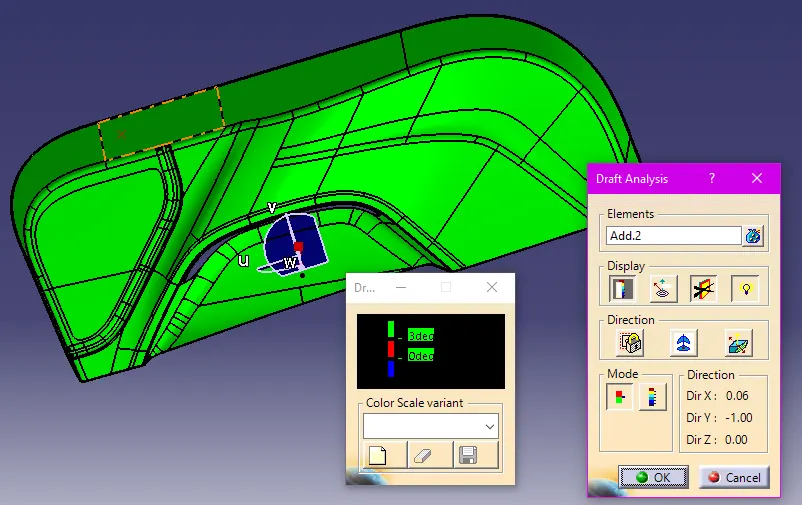

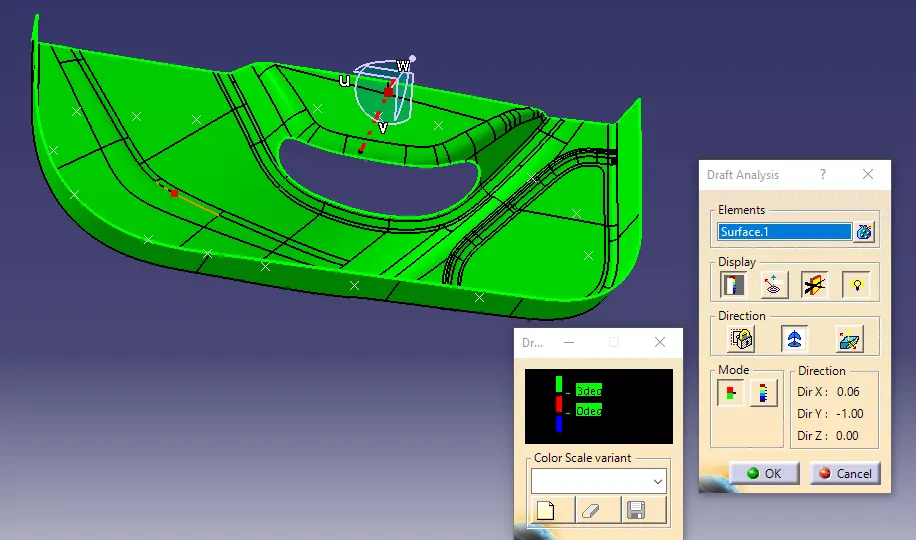

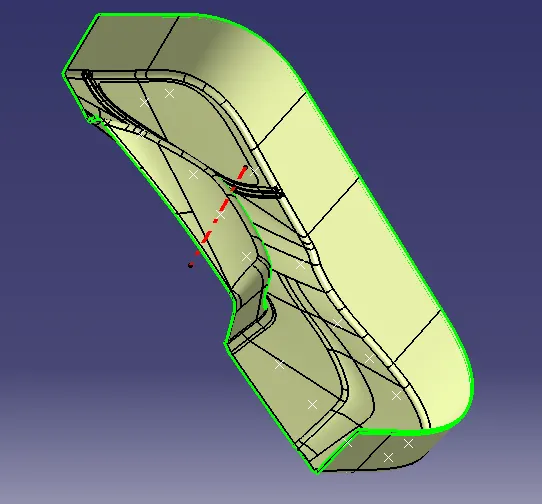

3. Draft analysis check

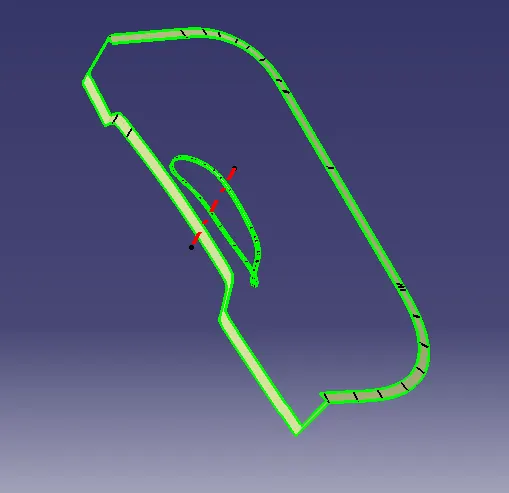

4. Create a B surface

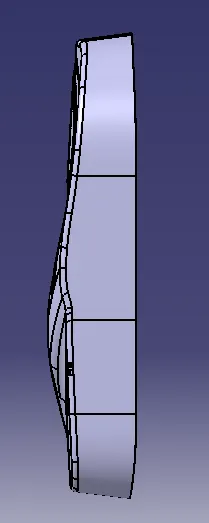

5. Using Sweep option Create the C surface as shown below.

6. Join the C surface with the A surface.

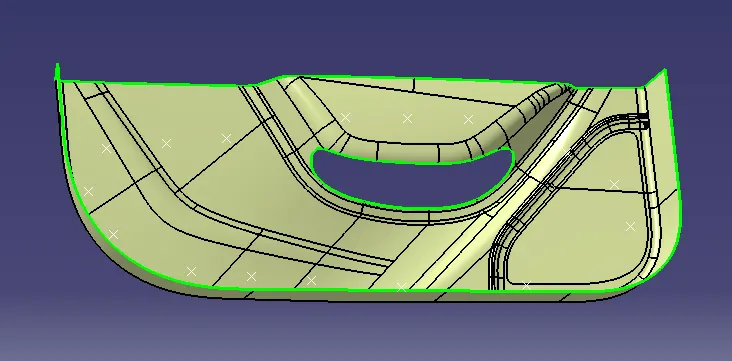

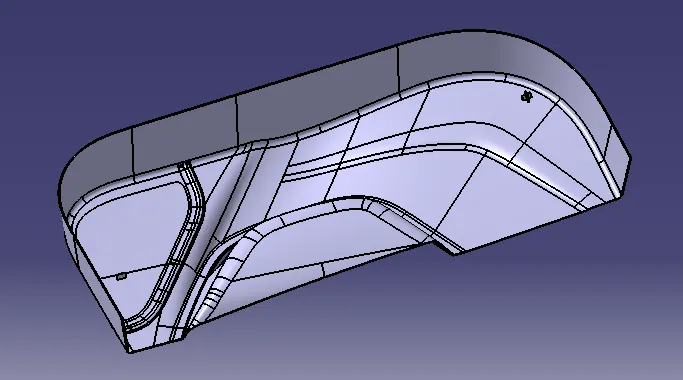

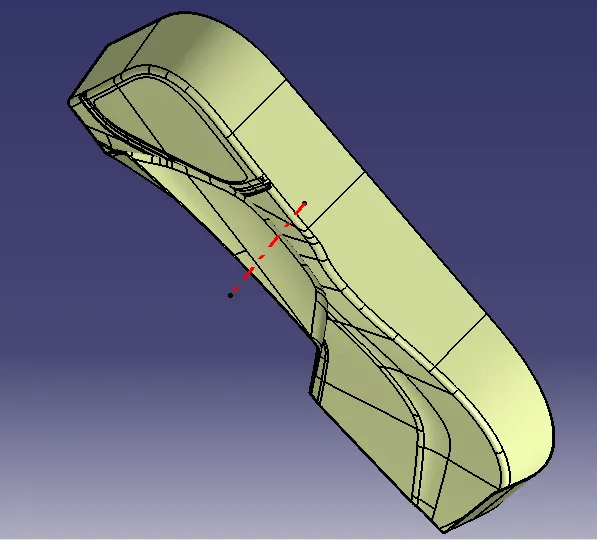

7. Trim the B surface with the above surface to obtain a closed hollow body using surfaces.

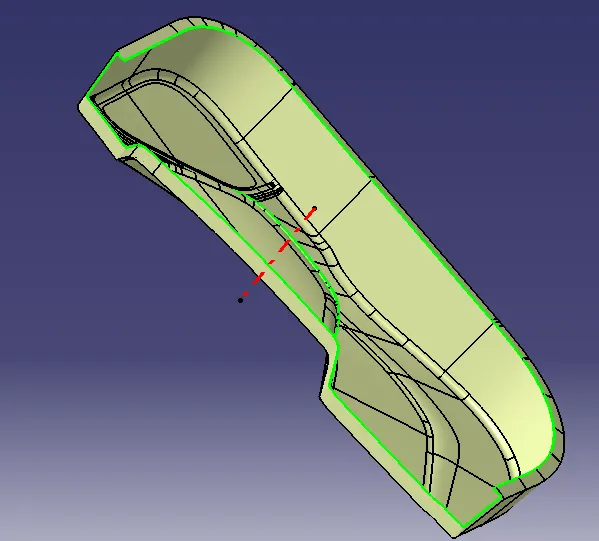

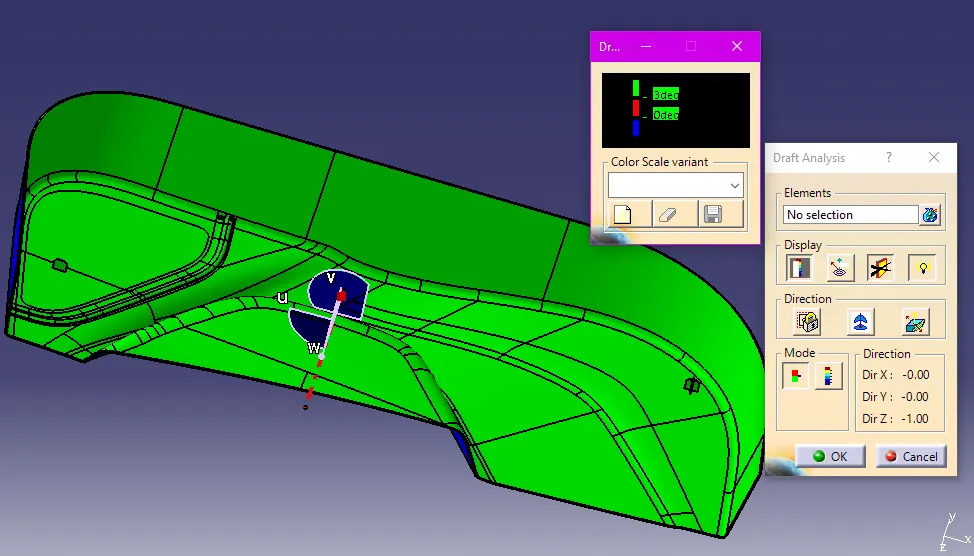

8. Convert the surface body into part body using the feature close surface.

9. Perform Draft analaysis on the solid part

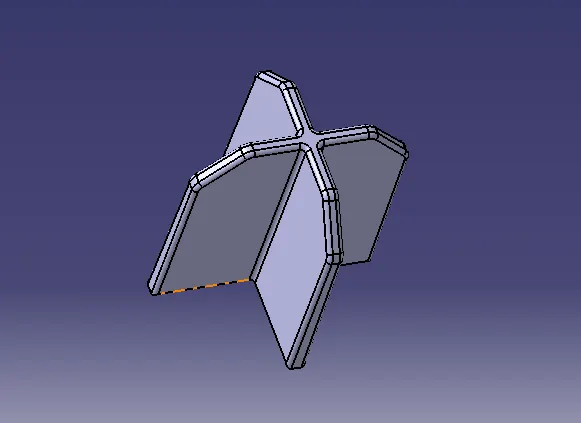

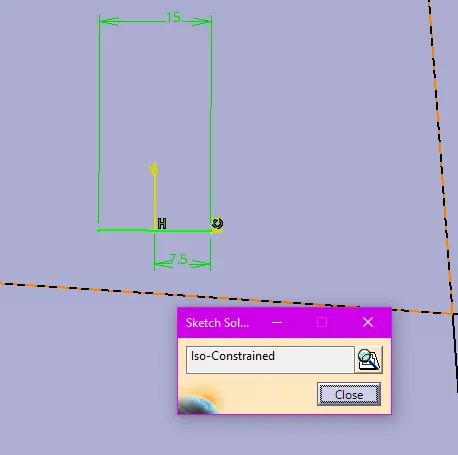

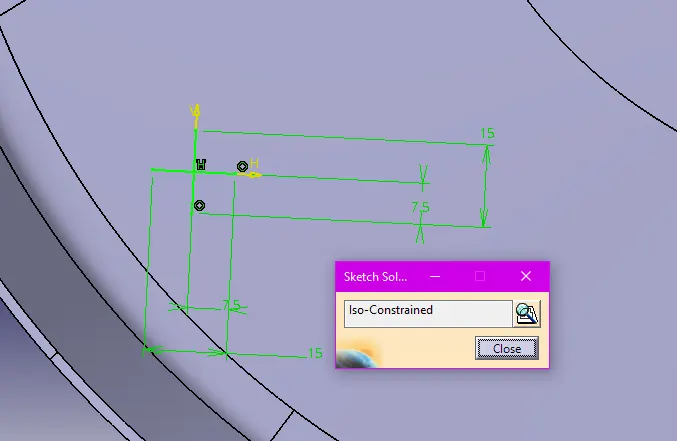

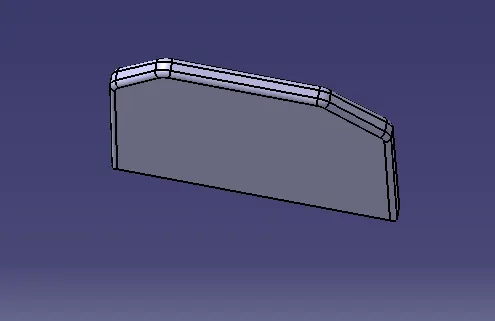

10. Create a 4 way locator using a sketch on the body. After creating the sketch, pad it 15mm in height and thicken it to 1.3mm and draft it with 0.5deg in the direction of the tooling axis. Give 5mm of chamfer with 45deg of inclination and a fillet of 0.30mm radius.

11. Create a 2 way locator using a sketch on the body. After creating the sketch, pad it 15mm in height and thicken it to 1.3mm and draft it with 0.5deg in the direction of the tooling axis. Give 5mm of chamfer with 45deg of inclination and a fillet of 0.30mm radius

12. Perform draft analysis on the part. for inspecting the features which are added later on the B surface.

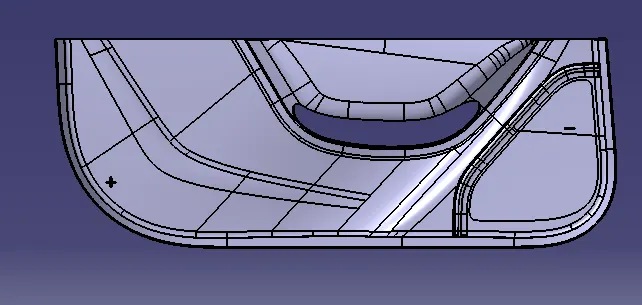

Views:
