Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

REPORT:

CREATION OF TOOLING AXIS:

I HAVE USED A NORMAL TO SURFACE METHOD FOR CREATING A TOOLING AXIS BY USING THAT ITSELF THE DRAFT IS CLEARING THE COMPONENT. SO THE GIVEN CLASS A SURFACE CLEARING THE DRAFT ANALYSIS.

CREATION OF CLASS B:

THEN I HAVE OFFSETED THE CLASS A 2.5mm TO CREATE A B SURFACE, THEN I CLEARED  THE PATCHES IN THAT.

CREATION OF CLASS C :

THEN I HAVE CREATED C SURFACE USING THE SWEEP COMMAND BY GIVING A 3 deg DRAFT ANGLE.

FINAL COMPONENT:

AFTER CREATING CLASS A,B AND C THEY ARE JOINED TO FORM A SOLID PART. THEN I HAVE CHECKED THE DRAFT ANALYSIS IT IS ALSO CLEARED.

HEAT STAKES:

 I HAVE CREATED THE 16 HEAT STAKES IN THE GIVEN POINTS AND GAVE 0.5 deg draft.

4 WAY LOCATORS:

 THEN AT LAST I HAVE CREATED THE 4 WAY LOCATOR  AND GAVE A REQUIRED FILLETS AND DRAFT  OF 0.5 deg.

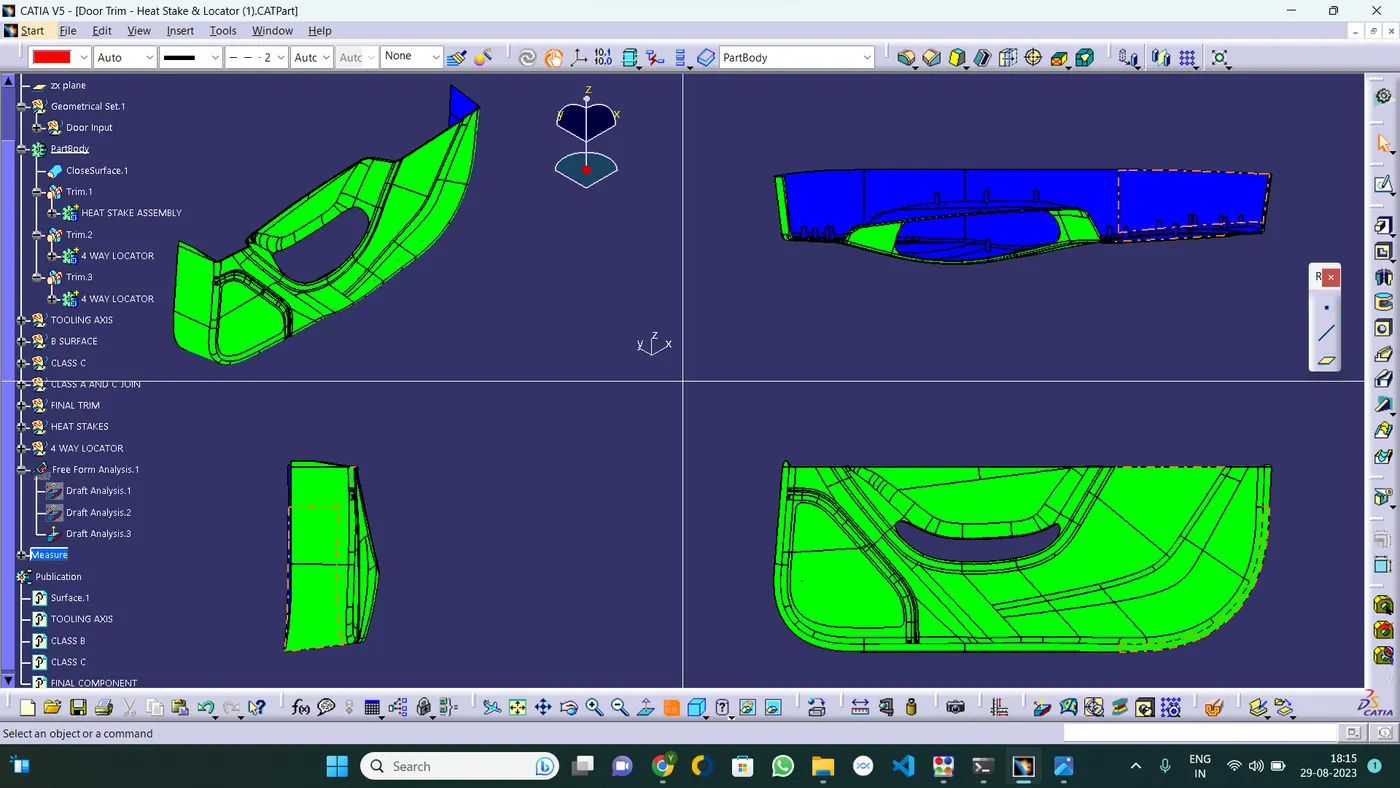

DRAFT ANALYSIS:

I HAVE  CREATED DRAFT ANALYSIS FOR CLASS A THEN FINAL COMPONENT AND FINALLY FOR WHOLE PART  ALL THAT ARE CLEARING THE DRAFT ANALYSIS.
