Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

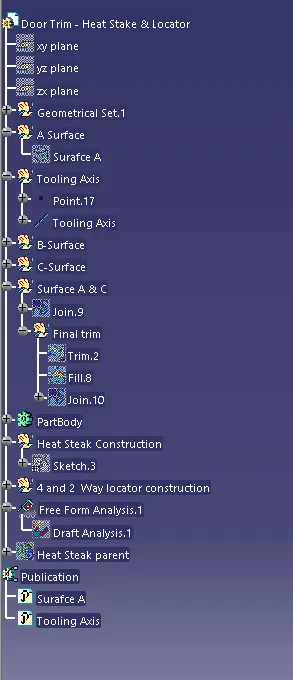

Tree structure:

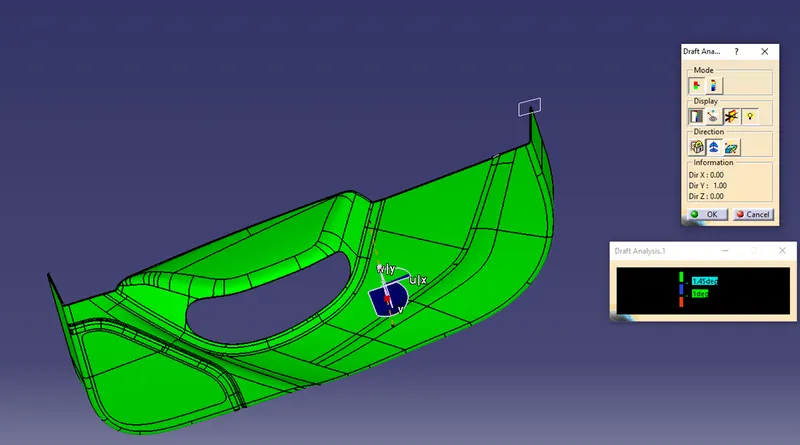

Part model draft Analysis:

This is applicable for CAVITY part of the mold

Part Views:

ISO:

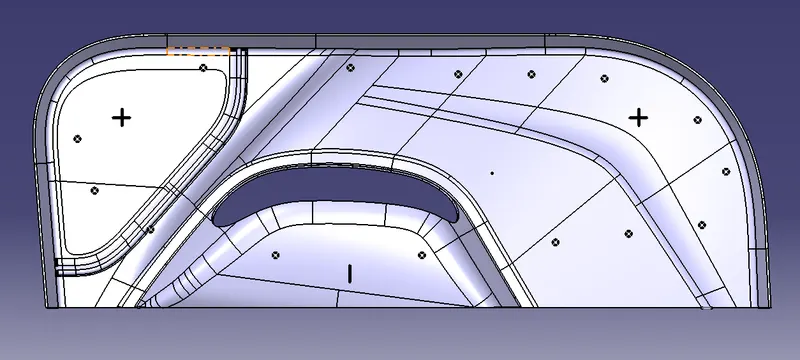

TOP view:

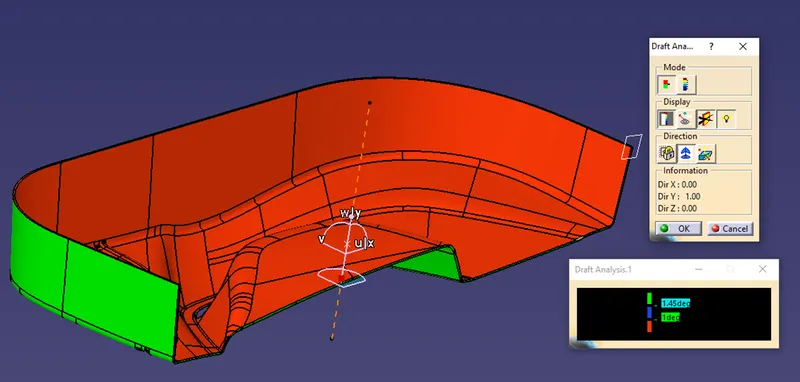

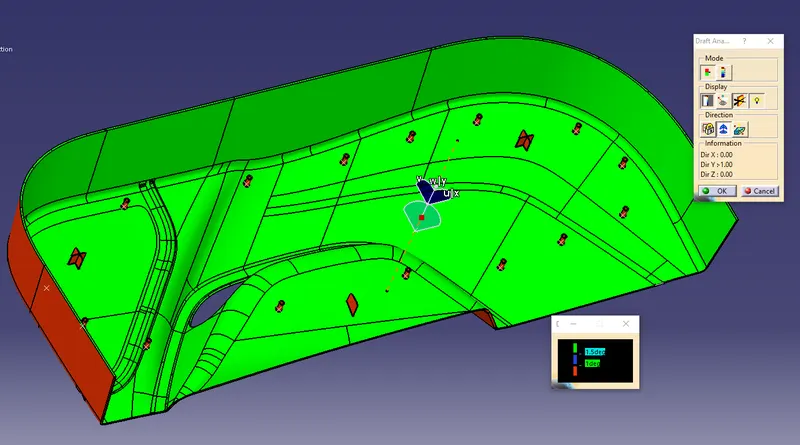

Draft Analysysis for 1.5 degree:

This draft analysis is applicable for CORE part of the mold

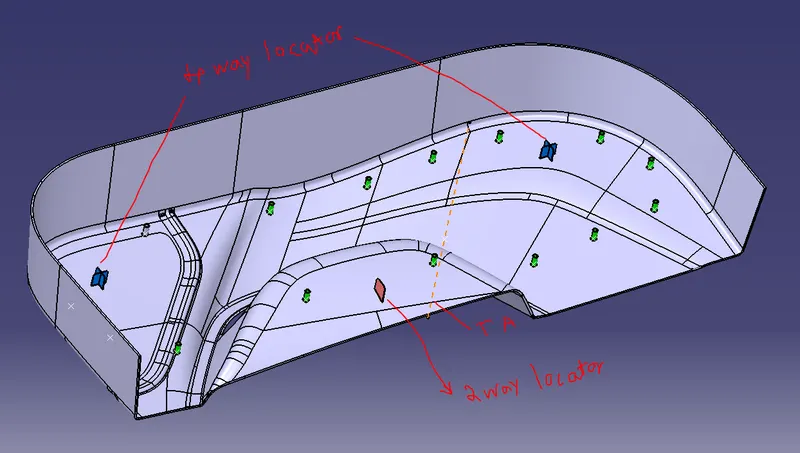

We can see all the faces for 4way, 2 way locators and heat stakes showing not suffeicient draft.

This is becuase of all the locators and Heat stakes are drafted for 0.5 degree.

Below pic illestrate the same.

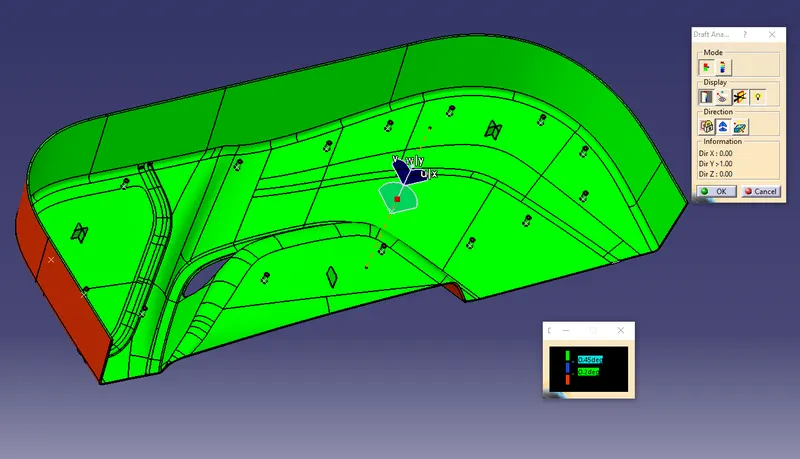

Draft Analysysis for 0.45 degree:

NOw we can see all the faces are green
