Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

GGowthaman S31 Mar 2023

Sir,

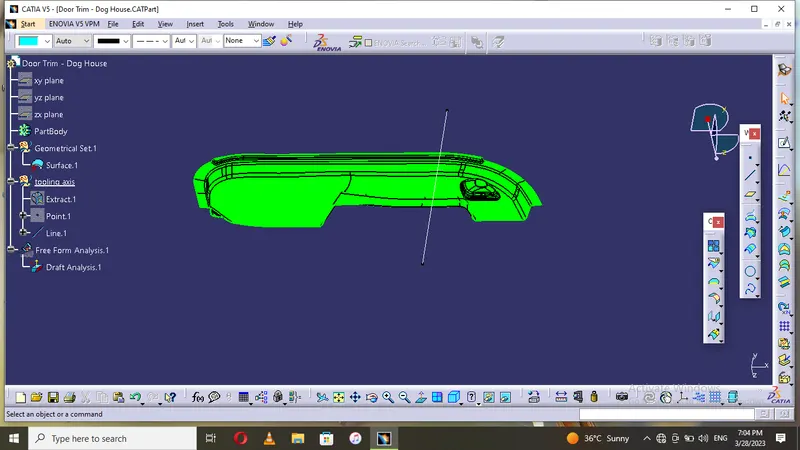

Initially from Class A surface ,Draft analysis is performed after the part clearing the Draft analysis ,Creation of B

surface started.

After successful creation of B surface ,Class C surface is started,Then class A and C get added,and trimmed with B surface.A complete profile now we got later it is converted to solid..

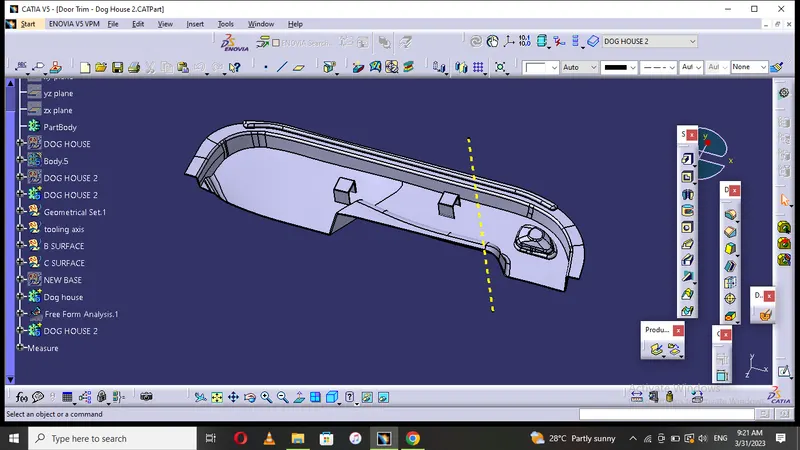

Then from the solid part Dog house is created.

Regards

Gowthaman.S
