Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

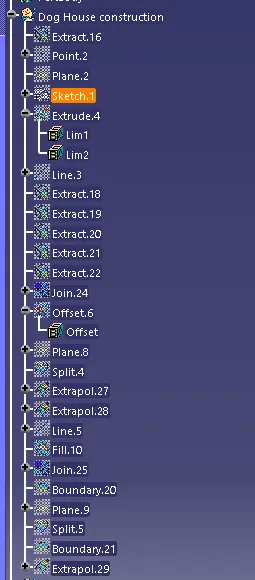

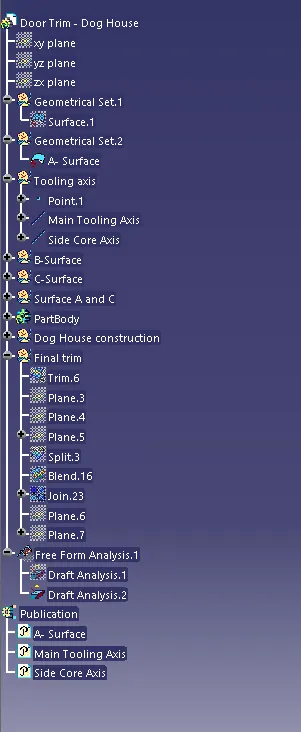

Tree Structure:

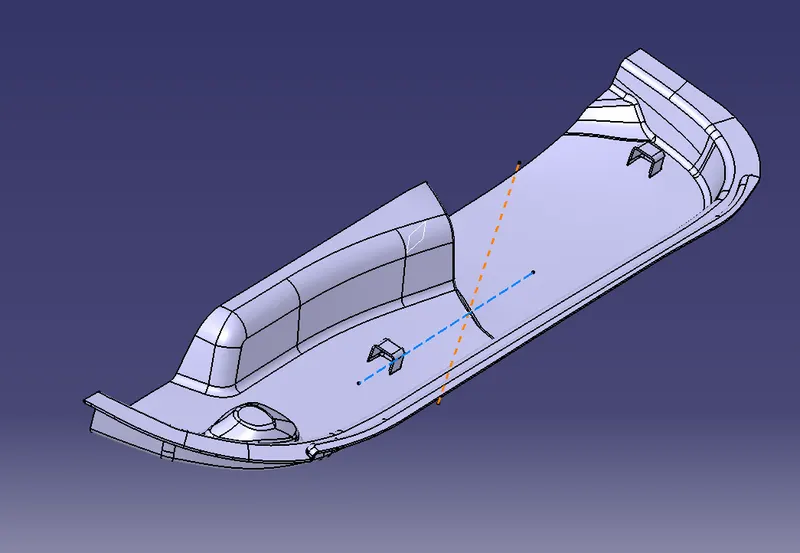

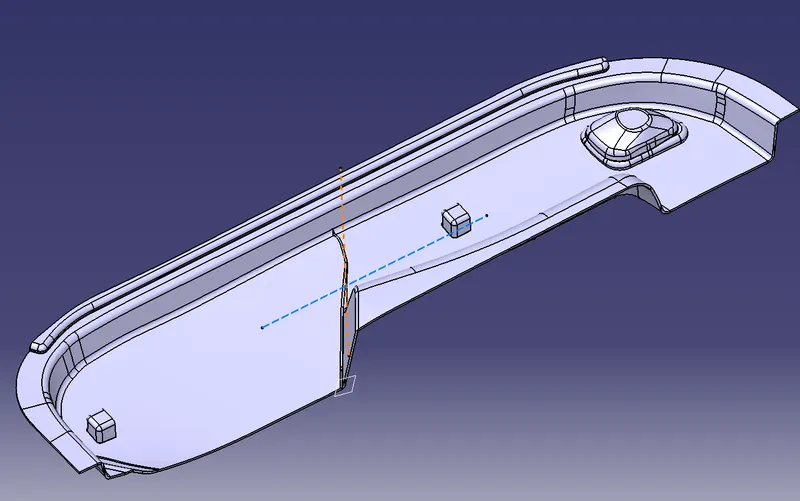

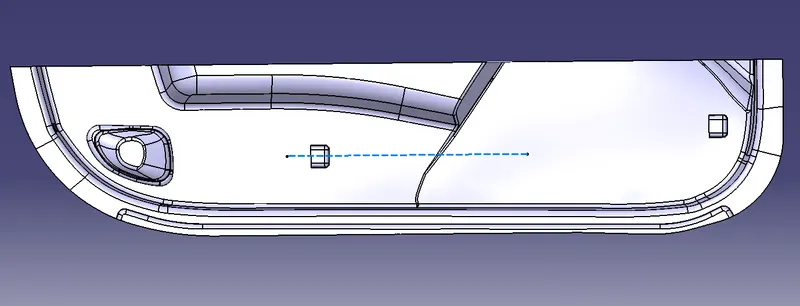

Part Body views:

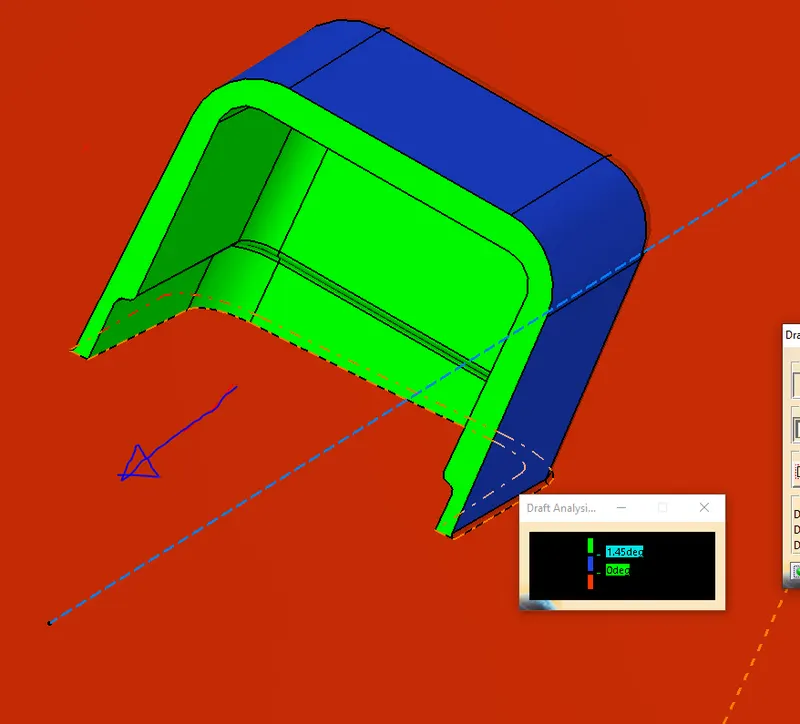

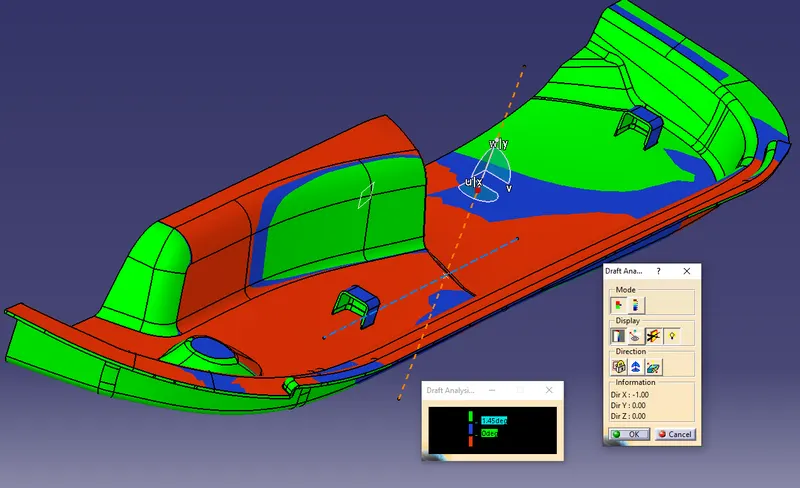

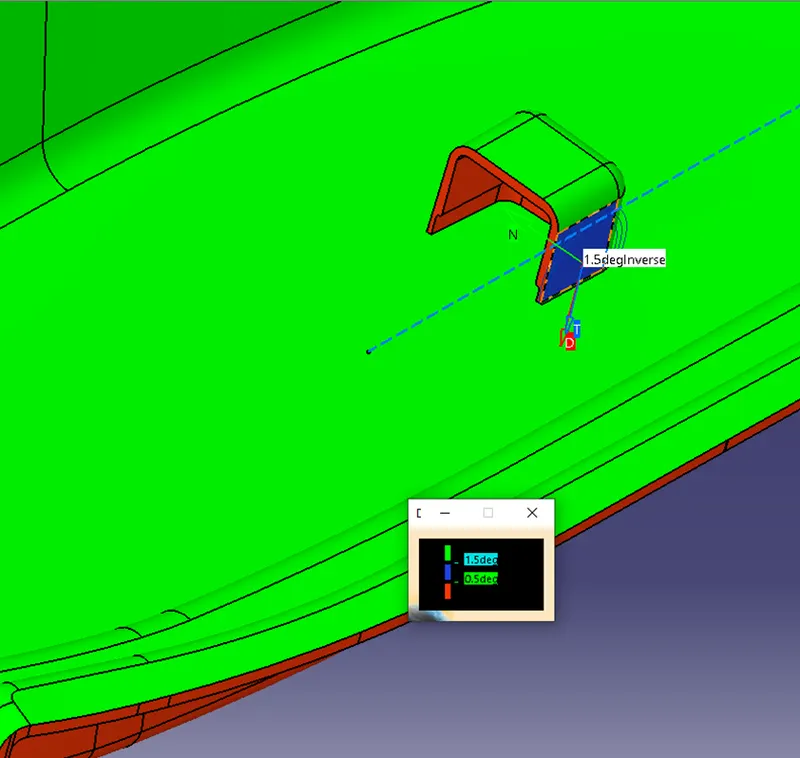

Draft Analysys Along with main tooling Axis (@ 1.5 degree draft Angle).

As draft angle given on Dog hgouse side faces same as draft analysis set angle, we can find side faces in blue colour

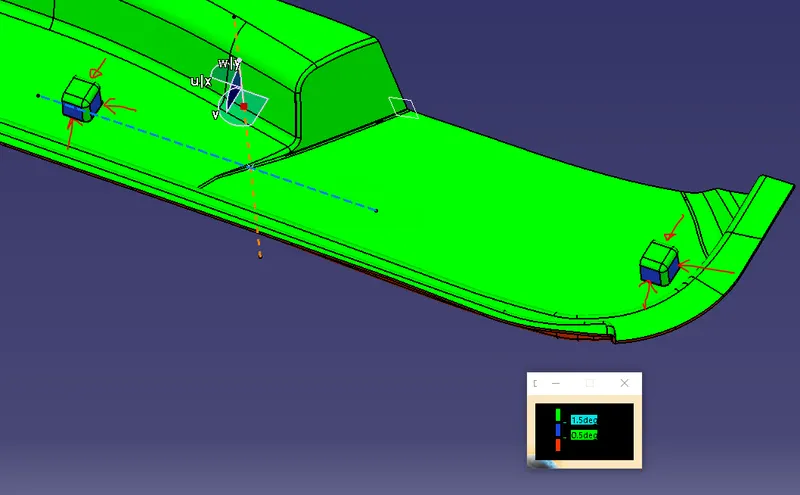

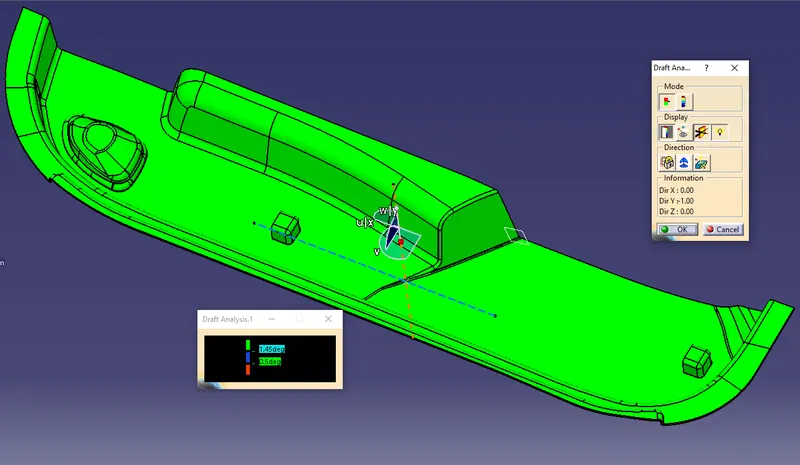

Draft Analysis for Set Angle =>1.45 degree draft

We can observe that all the faces are green.

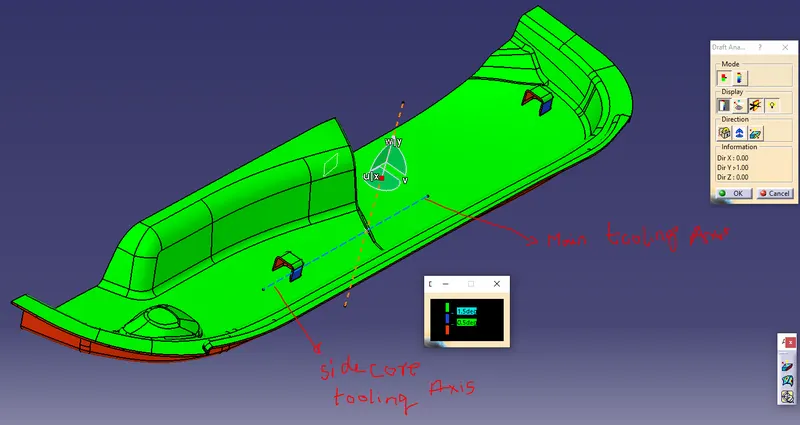

Draft analysis along Side core Axis:

All the faces are Green with 1.45 draft degree.
