Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Detailed Report - 1] Creating a Point

2] Create a line by using point direction method

3] Create a B- surface where give 2.5 mm of offset

4] Create a C-surfcace where done sweep & extrapolating opertion

5] join class A & C surface by using join command

6] Make the closed surface

7] Did the final Draft Analysis Report for draft analysis give 2.9 degree celsius.

8] Creating a Dog House

9] Create Side core tooling axis by using same tooling direction point.

10] Make the Doghouse wall thickness at the intersection of the part wall ( C ) is 40%

11] Make the height of ( B ) is 4 mm

12] Did the Draft Analysis Report for Dog House give 0.45 degree celsius.

• Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View) -

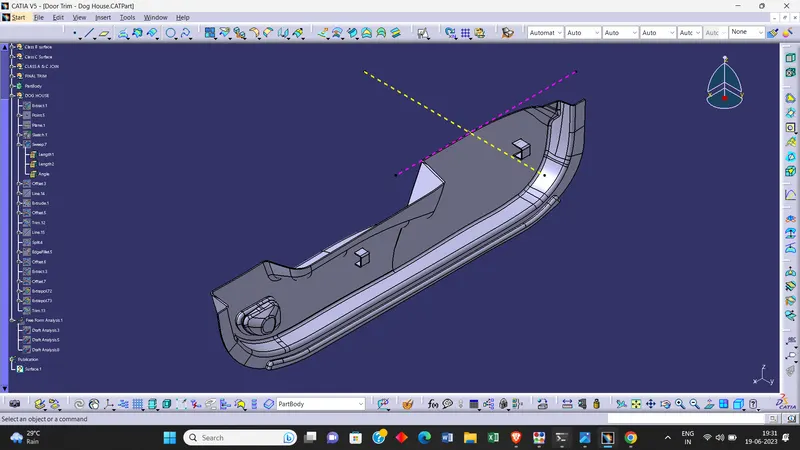

Isometric -

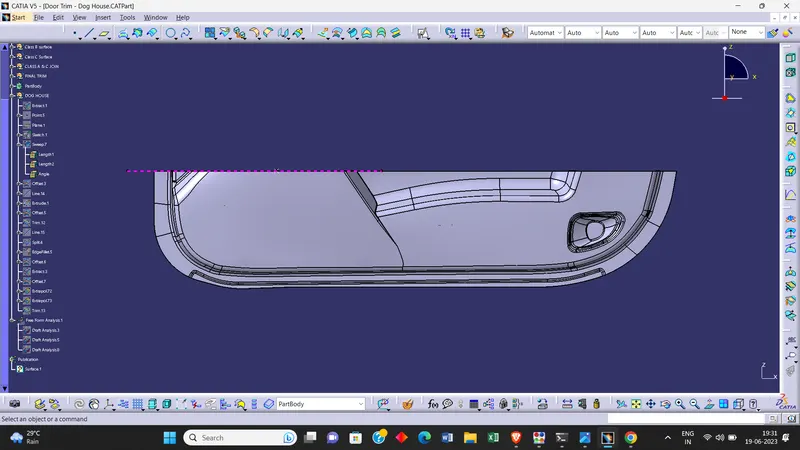

Front -

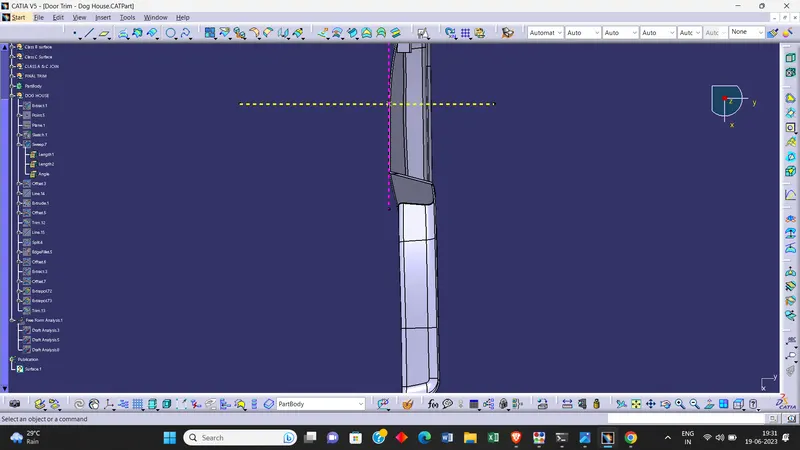

Left Side -

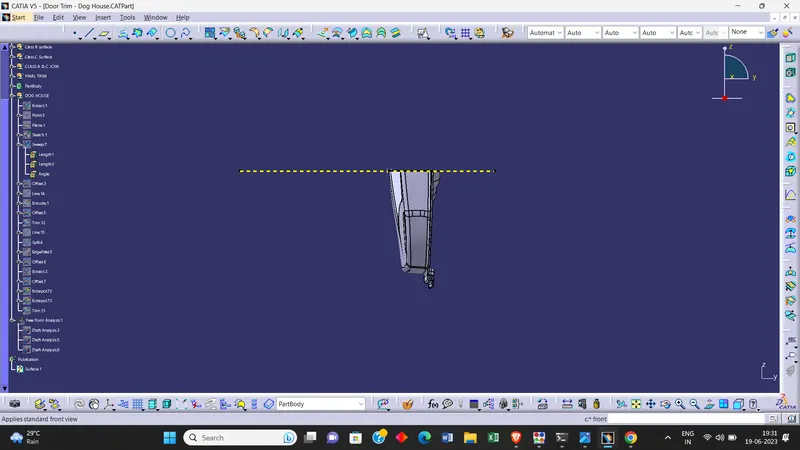

Right Side -

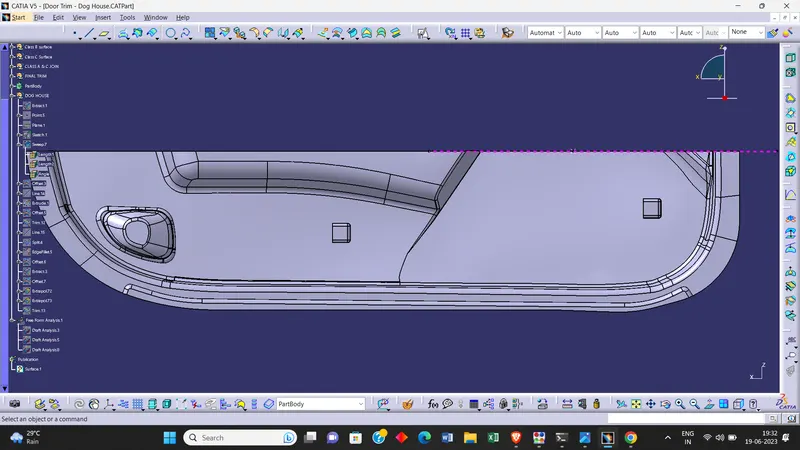

Top View -
