Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

PPrashanth Shetty6 Jul 2023

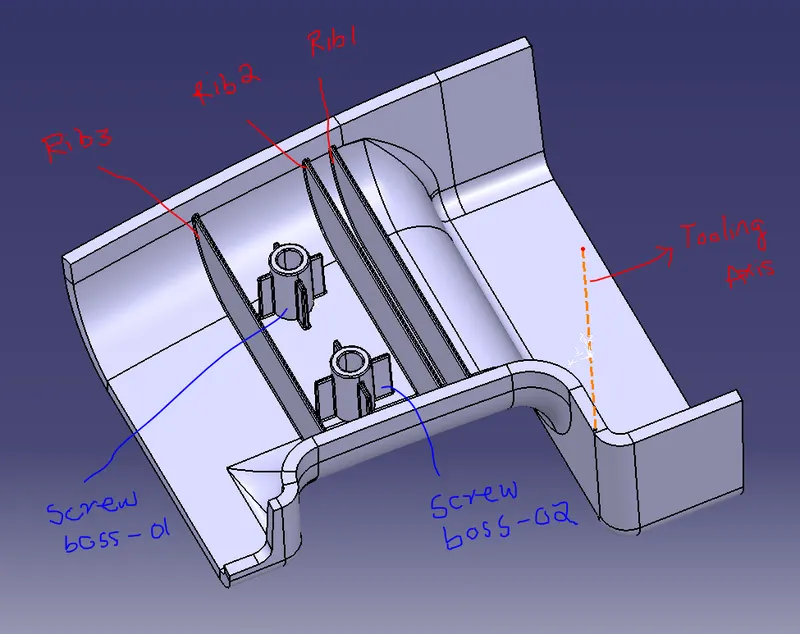

Space between rib01 and rib02 kept as per deisgn guidelines

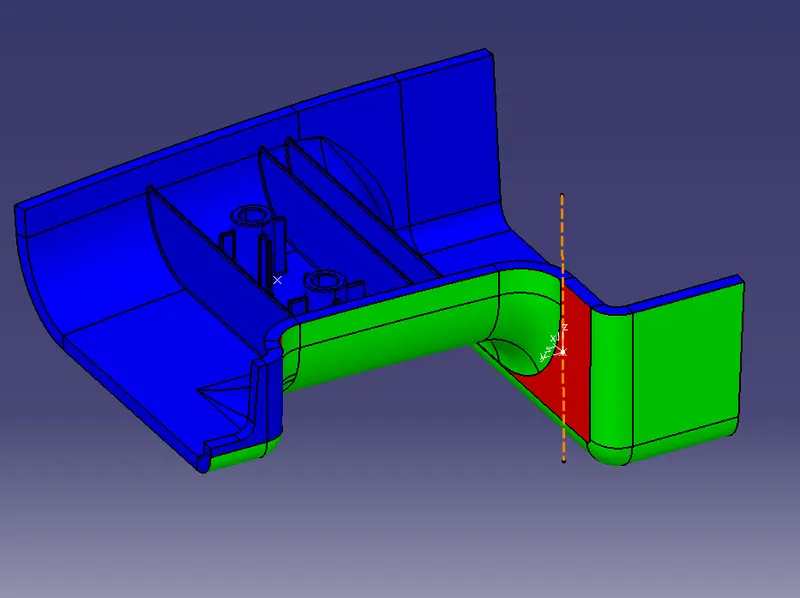

Draft Analysis:(At 3 degree draft)

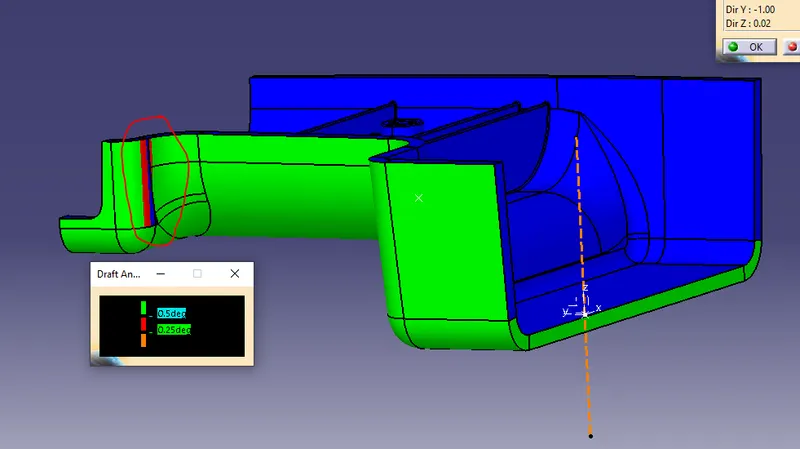

Draft Analysis: at 0.5 degree draft angle

Even at 0.5 degree draft anfle above shown portion is not clearing.

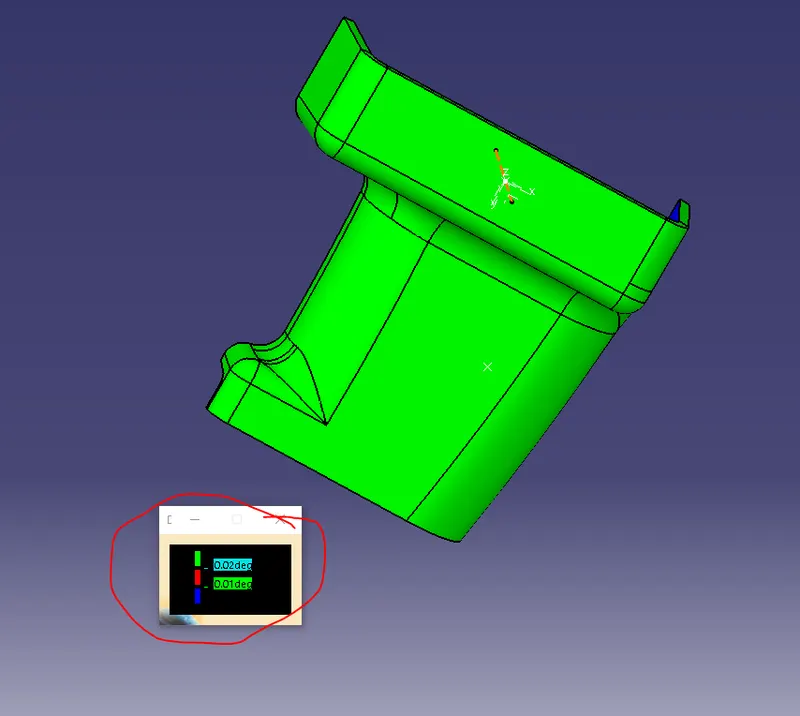

draft analysis: at Zero degree draft.
