Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Challenge:

I am facing issues while completing the challenge.

Draft Analysis:

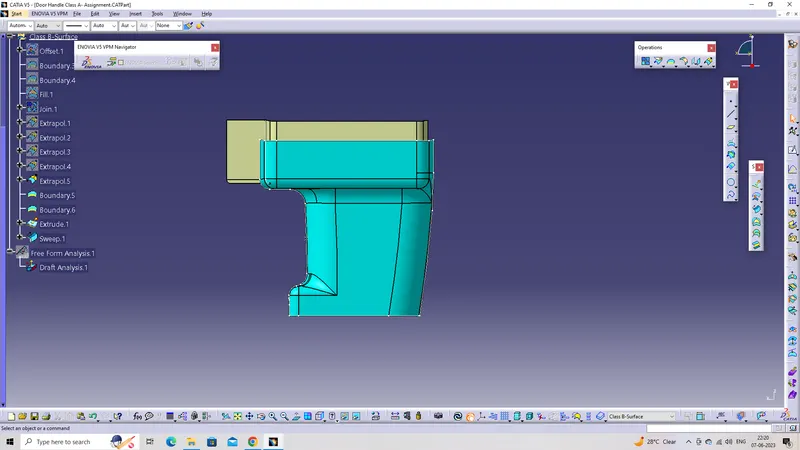

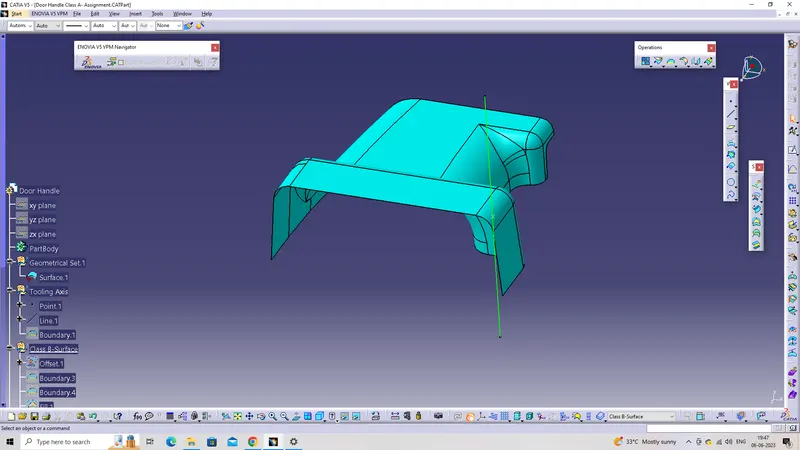

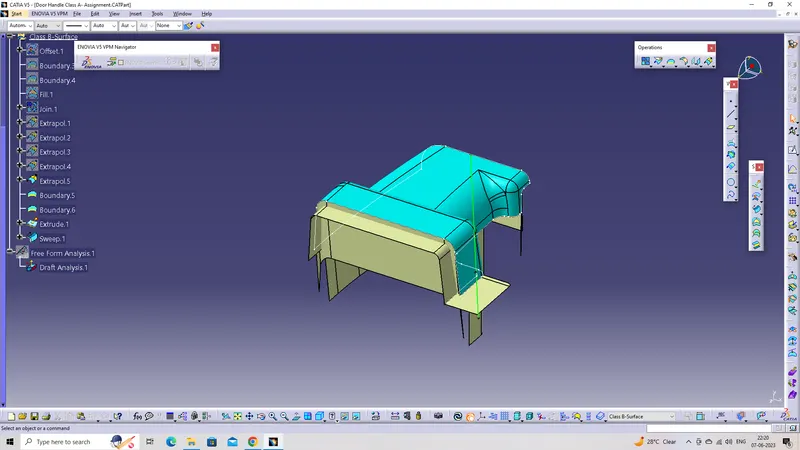

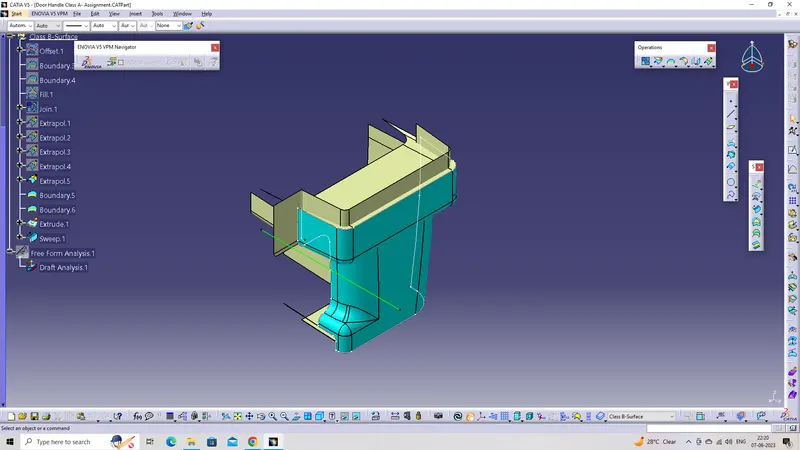

This draft analysis technique is used to analyze whether our part model created in Catia is manufacturable based on the draft condition applied. Here the part should get easily removed from the panel dies (in case of Sheet metal part) or Mold.Here for the above component the maximum draft we get is 2.9 degrees which should be less or equal to 3 degrees. Hence the tooling axis which we have taken for the component is correct.

Thanks & Regards,

Harshal Patil.
