Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

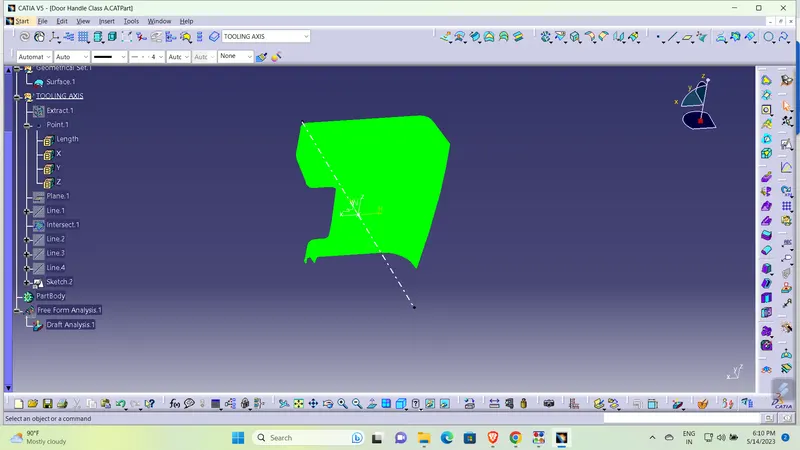

Create the tooling axis for the Class A surface given

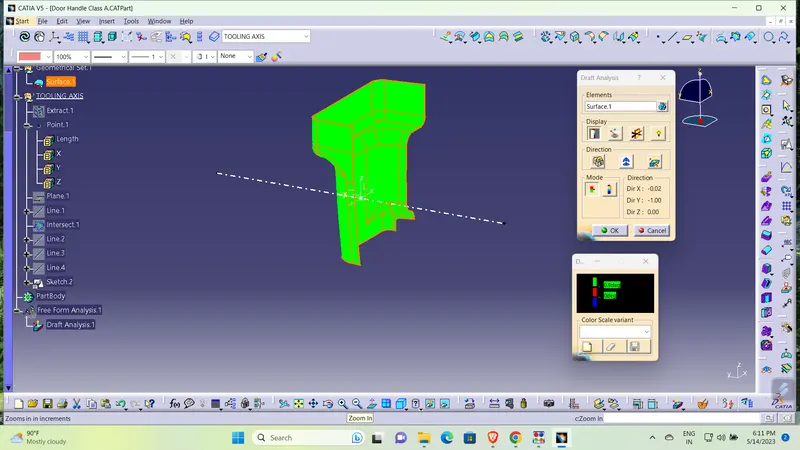

After creating tooling axis use the draft analyis

Then create the class B surface by using the class A surface -offset the A surface to the 3mm

using the offset complete the class B surface

After the calss B surface is completed create the class c surface

using sweep angle 3 deg(93) and other command like close surface its 90 deg

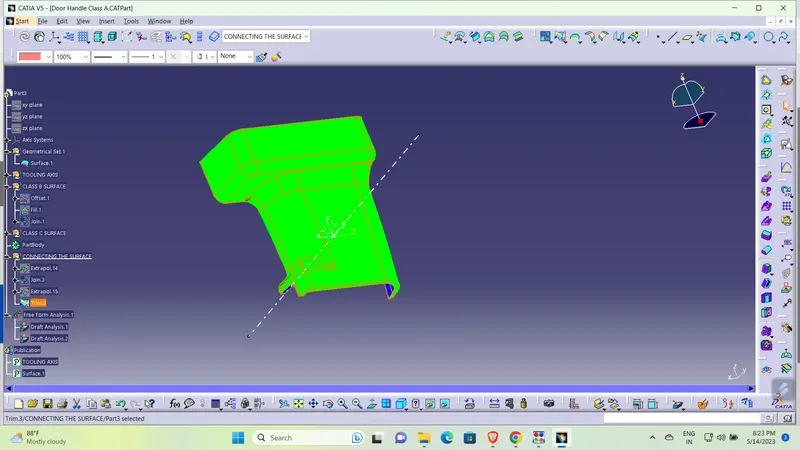

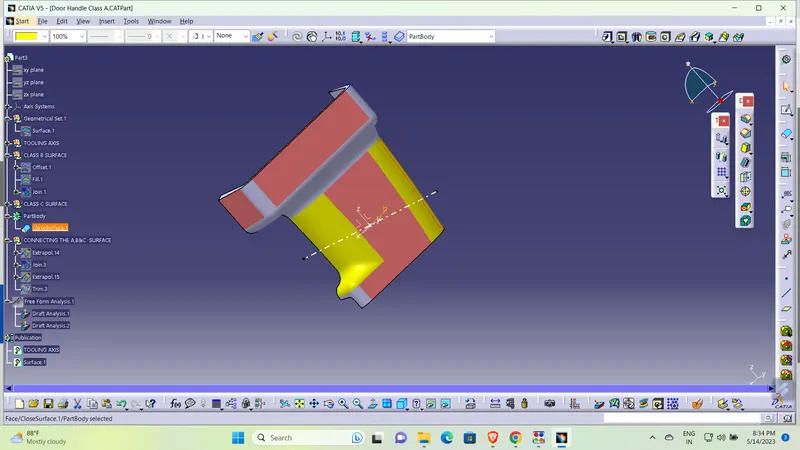

after completed Class A,B,C surface joint three surface to get close surface part

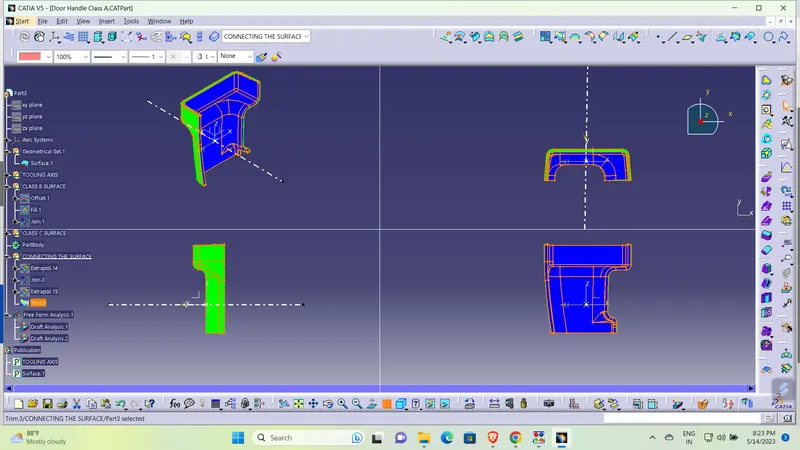

After use the draft analysis one more to check weather any problem in the colse surfaces

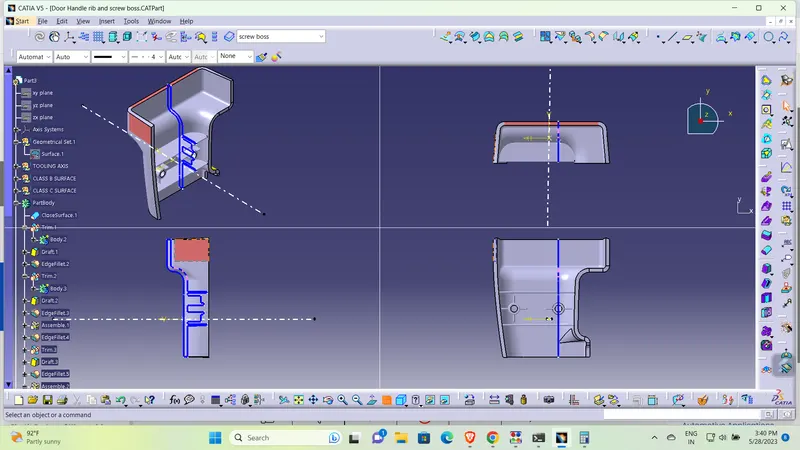

then use close surface command to creat the part body

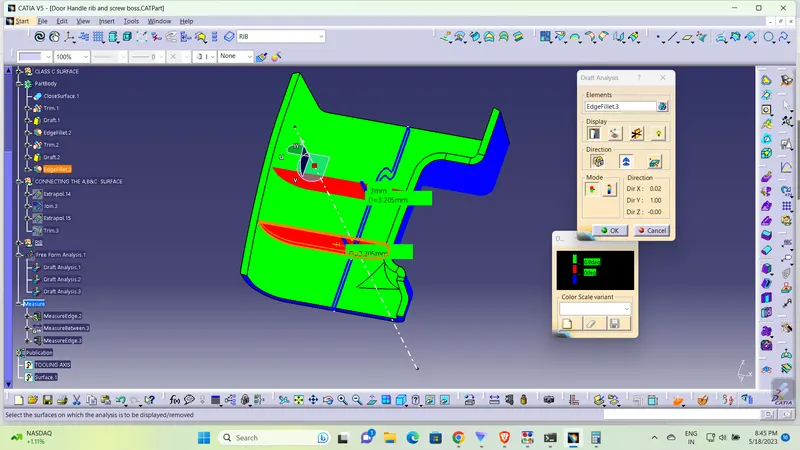

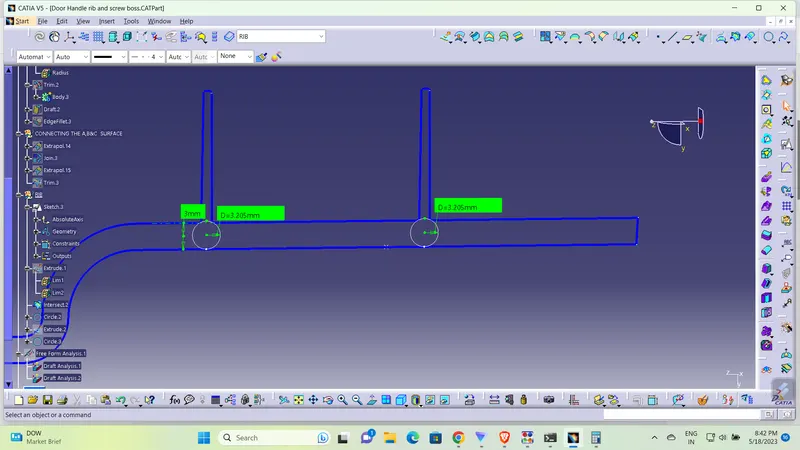

Then creat rib following the rules after creating the ribs check the values to conform if the rib is rightly form

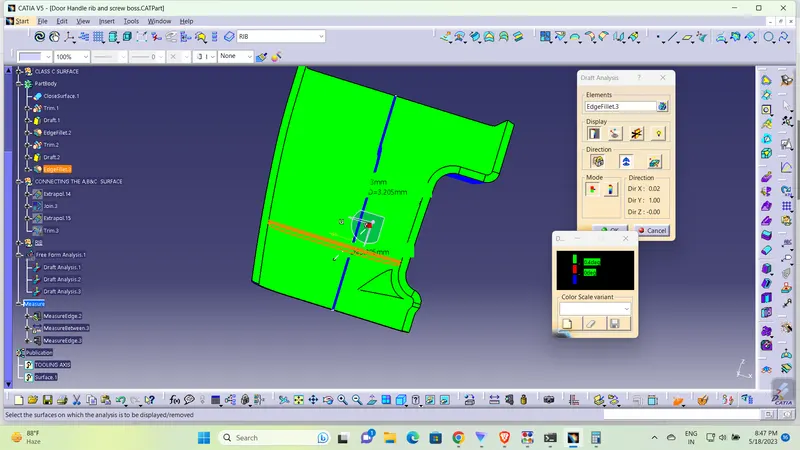

after rib is form once agin use draft analysis command

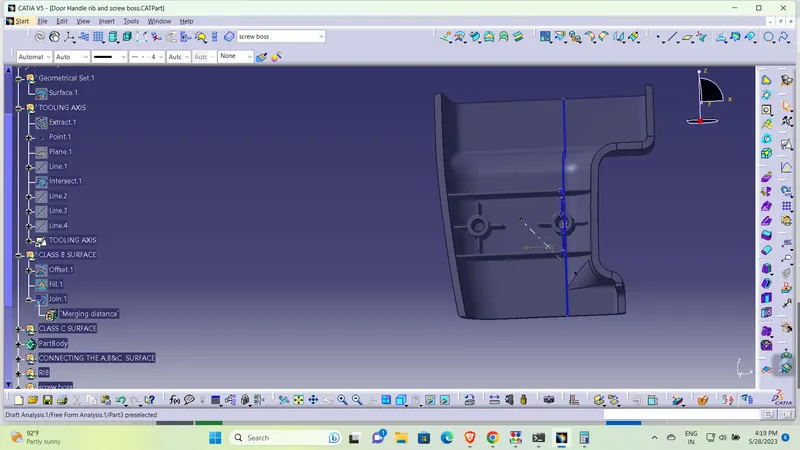

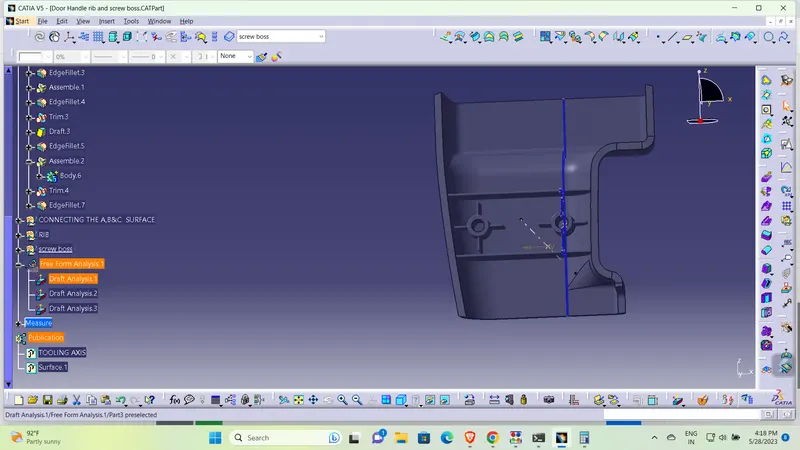

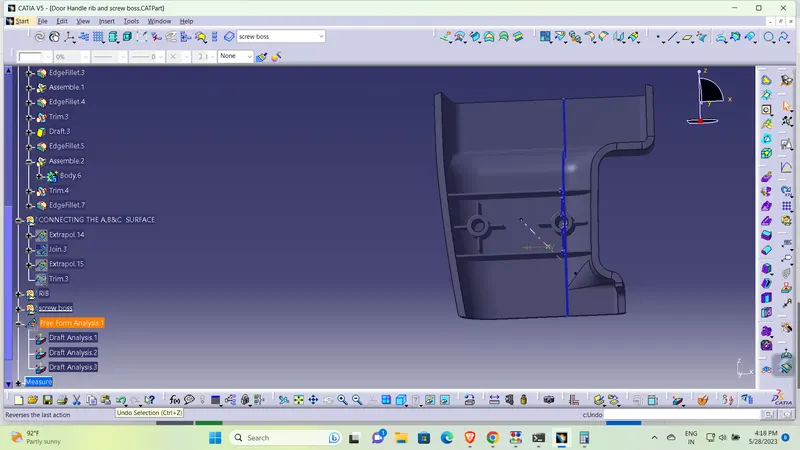

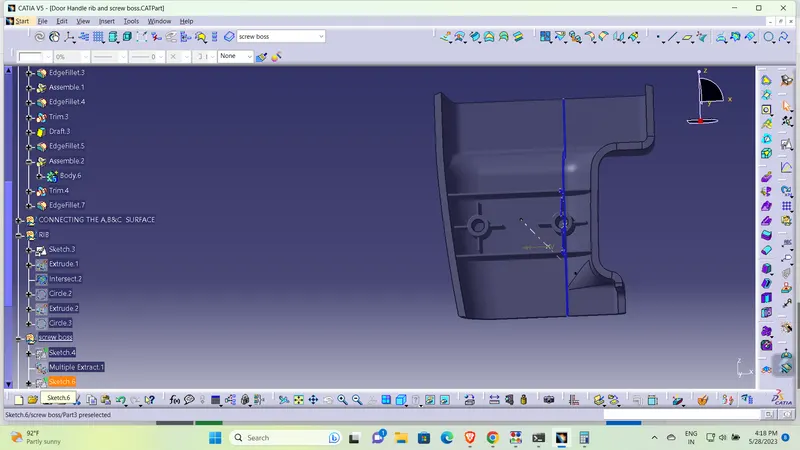

After that create screw boss by following standard rules
