Week 10- Assembly Workbench

First, all the parts are created using the part workbench. Reference elements are also created and published. A new CAT product file is created and a part is created as a skeleton to take reference planes and origin as reference. Then all the created part files are opened in the assembly workbench.

Then the skeleton part is given the fix contrain. Then according to the requirement different parts are given required constrains accordingly and product is updated. With the product file 2D drawing is created using Drafting workbench.

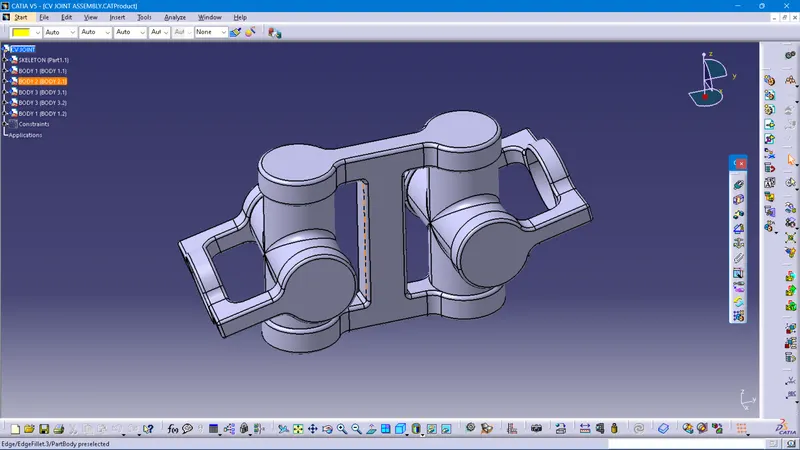

CV Joint

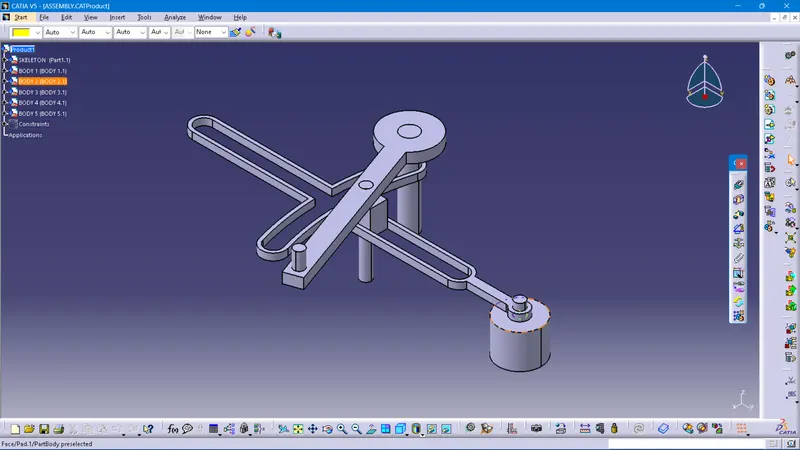

Quick return Mechanism
