Week 10- Assembly Workbench

Working Procedure:

Assembly Design:

Part build:

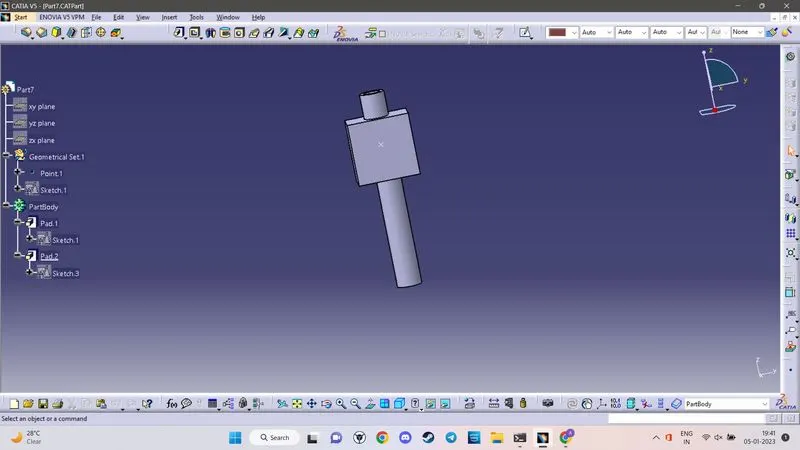

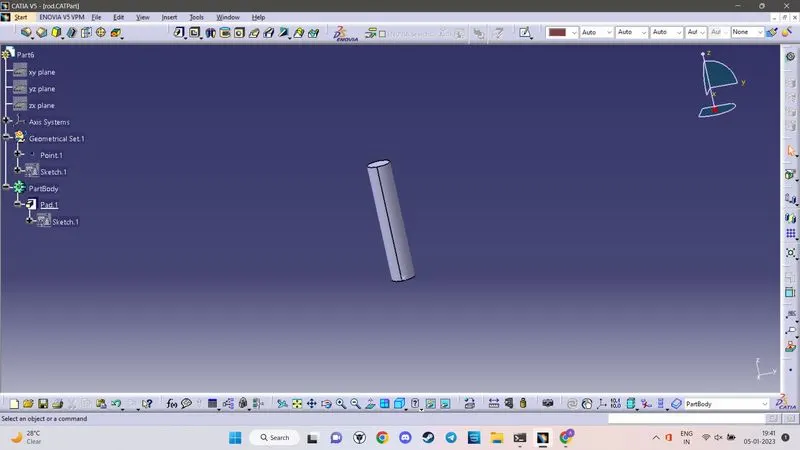

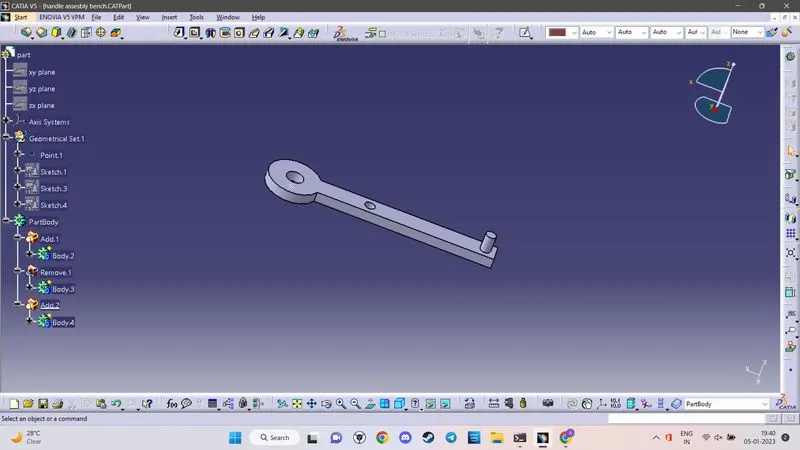

The individual piece parts were built first as per the dimensions 2d drawing using CATIA V5. The features used are Sketch, Pad, fillet, Pocket, and boolean operations like add, union trim, etc. After building the piece parts, they were drafted to complete the task.

Assembly workbench:

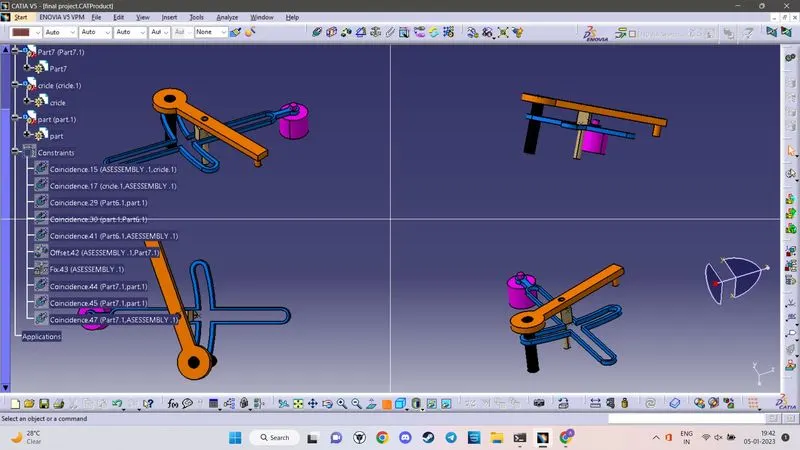

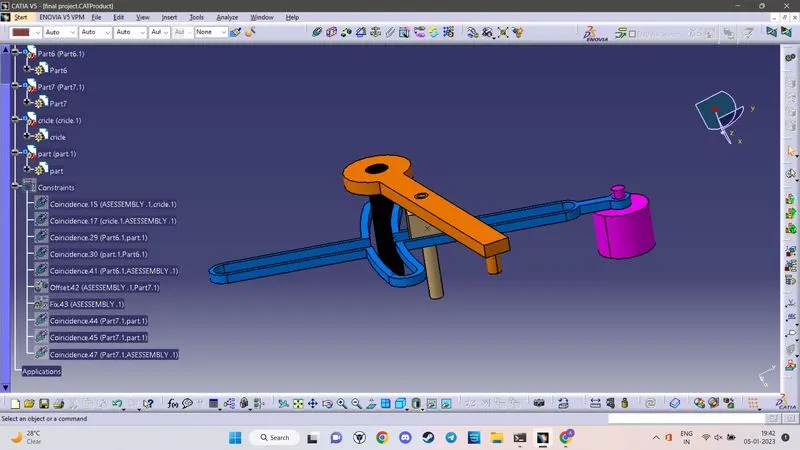

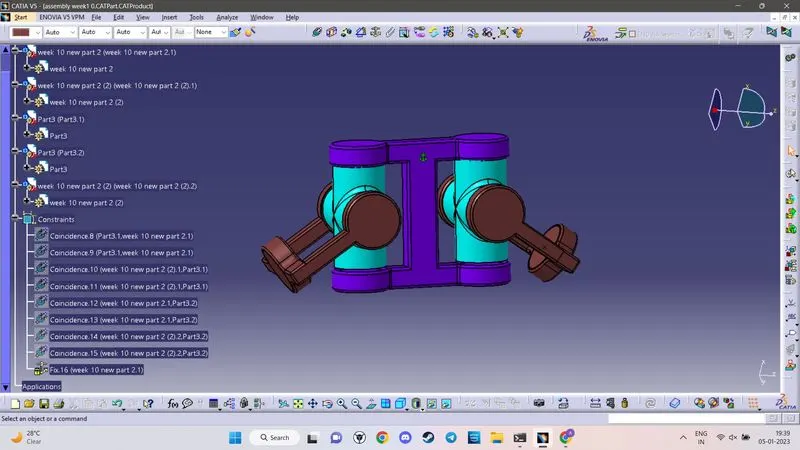

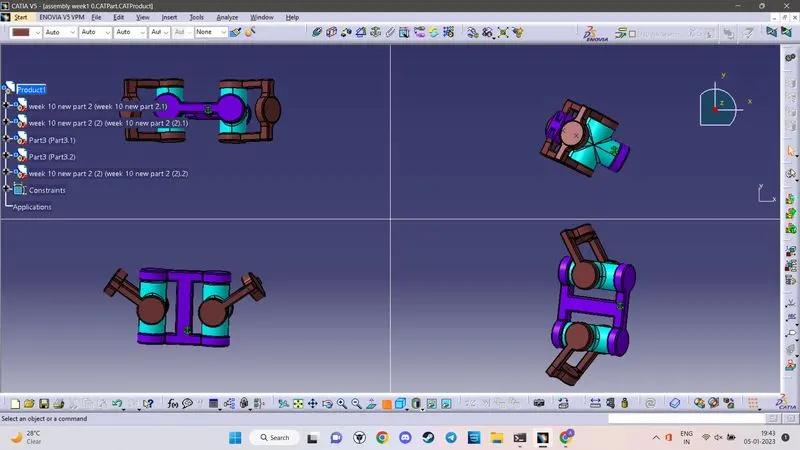

The assembly was created using the option Product in CATIA V5. The individual piece parts were assembled using a reference feature. The piece parts were assembled with coincident and offset constraint features. The reference elements were added and published in each part through which the assembly constraints were fixed.

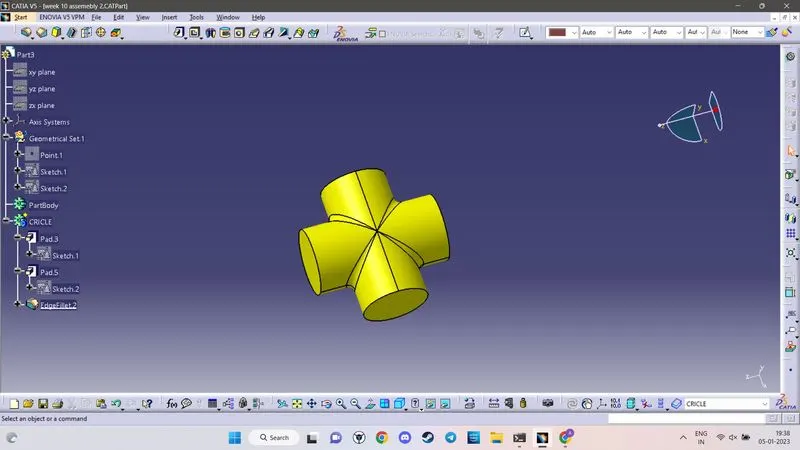

Parts:

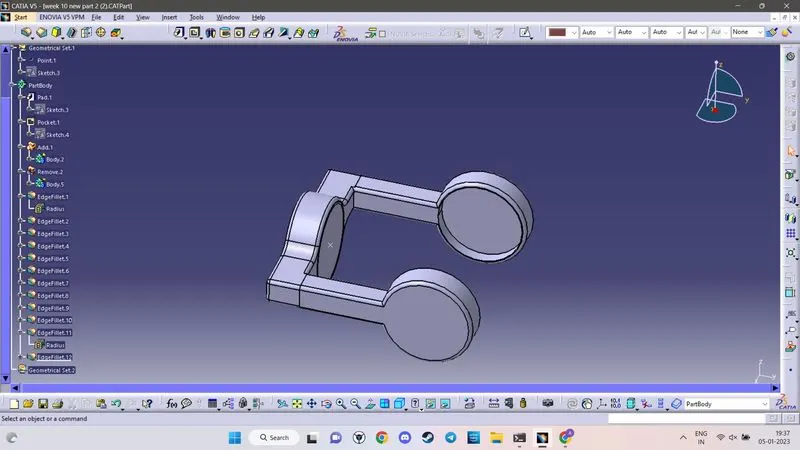

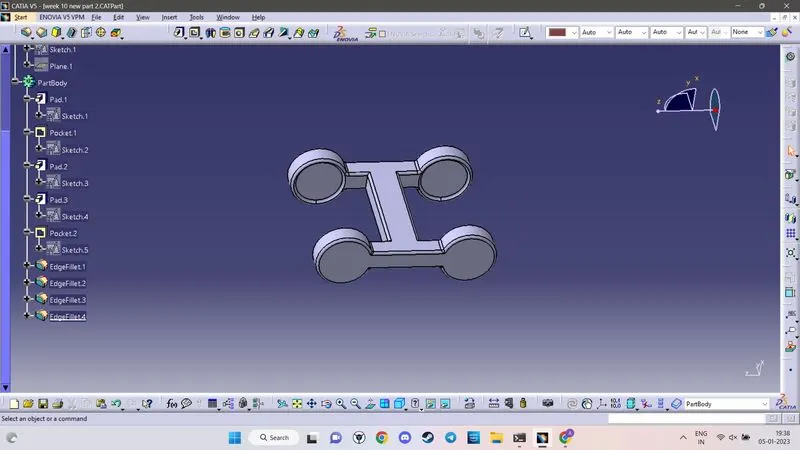

Part body 1:

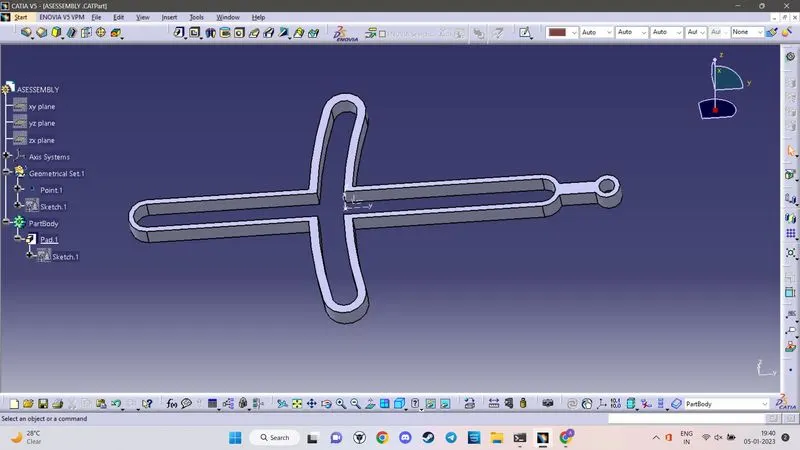

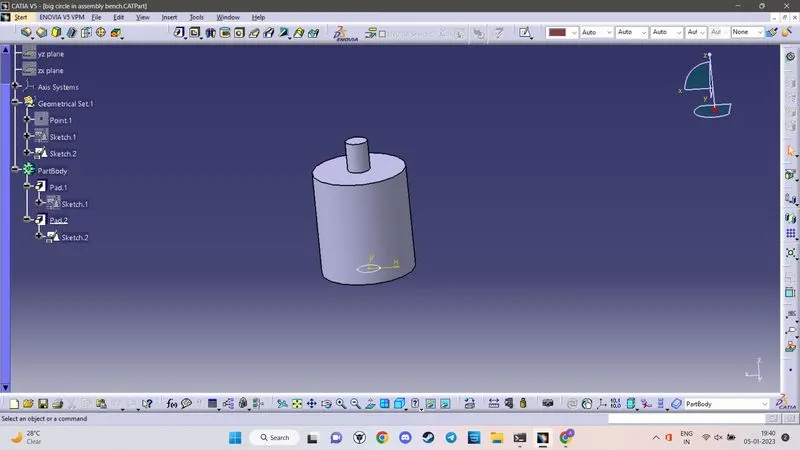

Part body 2 :
