Week 10- Assembly Workbench

ASSEMBLY WORKBENCH

AIM:

• To create two assemblies with 2D diagrams of the components and to create the individual part files and then create a complete assembly of those part files in the assembly workbench
• Creation of drafting for the parts and assembly

PROCEDURE:

QUICK RETURN MECHANISM ASSEMBLY:

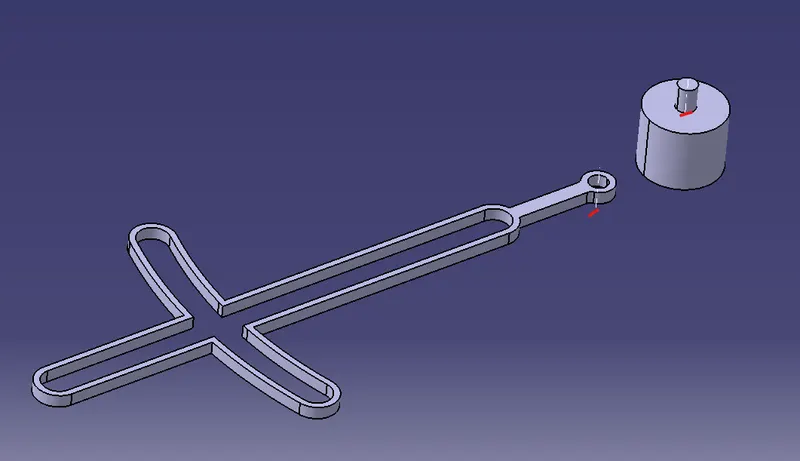

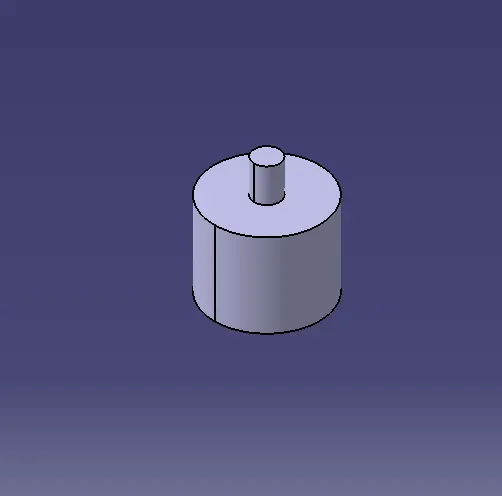

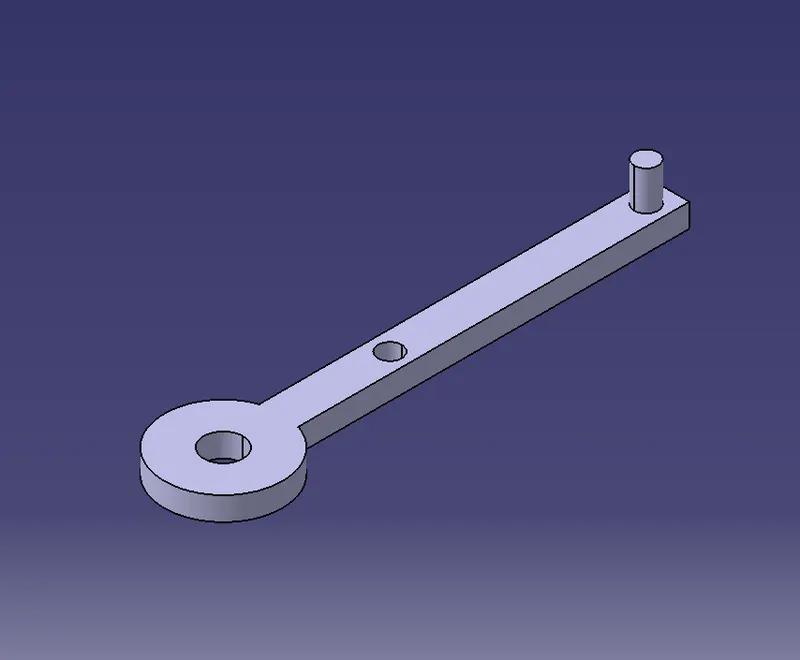

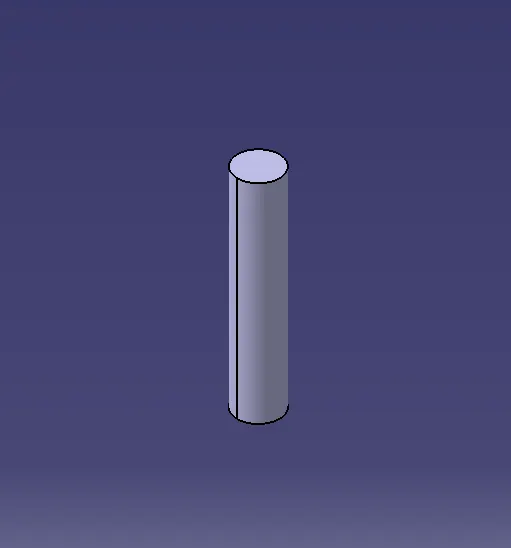

CREATION OF PART BODIES FOR ASSEMBLY:

BODY 1:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch

BODY 2:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch

BODY 3:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch

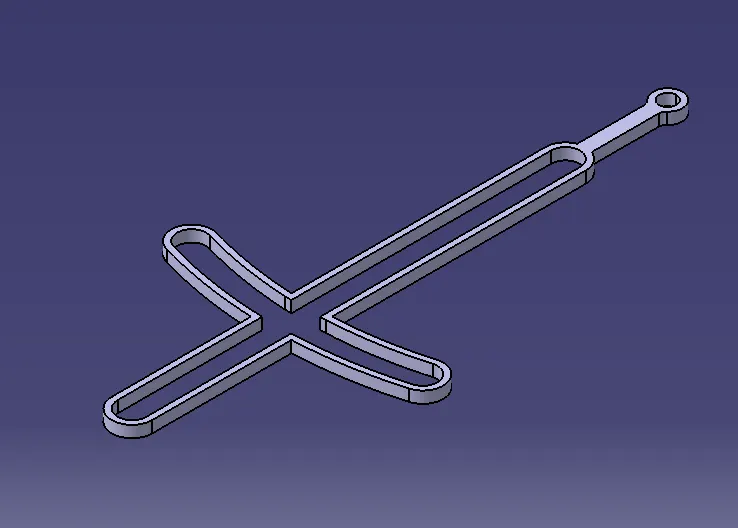

BODY 4:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch

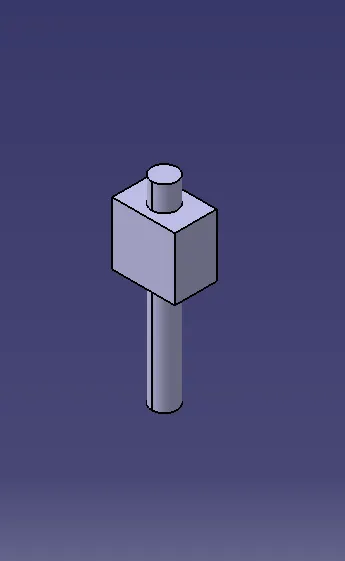

BODY 5:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch

ASSEMBLY OF THE PART BODIES:

• Open the assembly workbench by START
• Created parts can be brought into assembly workbench by using the option EXISTING COMPONENT
• Using the option MANIPULATION the inserted bodies can be moved along the respective axis
• Using the CONSTRAINS TOOLBAR the constrains between the components were given

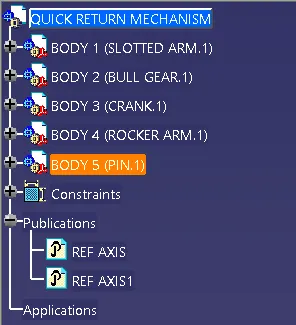

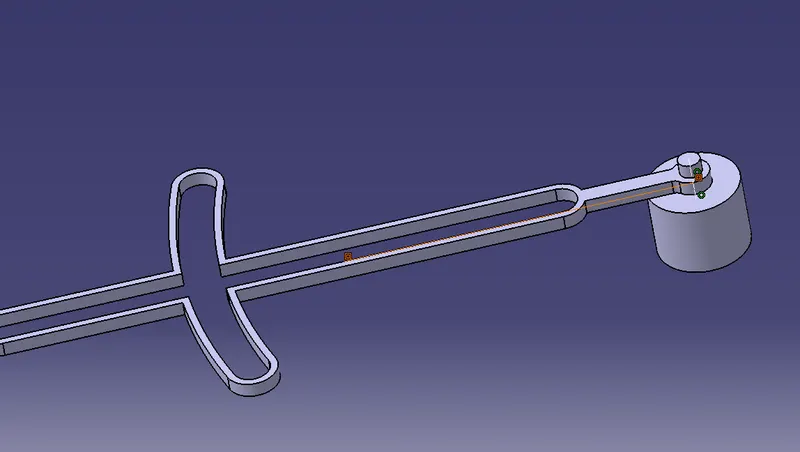

• The following constrains were given to create the assembly of quick return mechanism

1. COINCIDENCE CONSTRAIN
2. CONTACT CONSTRAIN
3. FIX

• While assembling the bodies make sure that the degrees of freedom are arrested in directions which dosent require motion

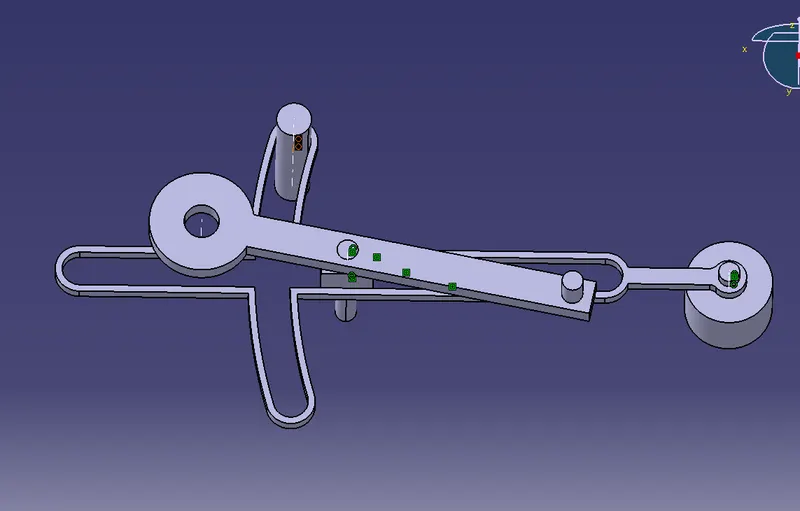

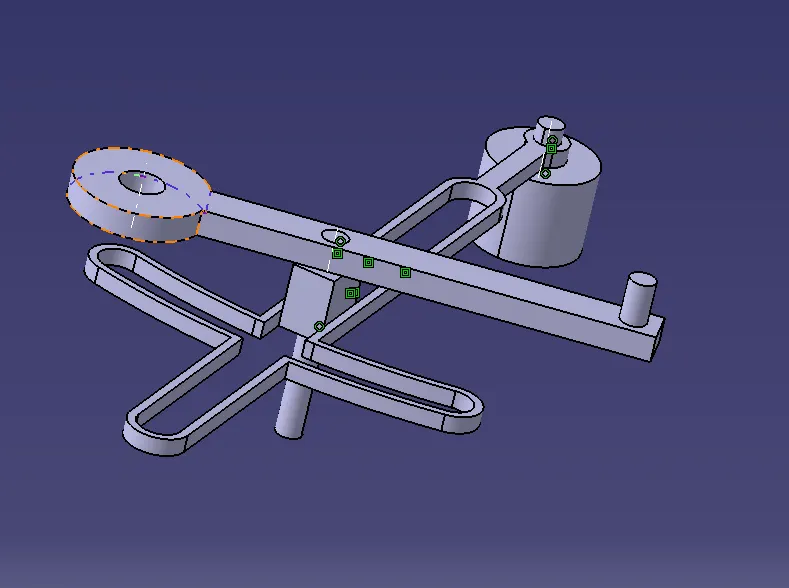

STEP 1: All the parts have been introduced into the assembly workbench

STEP 2:

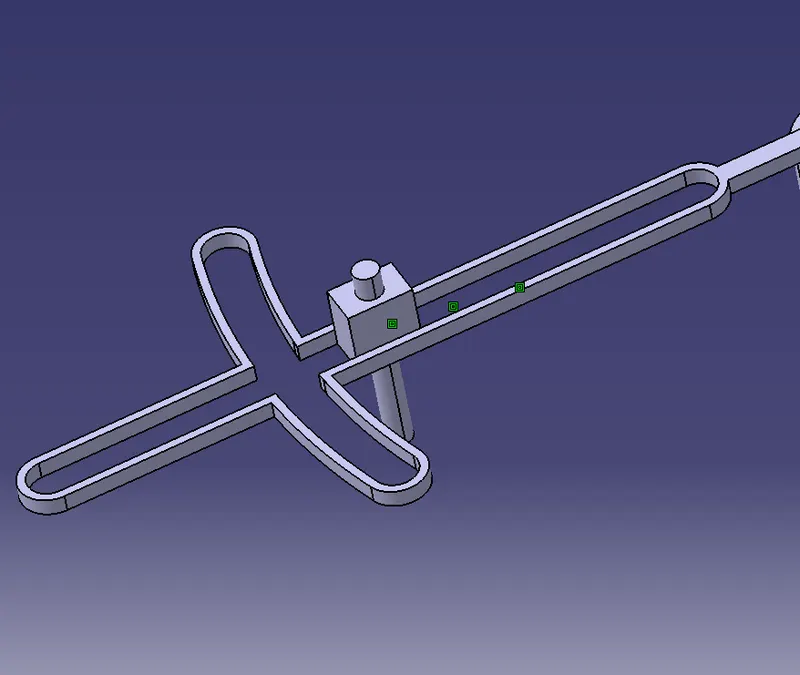

• Body 1 and body 2 were assembled by creating an axis at the respective places

• Then they were aligned by both the axis by giving COINCIDENCE CONSTRAIN

• Then both the bodies were given CONTACT CONSTRAIN to bring both in contact

STEP 3:

• Now body 3 is brought in contact with the assembly by giving COINCIDENCE CONSTRAIN between the respective planes(zx plane)

STEP 4:

• Now body 4 is brought in contact with the assembly by coinciding the axis created at the respective positions
• Then both the axis were given COINCIDNCE CONSTRAIN and the axis were brought in contact
• Another axis is created in body 3 so that the slot in the body 4 also gets assembled with the coincidence constrains

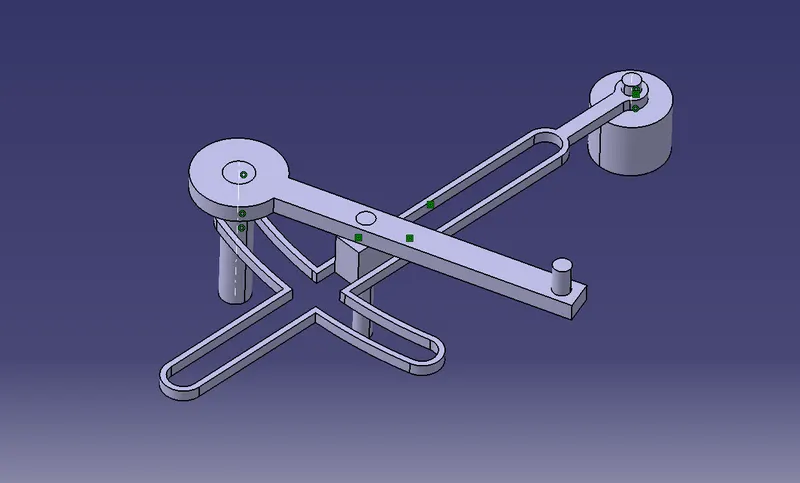

STEP 5:

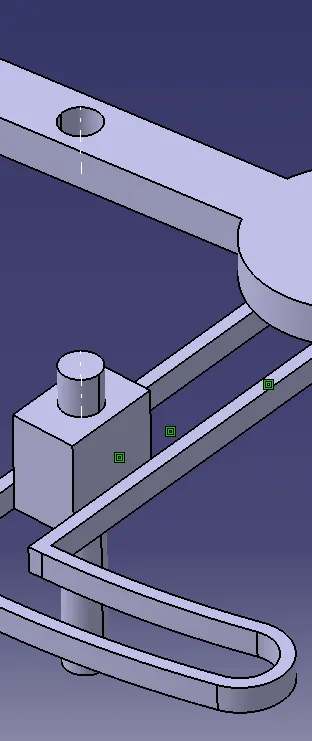

• Now body 5 is assembled again using coincidence constrain by creating axis at the respective positions

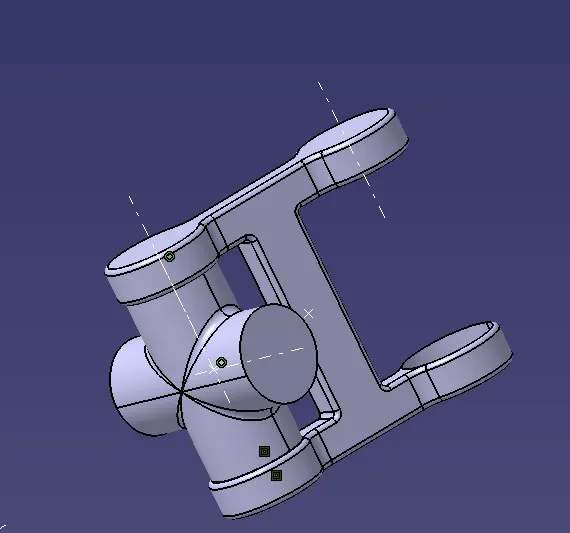

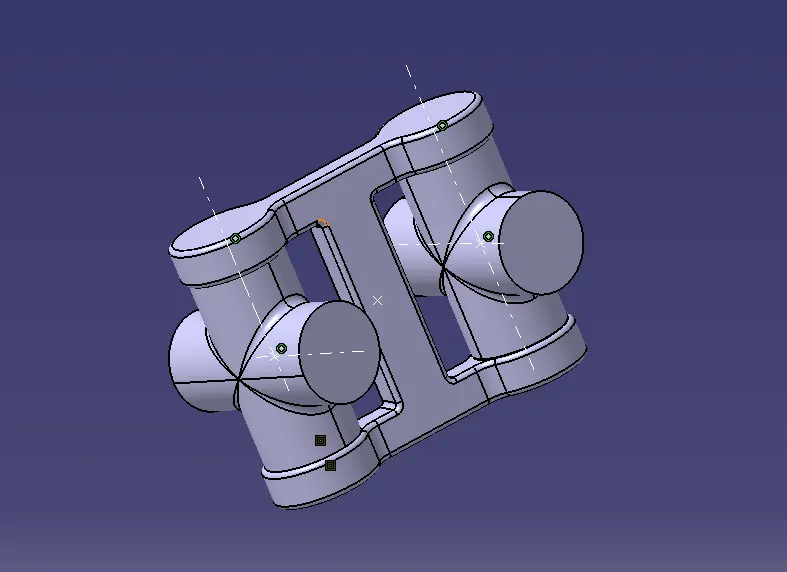

CONSTANT VELOCITY JOINTS(CV JOINT):

CREATION OF PART BODIES:

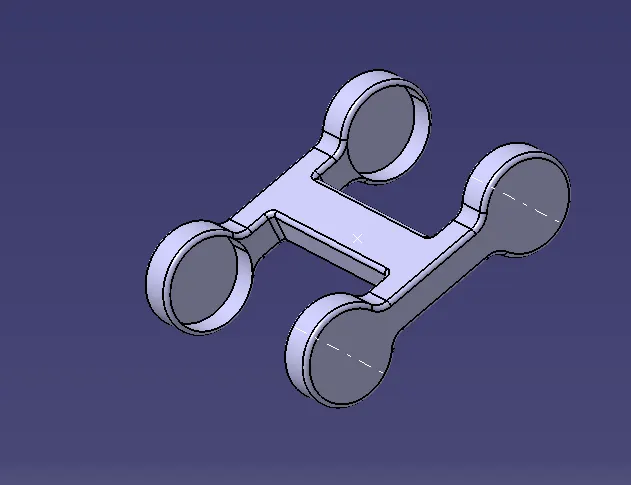

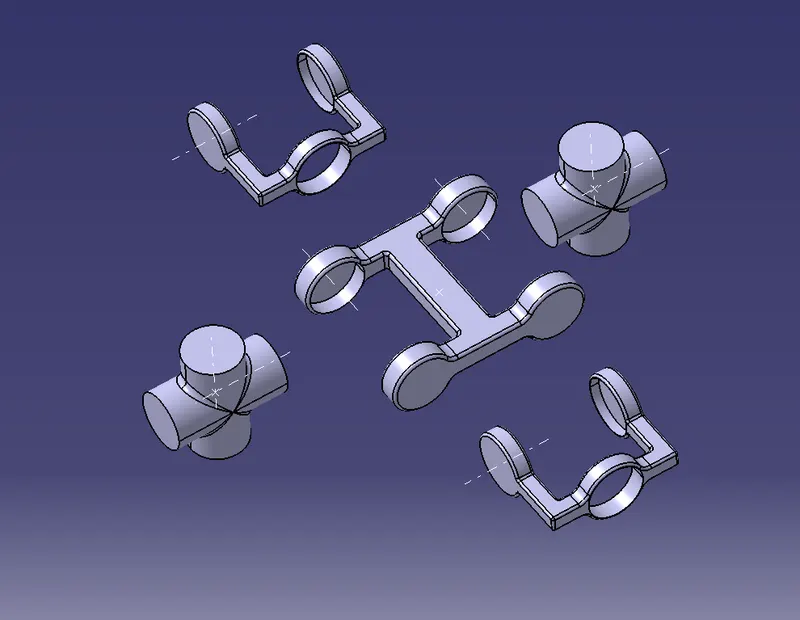

BODY 1:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch

BODY 2:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch
• Then remove operation is performed to create the cavity in the body

BODY 3:

By considering the given dimensions the body has been created

• At first the 2D sketch for the given body has been drawn in a positioned sketch
• PAD command is used to create the solid part from the 2D sketch
• Then remove operation is performed to create the cavity in the body

ASSEMBLY OF THE PART BODIES:

• Open the assembly workbench by START
• Created parts can be brought into assembly workbench by using the option EXISTING COMPONENT
• Using the option MANIPULATION the inserted bodies can be moved along the respective axis
• Using the CONSTRAINS TOOLBAR the constrains between the components were given
• The following constrains were given to create the assembly of quick return mechanism

1. COINCIDENCE CONSTRAIN
2. CONTACT CONSTRAIN
3. FIX

• While assembling the bodies make sure that the degrees of freedom are arrested in directions which dosent require motion

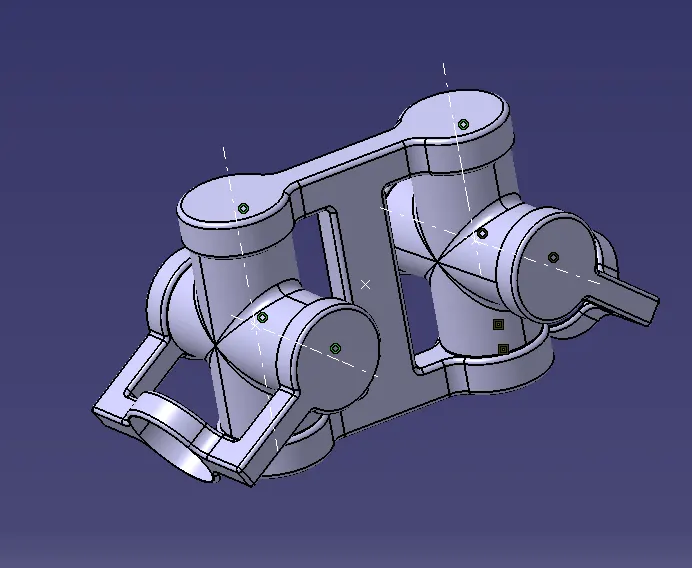

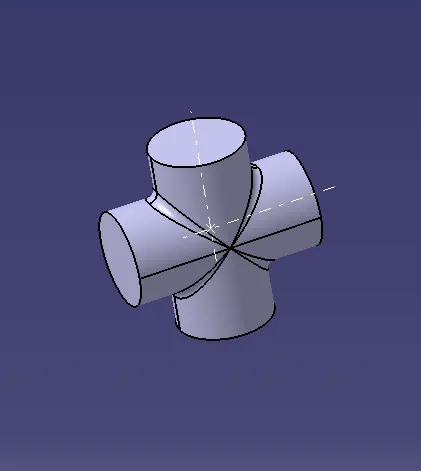

STEP 1:

• The bodies were introduced in the assembly workbench
• Except the body 2 the other bodies were introduced twice

STEP 2: Body 2 and body 1 were brought in contact by aligning the axis created at the respective positions using COINCIDENCE CONSTRAIN

STEP 3: Similarly another body 1 is also aligned with the same procedure

STEP 4: The body 3 is aligned with creating COINCIDNCE CONSTRAIN between the required aixs

CONCLUSION:

Thus the QUICK RETURN MECHANISM assembly and CV JOINT assembly were been created with the given 2D sketches.
