Week 10- Assembly Workbench

Assembly 1

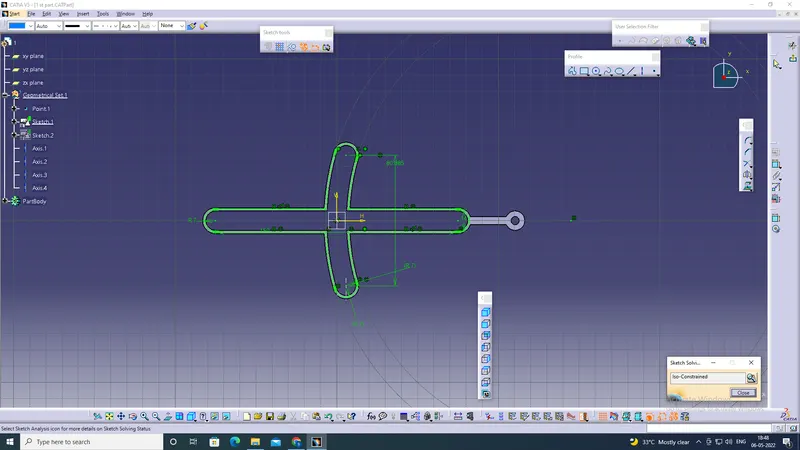

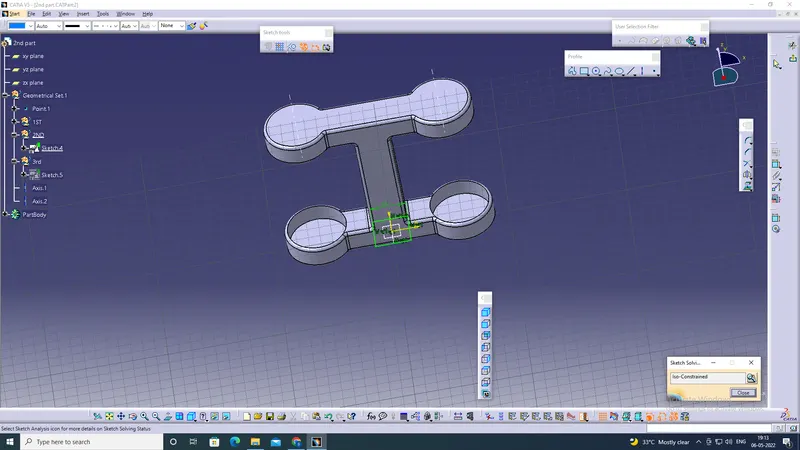

1 First we will be creating the sketch as per the dimensions given in the assignment and then we will be creating a positioned sketch and making sure that the sketch created should be iso constrained...

and then we will be defining the part body and then we will be using a pad and we will be using the thick option to create the part.

2nd

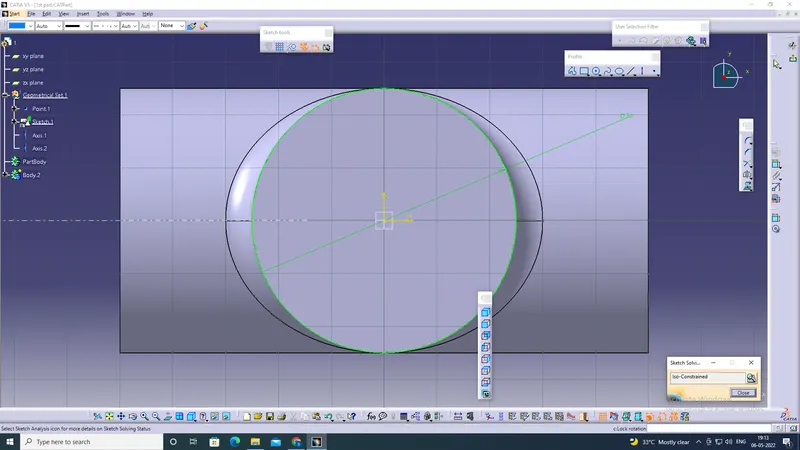

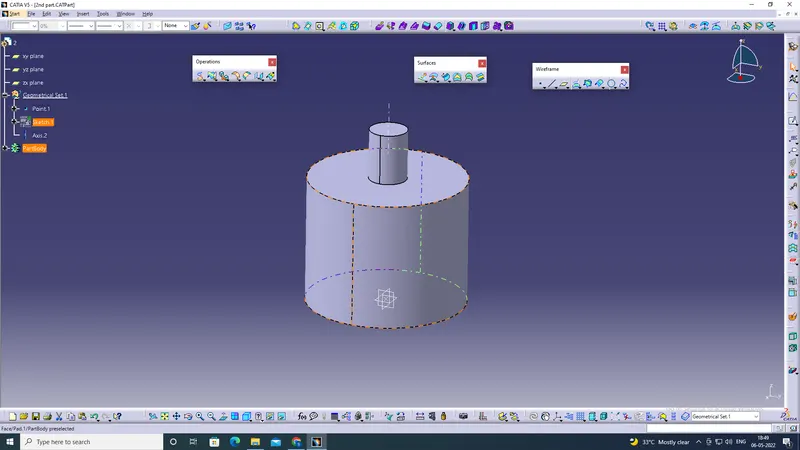

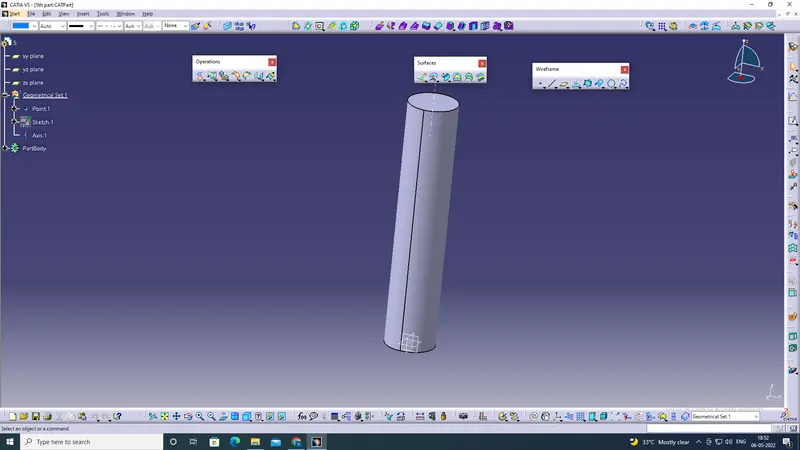

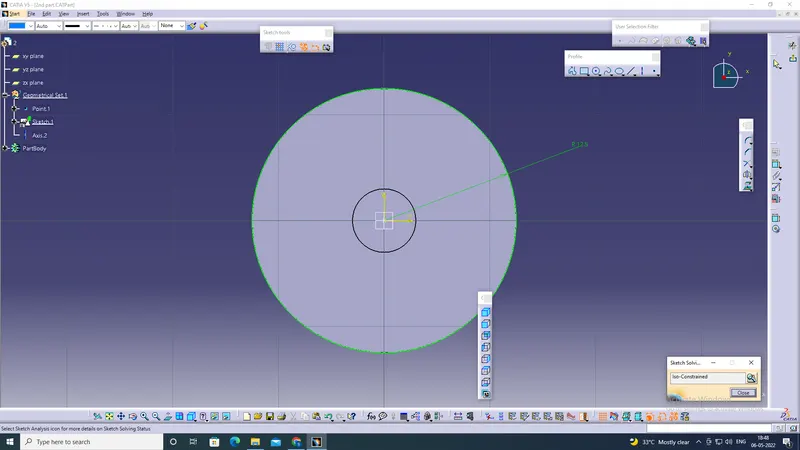

in this, we will be creating the circle .. and then we will be using a pad as per the given dimensions.

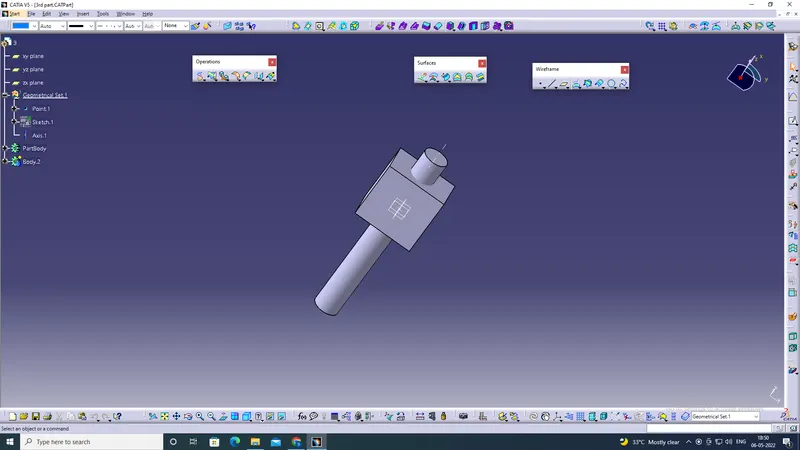

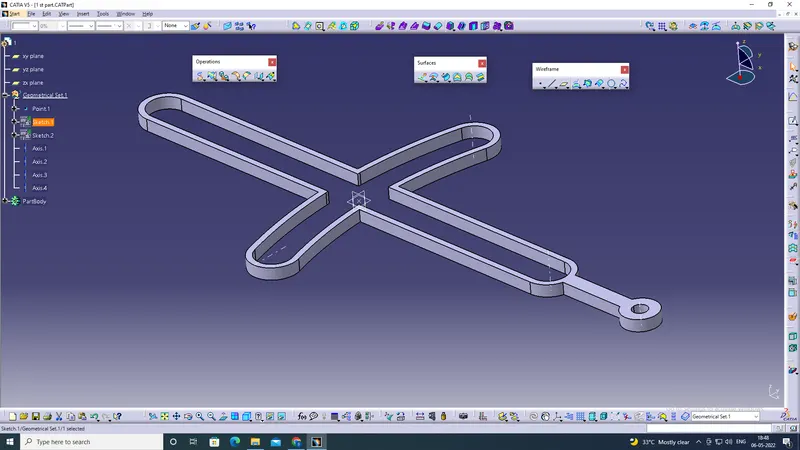

we will be creating the sketch as per the dimensions given in the assignment and then we will be creating a positioned sketch and making sure that the sketch created should be iso constrained...

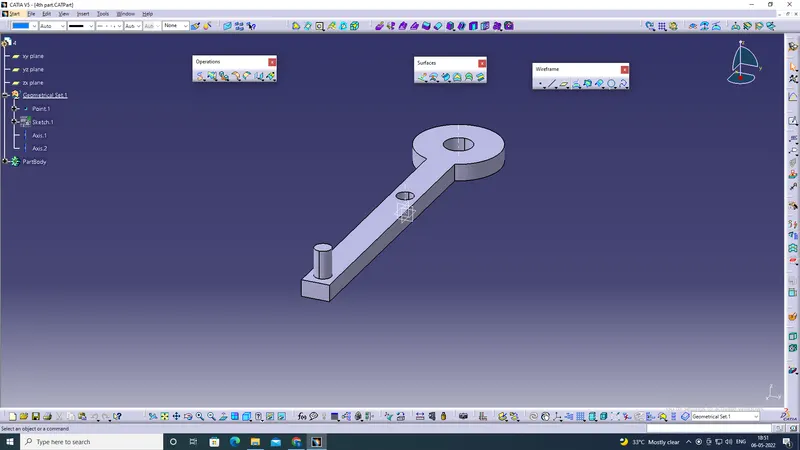

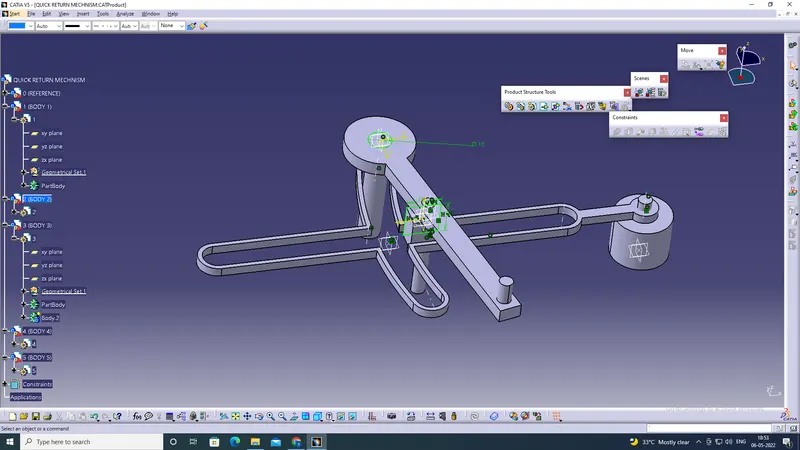

and then we will be importing all the cat parts into the assembly workbench and with the help of constraints, we will be making an assembly of the quick return motion mechanism...

1st Assembly

QUICK RETURN MECHANISM

2ND ASSEMBLY

CV JOINT

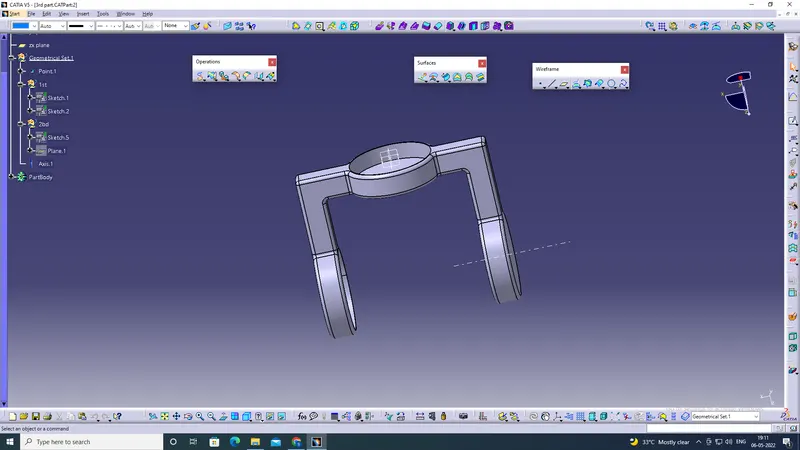

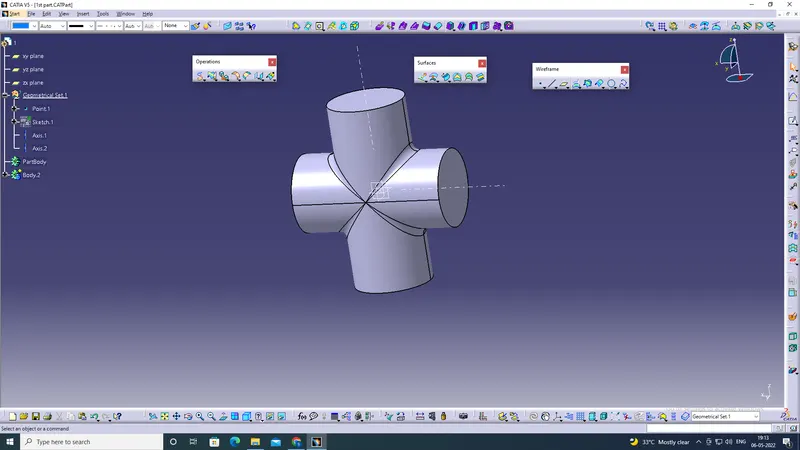

we will be creating the sketch as per the dimensions given in the assignment and then we will be creating a positioned sketch and making sure that the sketch created should be iso constrained...

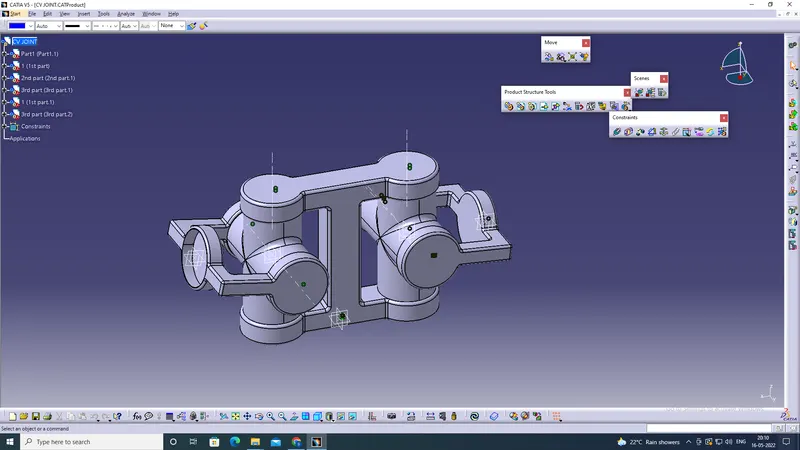

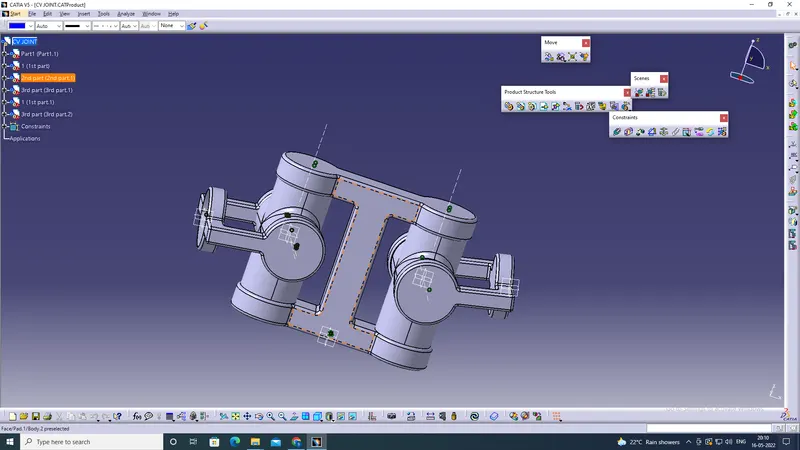

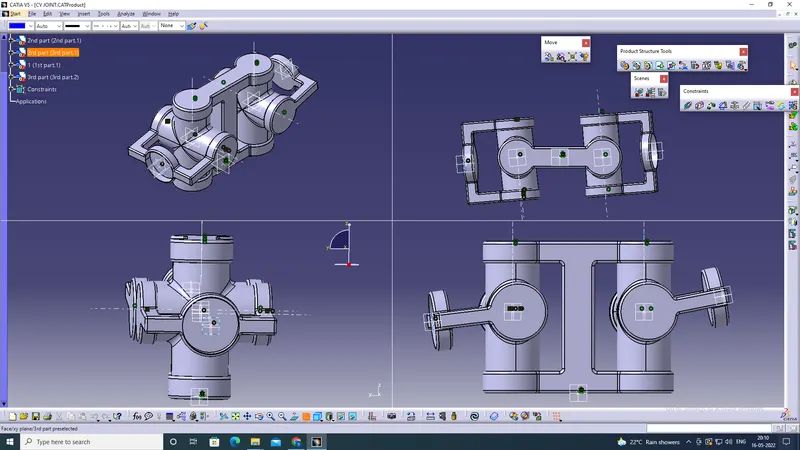

and then we will be importing all the cat parts into the assembly workbench and with the help of constraints, we will be making an assembly of the C V Joint
