Week 10:- 2D Detailing Challenge

SSachin Sekar29 May 2023

AIM

  • Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.

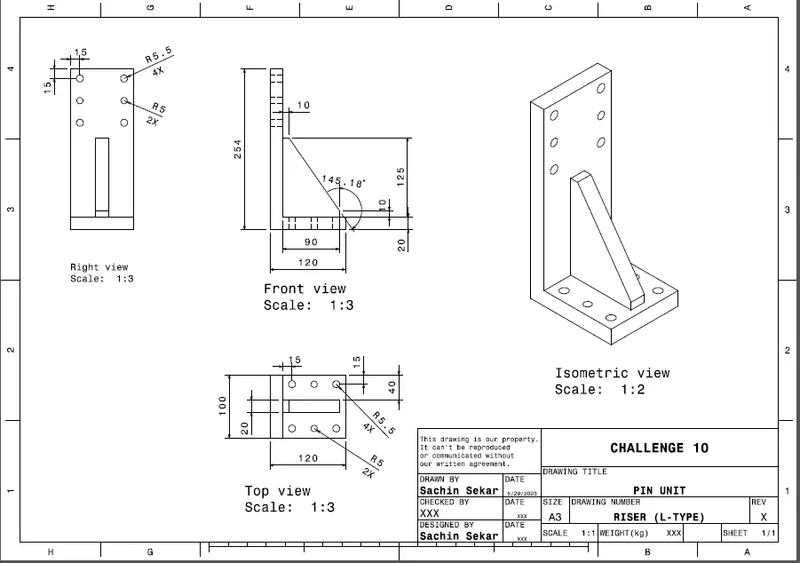

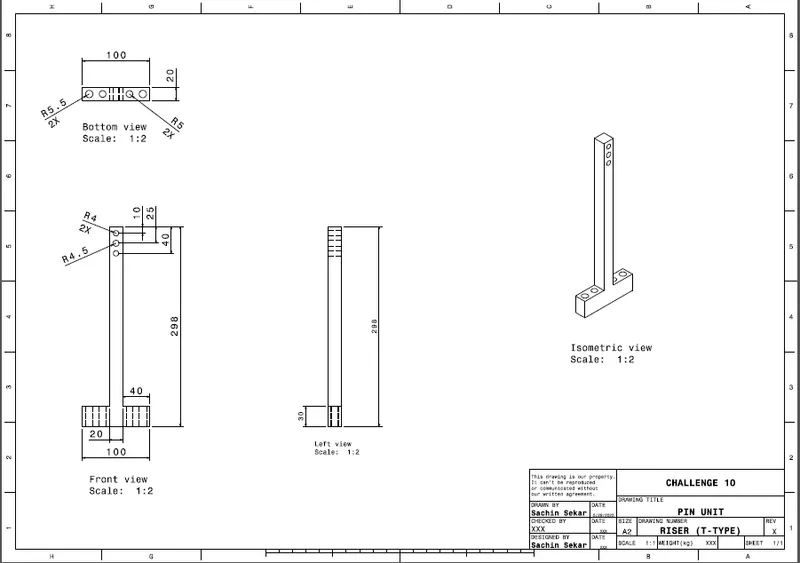

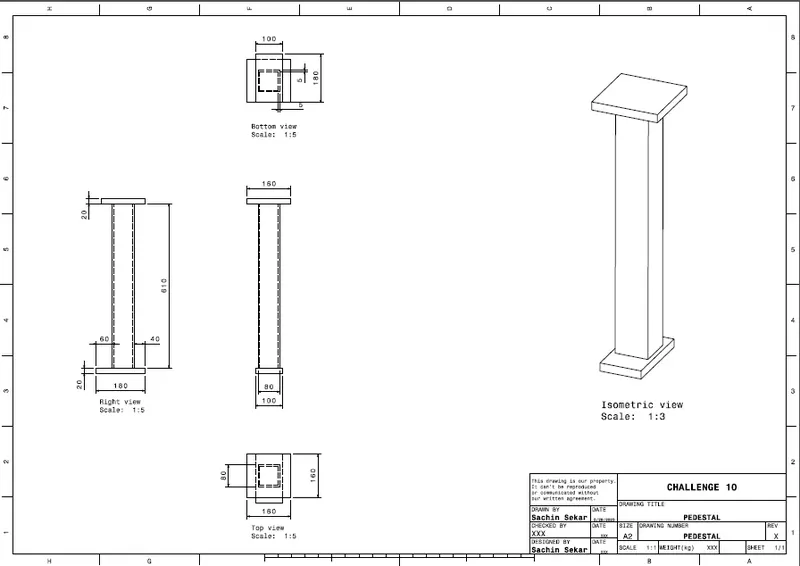

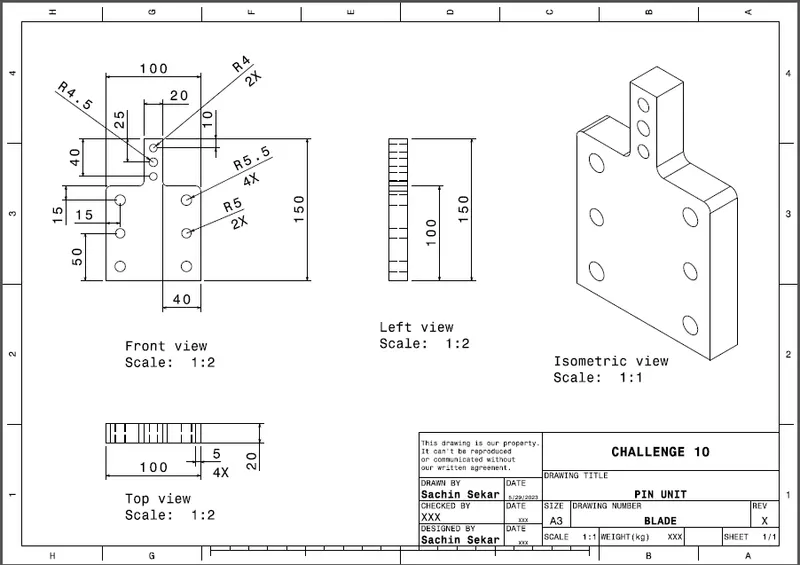

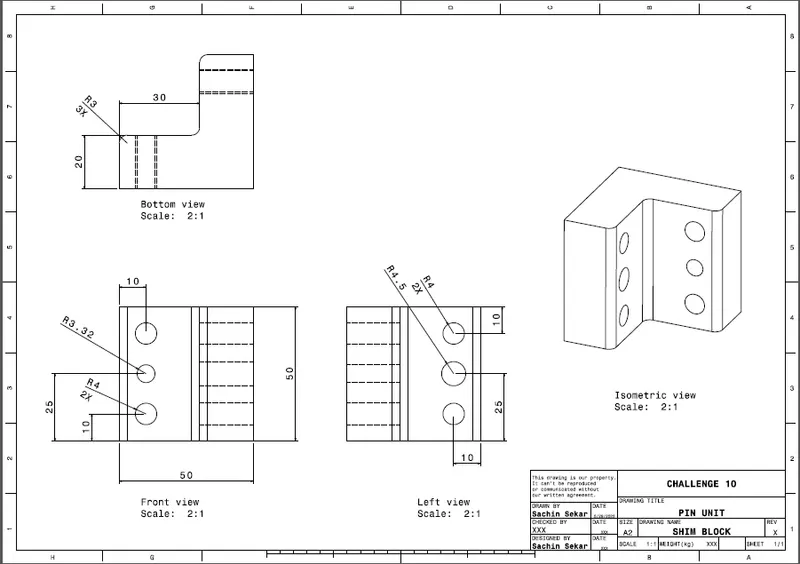

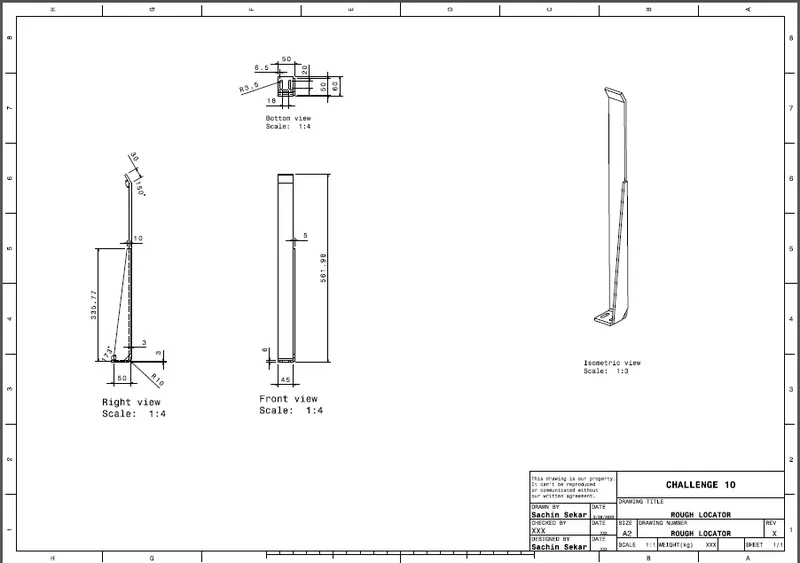

  • Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8.

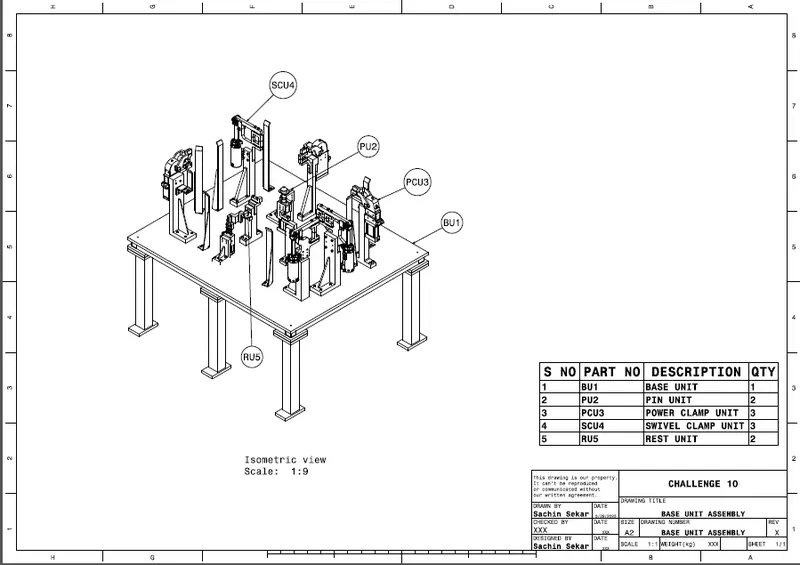

KEY SHEET OF FIXTURE ASSEMBLY

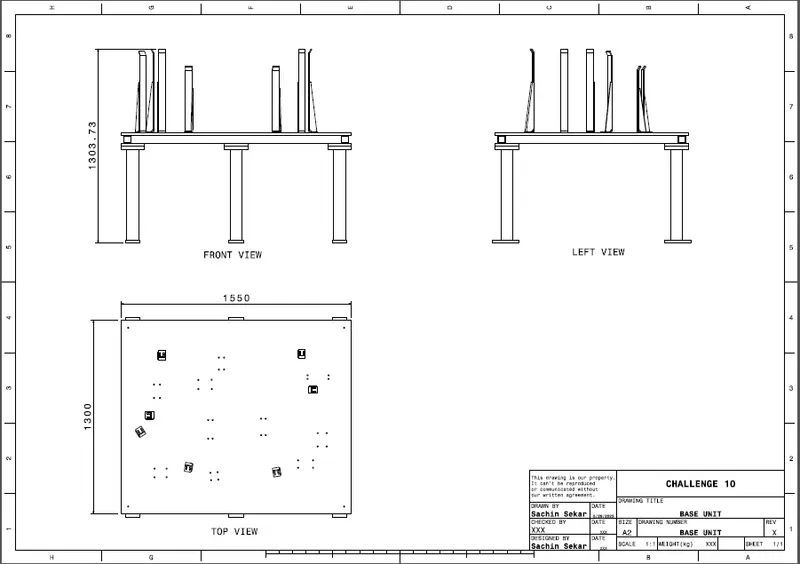

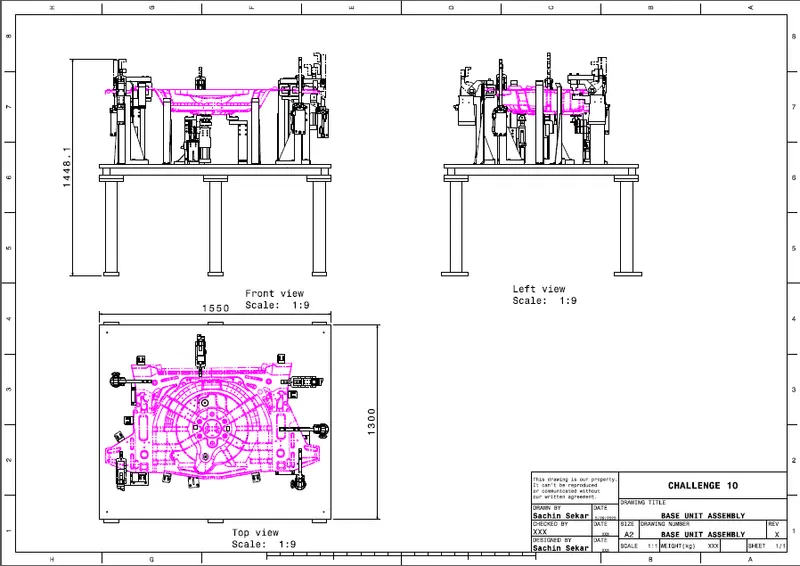

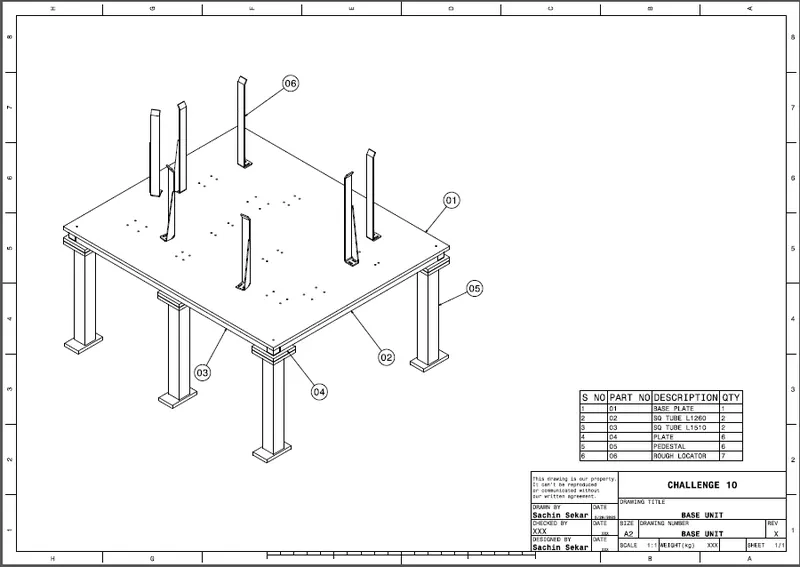

BASE UNIT DRAWING

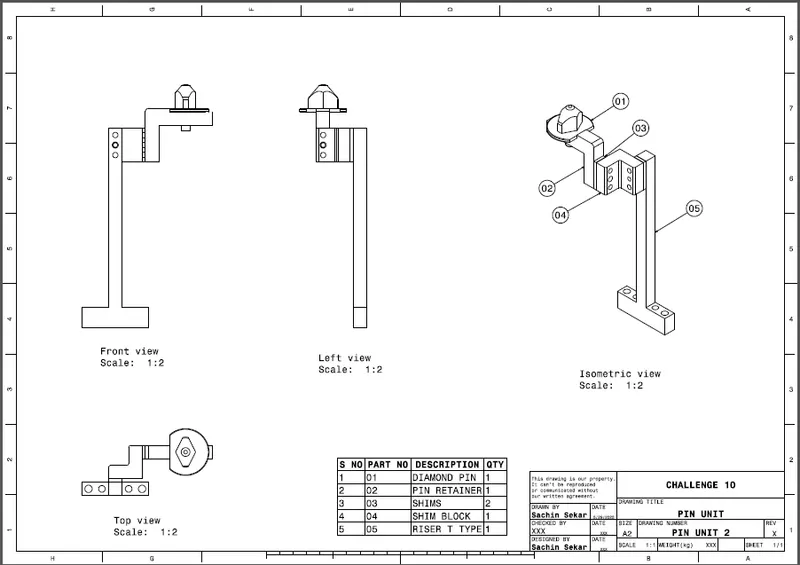

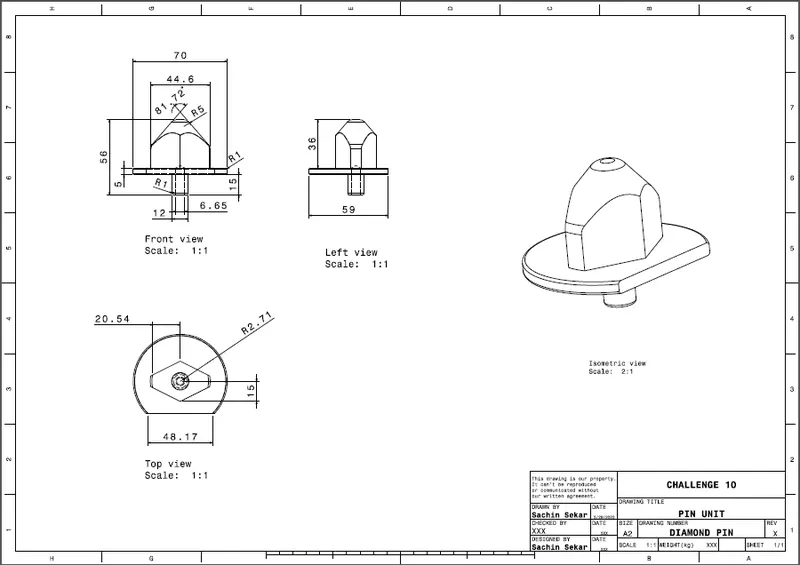

PIN UNIT 2 DRAWING

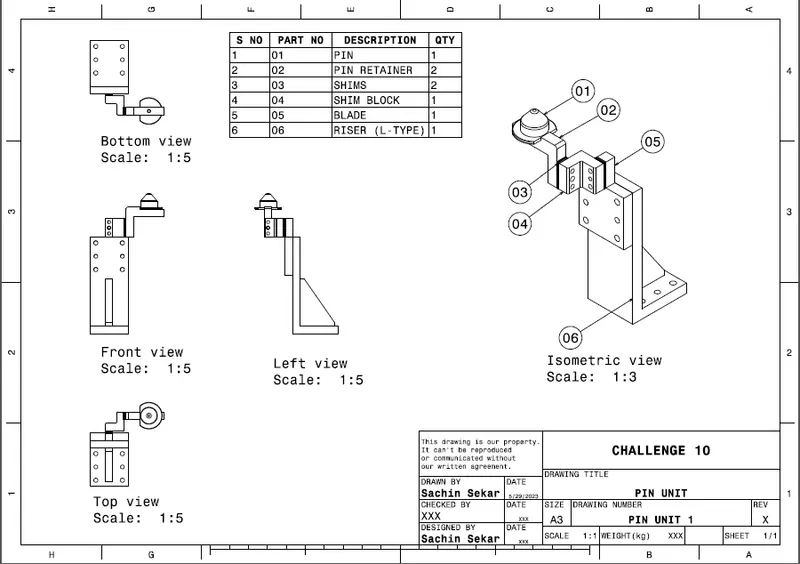

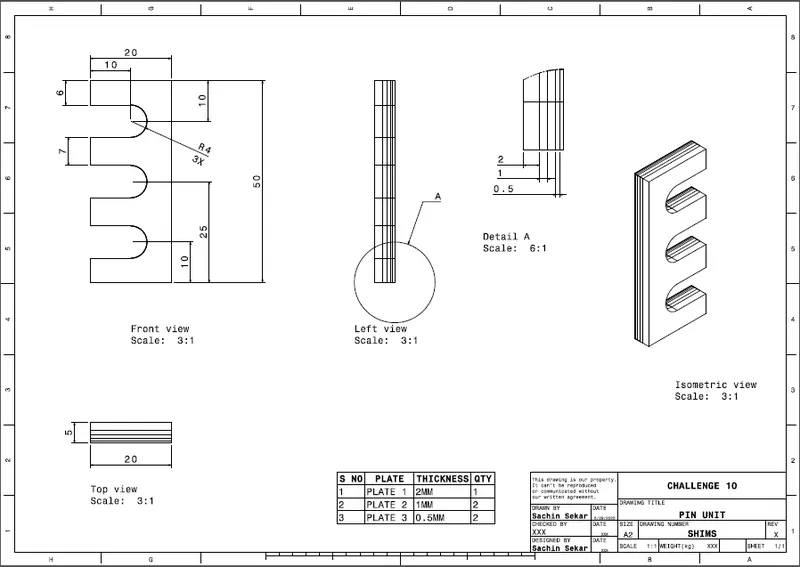

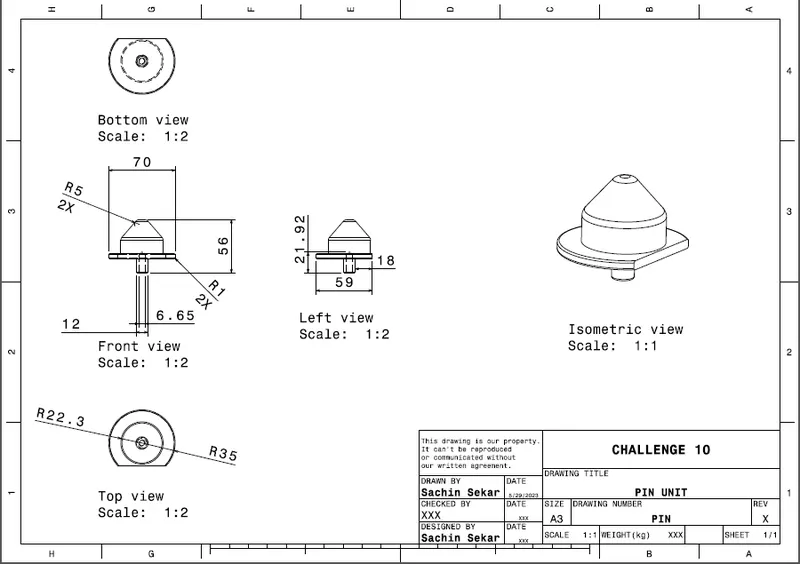

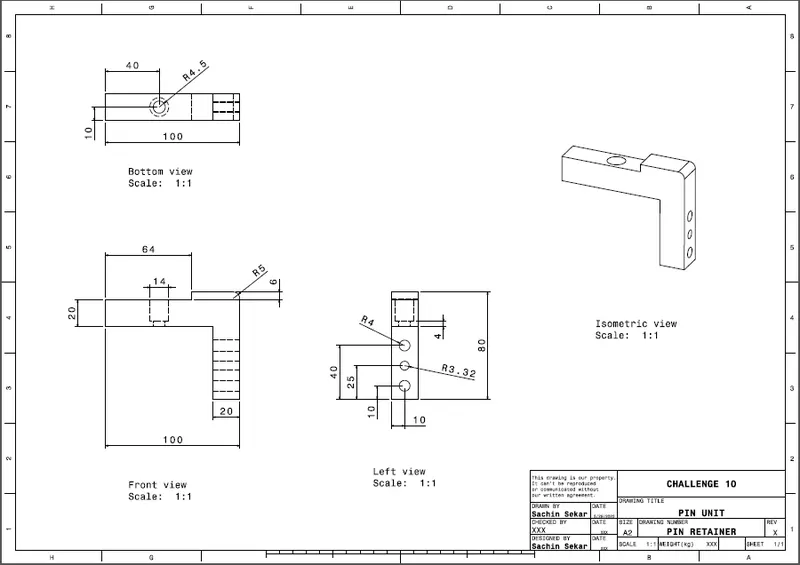

PIN UNIT 1 DRAWING
