2D Detailing Challenge

AIM:

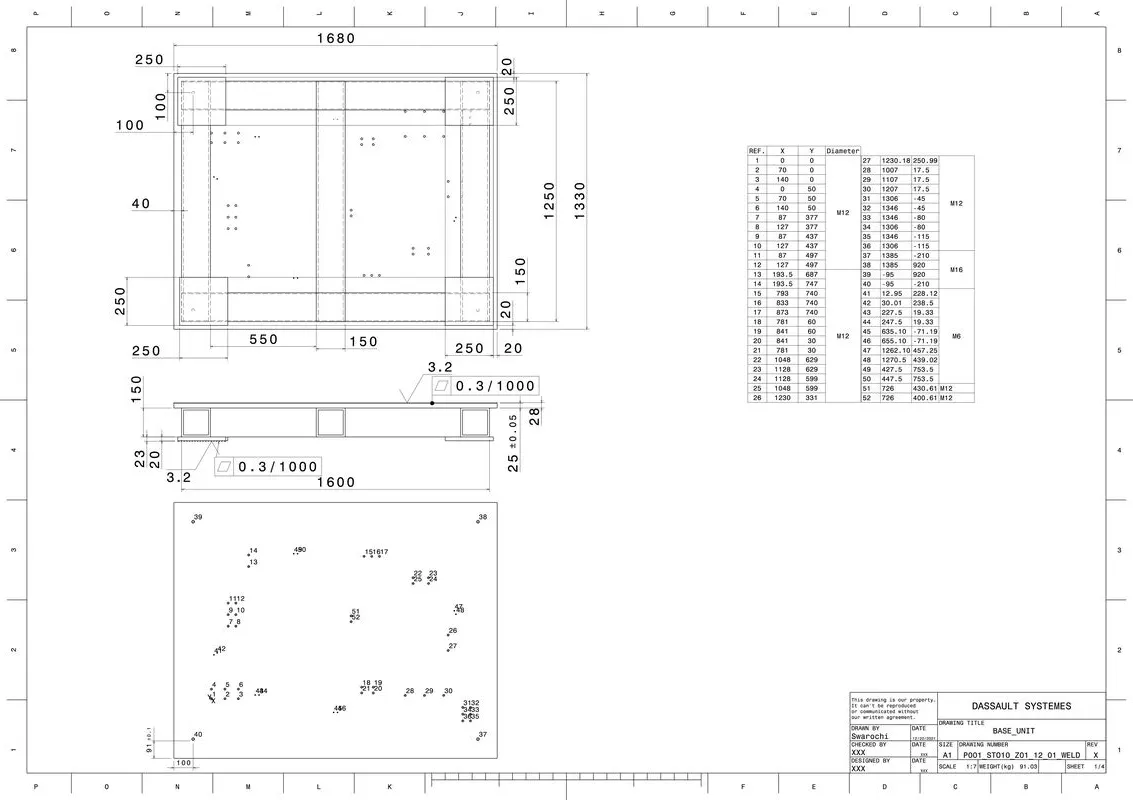

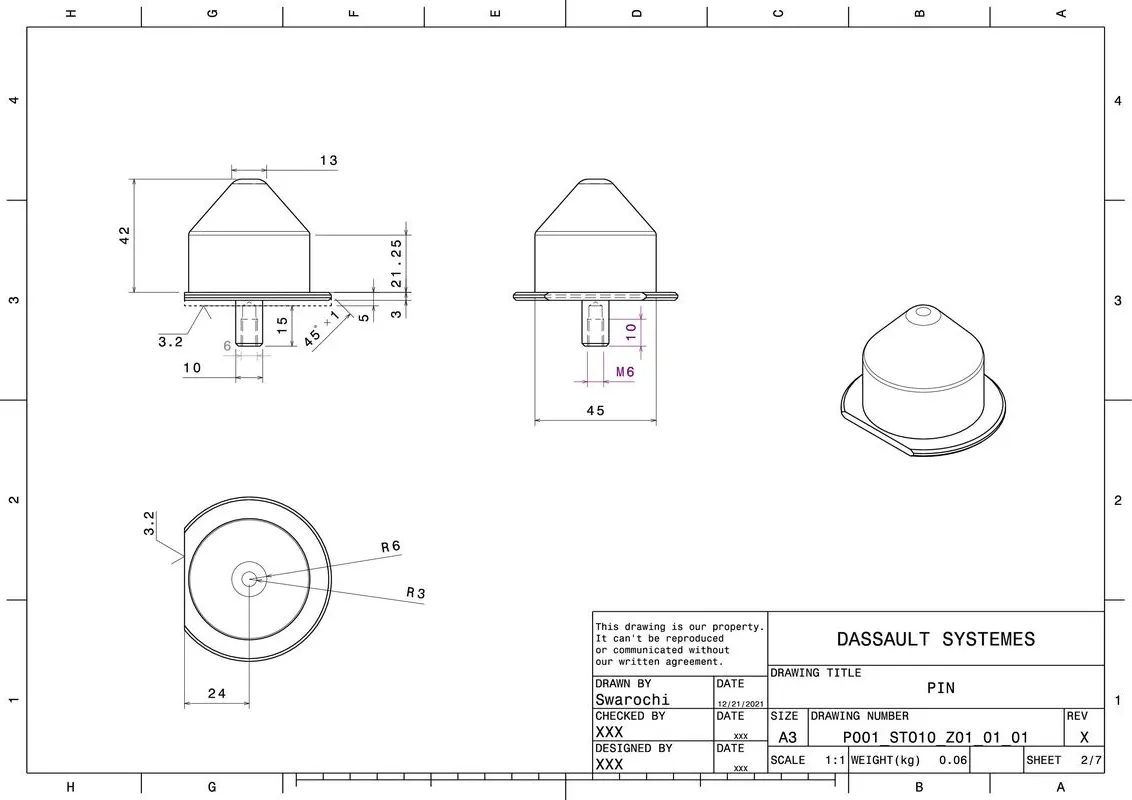

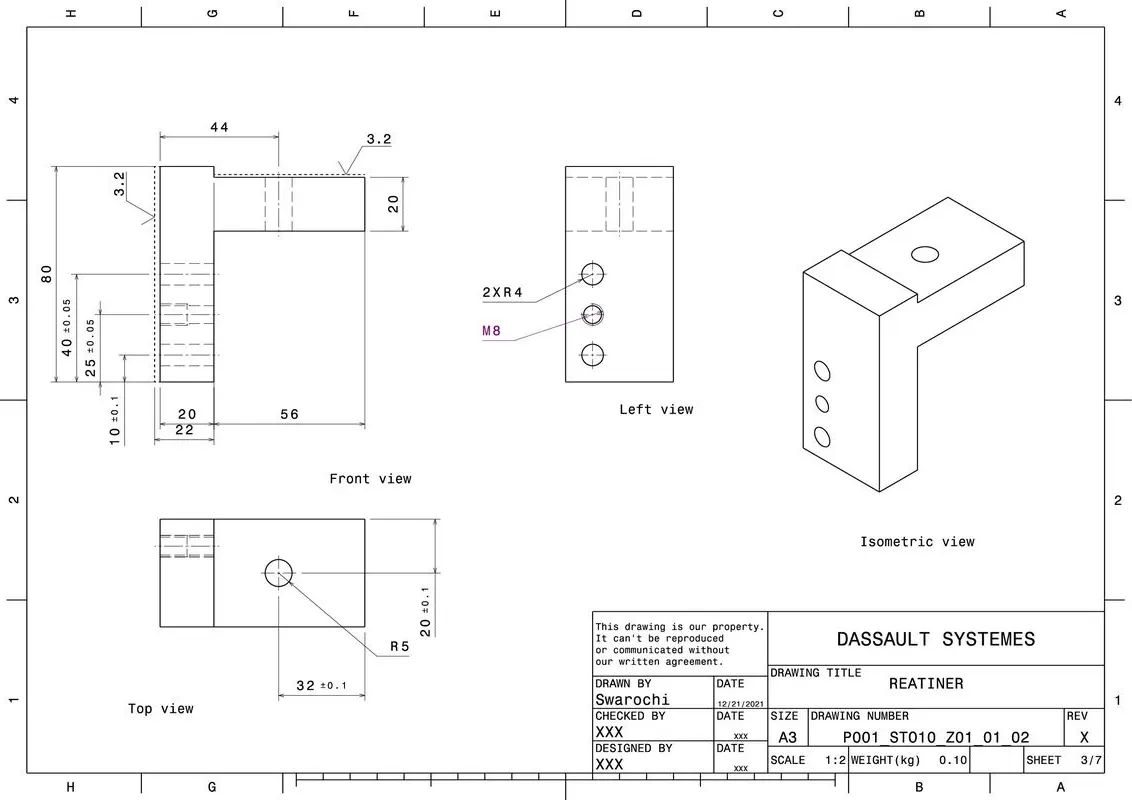

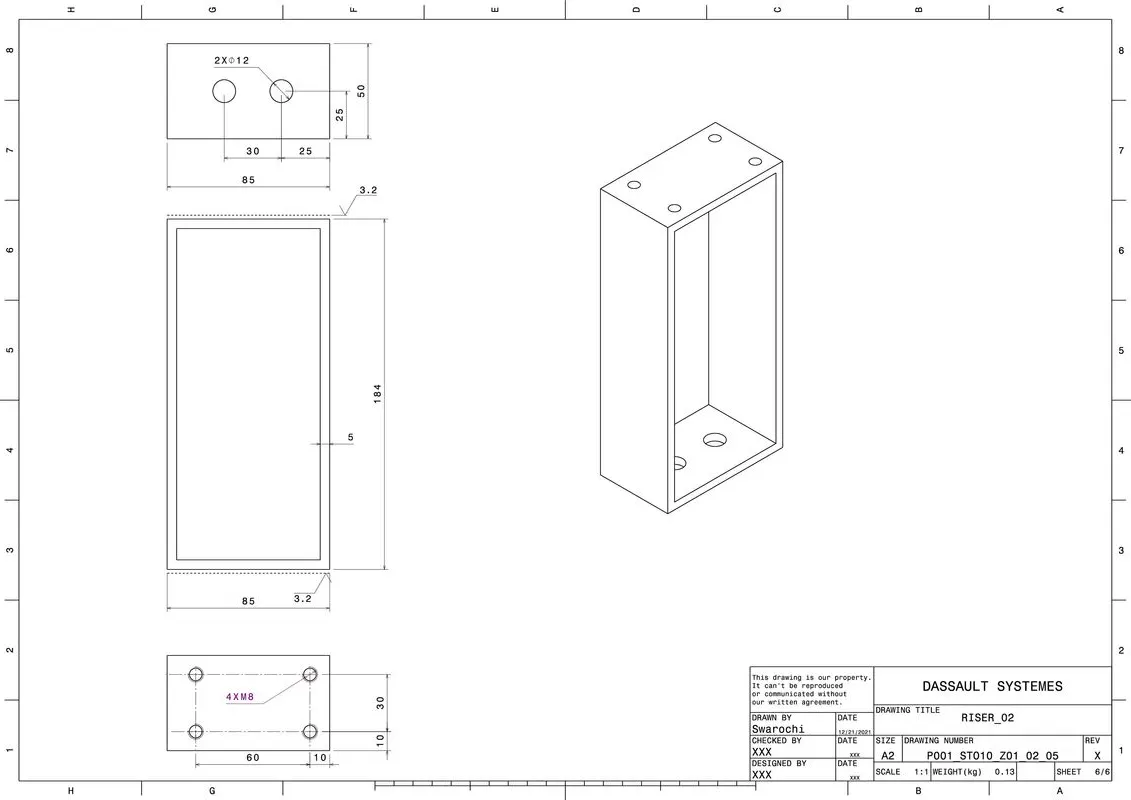

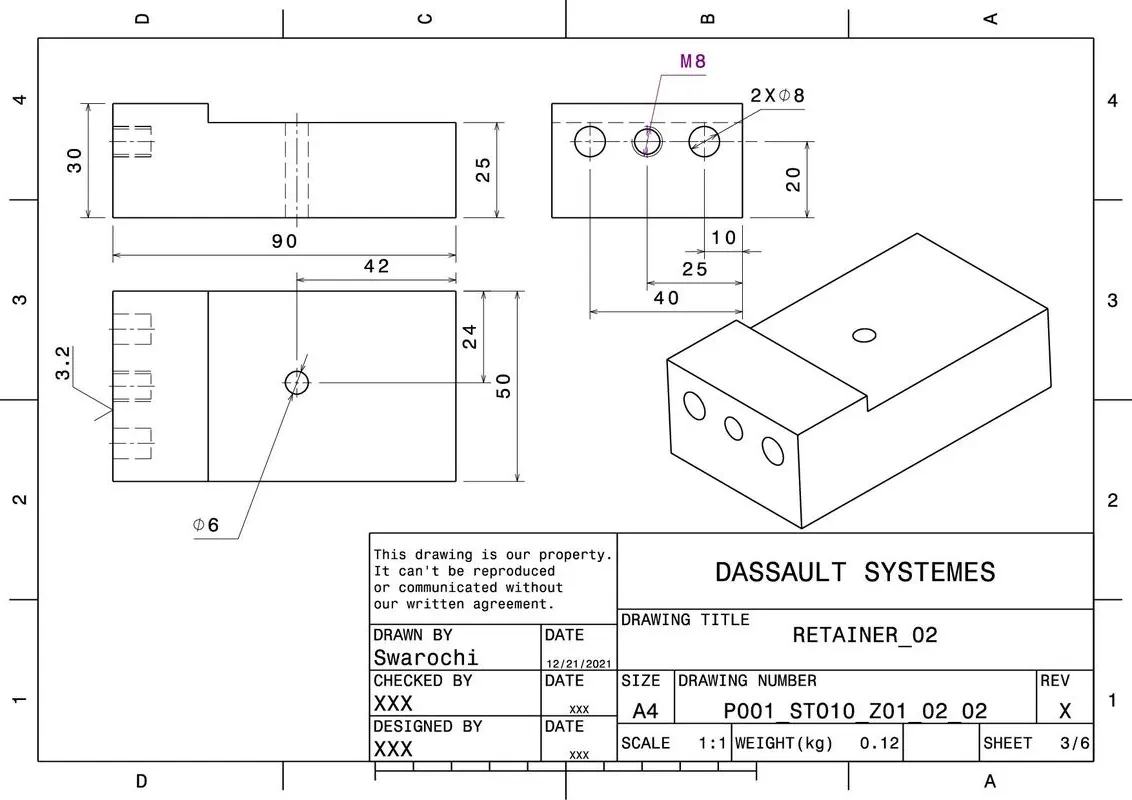

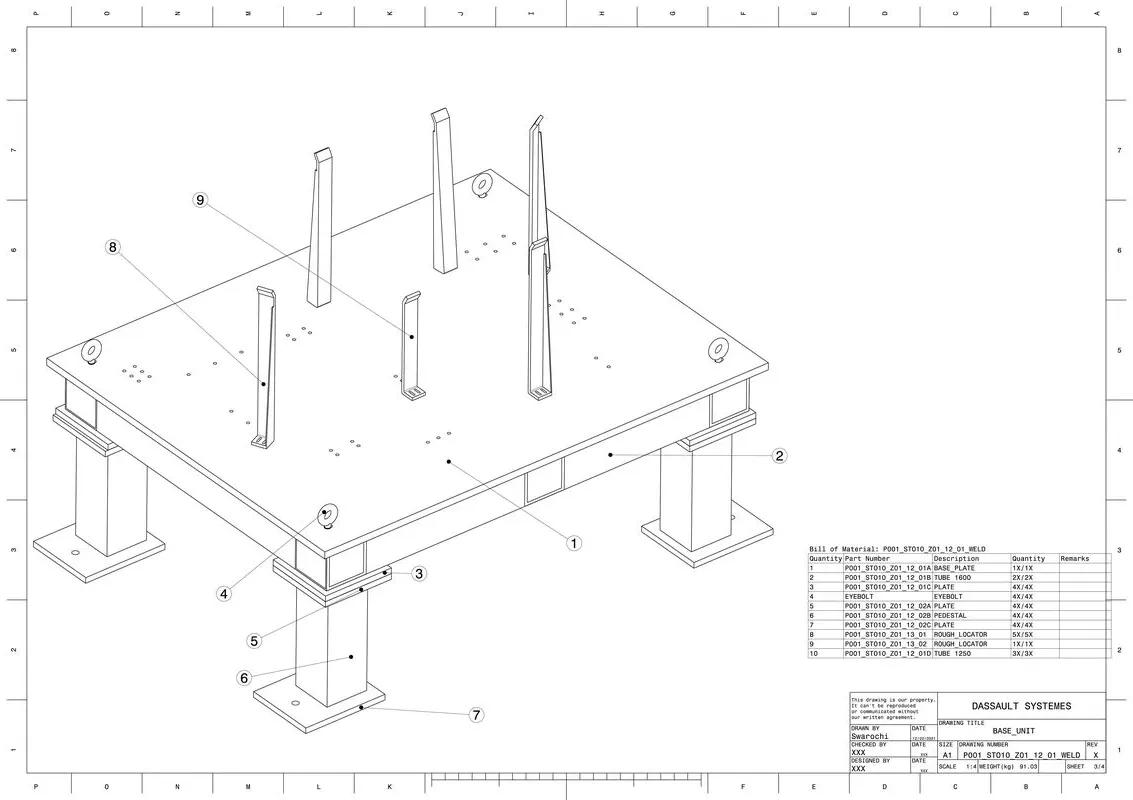

To Draft a Key Sheet for the Complete Fixture assembly and Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly

INTRODUCTION
The fixture design after the 3D finishing process has to be done with 2D finishing before it is sent for manufacturing. All the dimensions of the fixture units and their child parts have to clearly mentioned in the drawing sheets. The detailing can be changed as per the requirement of the customer and company standards. GD&T must be used in order to reduce the cost of manufacturing. All the views must be clearly visible and provided with dimensions in the drawing sheets.

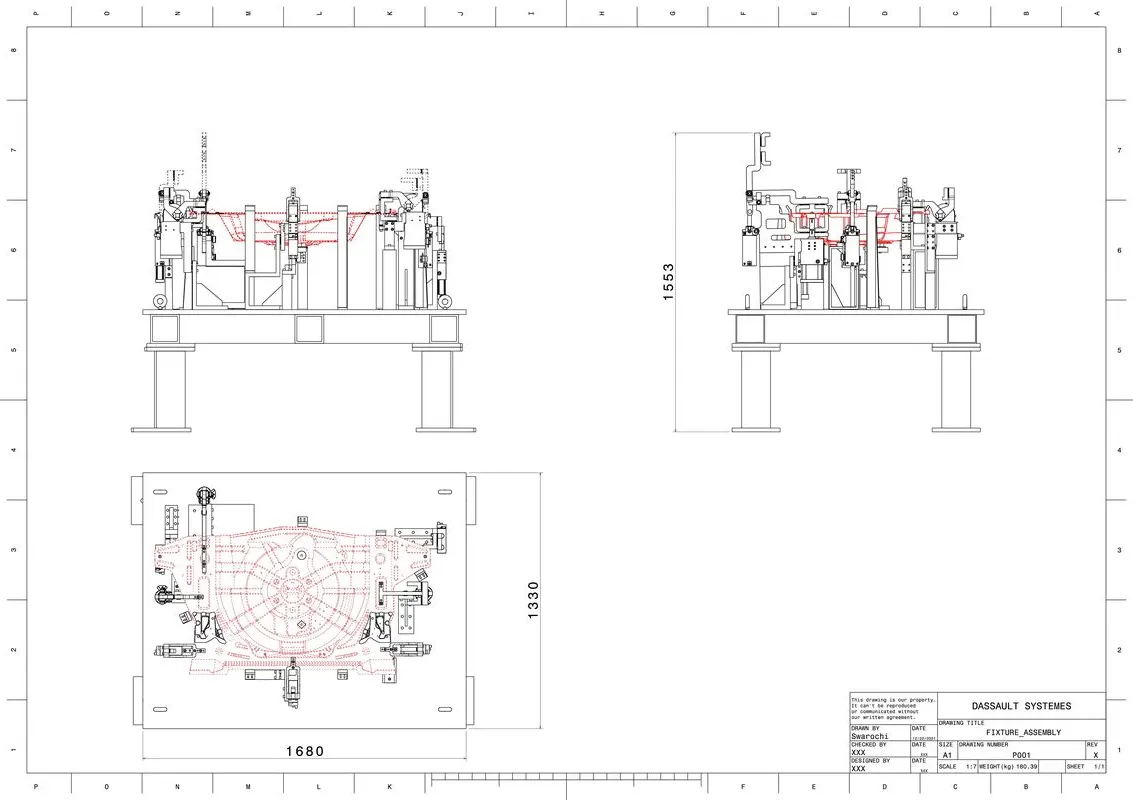

Key Sheet: A index of units and their placements on the tool base

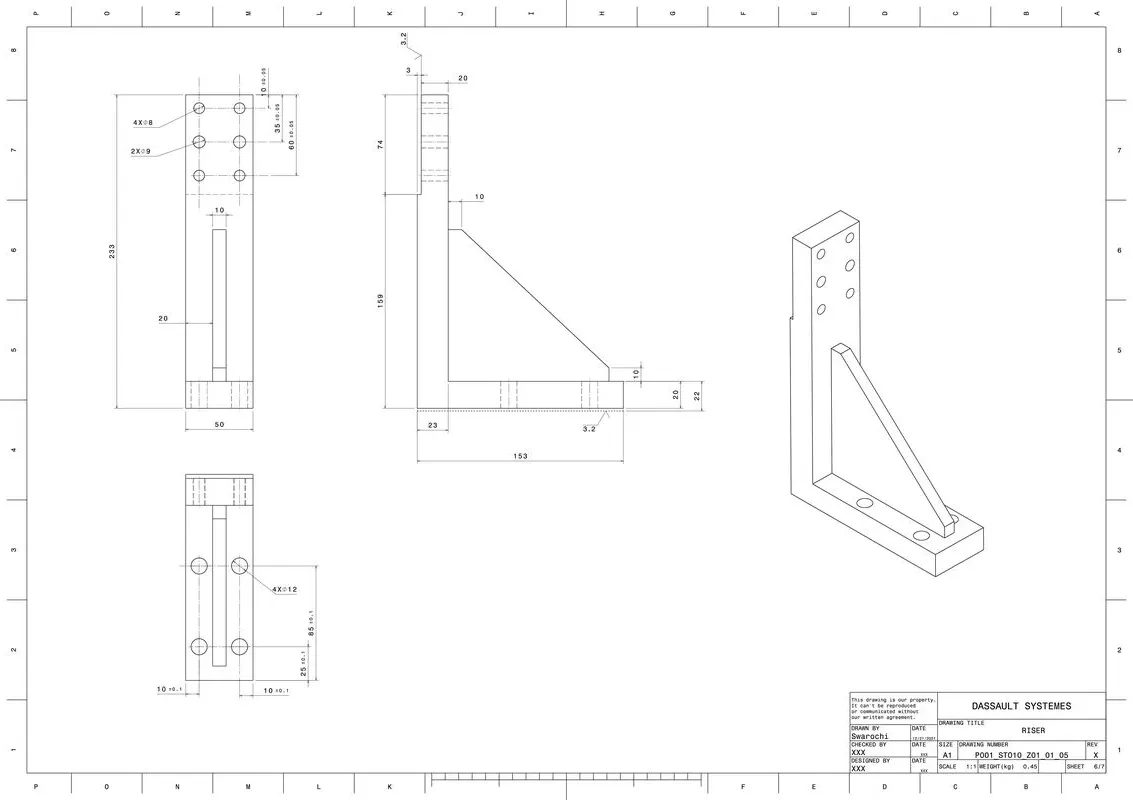

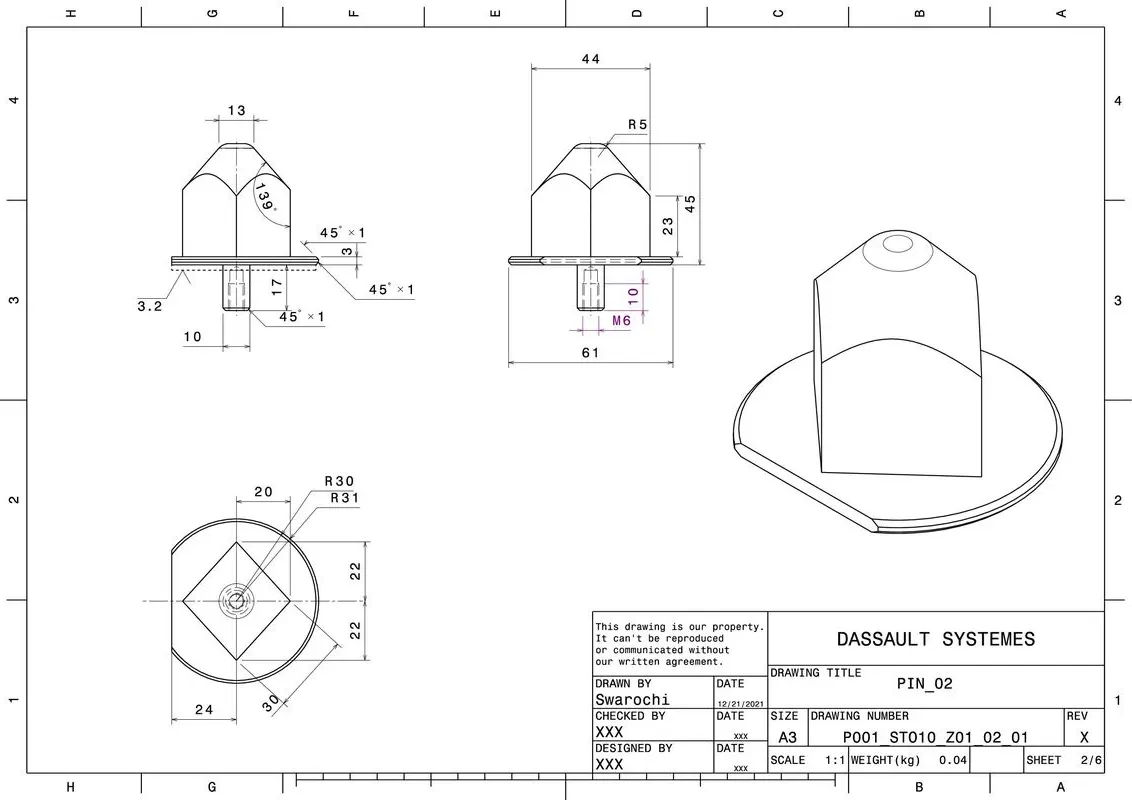

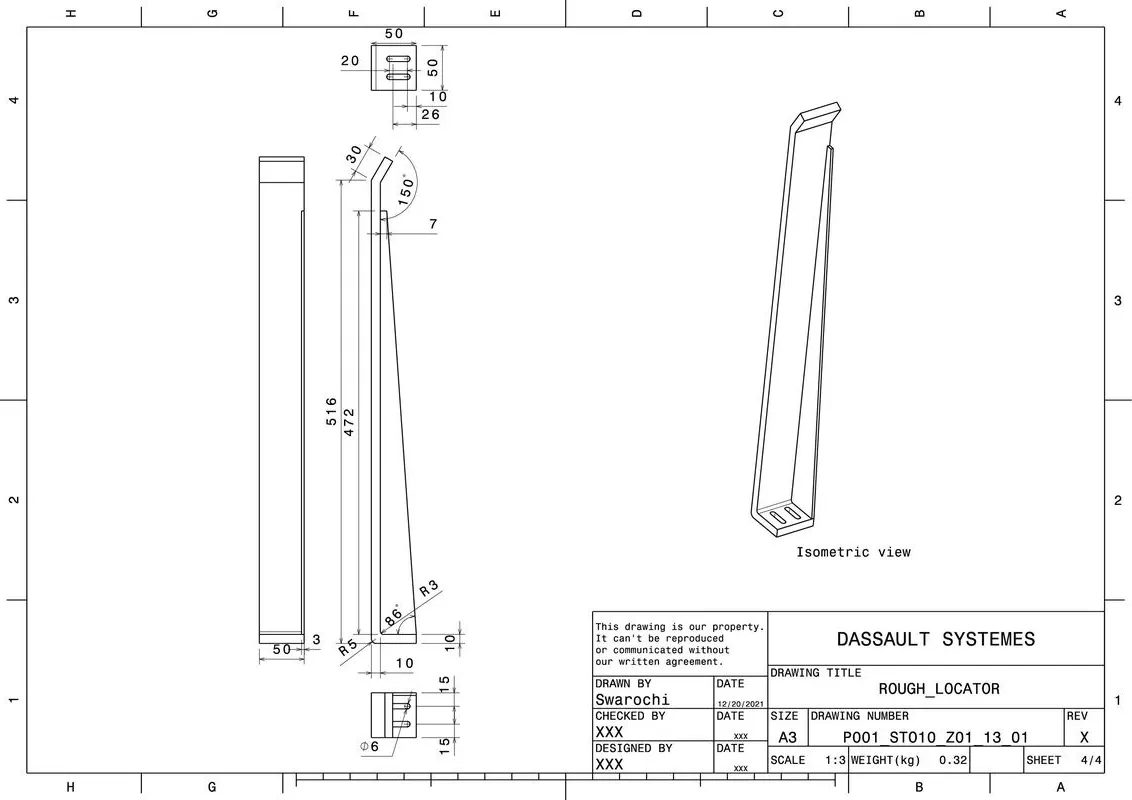

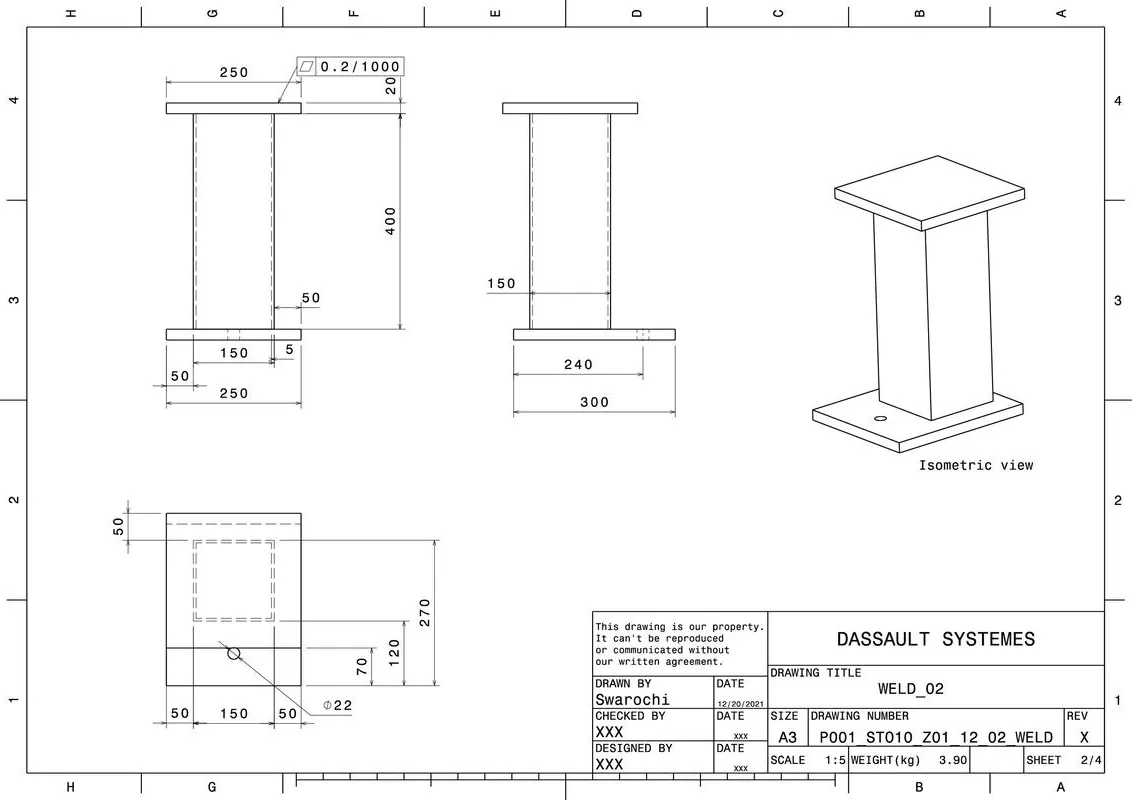

Layout Sheet: A detailed drawing of individual units to include all of their components

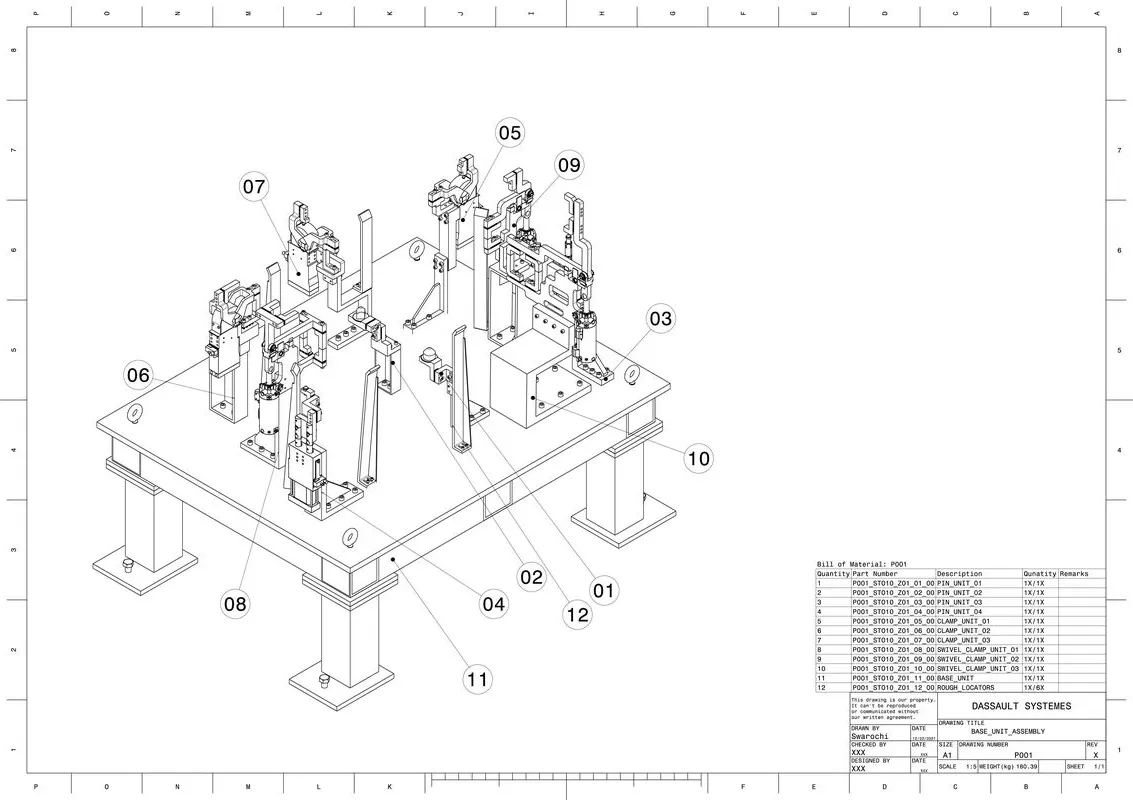

Key sheet of Fixture assembly:

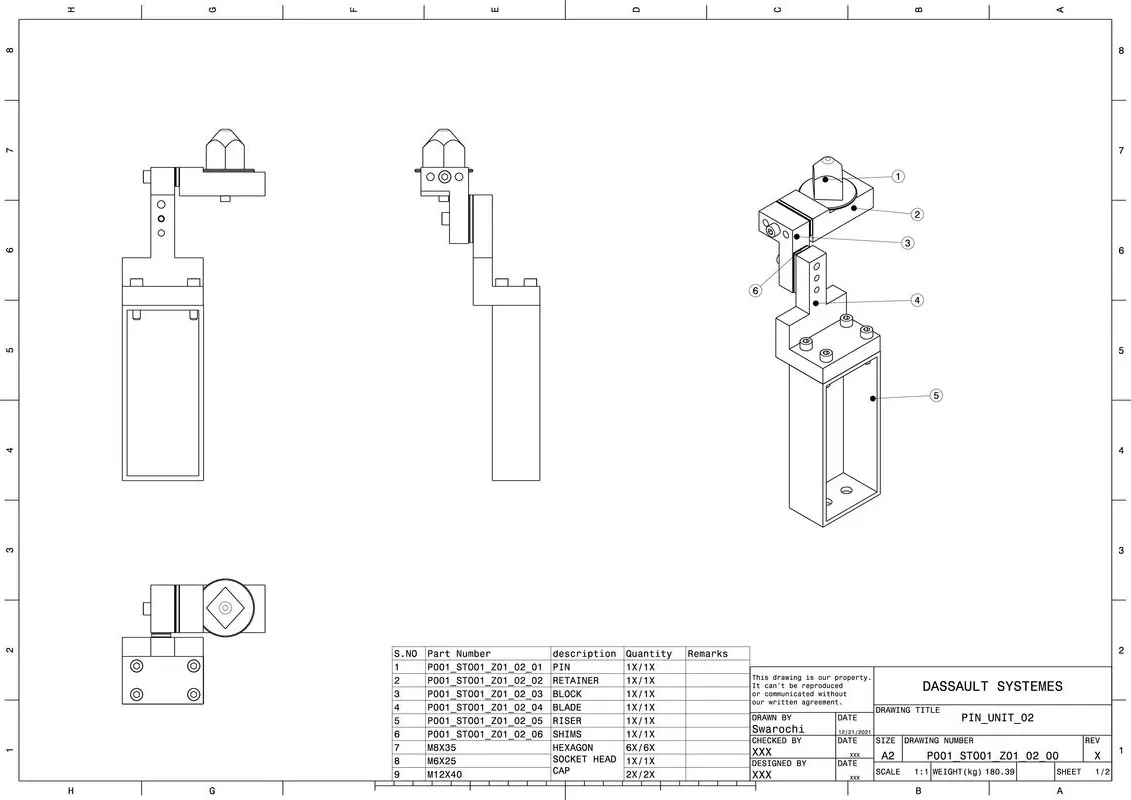

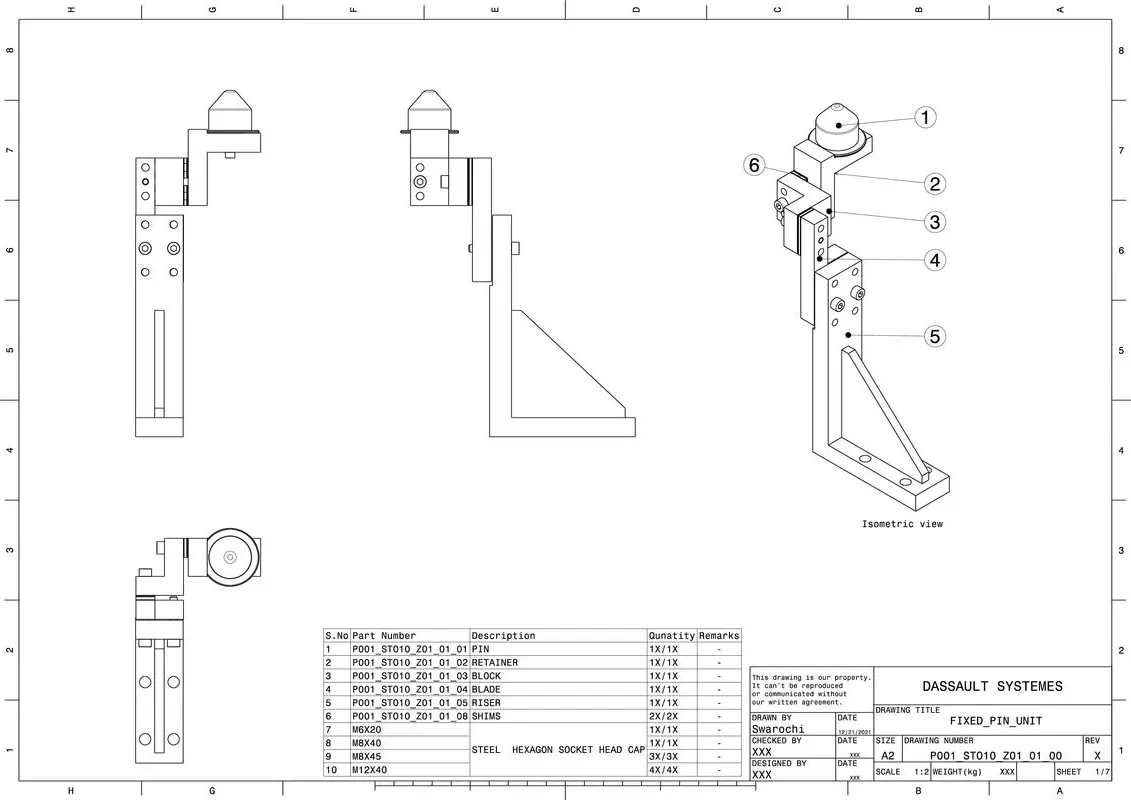

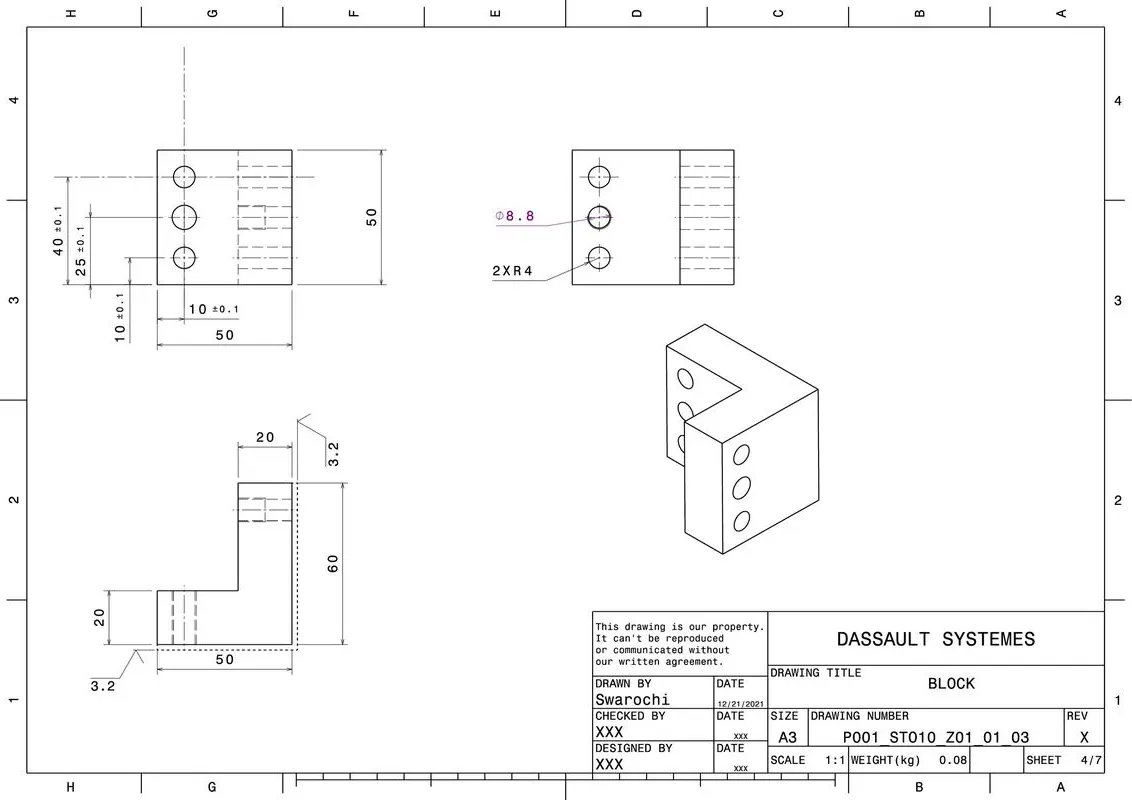

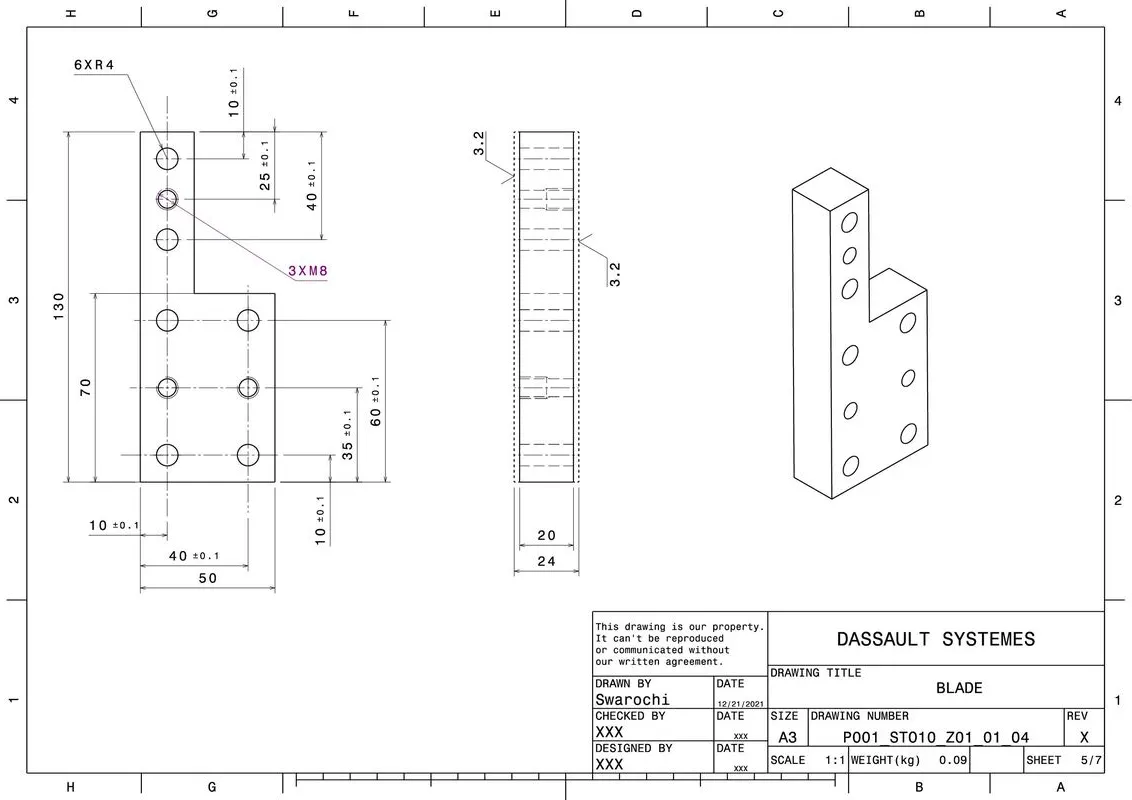

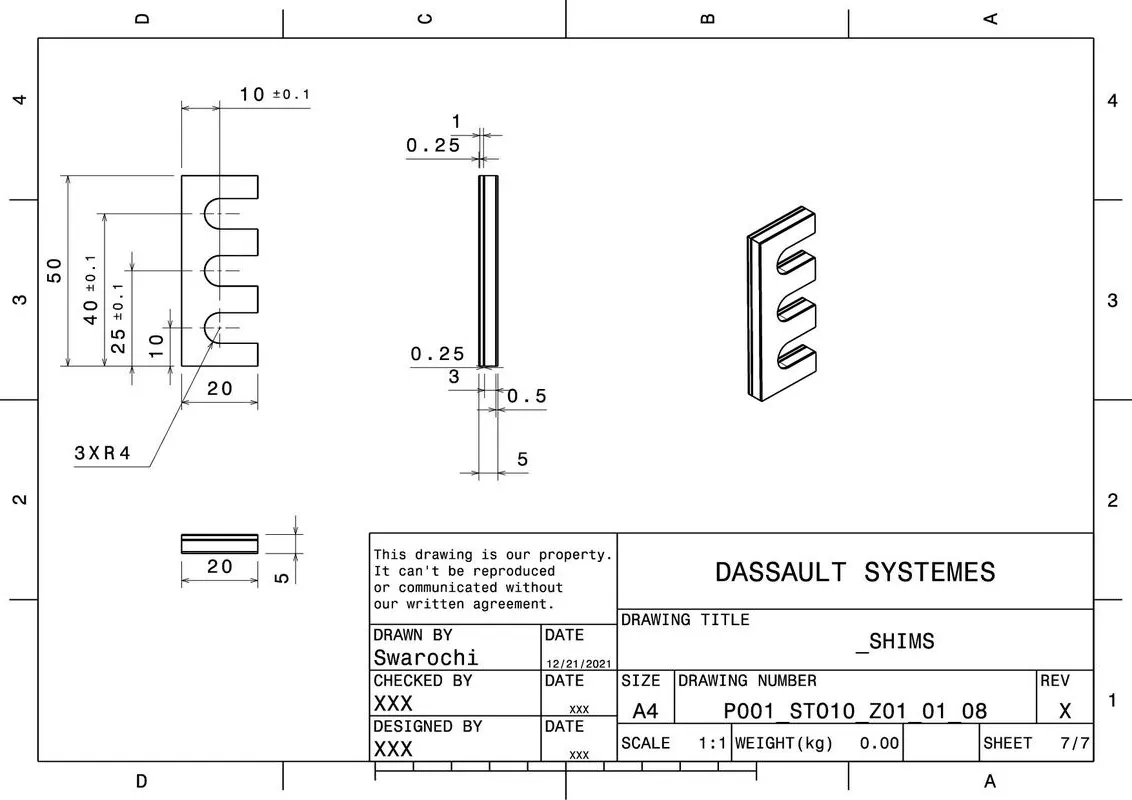

PIN_UNIT_01

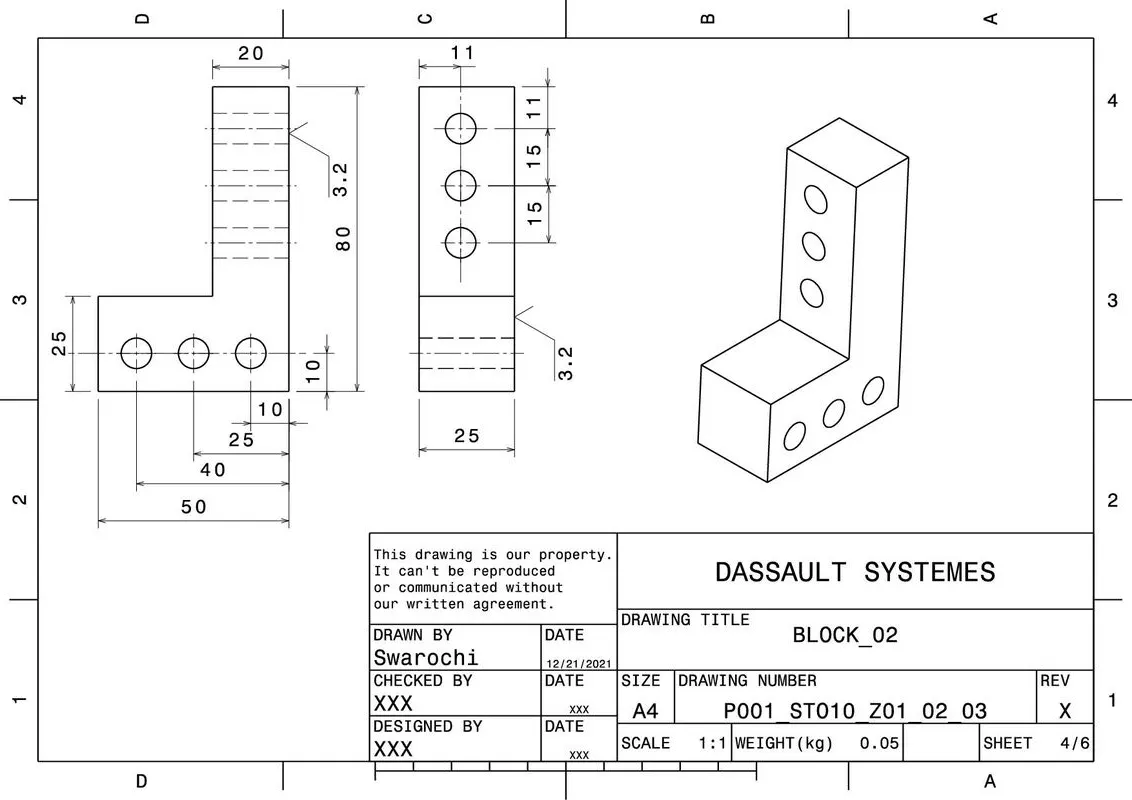

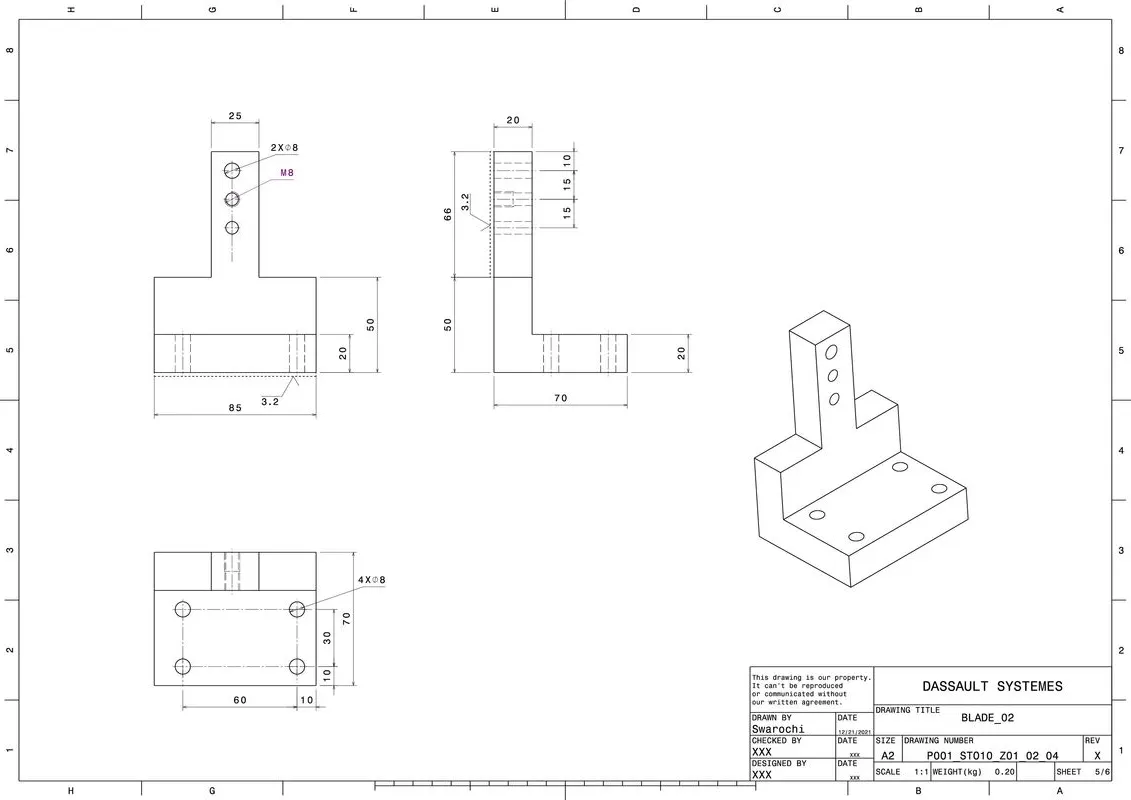

PIN_UNIT_02
