Week 1- Mixing Tee

AIM:

For this challenge, we have created two versions of the mixing tee. One of them is longer than the other.

Your job is to set up steady-state simulations to compare the mixing effectiveness when the hot inlet temperature is 36⁰C & the Cold inlet is 19⁰C.

objective:

Use the k-epsilon and k-omega SST model for the first case and based on your judgment use the more suitable model for further cases. Giving the reason for choosing a suitable model is compulsory.

1. Case 1
   • Short mixing tee with a hot inlet velocity of 3m/s.
   • Momentum ratio of 2, 4.
2. Case 2
   • Long mixing tee with a hot inlet velocity of 3m/s.
   • Momentum ratio of 2, 4.

Momentum ratio = velocity at cold inlet / velocity at hot inlet

In a table, compare the following values from the 2 cases.

1. Cell count
2. Average outlet temperature
3. Number of iterations for convergence

INTRODUCTION

In industrial process engineering, mixing is a unit operation that involves the manipulation of a heterogeneous physical system with the intent to make it more homogeneous. Mixing is performed to allow heat and/or mass transfer to occur between one or more streams, components, or phases. Modern industrial processing almost always involves some form of mixing. A mixing tee is a type of mixing mechanism. Mixing Tees utilizes a specifically engineered internal geometry to efficiently mix two fluid streams into one combined stream. Mixing tees are widely used in the petrochemical, HVAC industry, etc. in which two fluid streams with different physical and/or chemical properties mix together

Hot air flowing in the main pipe is mixed with cold air flowing through a tee. The standard deviation of temperature is computed to quantify the degree of mixing. The velocity and temperature fields are also computed. The effects of the mesh size, and turbulence model on results were examined.

For this, we have created two versions of the mixing tee. One of them is longer than the other.

It is set up as steady-state simulations to compare the mixing effectiveness when hot inlet temperature is 36⁰C & Cold inlet is 19⁰C.

1. Case 1
   • Short mixing tee with a hot inlet velocity of 3m/s.
   • Momentum ratio of 2, 4.
2. Case 2
   • Long mixing tee with a hot inlet velocity of 3m/s.
   • Momentum ratio of 2, 4.

The momentum ratio is defined as the ratio of velocity at the cold inlet to the velocity at the hot inlet.

CASE setup-

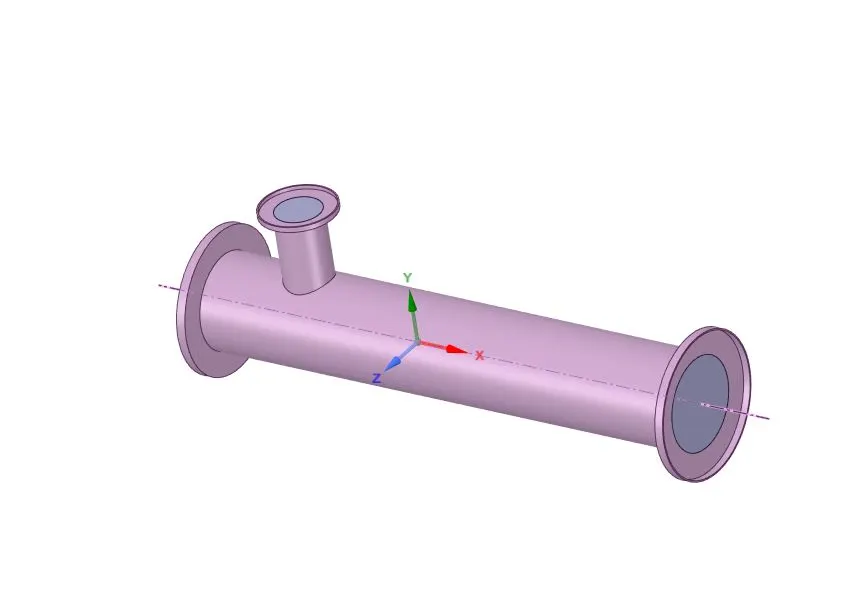

CAD cleanup/Pre-processing- SpaceClaim.

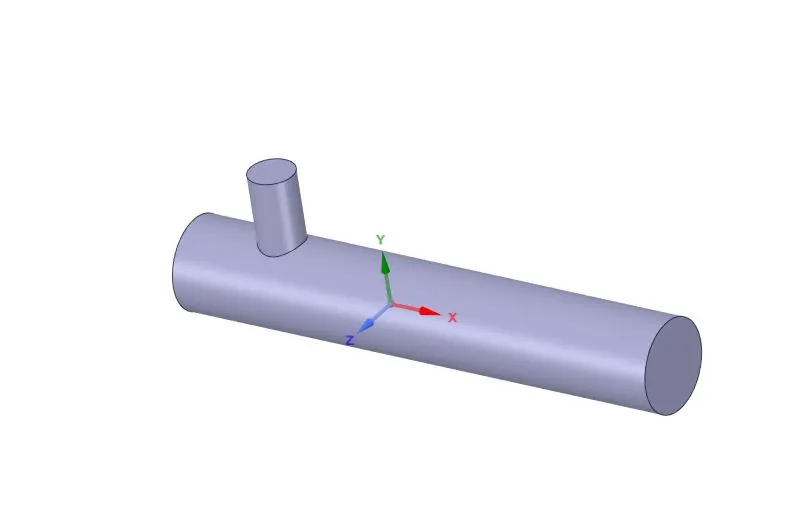

The CAD model is imported into SpaceClaim to extract the flow volume field from the model. The extracted volume is shown below:

Mesh

The boundary names are applied in this section and a mesh is generated.

Setup

In this section, we apply different boundary conditions like inlet, and outlet boundary conditions. Turbulence models are set up like K-epsilon or K-omega for solving the turbulent mixing of air. The number of iterations is set in this section.

CFD-Post

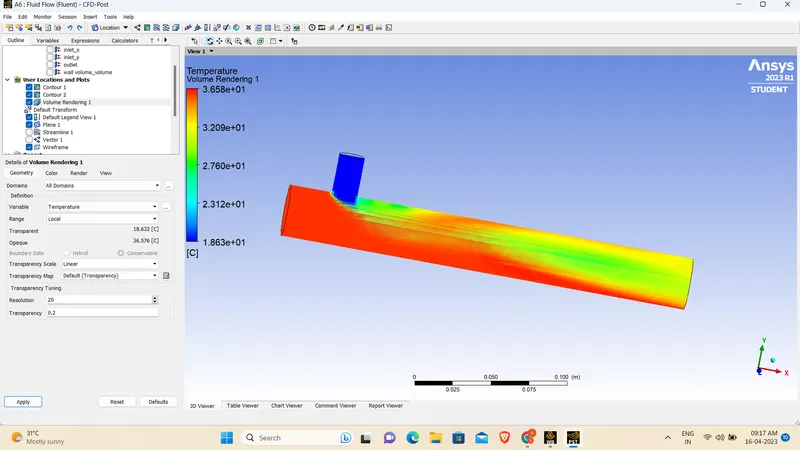

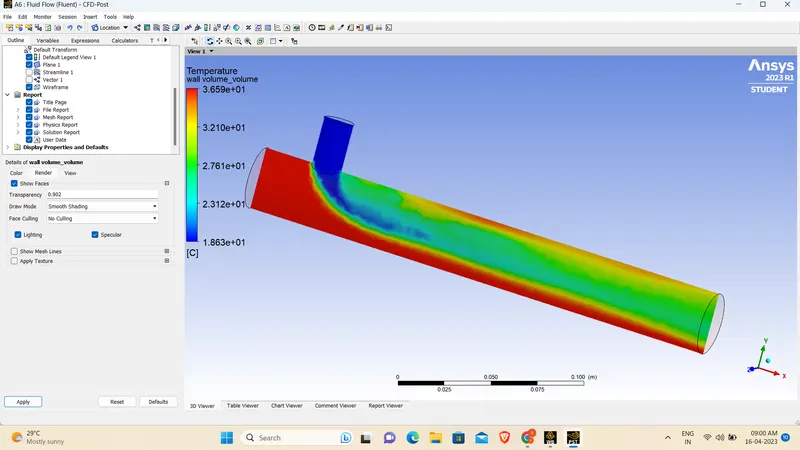

Post-processing is carried out in this section in which different contours are set up to visualize the properties (such as Temperature, velocity etc.) for which simulation is run.

[For Moment ratio 2 and velocity is 3m/s^2 and using k-epsilon)

CASE 1- SHORT TEE

a) For inlet velocity of 3m/s and momentum ratio of 2

Mesh size- 2m

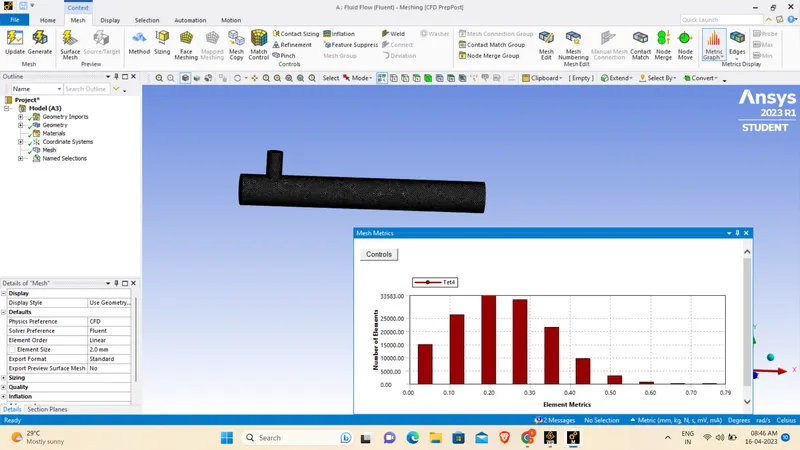

A mesh element metric that identifies the quality of mesh was employed and it can be seen that the elements of the lowest quality are minimal. Most of the elements have quality in the range of 0.7-1. Hence, the mesh is of acceptable quality.

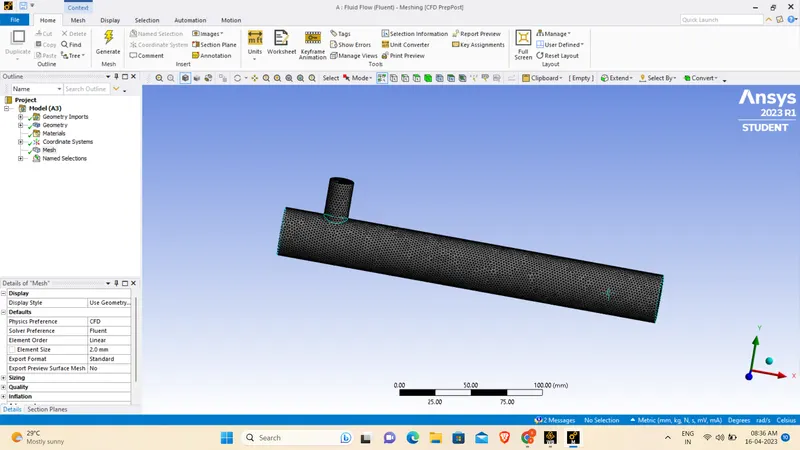

MESH

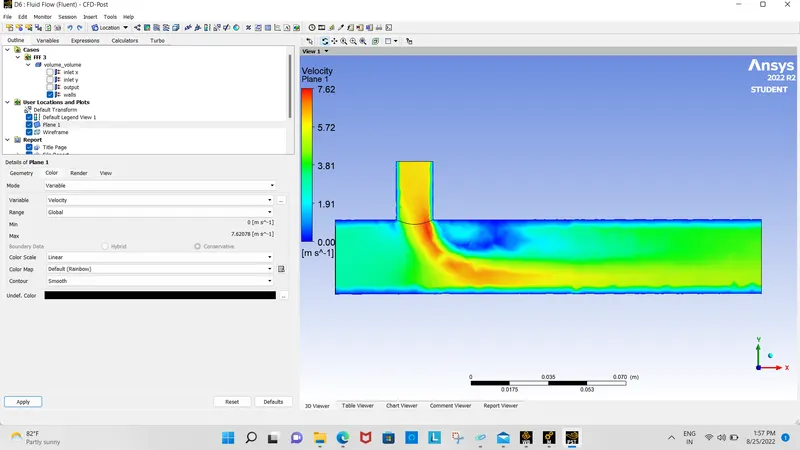

Velocity:

[For Moment ratio 2 and velocity is 3m/s^2 and using k-omega)

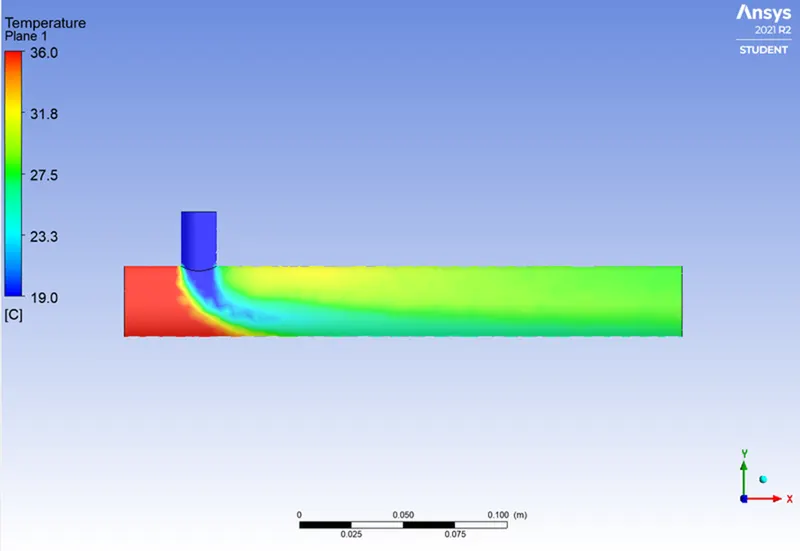

Temperature contour plot: -

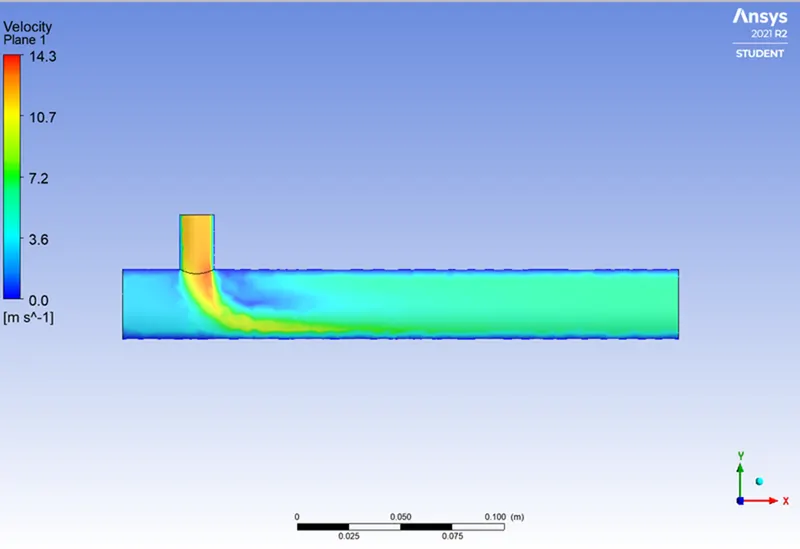

Velocity contour plot: -

For the above simulation of long. tee with momentum ratio 4, using the k-epsilon turbulence model.

total cell count is 15566

mesh size is default-13.853mm

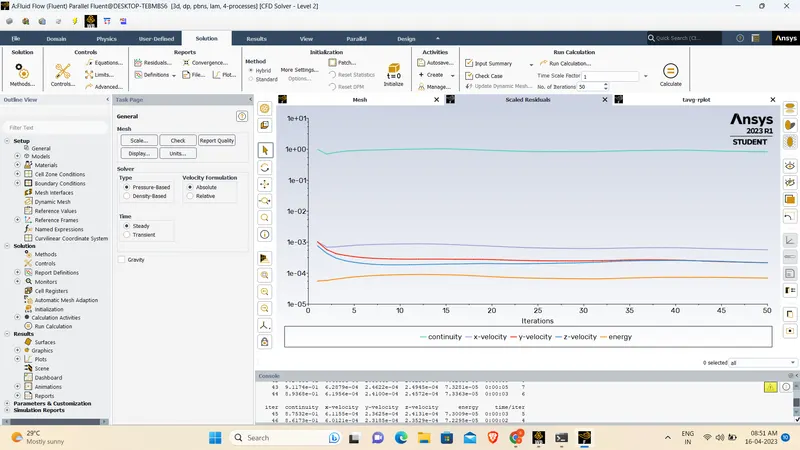

solution converged at the 174th iteration

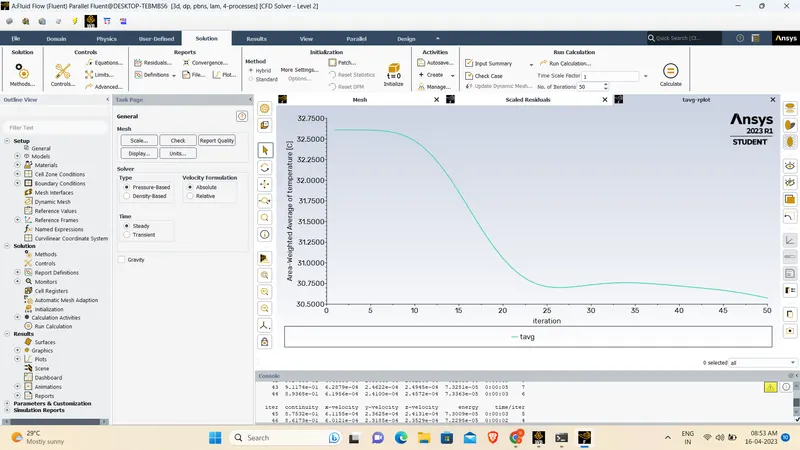

Area weighted average temperature- 27.49085degC

Standard deviation temperature- 0.5410328degC

Comparing all the results the long tee with momentum ratio 4 has a low standard deviation temperature.

Comparing all the cases:- \

o Case	o Element size	o Outlet temp	o Standard deviation temp	o Converged	o Cell count
o Short. tee	o 2mm	o 30.2665	o 2.0454	o 150th iteration	o 104716
o Short. tee	o 5mm	o 30.2381	o 1.4807	o 250th iteration	o 14166
o Short. tee	o 8mm	o 30.2173	o 1.5240	o 158th iteration	o 12444
o Short. tee	o default(10.219mm)	o 27.5396	o 0.9013	o 140th iteration	o 12444
o, Long. tee	o default(13.853mm)	o 30.2681	o 1.2300	o 230th iteration	o 15566
o, Long. tee	o default(13.853mm)	o 27.5396	o 0.5410	o 145th iteration	o 15566

CONCLUSION:

• The resultant average temperature for both turbulence models Realizable K -Epsilon & K omega SST looks similar, but computing K omega SST takes more time and more number of iterations for convergence.
• For both cases momentum ratios of 4, the outlet temperature drops significantly this occurs because of very high cold velocity air. So this clearly shows higher the momentum ratio greater the efficiency of the mixing.
• We are getting an almost similar result for short tee & long tee for the momentum ratio of 4 from this we can get to know that the length of the pipe doesn't affect the efficiency of the pipe.
• When it comes to standard deviation, the long tee gives a very lower value compared to the short tee. Indeed, we can increase high inlet cold air velocity for the application so we can get pretty good mixing in nature for a short pipe instead of using the long pipe.
• If we increase velocity will get better turbulent mixing. majority of the mixing is because of higher velocity and as we go along the length of the pipe there is additional mixing that occurs because of diffusion.
• And there is not much difference in the analytical outlet temperature and numerical outlet temperature
• Overall, the short tee pipe gives a pretty good result, and also it saves material costs. Increasing the pipe length doesn't create any difference in the outlet temperature.
