Week 1 : Exploring the GUI of GT-POWER

1. Explore the GUI of GT SUITE and list down modules available with brief description.

2. Locate following settings:

• Time control flag
• Time step and solution control
• Integrator/Solver type

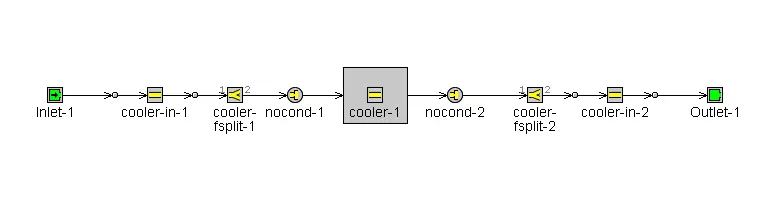

3. Explore intercooler tutorial and note down all settings of:

• Run setup
• Advanced setup
• Plot setup
• Output setup

Given

• Diameter of cooler inlet and outlet pipe= 50 mm
• Length of the CAC= 1000 mm
• Inlet mass flow rate = 1200 kg/ h at 100 degC
• Outlet pressure 2 bar at 30 deg C

• Calculate the total heat transfer at Charge air cooler (CAC)
• Calculate pressure drop across CAC

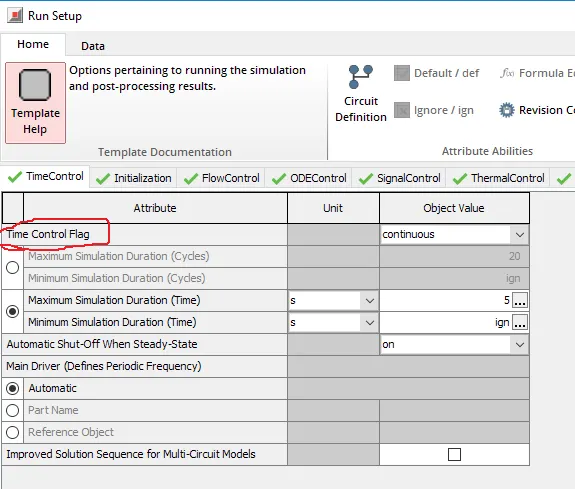

Time control flag

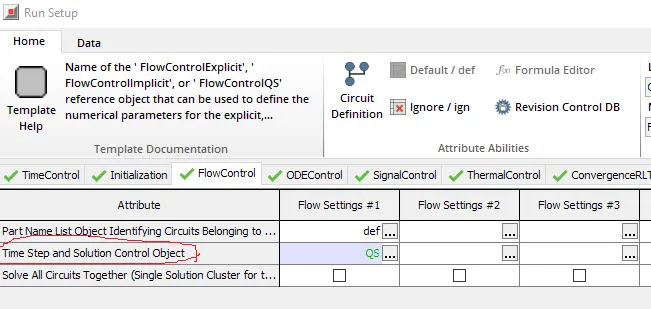

Time step and solution control

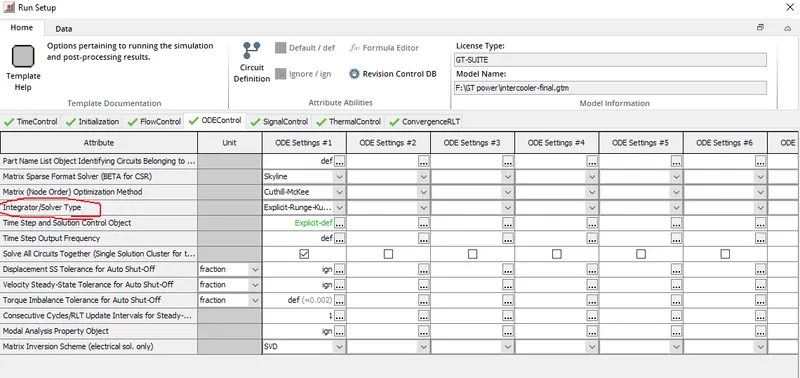

Integrator/Solver type

Run setup

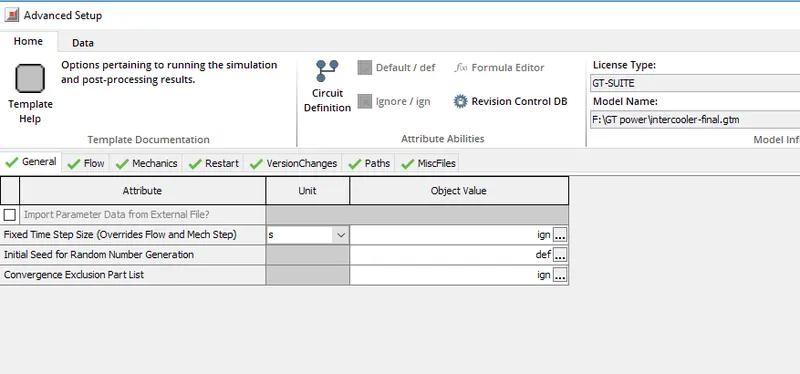

Advanced setup

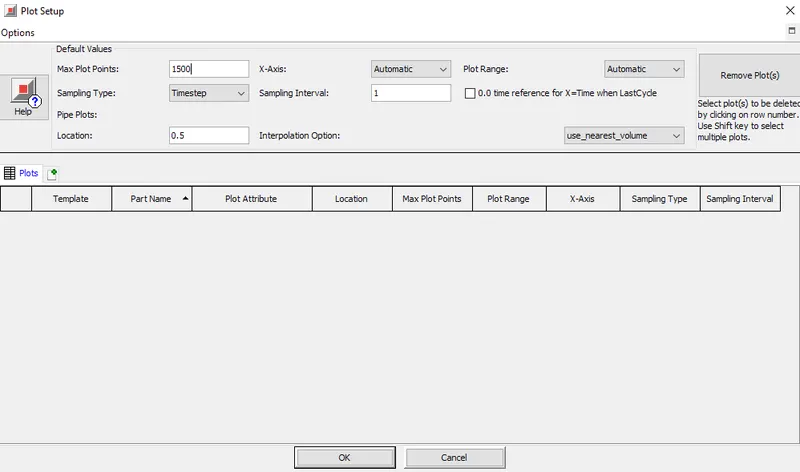

Plot setup

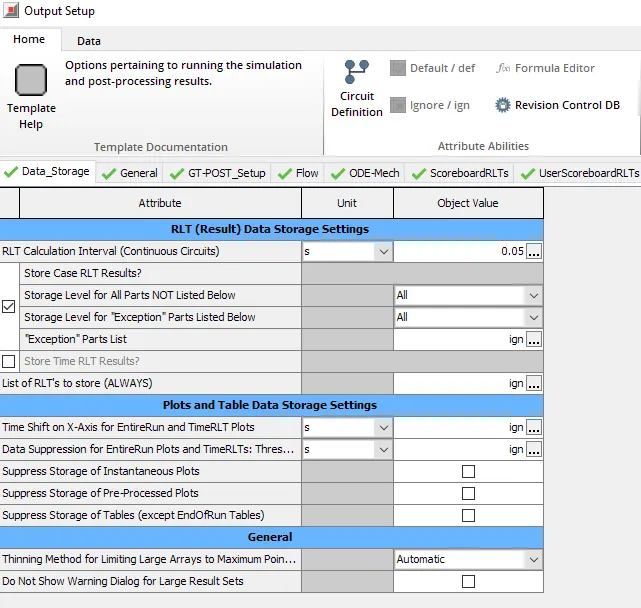

Output setup

Template

• Diameter of cooler inlet and outlet pipe= 50 mm
• Length of the CAC= 1000 mm
• Inlet mass flow rate = 1200 kg/ h at 100 degC
• Outlet pressure 2 bar at 30 deg C

• Calculate the total heat transfer at Charge air cooler (CAC)
• Calculate pressure drop across CAC

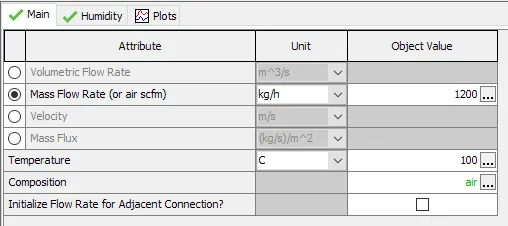

Inlet conditions

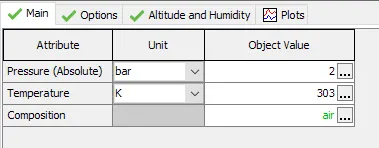

Outlet conditions

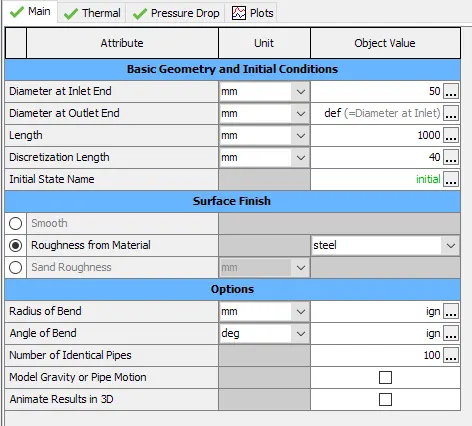

Engine geometry

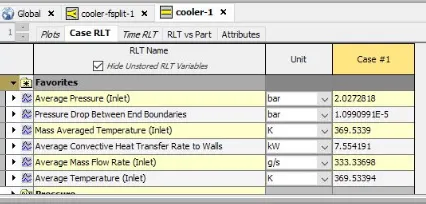

Results:

• Pressure drop = 1.0999E-5 bar
• Convective Heat tranfer Rate to walls = 7.554191 KW
