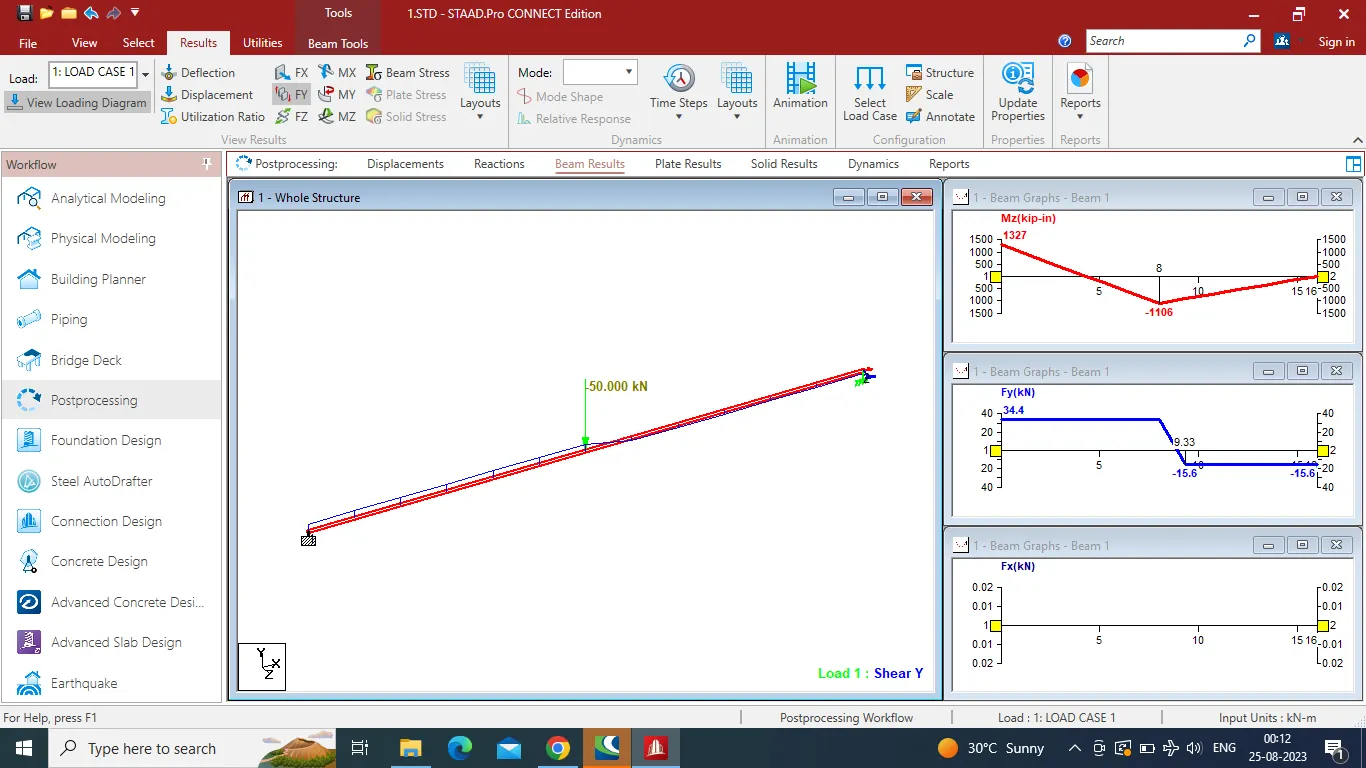

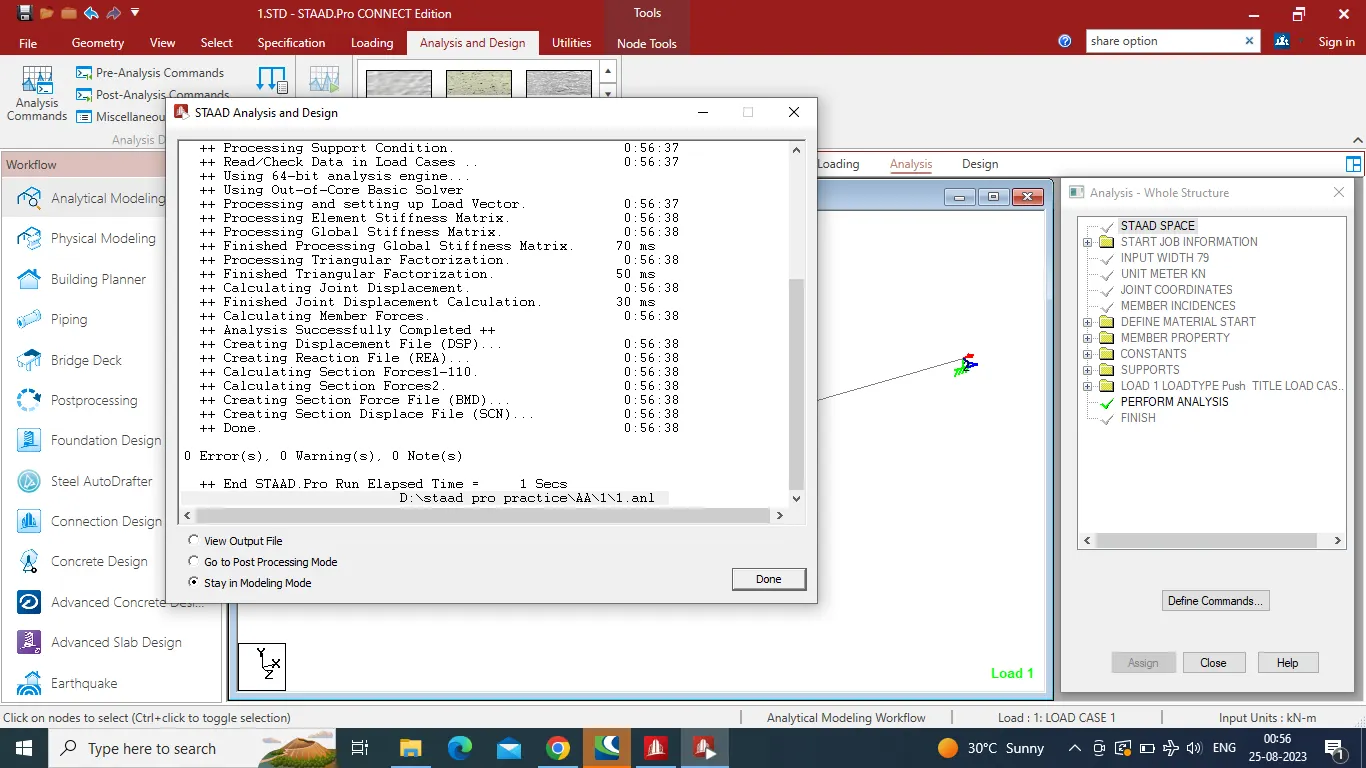

Week 1 Challenge

Q1 A. Answer :-

• Open the STAAD pro software and locate the share option available on the introduction screen.
• After clicking on the share button, select send mail option.
• Then, browse for the. Std file on your machine & send it.

B. Answer :-

• Concrete.
• Steel.
• Aluminium.
• Timber.
• Composite sections.

C asnwer :-Yes

D Answer :-

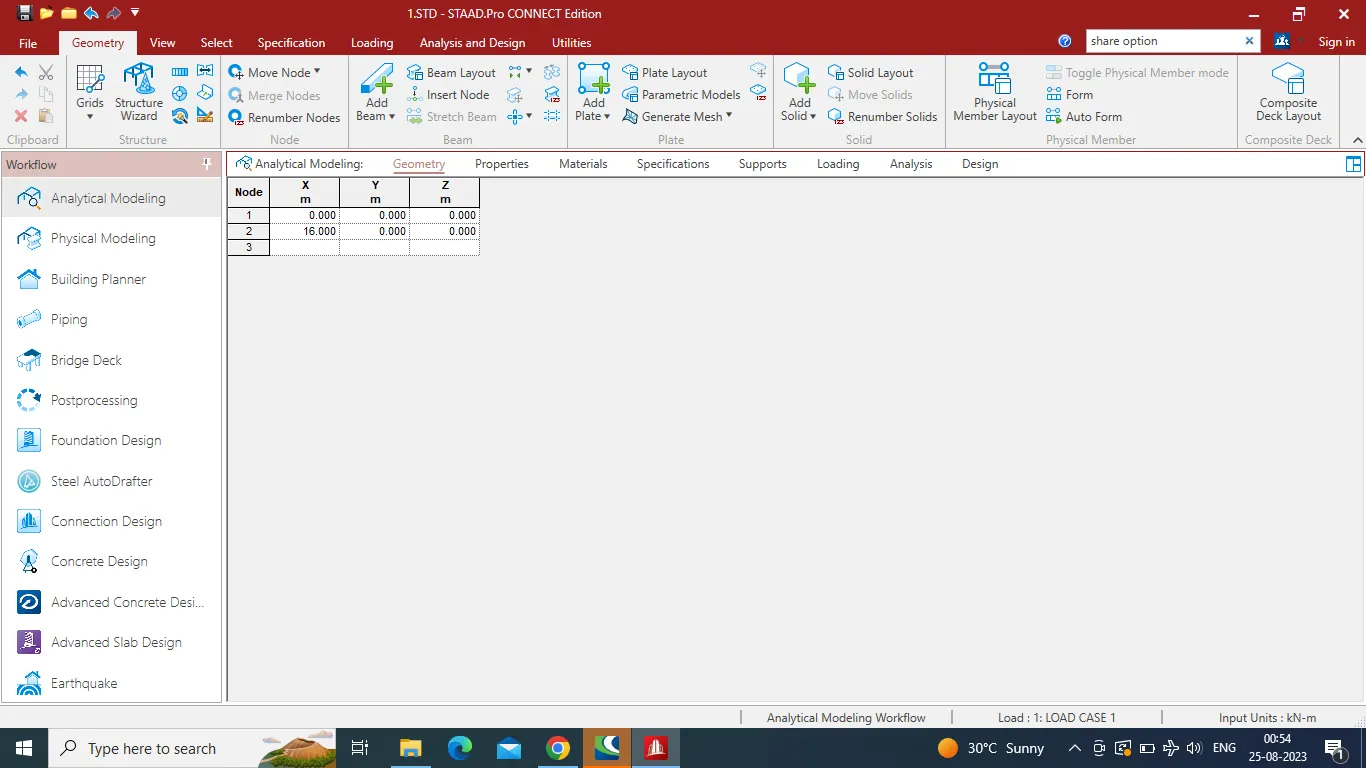

• Analytical model.
• Physical model.
• Building planner model.

E Answer :-

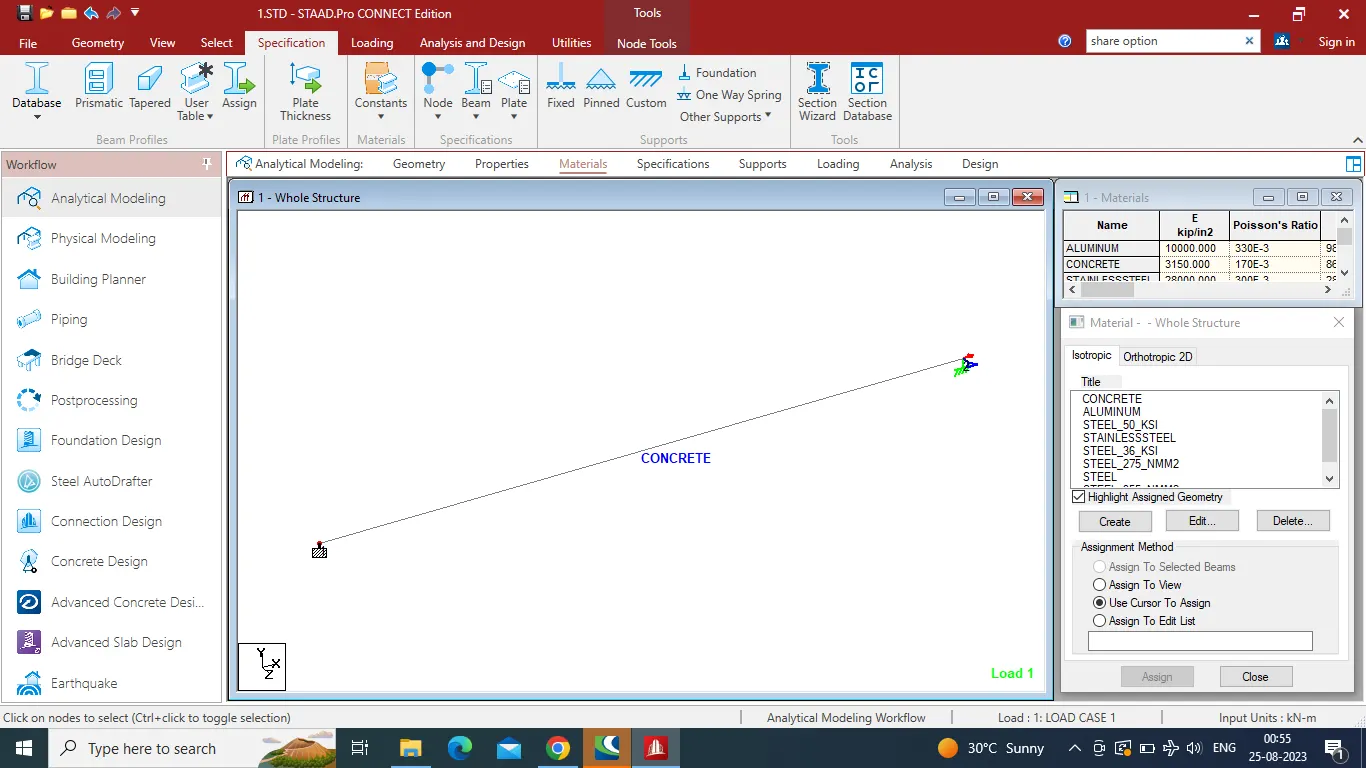

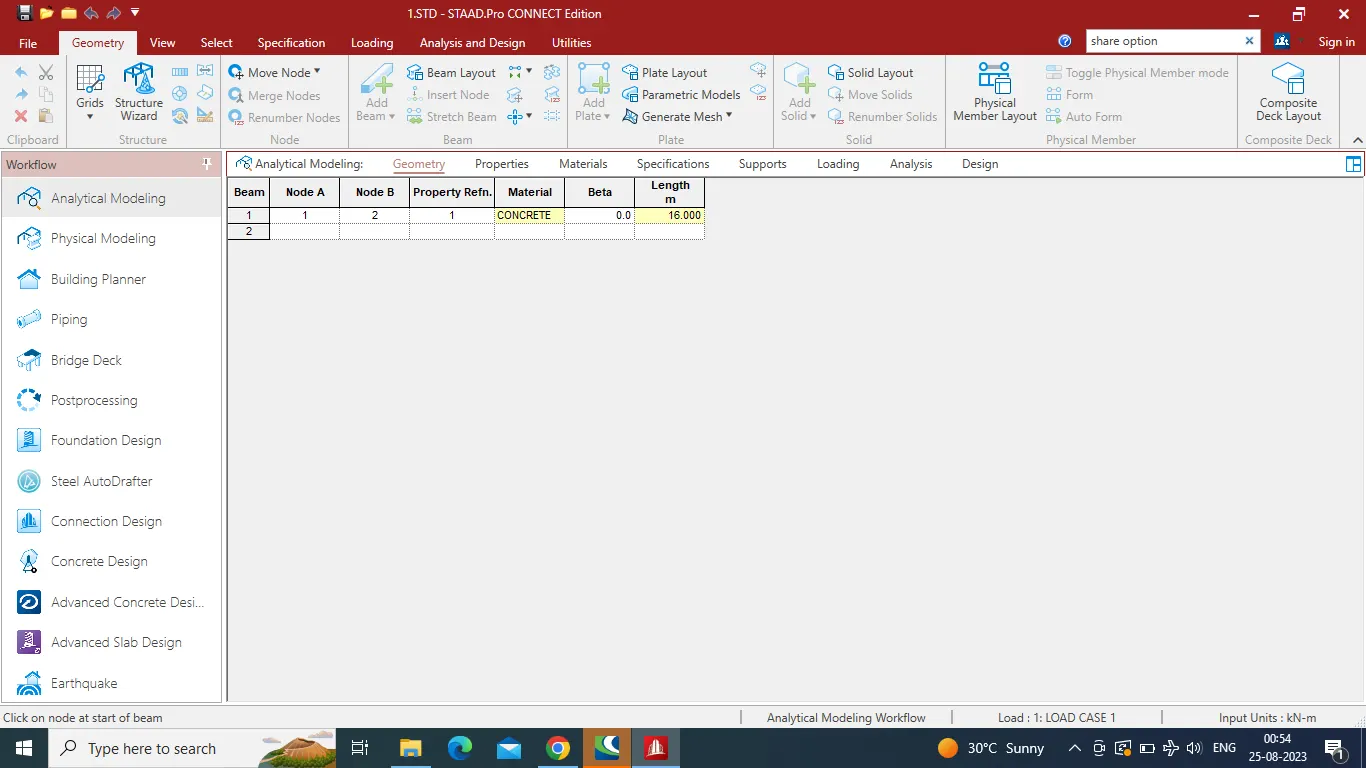

• Click on materials.
• Select a desired material from the list
• Concrete / steel / aluminum / stainless steel etc.
• Then check the assignment method based on your preference like use cursor / assign to view etc.,
• After checking the radio button, go ahead and assign the material property to your model.

Q2  A Answer :-

1. Clear cover
2. FC compressie strength of concrete
3. FY Tensile Strength of steel
4. Max main Dia of bar
5. Code of practice
6. End conrete design

B Answer :-

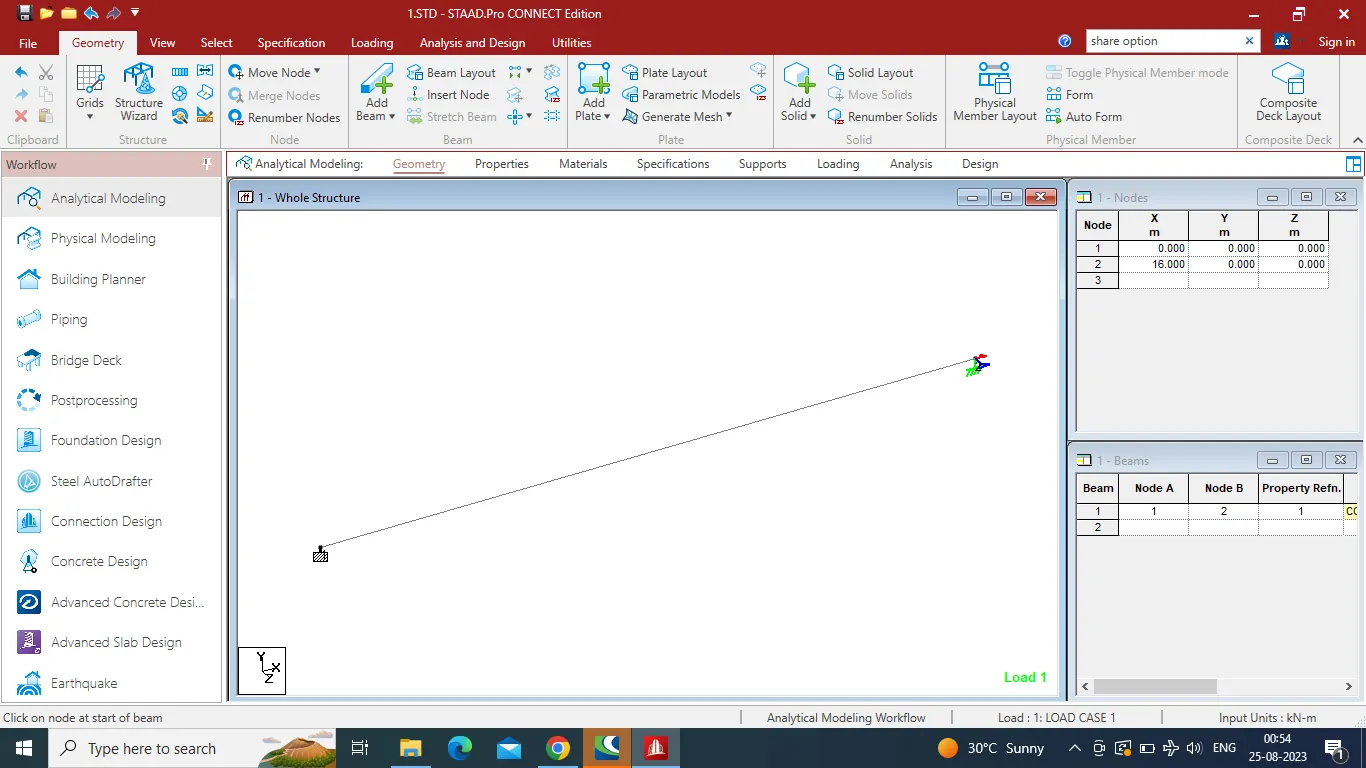

• Nodes cursor.
• Plates cursor.
• Beams cursor.
• Plates and Solid cursor.

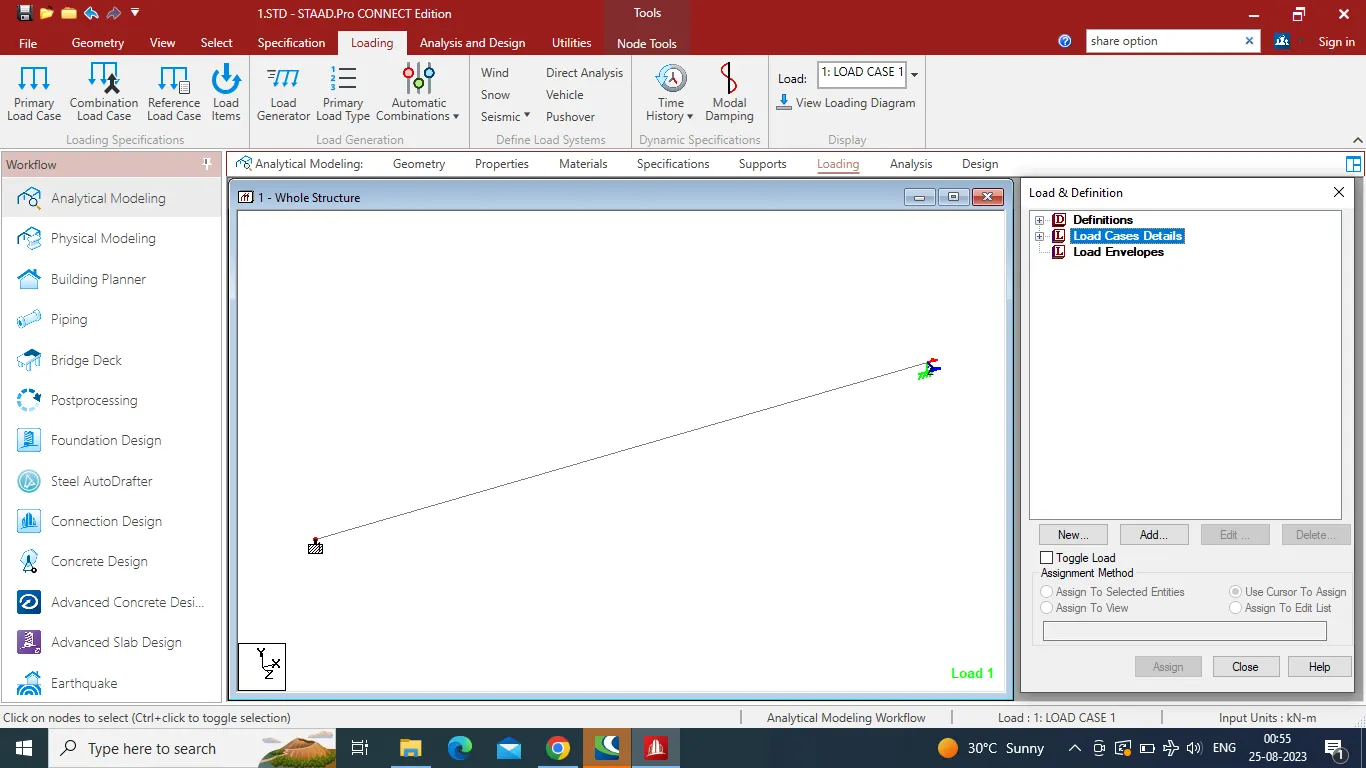

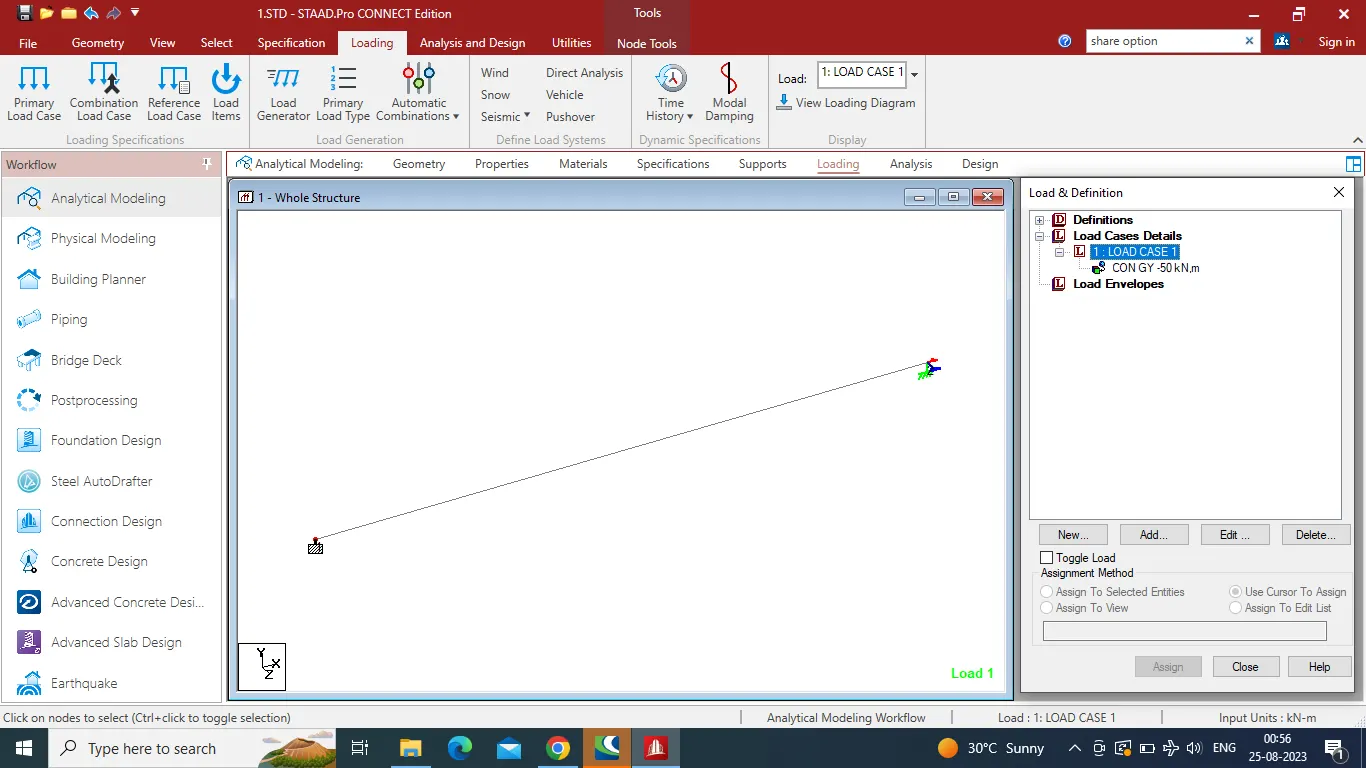

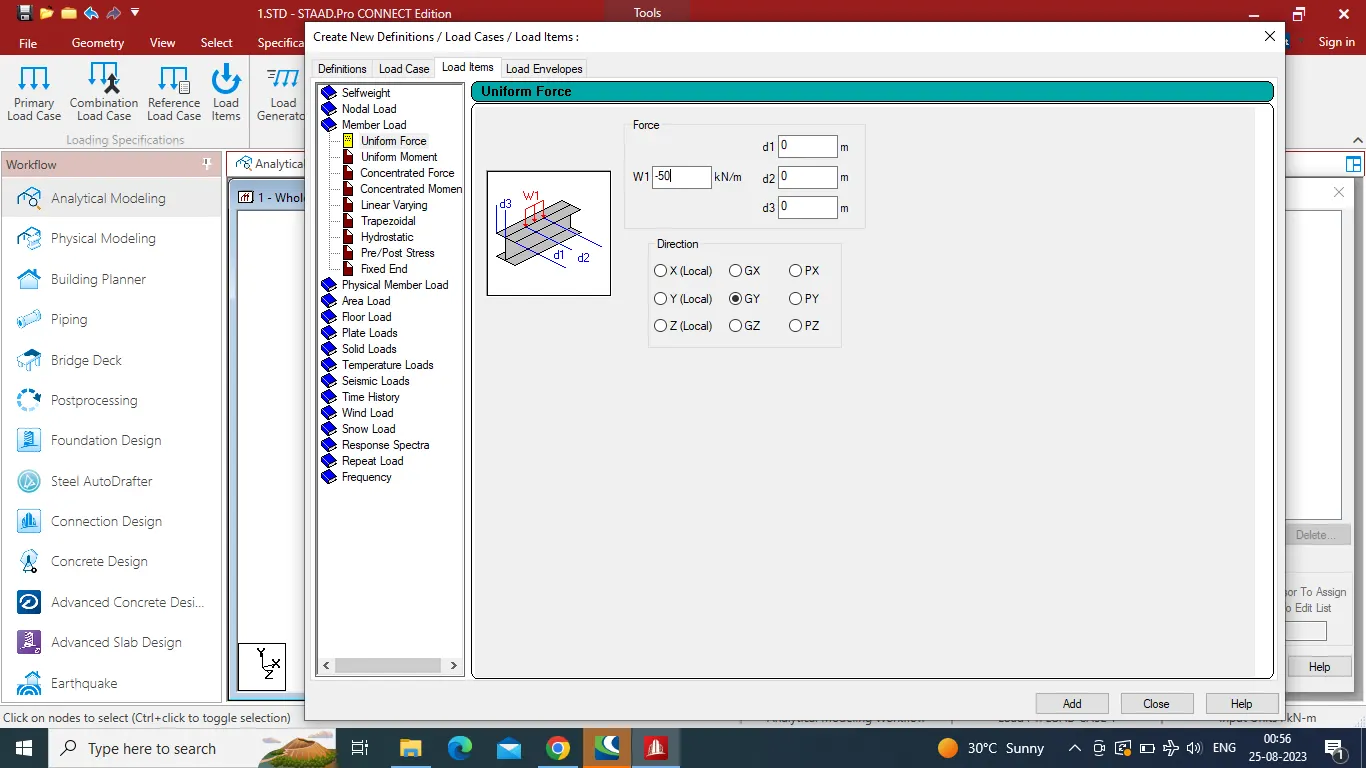

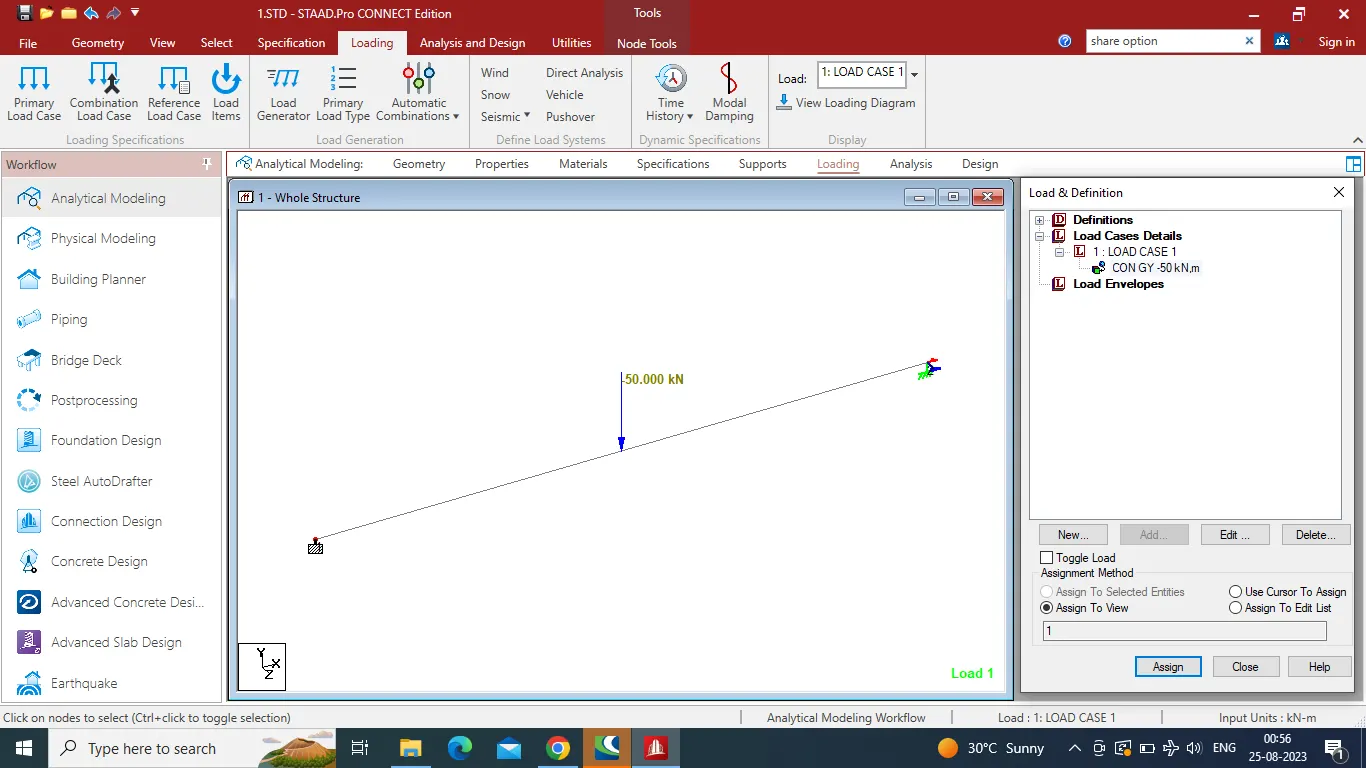

• Loads cursor.
• Solids cursor.
• Physical Member cursor.
• Geometry cursor.

C Asnwer :-

• Top view
• Isometric view
• Front view
• Left view
• Right View
• Botttom view
• Back view

D Answer :-

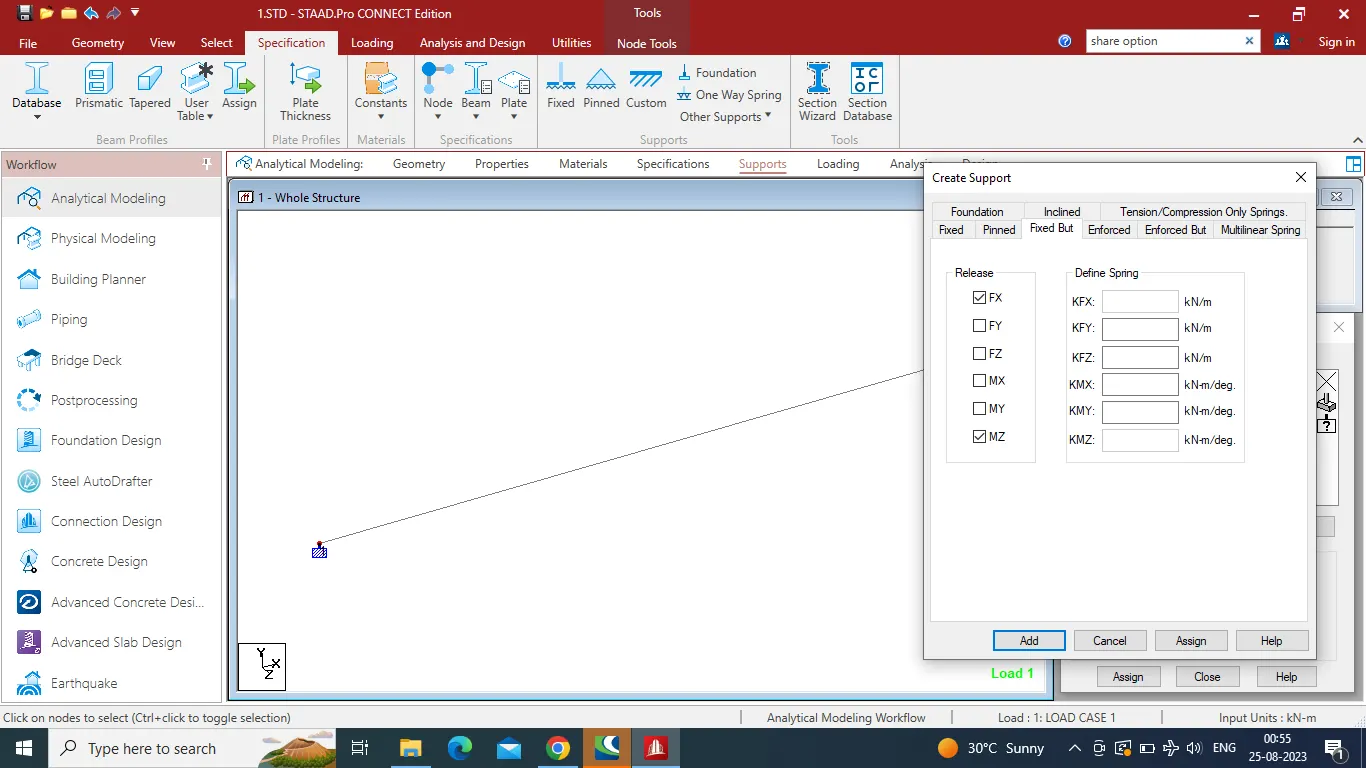

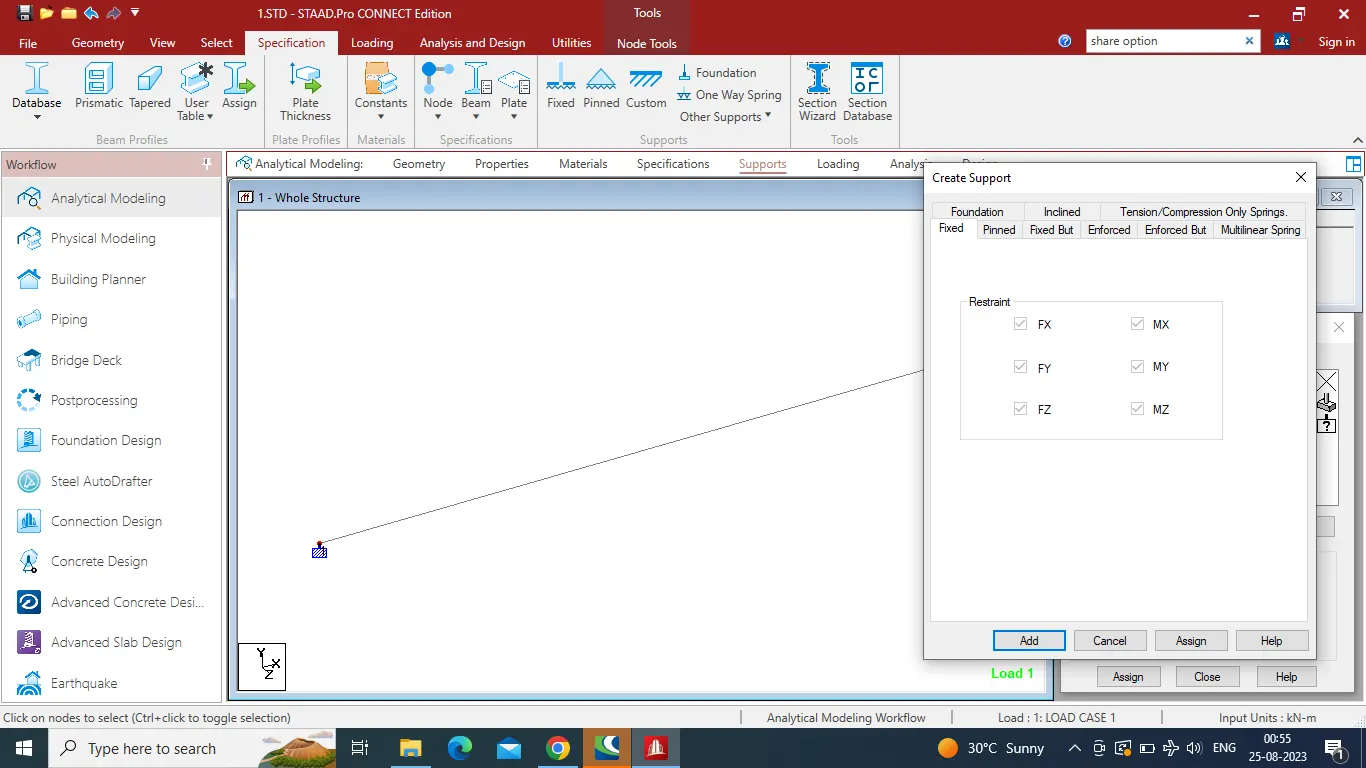

• Click on create support command
• There we can get option like fixed support , pin support , Fixed but
• Enforced but support
• Cable support
• Inclined support

E Answer :-

• Name of the project and the location of the project.
• Structural Layout.
• Introduction to the construction methodology.
• Quality Assurance and Quality Control.
• Budget of the Project.

Q3 A Answer :-

. SPACE FRAMES:-

So basically the space frames are the three-dimensional truss like structures that is designed to carry loads for the longer spans without any intermediate supports. The space frame structures are rigid and ligh-weight in nature and it is structurally effective. It has low transportation cost.

2. PLANE FRAMES:-

Plane frames are RCC or steel frame structures. It is a two-dimensional structure which is constructed with straight elements which are conected by the rigid or the hinged connections.

3. TRUSSES:-

Trusses are created by arranging the structural elements in the triangle forms which can take loads in both compression and tension.

B Asnwer :-

• Global Axis:- Mainly global axis are fixed in the co-ordinate system.
• Local Axis :- Local axis is variable in nature. We can change the local axis but not the global axis.

C Answer :-

This DBR is a detailed report which tells the minute details of the ongoing construction work.It defines the final stage in the process of defining the Client's requirement for the construction work. This report basically consist of all the major and important structural details that is relevant or we can say that is related to the project like description of the client,site information,special requirements if any,the technical requirements,components required,the project requirements and the other issue related to the construction.

E Answer :-

Fixed condition:-

 Fixed condition in the STAAD Pro software is the condition where all the degrees of freedom that is horizontal or vertical or moment are fixed or we can say these coditions are restrained we cannot change accordingly. Those condition we can say are the fixed conditions.

Fixed-But condition:-

 And as for the fixed-end condition we can say that this condition can be customized its end conditions accordingly. In this condition we can change the end condition it is not restrained.We can release some of the required degree of freedom.
