Vehicle Ride 2
Link to the google sheet:
https://docs.google.com/spreadsheets/d/1geT8CLQBHjrVddsqZkD0GwRkO0921zHsFs5GLjaUoEE/edit?usp=sharing
1.
i.
|
Sprung mass critical damping (N.s/m)
|
|
| Front | 5781.549486 |
| Rear | 5631.489539 |
ii.
|
Unsprung mass critical damping (N.s/m)
|
|
| Front | 6956.093731 |
| Rear | 5709.72854 |
iii.
|
Sprung mass initial damping coefficient (N.s/m)
|
|
| Front | 4047.08464 |
| Rear | 3942.042677 |
iv.
|
Unsprung mass initial damping coefficient (N.s/m)
|
|
| Front | 1391.218746 |
| Rear | 1141.945708 |
v.
|
Low speed compression damping coefficient (N.s/m)
|
|
| Front | 2023.54232 |
| Rear | 1971.021339 |
vi.
|
High speed compression damping coefficient (N.s/m)
|
|
| Front | 695.6093731 |
| Rear | 570.972854 |
vii.
|
Low speed rebound damping coefficient (N.s/m)
|
|
| Front | 6070.62696 |
| Rear | 5913.064016 |
viii.
|
High speed rebound damping coefficient (N.s/m)
|
|
| Front | 2086.828119 |
| Rear | 1712.918562 |
2.
Link to google sheet:
https://docs.google.com/spreadsheets/d/11WMLin52IQxieaEAWwq3o6rxu3YUXjZoYQOQP8ITnos/edit?usp=sharing

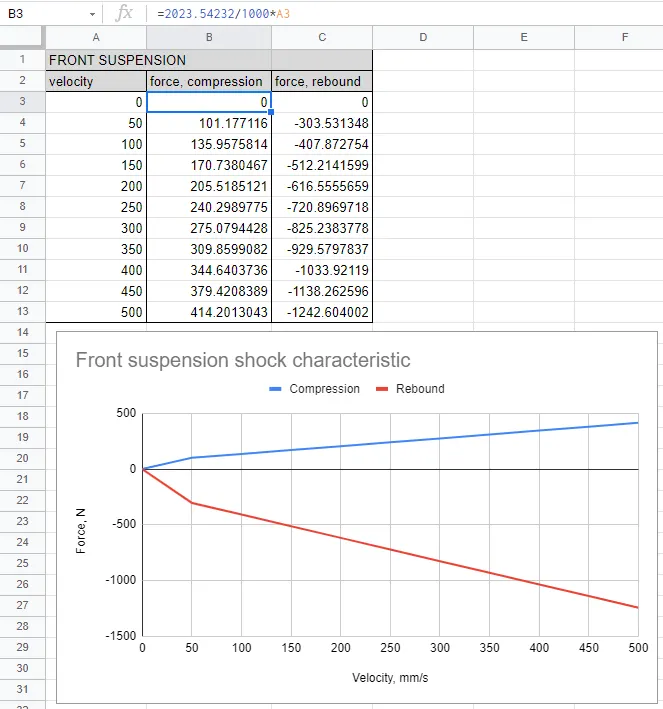

Front suspension

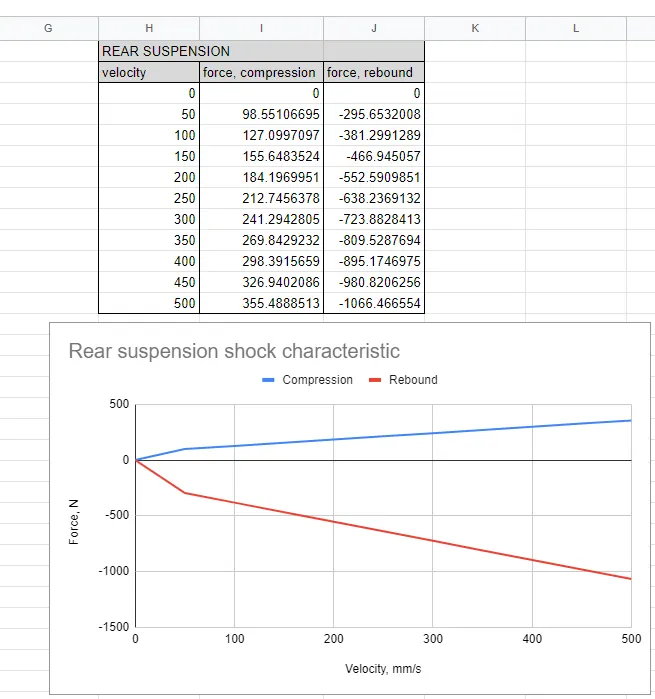

Rear suspension
