Vehicle Ride 1

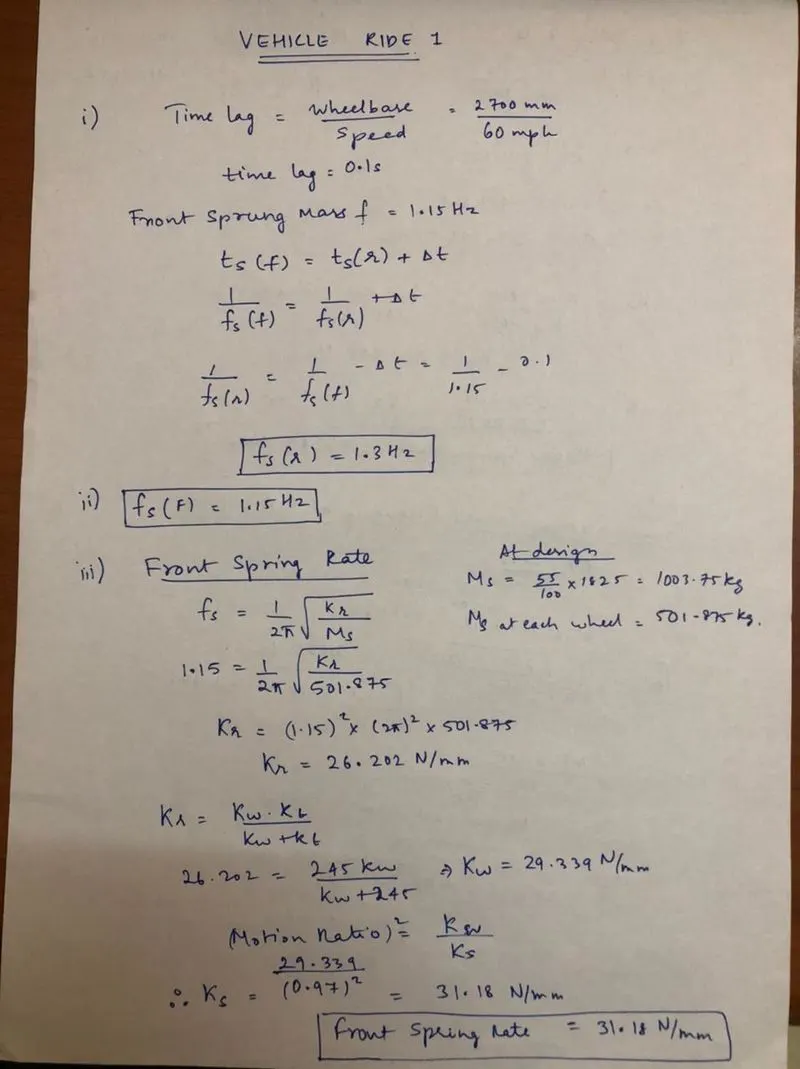

1. Recommended rear sprung mass frequency at design = 1.3hz

2. Front sprung mass frequency at design = 1.15hz

3. Front spring rates = 31.18N/mm

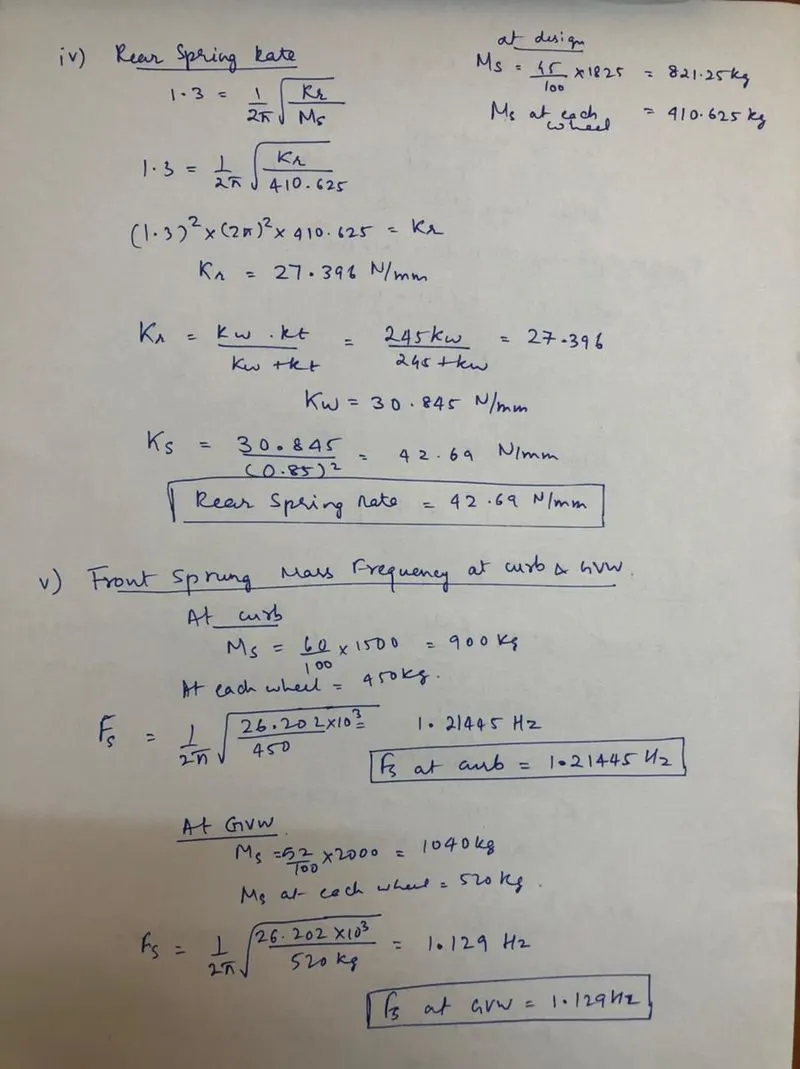

4. Rear spring rates = 42.69N/mm

5. Front sprung mass frequency at curb = 1.21445hz; at gvw = 1.129hz

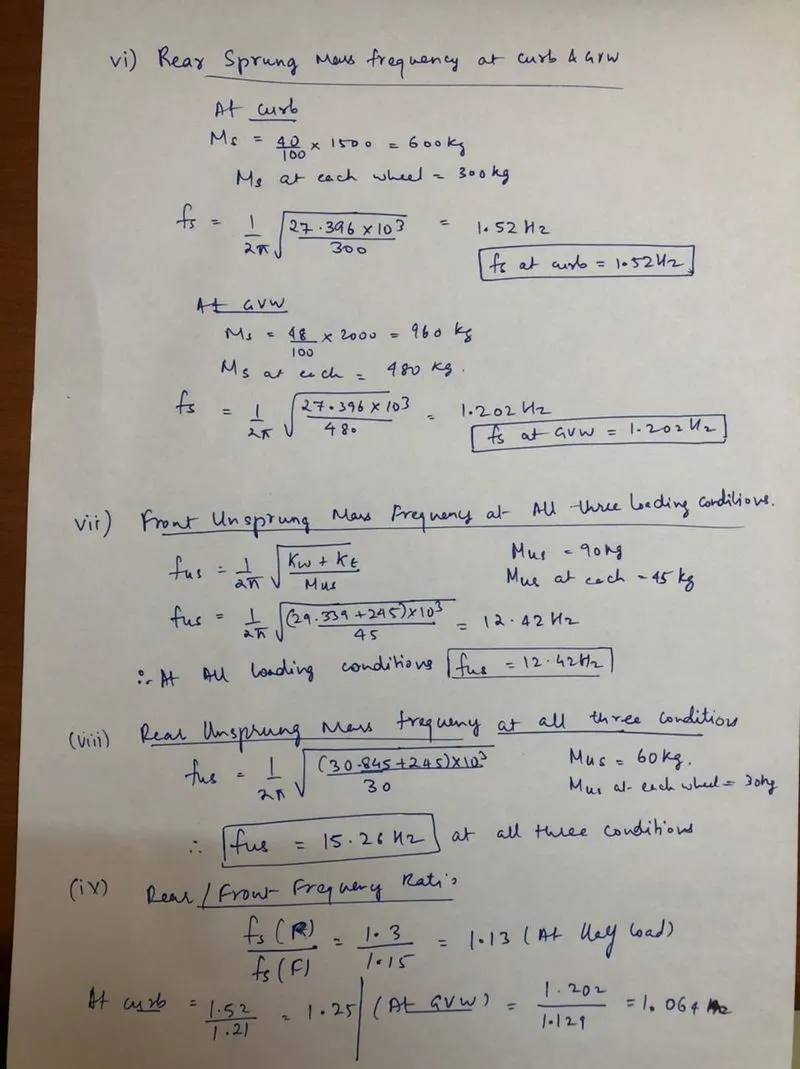

6. Rear sprung mass frequency at curb = 1.52hz; at gvw = 1.202hz

7. front unsprung mass frequency at all three loading conditions = 12.42hz

8. Rear unsprung mass frequency at all three loading conditions = 15.26hz

9. Frequency ratio at curb = 1.25; at half load = 1.13; at gvw = 1.064
