Underbody Coating

One-pager about Under-body coating , Its Purposes , Its Types and its Pros and Cons

What is Underbody coating : Underbody coating provides long term protection from corrosion to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion. It is normally sprayed or painted on panel of bottom side of frame.

Undercoating gives you an extra layer of protection against rust and corrosion, protecting your car. Undercoating will eventually wear out, but you can get years of protection from it. Even vehicles in warmer climates gain protection as debris is repelled and kept away from eating at the vehicle.

Underbody coating is hard coating on underbody on the cars, which might could be painted, fast-drying , non-toxic, Rubberized and chip resistant on all underbody of the car.

Modern Automotive common Coating Process:

There are five steps for modern coating process

• Pre-Testing : Remloves and cleaning of excess material / metal forms an appropriate surface structure enabling bonding of a corrosion protection layer
• Electrodepostion: This is as next step electrodeposition of the anti corrosion of rust prevention layer
• Sealant application: the sealant like PVC is applied for anti corrosion for prevention or elimination of water leakage and minimisation of chipping and vibration noise
• Primer Application: Next as primer application to promote between adhesion between the surface and basecoat. It is also important for smoother surface for subsequent layer.
• Topcoat application : Topcoat are applied or include basecote and clear coat are applied they provide surface properties that are saought after , apperances , smoothness & obvious weather resistant.

Following are the types of Underbody coating:

• Rubberized Undercoating : Rubberized undercoating is easy to apply and offers good cushioning as well as protection from dust, moisture, and the dents. Which is generally the best option for protecting the vehicles.Rubberized underbody coating is a premium, single component, printable, textured coating for sound damping, chip Resistance, rust protection & corrosion protection.

• Polyurethane undercoating :The polyurethane underbody coating is little bit quicker & easier to apply. This type of underbody coating require a little bit more surface based wok before applying sanding and applying an etching primer to bare metal to using are generally recommended

• Wax or Paraffin-Based Underbody coatings: A paraffin-based undercoating are the cheapest, quickest option available with which to protect the undercarriage of the vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.

  Wax based coating is never truly harden. When during application they drip or flow in to seem and cracks to provide protective properties. They are usually available in the spray gun canister or in an aerosol can and offer at list best protection in moderately humid climates.

• Asphalt-based undercoating:

  For large kind vehicles likes trucks heavy machinery asphalt based underbody coating used.

  This provides little bit of extra durability against rocks, chips & moisture.

  This type coating generally contain rubberized material that set up firmly and also helps soften noise

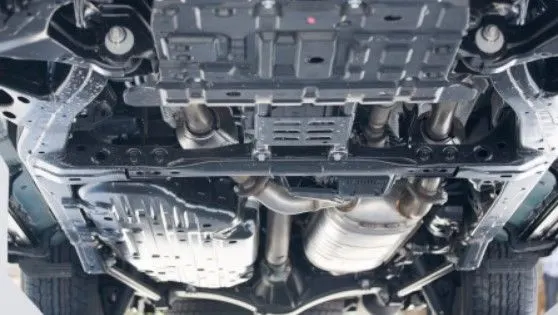

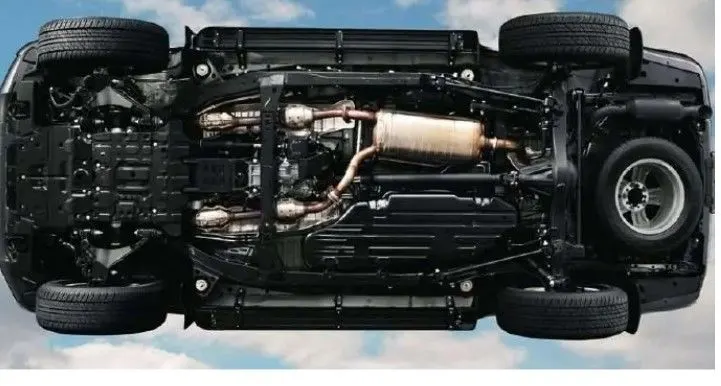

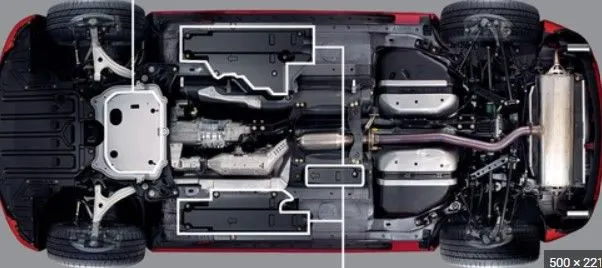

• Some of Images of Underbody CoatingThis Can protect against corrsion

Prone of underbody coatings:

01. Its Provides a layer of protection against corrosion: any underbody coating should be applied when the car is new and clean. Majorly salt water tend to corrode material or body of cars badly. As name implies the underbody coating are prevents to get rust of cars. Although under coating eventually wear out, It can provides years of protection against premature corrosion.

02. It will extend the life of Vehicle: A proper underbody coating extends the life of your vehicle because of its rust stopping power. Corrosion does more affect the integrity of metal in your vehicle.

03. It can be applied Damage areas: Some over time your vehicle is going to develop chips, scratches, peel off some areas. Thru the asphalt and animal fat, modern product provides a real layer of protection because its can morph in to the various areas of small damages.

04. It can be self-Applied : Rust proofing always best when it can done by professionally but when your hands tight because of money and you have some basic car maintain ace therapy you can apply by self also.

05. It can be Sound Insulation: The thicker under body coating cars also act as sound proof dampeners. Thee can reduce noise and make the cabin seem quitter or noise free.

06. It has Easy of Maintenance: A uniform black underbody coating gives a car clean look. It also makes a car to easier maintain by just hosing the underside down.

Cons of underbody coatings:

1. Higher the cost: Now the days might the cost has reduced still its affects the cost expensive. This is because of the underbody coating offered by car dealer is one way make the money off the customer. If car gets older and owner want to re-cote his car that time cost affective cause of professional coater dealers takes huge rates.

2. Risk of damage during application: Care must be taken while applying underbody coating. Thick Rubberized paint if not applied properly can get in to moving mechanical parts & cause premature failure. There is also risk of overspray on the car paint finish on the lower edges of car.

3. Third party based undercoating service might void your vehicle warranty: Some new cars no longer need undercoating service provided because of service structured has already inbuilt. Somehow later if you take third party service its might lost your vehicle warranty

---------------------------------------------------------------------------------------------------------------------------------------------
