Tool Test-2

1.checking the geometry

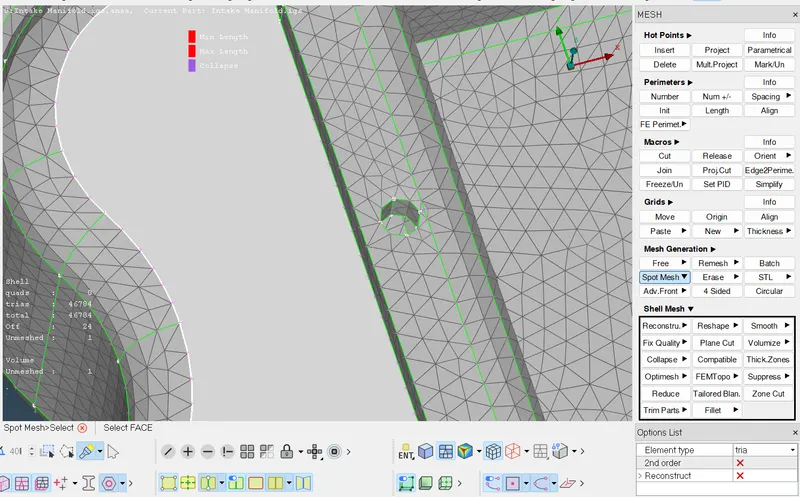

2.For the flat surfaces by using spot mesh (normal tria) should be used.

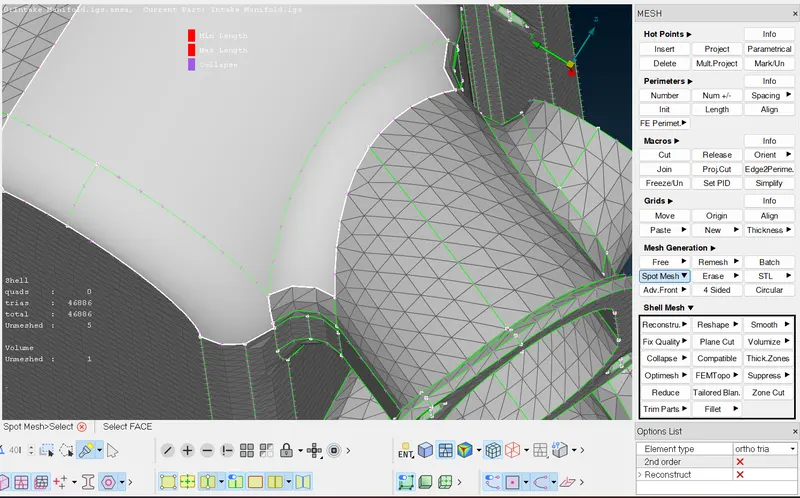

3.For the curved surface by using spot mesh (ortho tria) should be used.

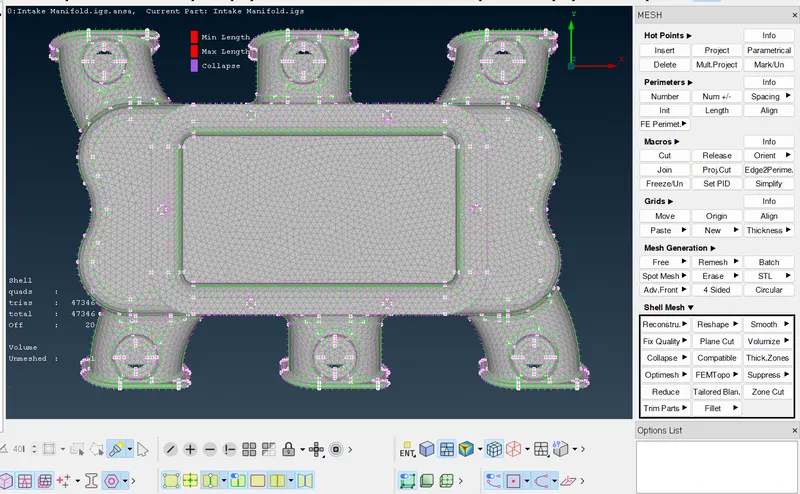

4.meshing the surface according to type of surface.

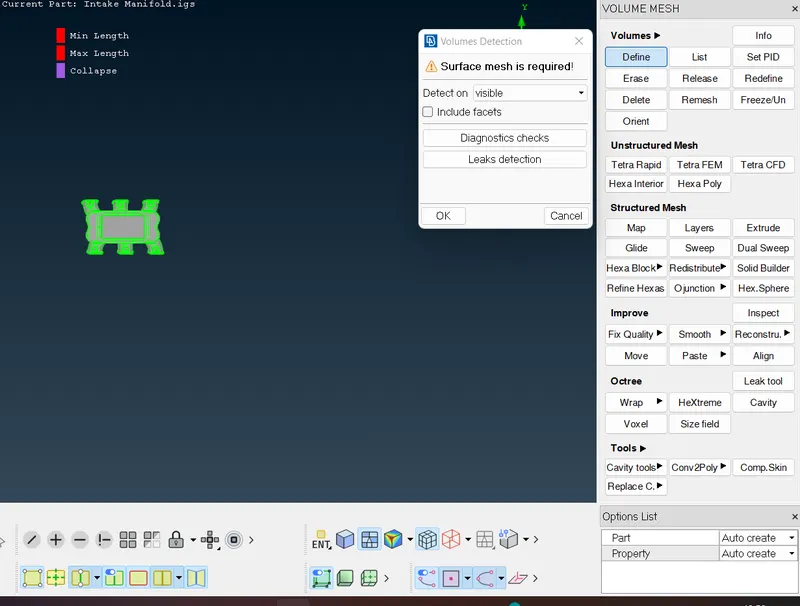

5.After the mesh is completed in the volume mesh define the volume of the object.

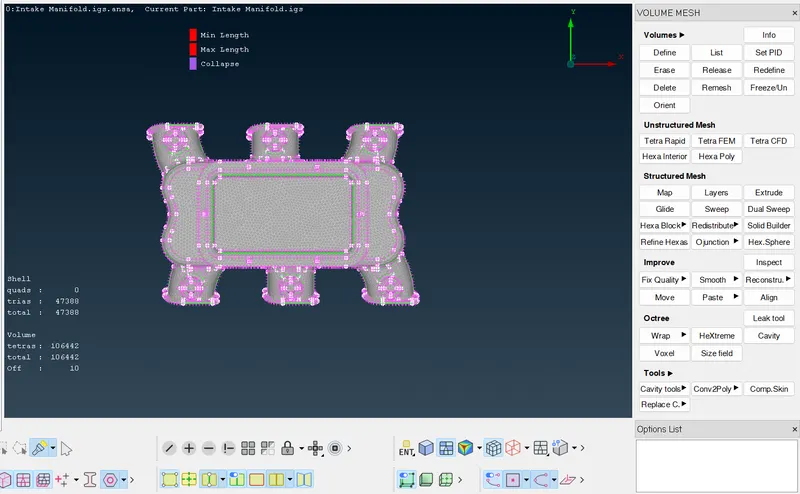

6.In the instructured Mesh the Tetra rapid to form solid mesh objects
