Tool Test-2

OBJECTIVE:- For the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

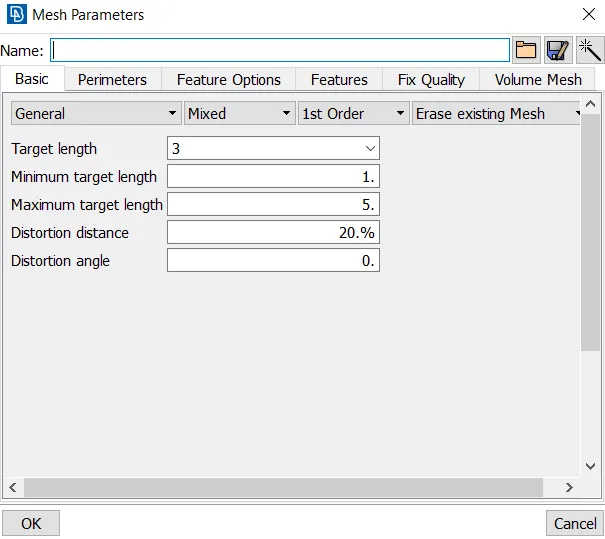

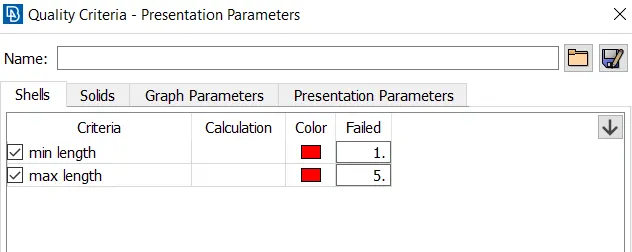

S.No	Quality Criteria	Value
1	Target/Average length	3
2	Minimum Length	1
3	Maximum Length	5

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

S.No	Quality Criteria	Value
1	Tet collapse	0.2

PROCEDURE:-

• Import geometry of intake manifold.

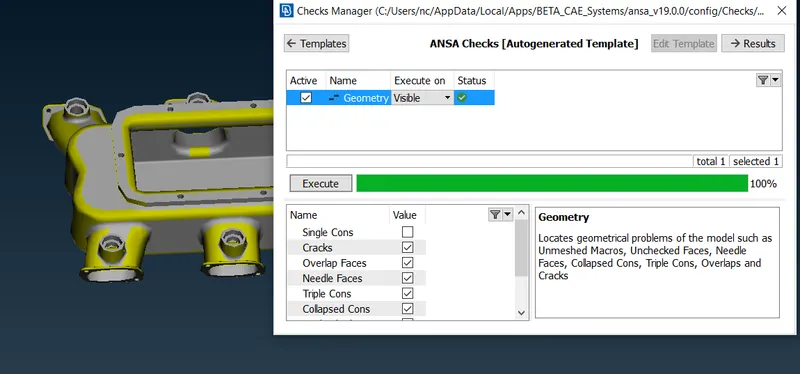

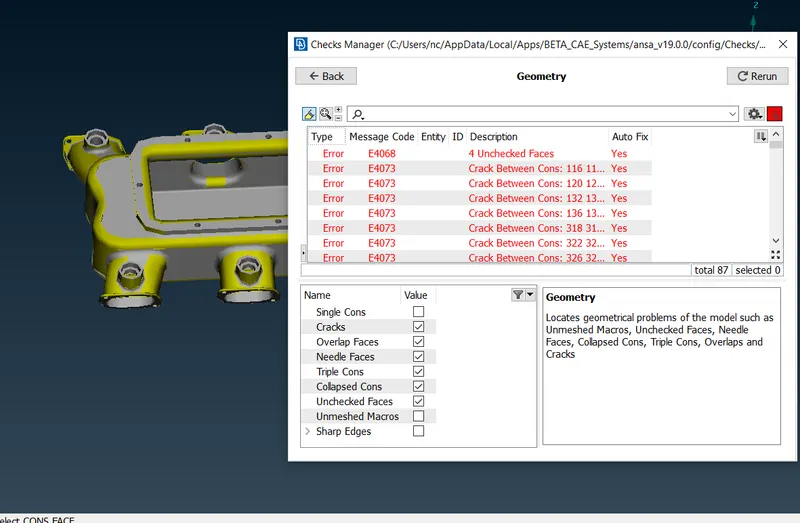

• Check Geometry error

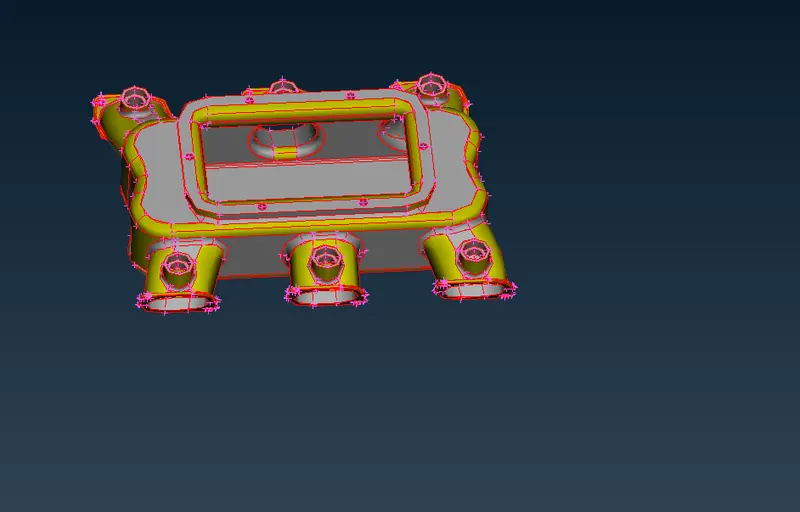

• Model after geometry cleanup

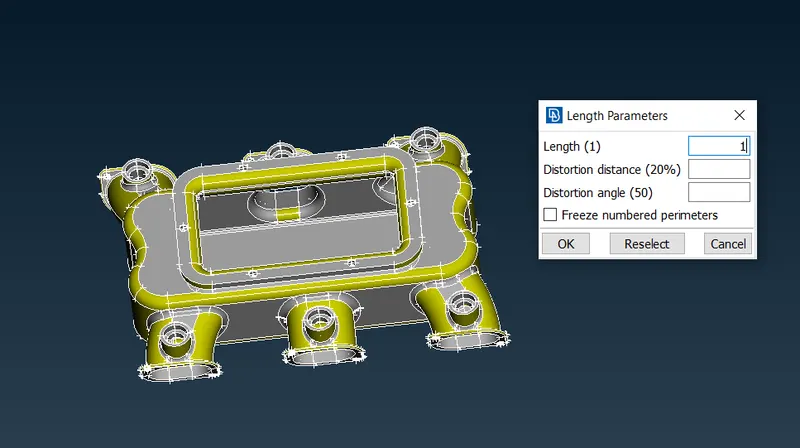

• Perimeter length

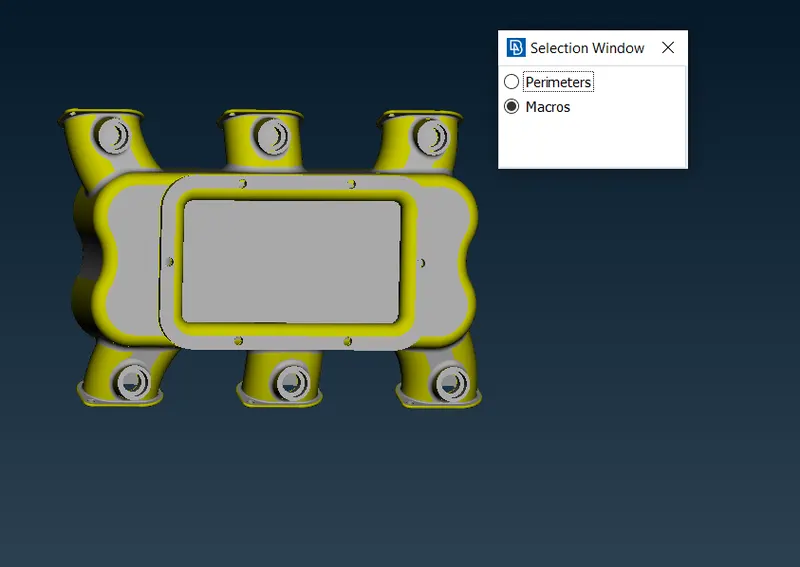

• Macros lenght

TET

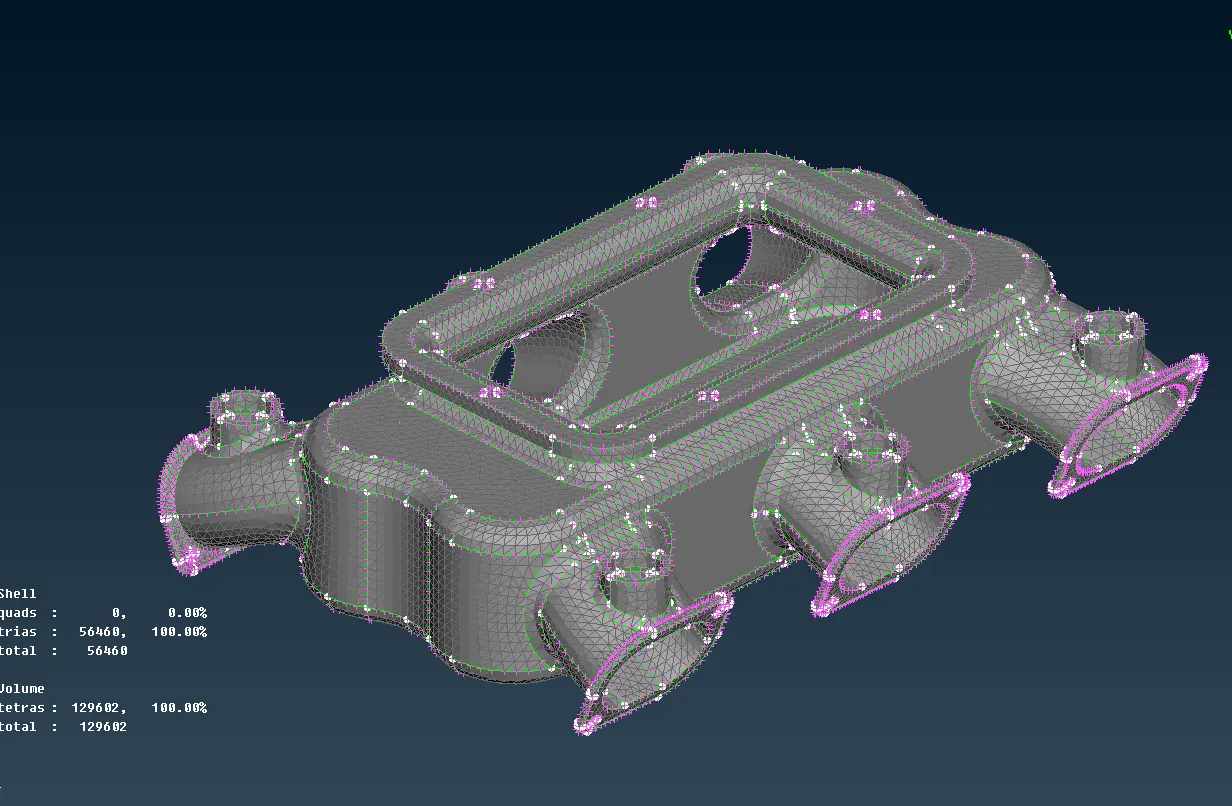

• TETRA MESH-

RESULTS:-

• Performed geometry cleanup.
• Performed tetra meshing with acceptable quality.

LEARNING OUTCOMES:-

• Learnt the usage of various tools af ANSA software.
• Able to fix the geomtrical errors for given mode.
• Learnt to mesh solid component using tetra mesh.
• Abel to mesh the given model by satisfying the quality criteria.

CONCLUSION:-

• The given component is imported to the ANSA SOFTWARE and the geometrical errors are fixed.
• The surface of the component is meshed with the combination of ortho tria and normal tria elements.
• The volume of the component is defined and meshed using TETRA FEM elements.
• The quality is achieved as well as kinks and dips are eliminated.
