To model columns for industrial steel structure using TSD

1)

Aim - To create column properties for different types of pedestal members and model in the grids created as per the assignment 1

Procedure -

• Open Tekla structural designer software and new project workspace is open

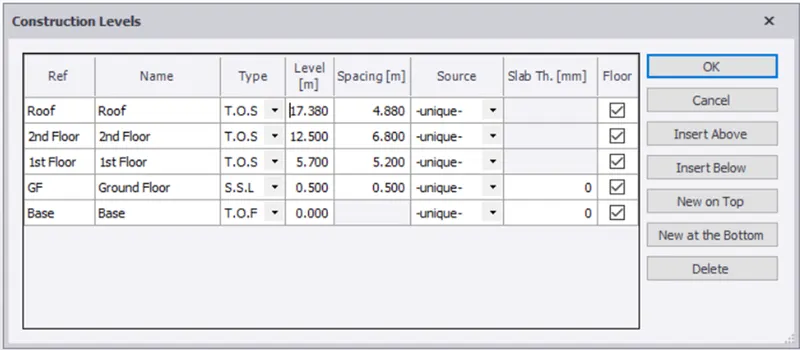

• First set all initial setting then creates a levels in construction level

• Select model tab,and in that select grid lines option
• And draw the grid lines according to dimensions
• Select manage property set in Home tab
• Create new property as PD1,column size-400x500mm and grade of concrete is M25
• Then select the column option and placed the column on grids

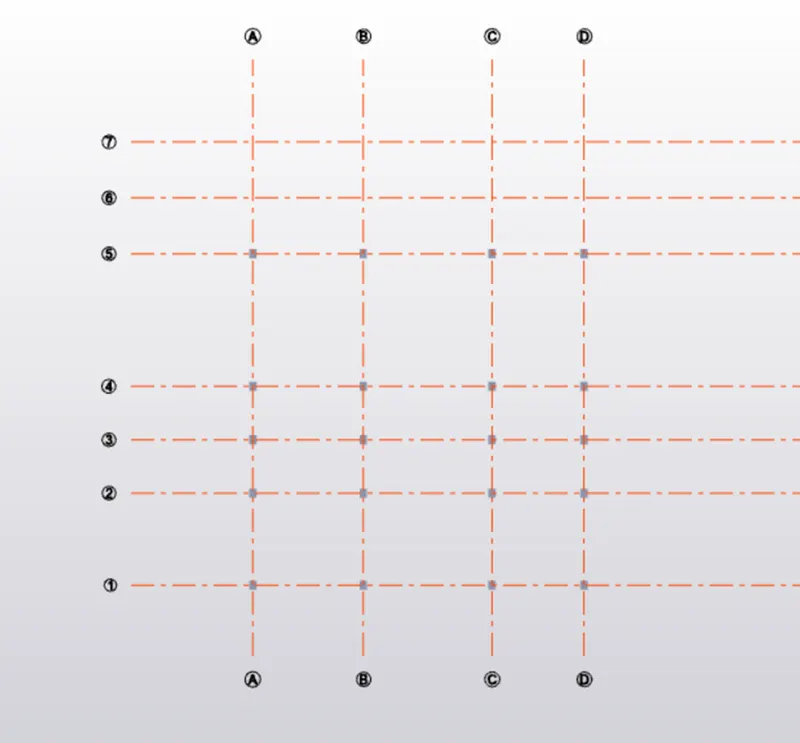

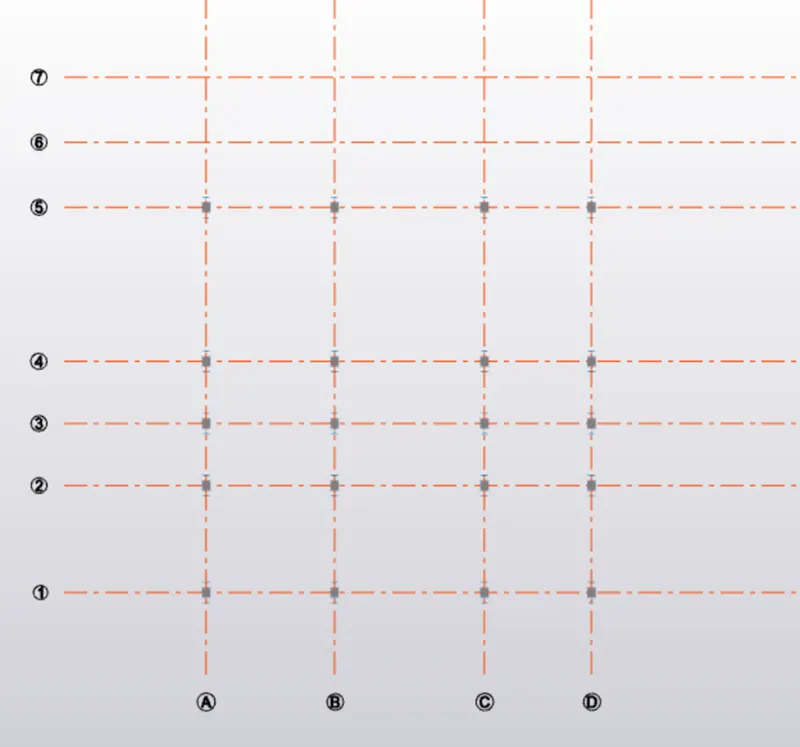

2D view-

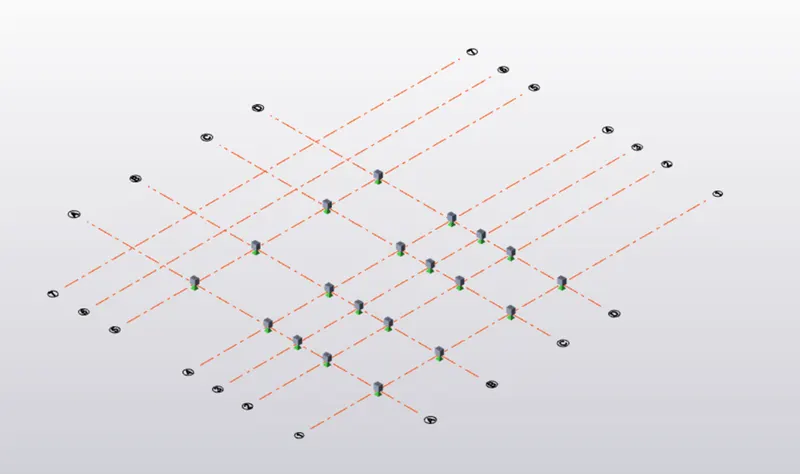

3D view -

2)

Aim - To Create column properties for steel columns and model columns in the grid created as per assignment 1

Procedure -

• Select manage property from Home tab
• And create new layer as C1
• Select section property as ISMB and MB500

• Select ground floor plan and select levels
• In manage property set,select new property as C1 and draw the columns

3D view -

3)

Aim - To create beam properties and model primary and secondary beams on the ground floor

Procedure -

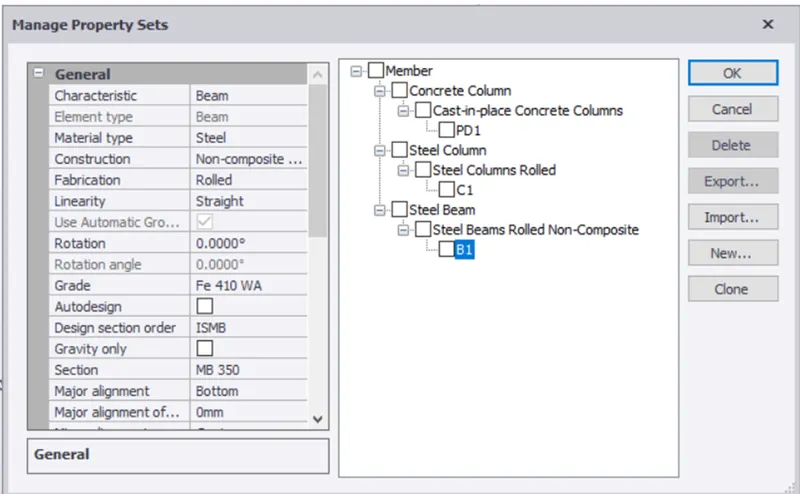

• Select manage property set from Home tab
• Create new property as steel beam
• Select beam section as ISMB,MB 350
• And draw the beams
