To model columns for industrial steel structure using TSD
- Que no. 1,2 & 3 -
- Ans -

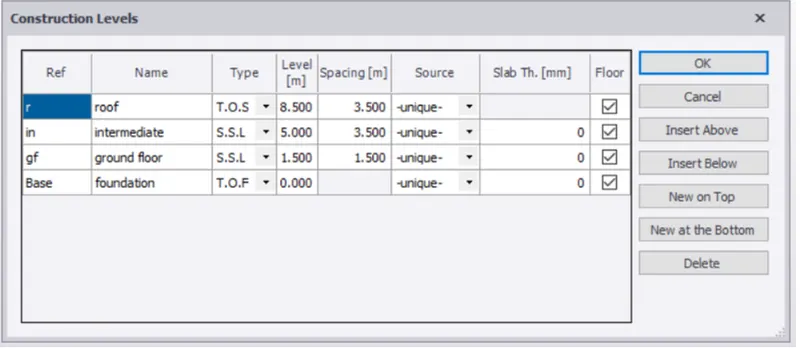

- Open tekla go to windows select structure window and click on levels.
- Enter the levels of model such as foundation, ground floor, roof along with their specing and type.

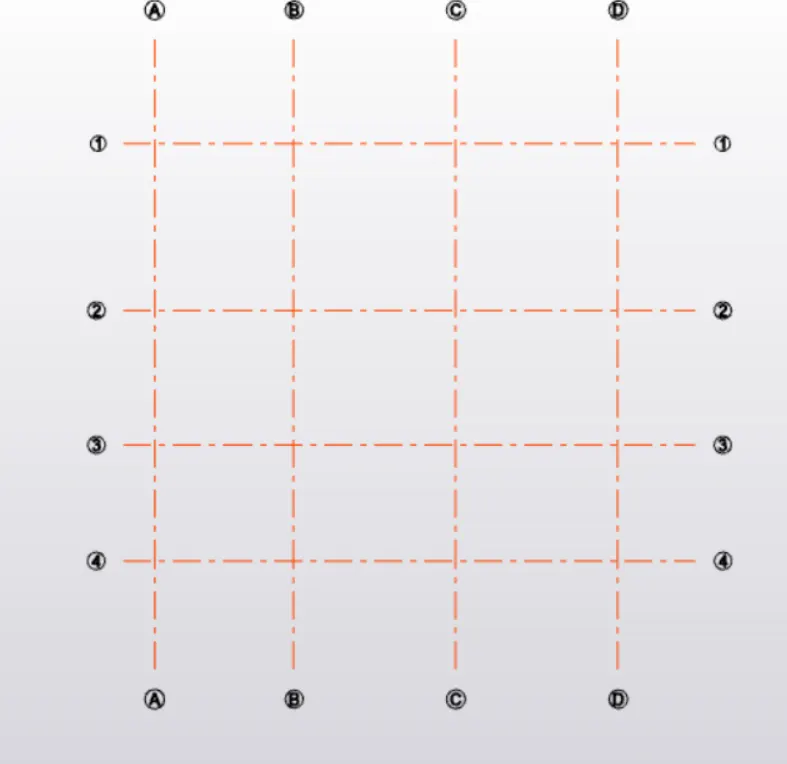

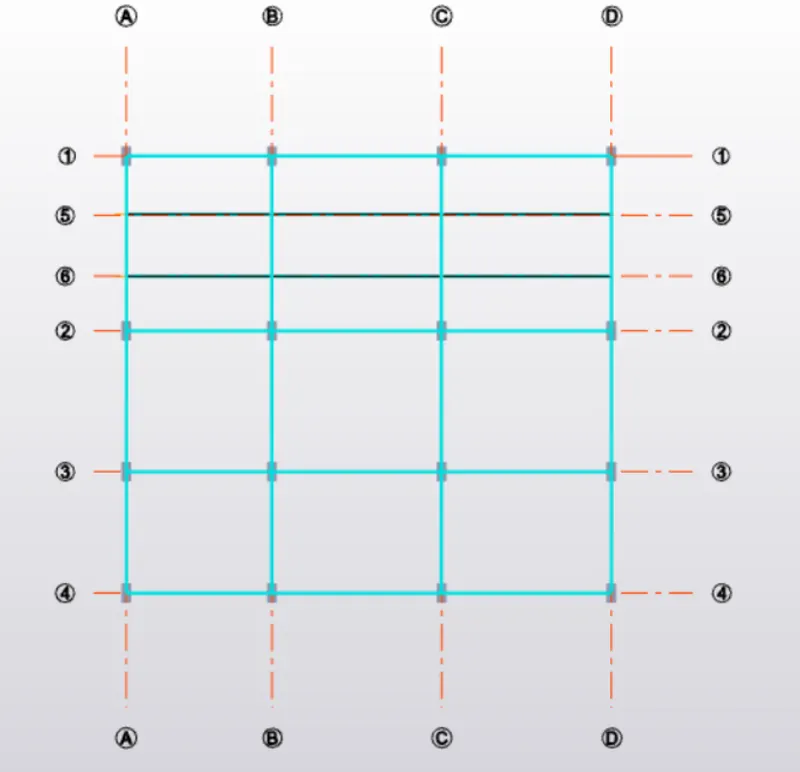

- Now go to grid lines from the ribbon and select grid line and draw a horizontal grod.

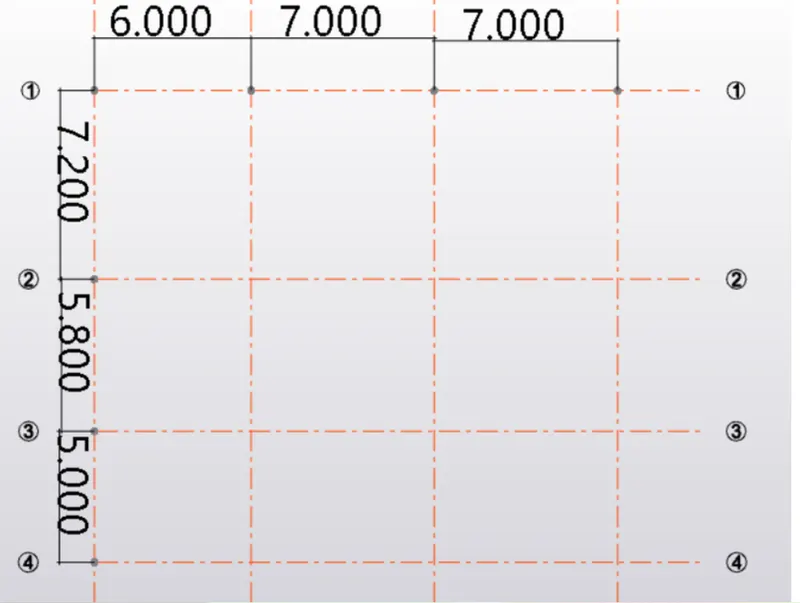

- From the same option select parallel quick option and draw other grids as per the plan.

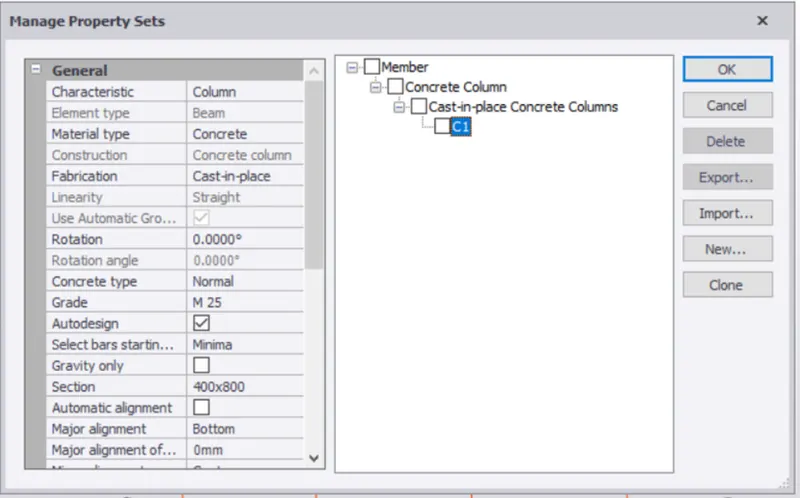

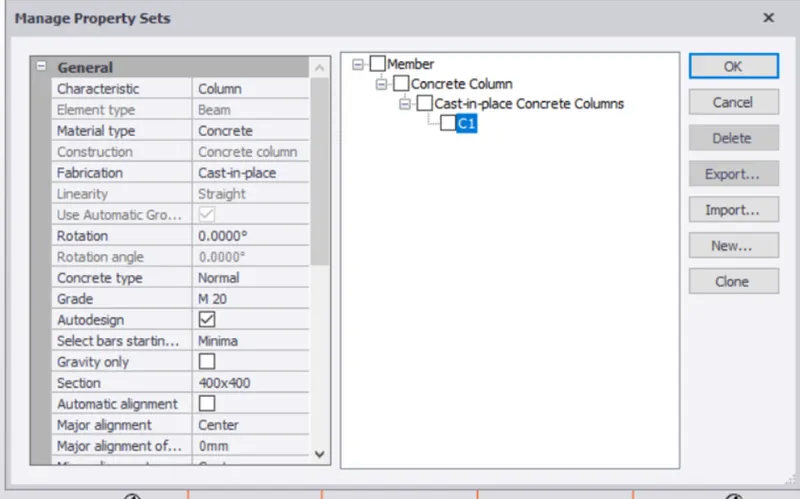

- Now go to manage property sets and click on new select concrete column.
- Enter its properties such as grade of concrete, major and minor align axis.
- Enter its dimensions.

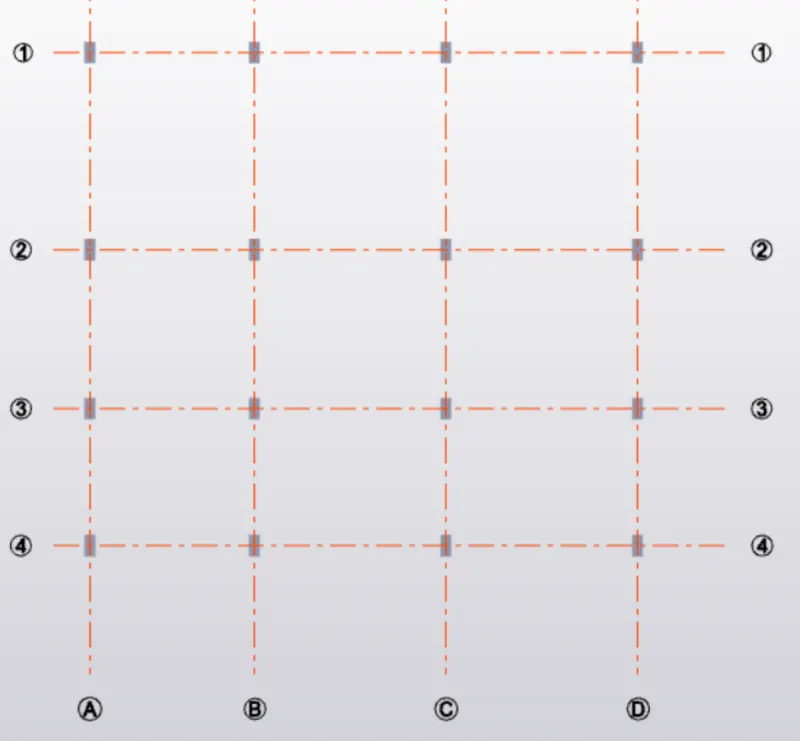

- Now place these columns on the grid intersections as shown below.

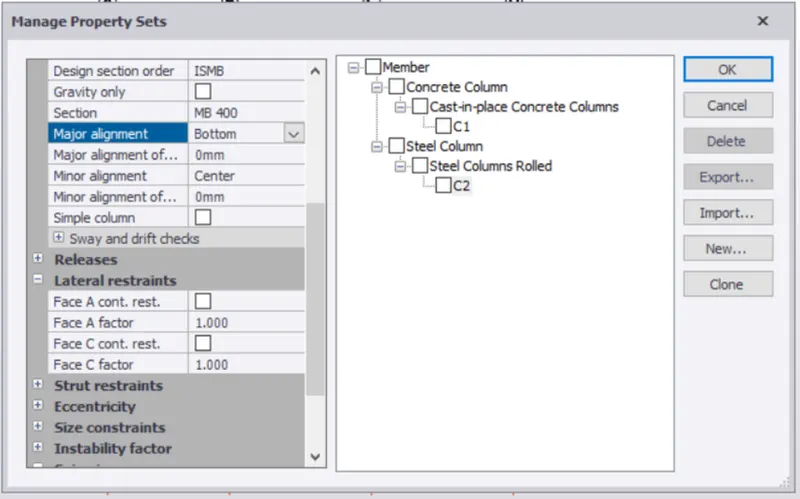

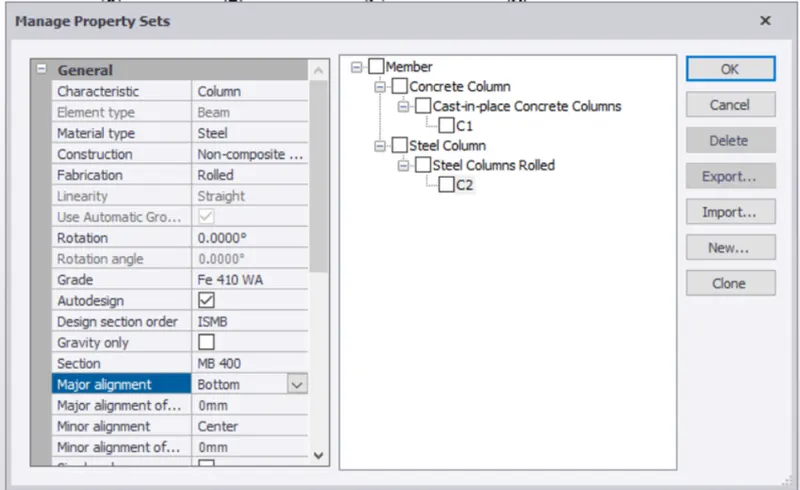

- Similar way enter the properties of steel column such as grade (ISMB 350) major and minor align axis.

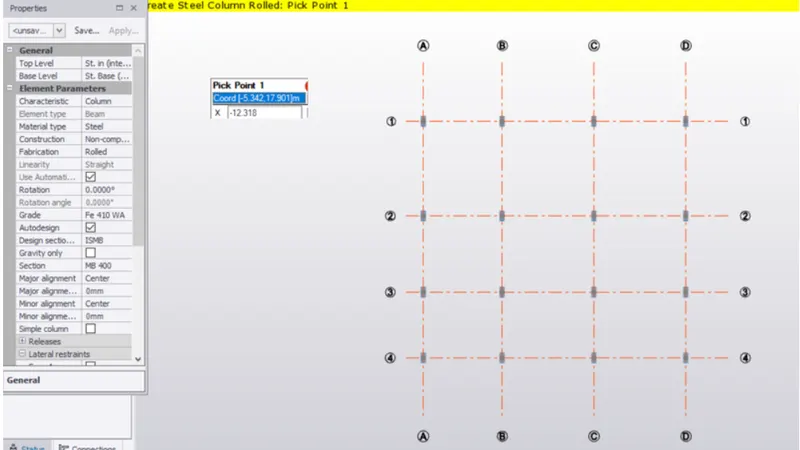

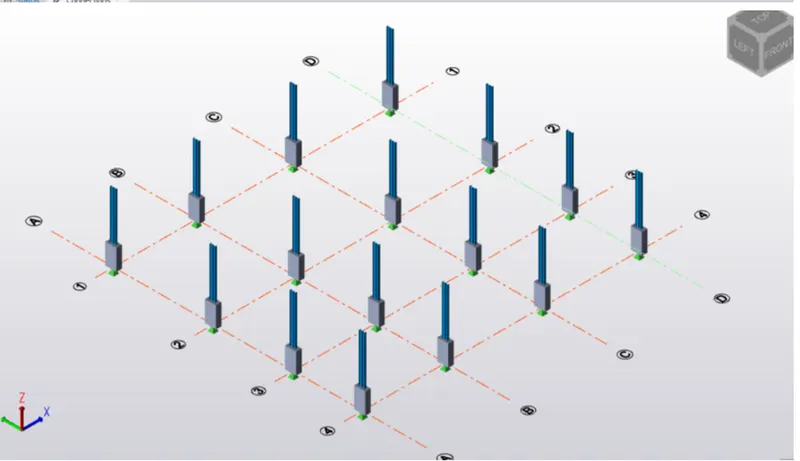

- Now place these columns over concrete columns as shown.

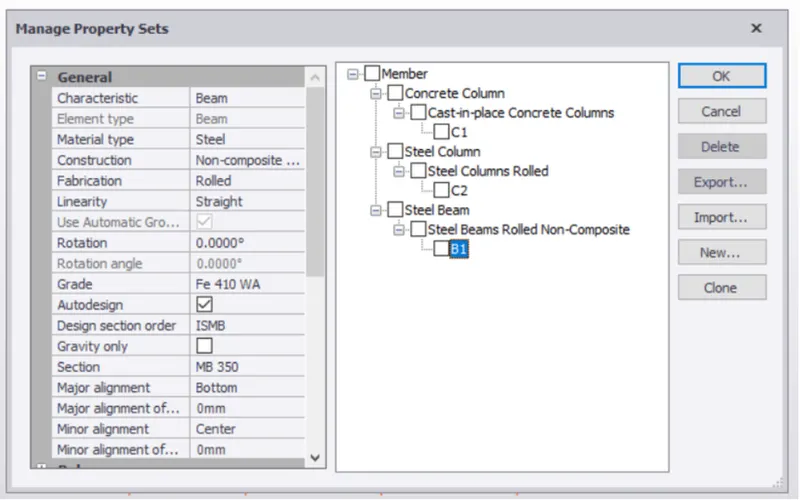

- Similar way define the steel beams B1 with their properties such as grade, major and minor align axis.

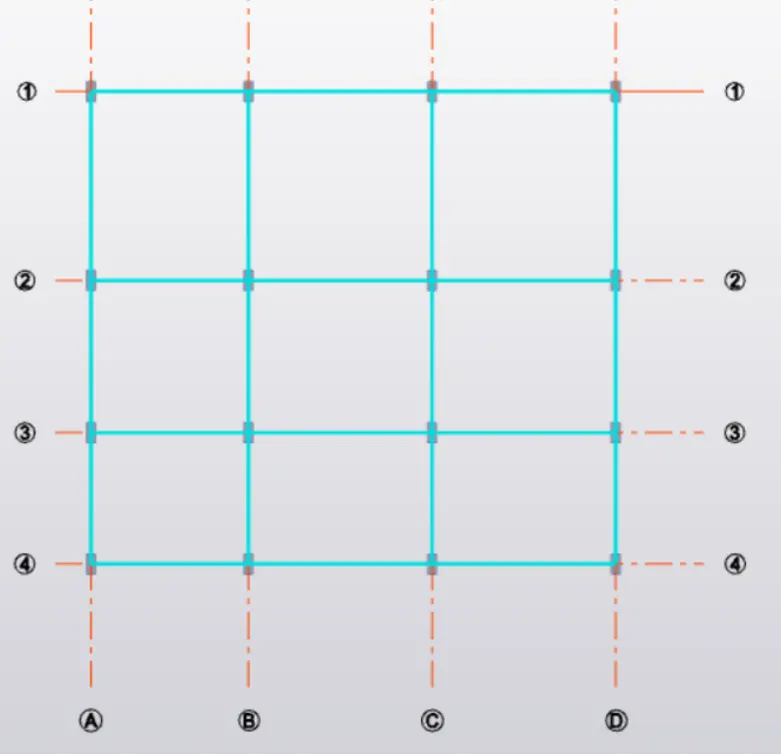

- Now place beams in the layout provided with columns throughout the layout.

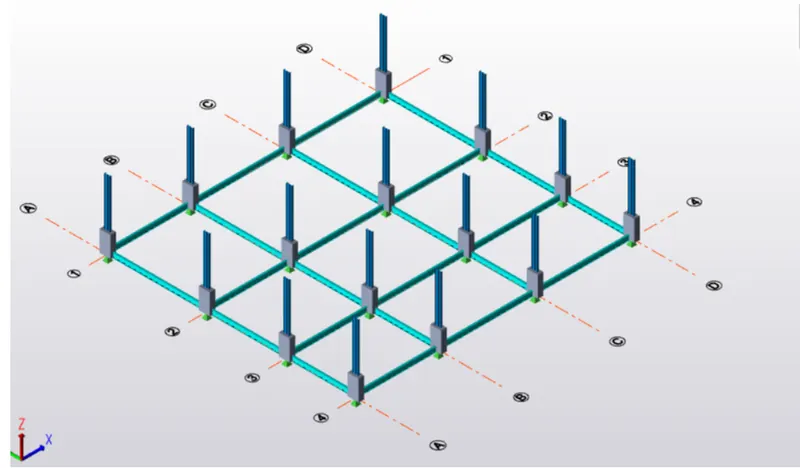

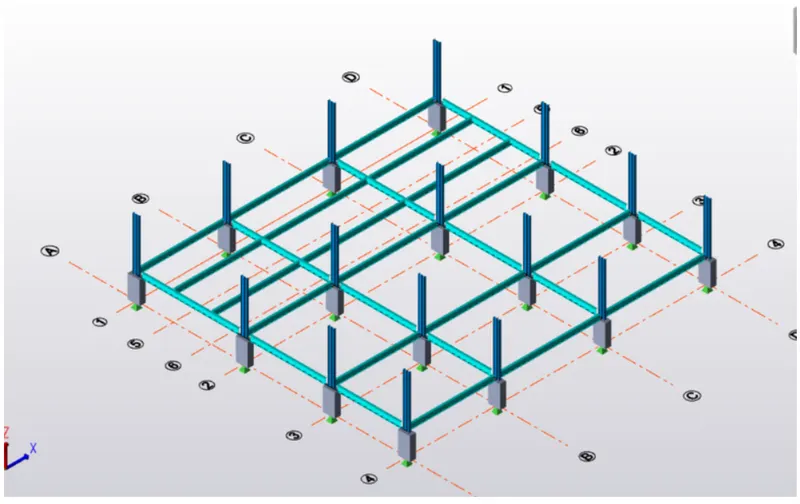

- Here we placed beams at base level.

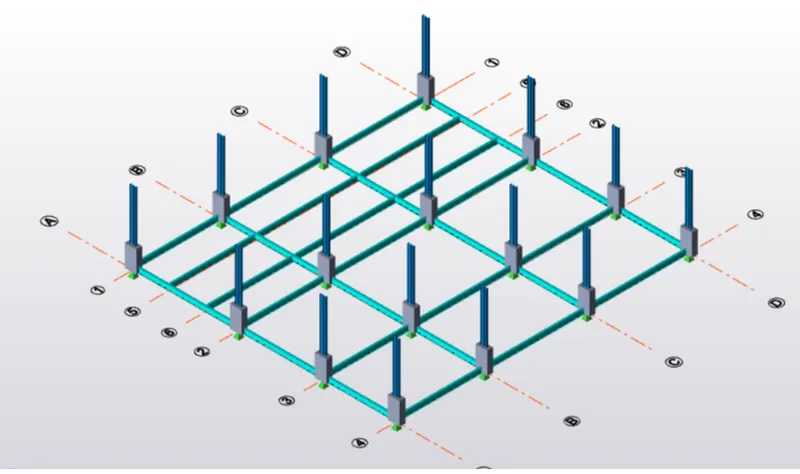

- Now beams have been placed at ground floor along with secondary beams in between.
