To Model a RC residential structure using TSD
Aim:
To set up the model for RC building design based on the above parameters for cover
Procedure:

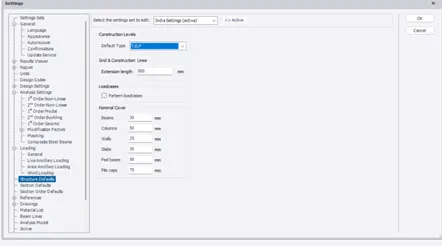

- Go to Home – Settings

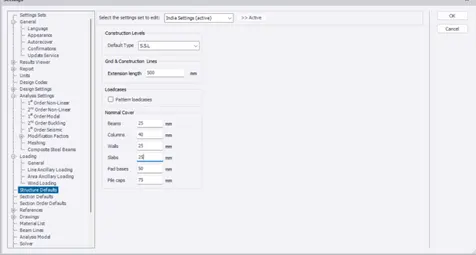

- Under Settings-Structure defaults.
- Adjust the structural default type as TOF/SSL and accordingly adjust the cover
Aim:

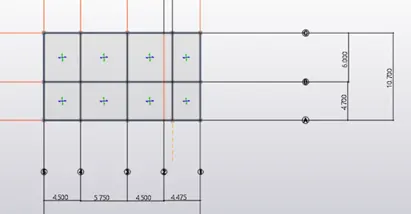

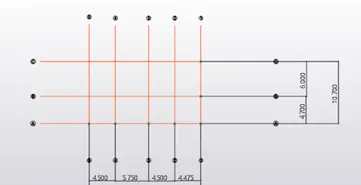

To model the grids as per the given attachment
Procedure:

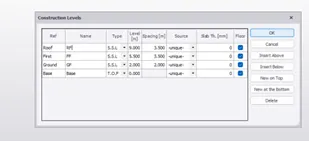

- Go to Model – Construction levels to create 4 levels – Base, GF, FF , RF

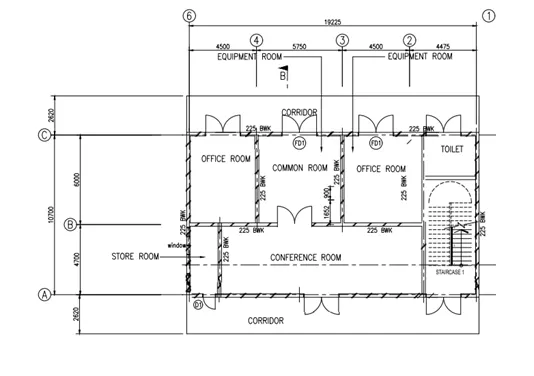

- Study the layout and write a summary for general arrangement of the structure
Aim:
To study the layout and write a summary for general arrangement of the structure
Procedure:

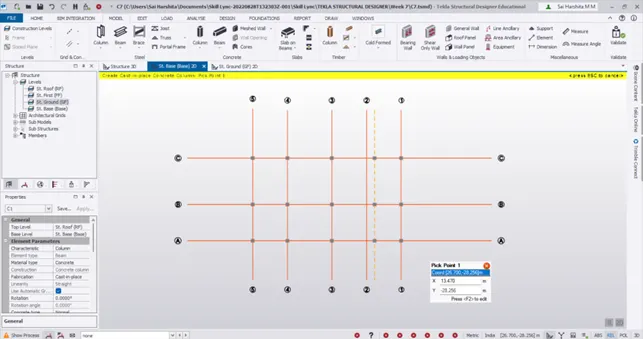

4.Model RC columns, beams and slabs as per your general arrangement
Aim:
To model RC columns, beams and slabs as per the given plan
Procedure:
