To Generate report for Steel Industrial and RC structures using TSD

1. Aim: To generate report for the steel building design.

Procedure:

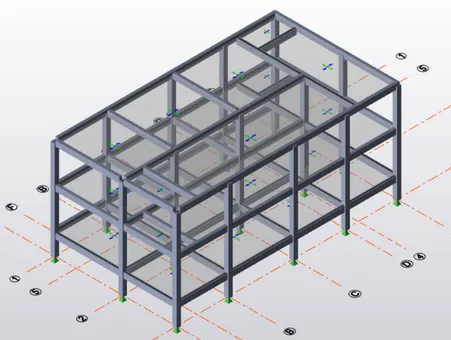

• Open the saved Tekla model
• Now go to the report option from the Ribbon and select model report.

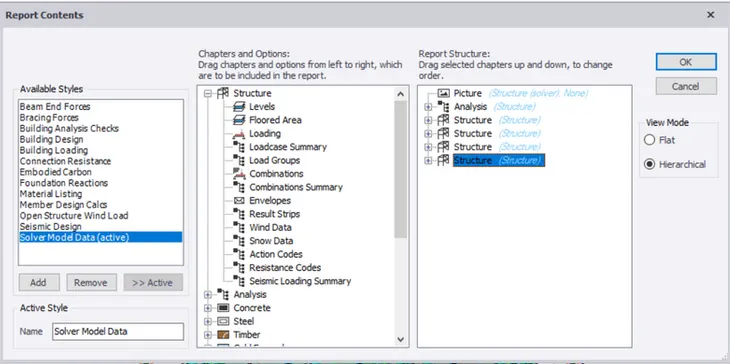

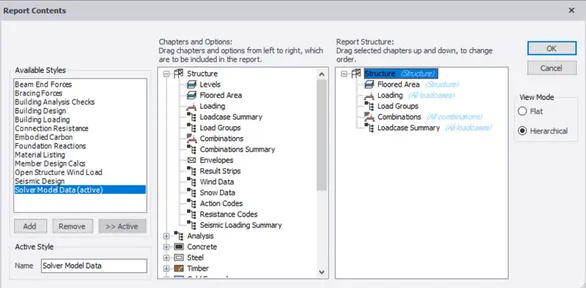

• Now select the load cases and combinations summary to obtain report.

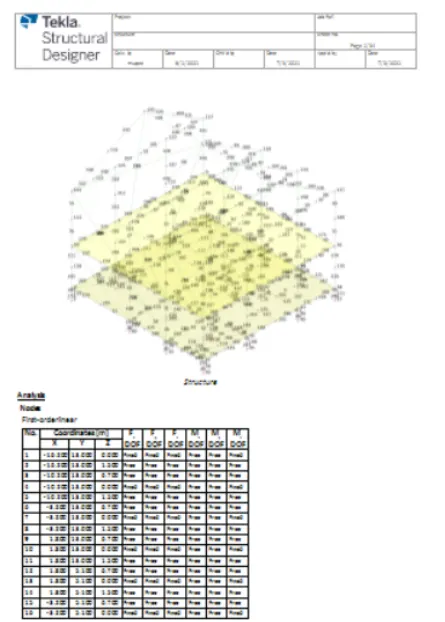

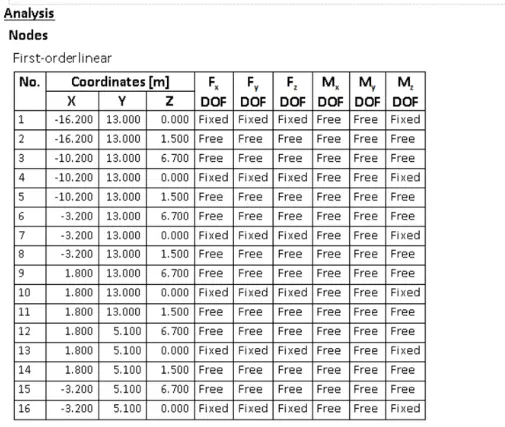

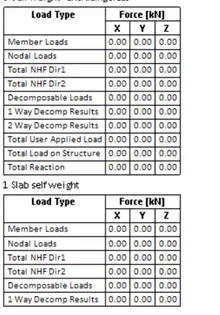

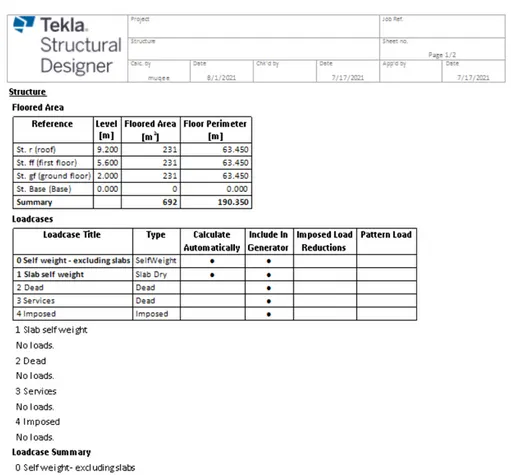

• Click on the Show report to obtain the report
•
•
•
•
•

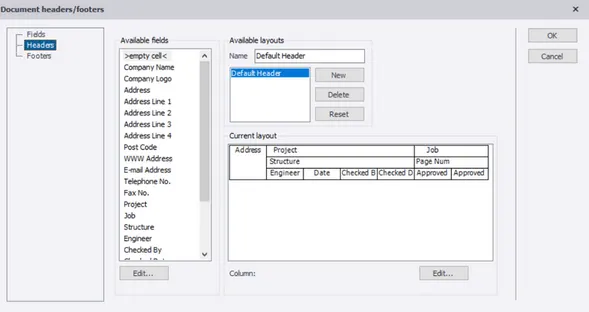

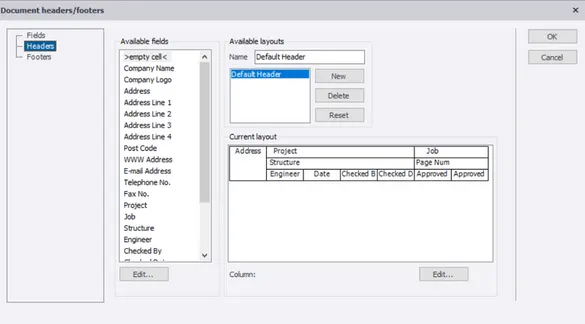

• We can change the project name, address etc, with the help of edit header option
•
• We can also convert this report in PDF, word etc as well.

Result: With this our objective is completed.

2.

Aim: To generate the report for RC structure along with loading summary.

Procedure:

• Open the previously saved Tekla model
•
• Now go to the report option from the ribbon and select model report.

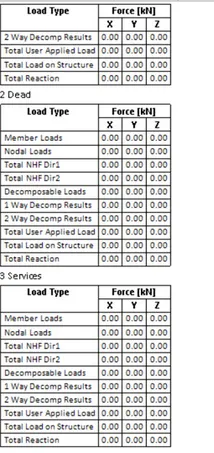

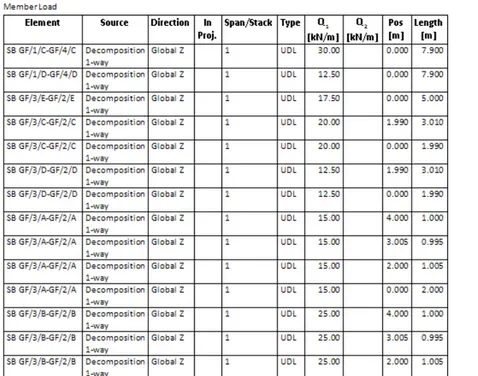

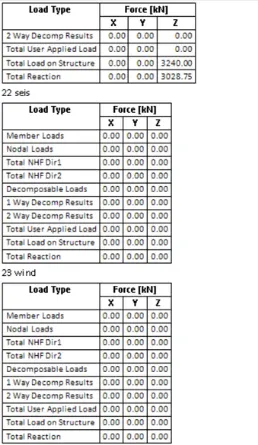

• Now select load cases and combinations summary to obtain report.
• Now click on show report option to obtain the report.
•
•
•
•
• We can make changes in the settings, project name, type etc; using the Edit header
•
• We can convert this report to PCF , word format etc.

Result: With this our objective is completed.

3.

Aim: To update the layers settings in the model and generate plan drawings and details from the model.

Procedure:

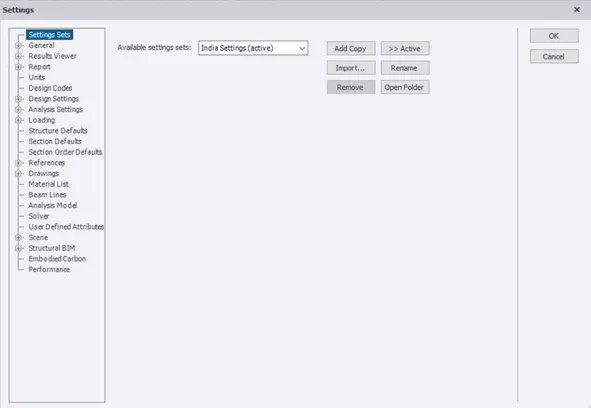

• Go to the setting option from the ribbon.
•

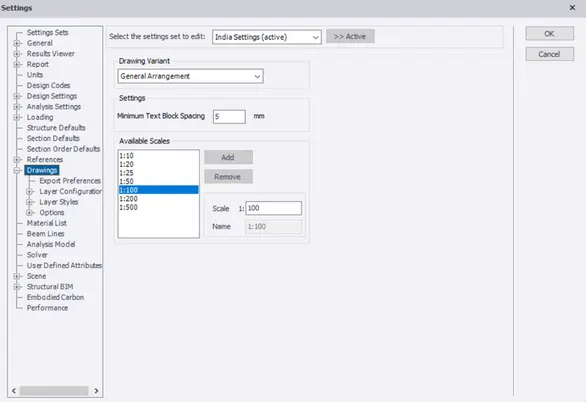

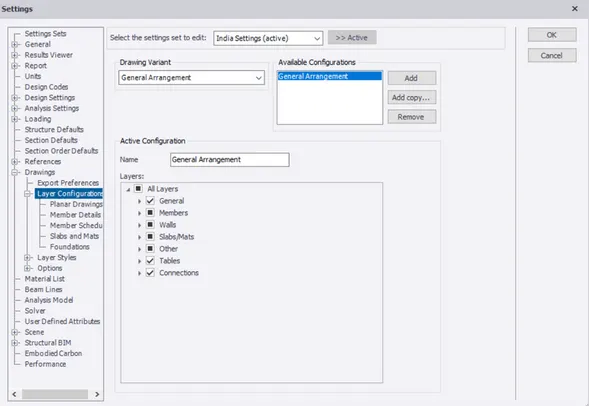

• Now select the drawing option and adjust the scale and sub layer configuration.
•
•

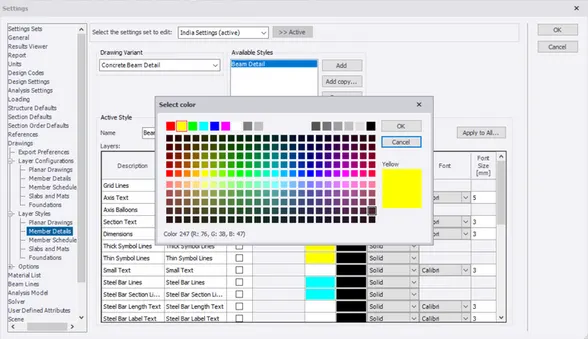

• Now we have to select the layer style and we will get the list of colours od different members of the model, which is our choice.
• Click on a colour and then select the desired colour for our desired member.
•
• Thus, we can make changes in the layer settings

Result: With this our objective is completed.
