To Generate report for Steel Industrial and RC structures using TSD

AIM:- to generate the  report  for the steel  building design

Procedure:-

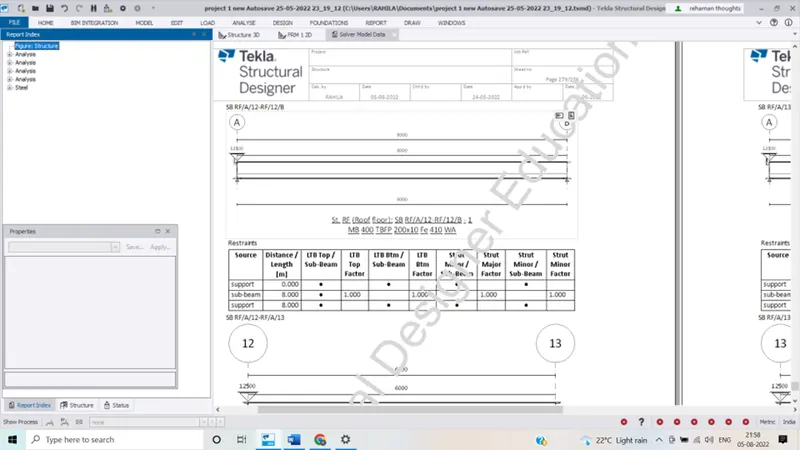

1. Open the Tekla model

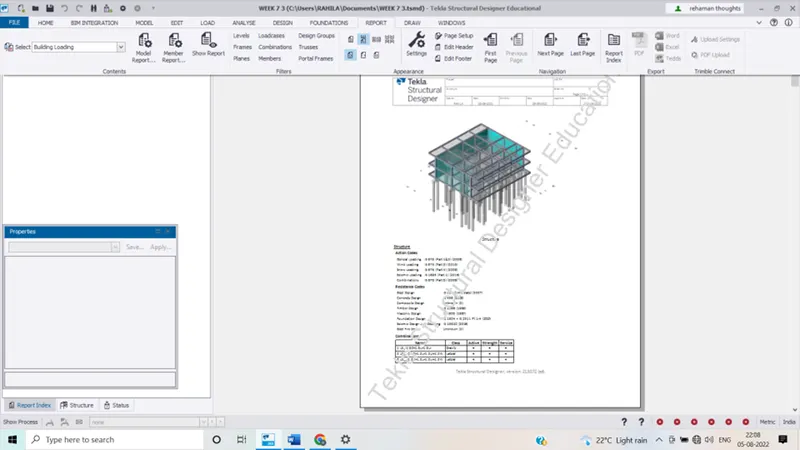

2. Now go to report option from the ribbon and select model report

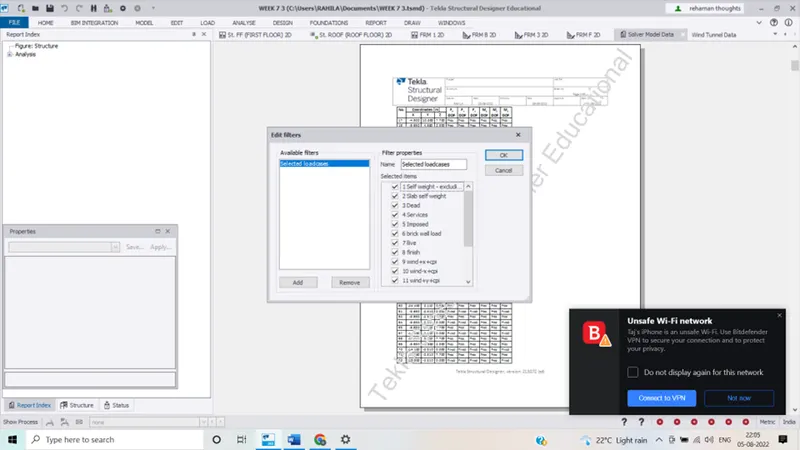

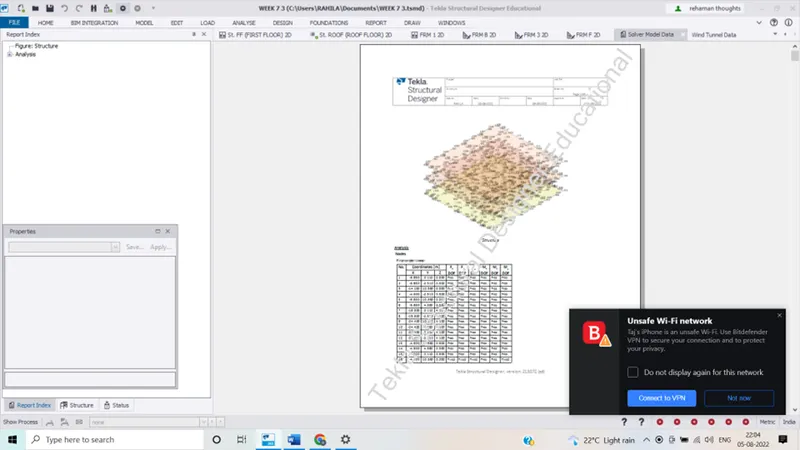

3. Now select the load cases and combinations summary to obtain report
4. Click on the show report to obtain report

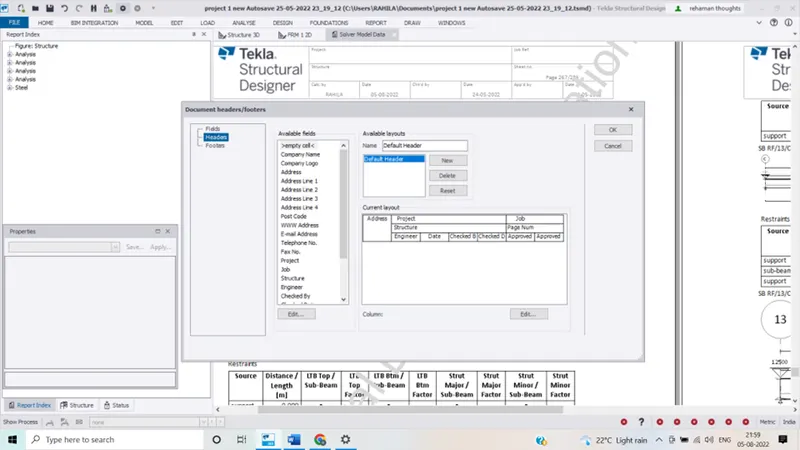

We can change the project name , address etc with  the help of edit header option

1. We can change the project name , address etc with the help of edit header option under report option.

Ans 2:- Aim :- to generate the  report for Rc structure  along with the loading summary

Procedure:-

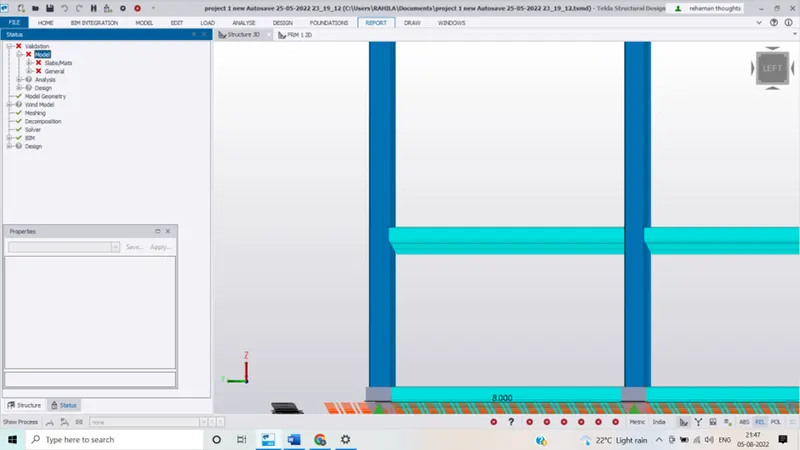

1. Open the previously created saved Tekla model
2. Open the Tekla model

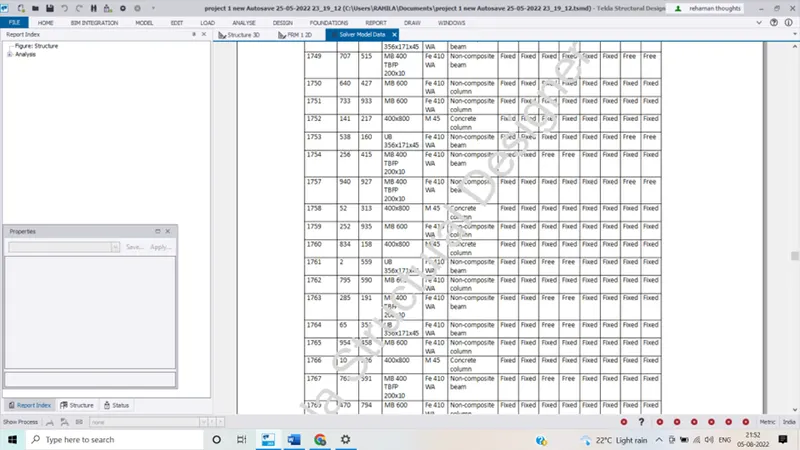

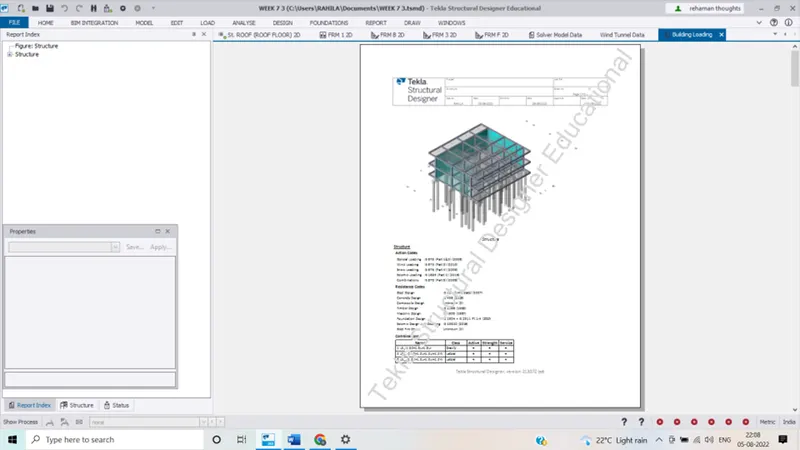

3. Now go to report option from the ribbon and select model report

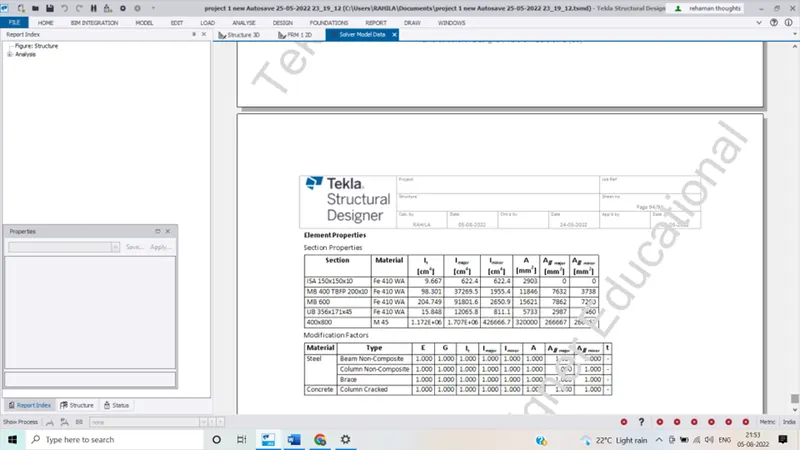

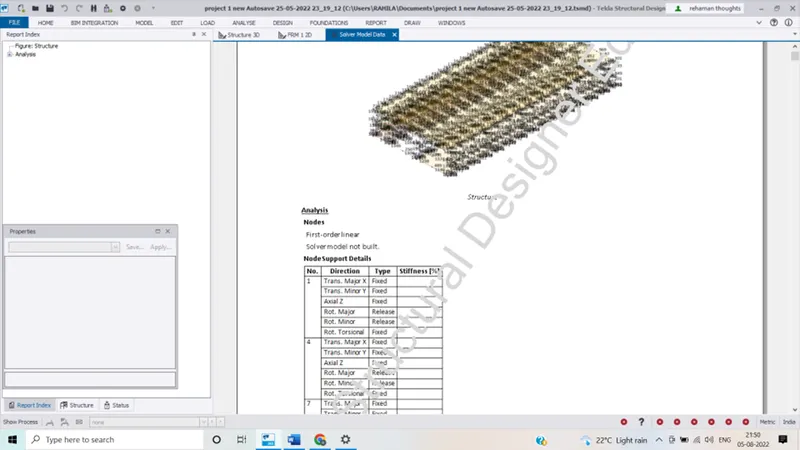

4. Now select the load cases and combinations summary to obtain report
5. Click on the show report to obtain report
   1. We can change the  project name, address etc
   2. We can also convert this report in PDF,word etc.

   3.

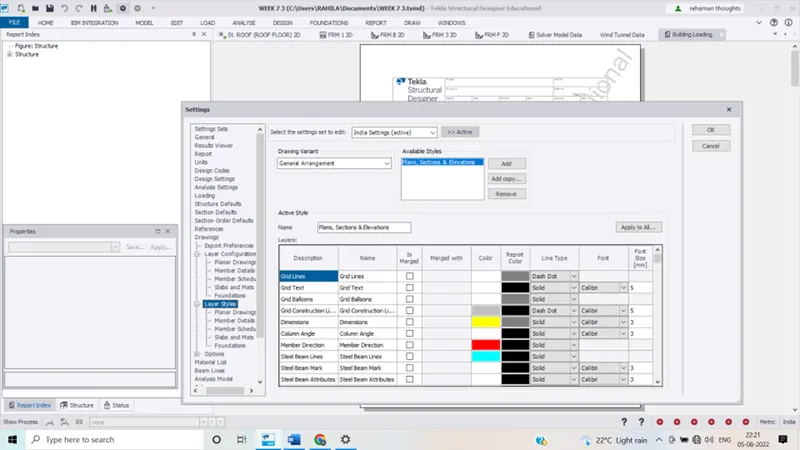

   Aim:- to update the layers setting in the model and generate plan drawings and details from the model

   Procedure:-

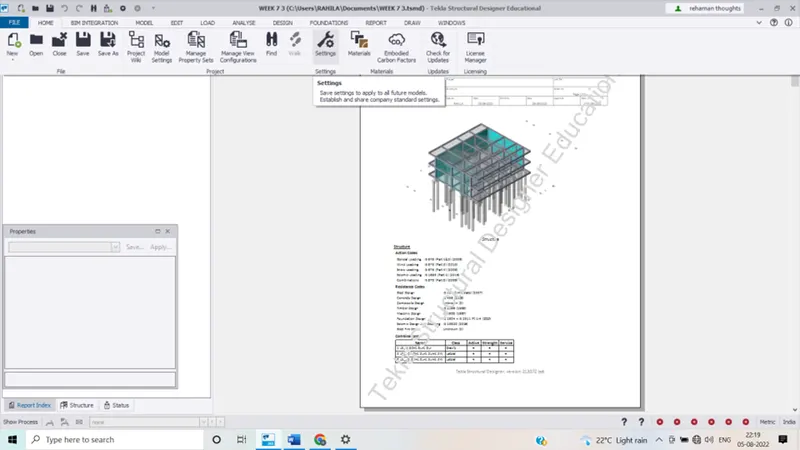

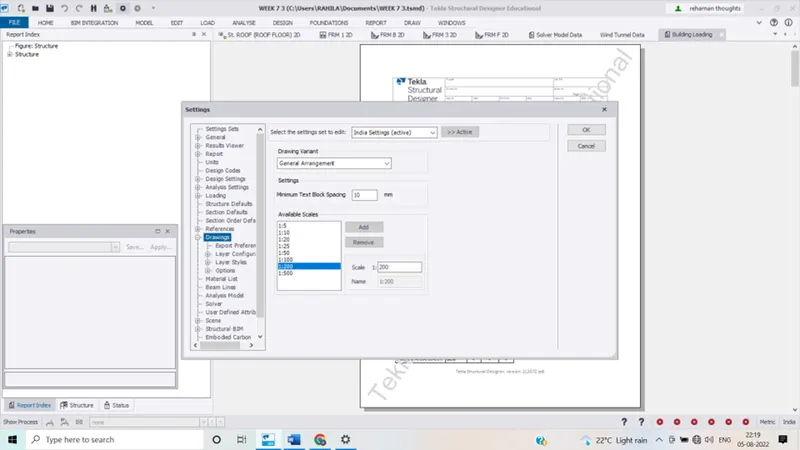

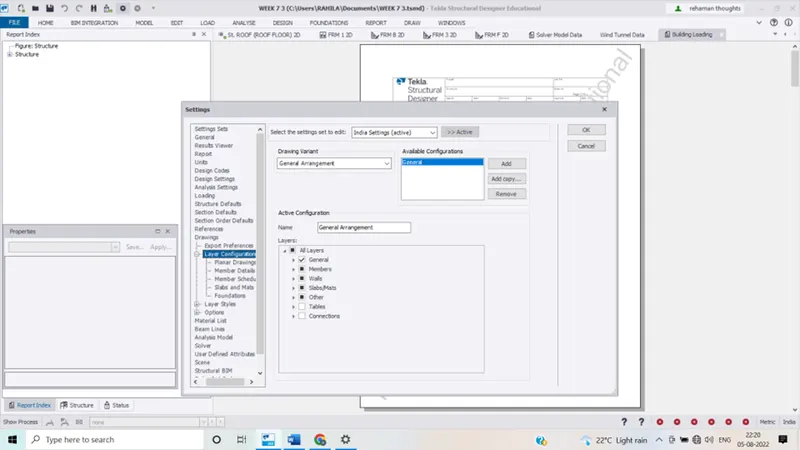

   go to setting option from the ribbon  under home tabnow select the drawing option and adjust the scale and sub layer configurationnow we have to select  the layer style and we will get the list of colours add different
6. members which is of our choice
7. click on colour and then select the desired colour for our desired memberhence we can make changes in the layer settings.
