To Design slab and foundation for an RC residential building using TSD

Aim:

To Design the slab and foundation of the model. Outline the thought process for designing of the elements (column, beam, slab and foundations)

Procedure:

• Open the previous week challenge and validate the model for any errors/warnings
• Run the first order analysis

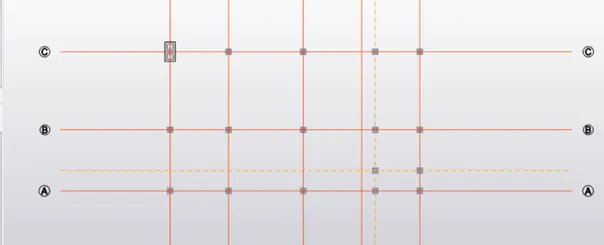

• First go to the ground floor and untick the members,grids and dimensions

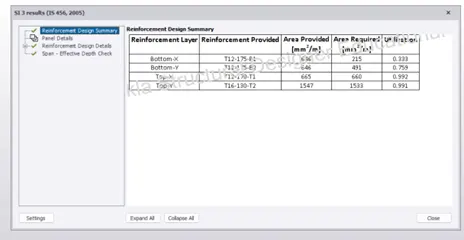

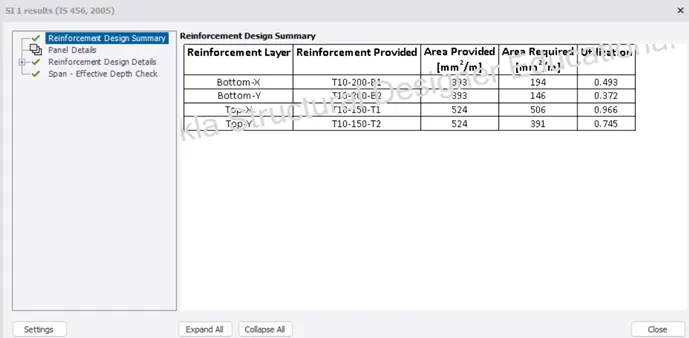

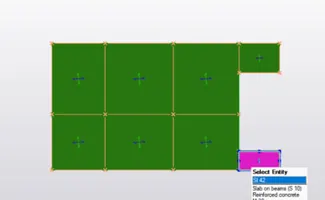

• Now right click to check the panel

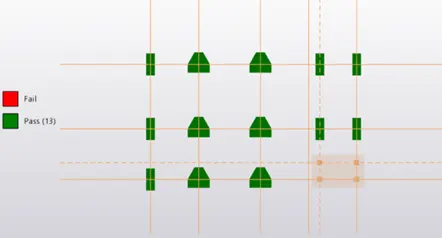

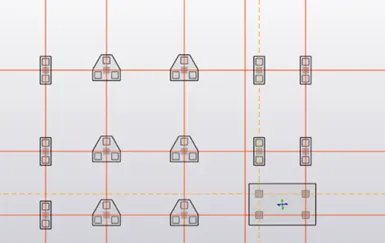

Foundation design:

• Go to Design – Settings

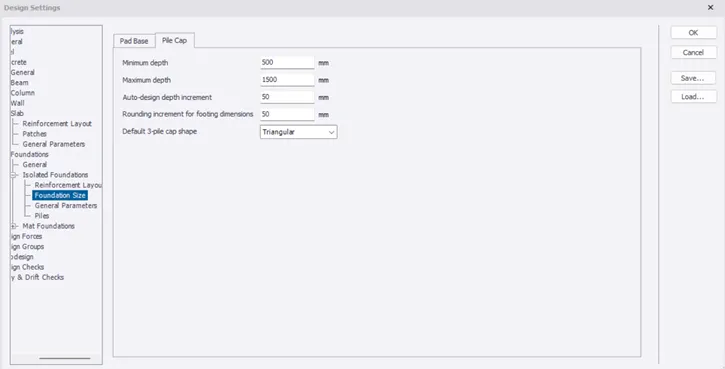

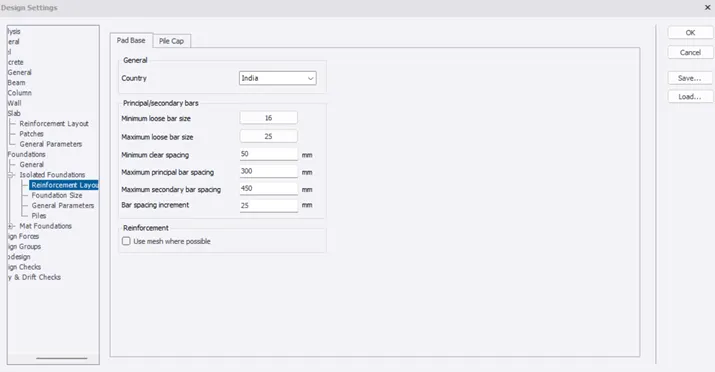

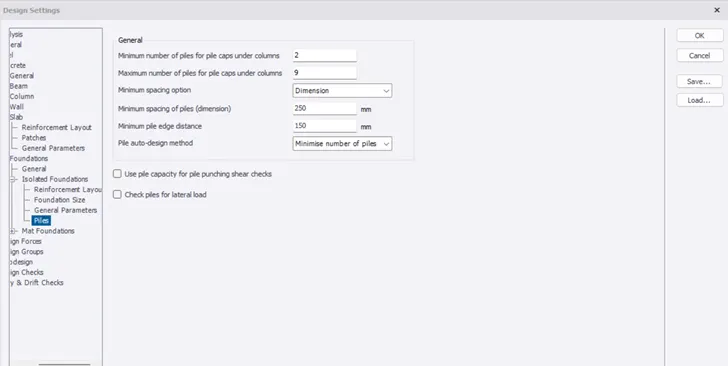

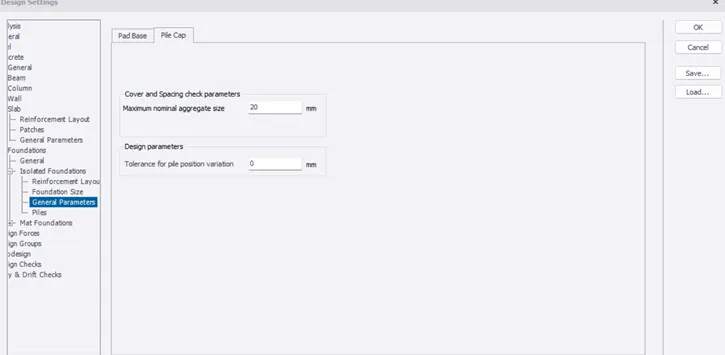

• Under Isolated footings, check Reinforcement layout, Foundation size, General parameters, Piles

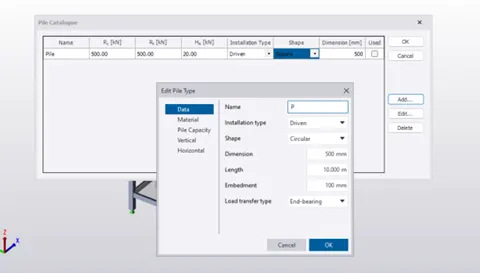

• Now go to Foundation – Catalogue
• Click on Add
• Add the details of the pile
