To Design RC column and beam for RC residential structure using TSD

SSudhakar Badugu18 Jul 2023

Aim:- to run the analysis of the structure and design reinforced concrete beam and column

procedure:-

open the tekla model and run the analysis

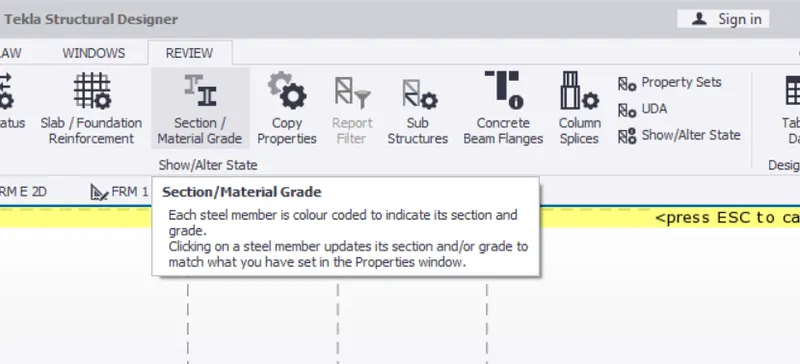

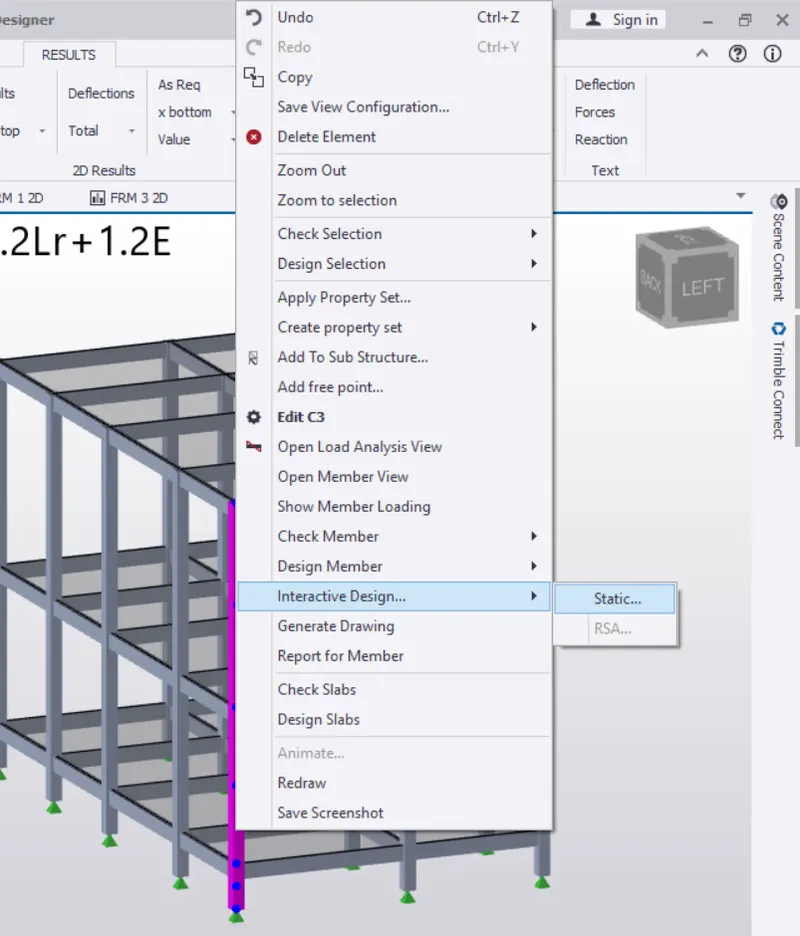

now select any of the column member and right click on it
then select the interactive design from the given option

check whether the member is passing through all the design checks

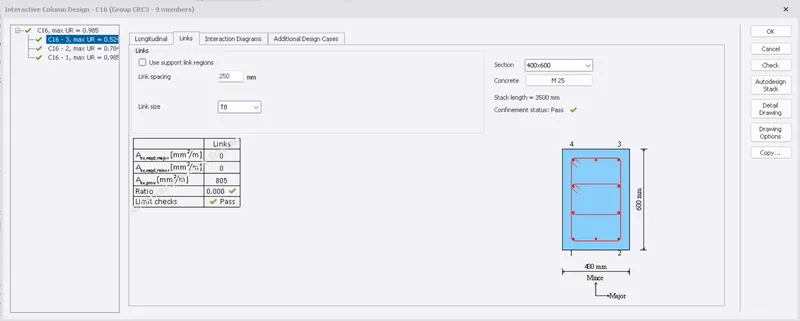

COLUMN NO: 16

here we can see that the column is safe in design and consider the reinforcement details

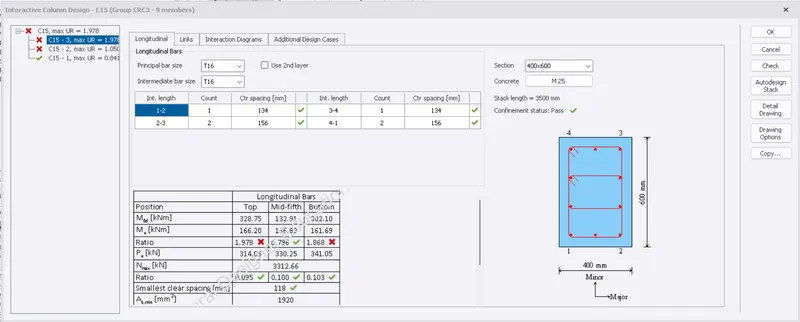

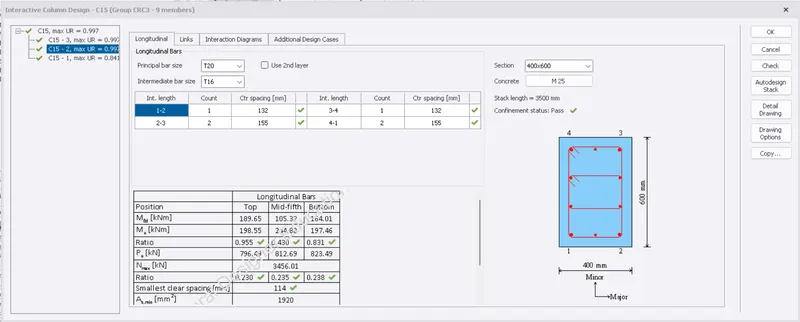

COLUMN NO :15

here we can see that the ratio of longitudinal bars is greater than 1
edit the rebar details to obtain the ratio of longitudinal bars as 1
try to change the rebar details of the top reinforcement and bottom reinforcement

RESULTS:- the design of the columns is done and verified with the design checks

Aim:- to design the beam member and verify it for the design checks

procedure:-

open the tekla model and run the analysis
now select any of the beam member and right click on it
then select the interactive design from the given option

verify for the design checks

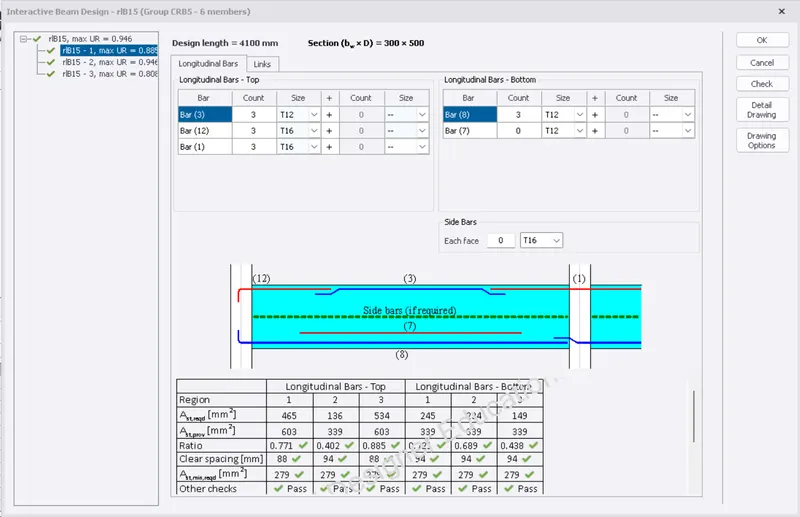

BEAM NO: 15

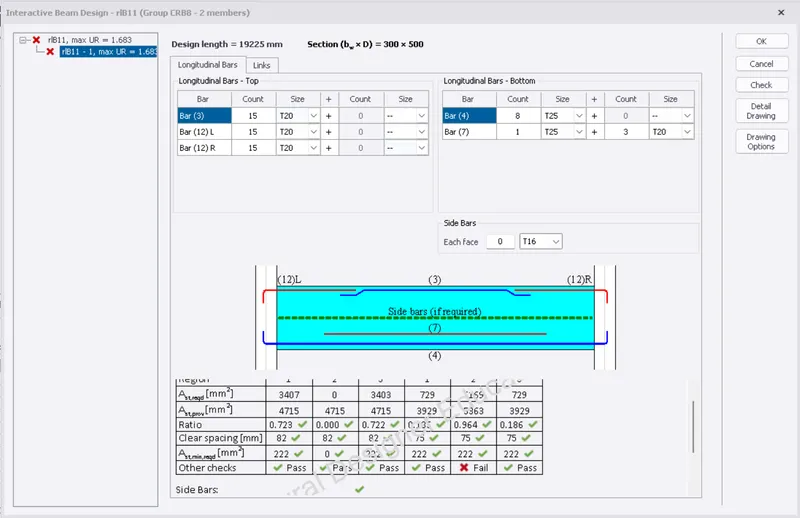

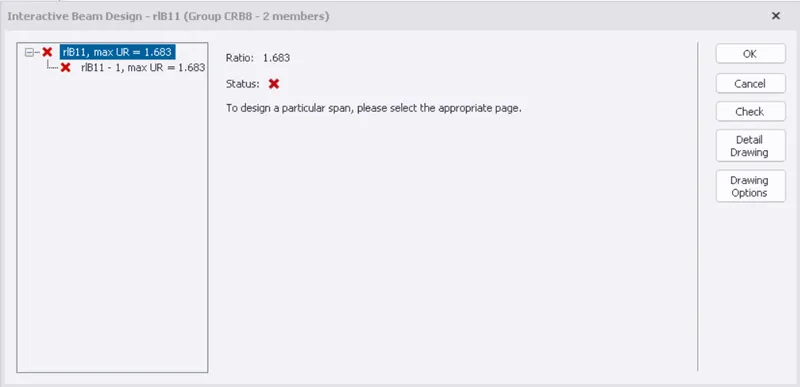

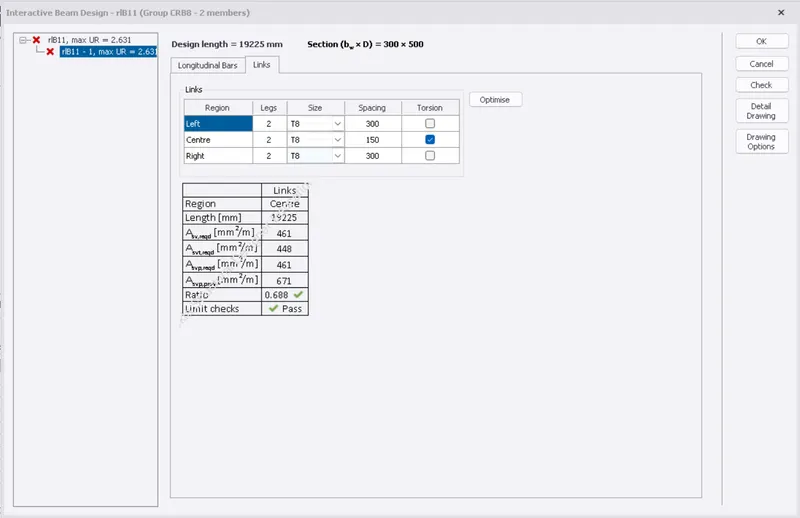

BEAM NO: 11

the above beam is not satisfied with the deflection check
to verify the beam for deflection increase the depth of the beam section

RESULTS:- the beam design is checked and necessary correctopns have been done

1.) Based on the analysis design RC column and beam.

AIM :

To Based on the analysis design RC column and beam.

INTRODUCTION :

An ordinary reinforced concrete beam or the column itself is an inhomogeneous section composed of concrete and reinforcement, whose behavior is totally different.

A reinforced concrete column is a structural member designed to carry compressive loads, composed of concrete with an embedded steel frame to provide reinforcement.

PROCEDURE :

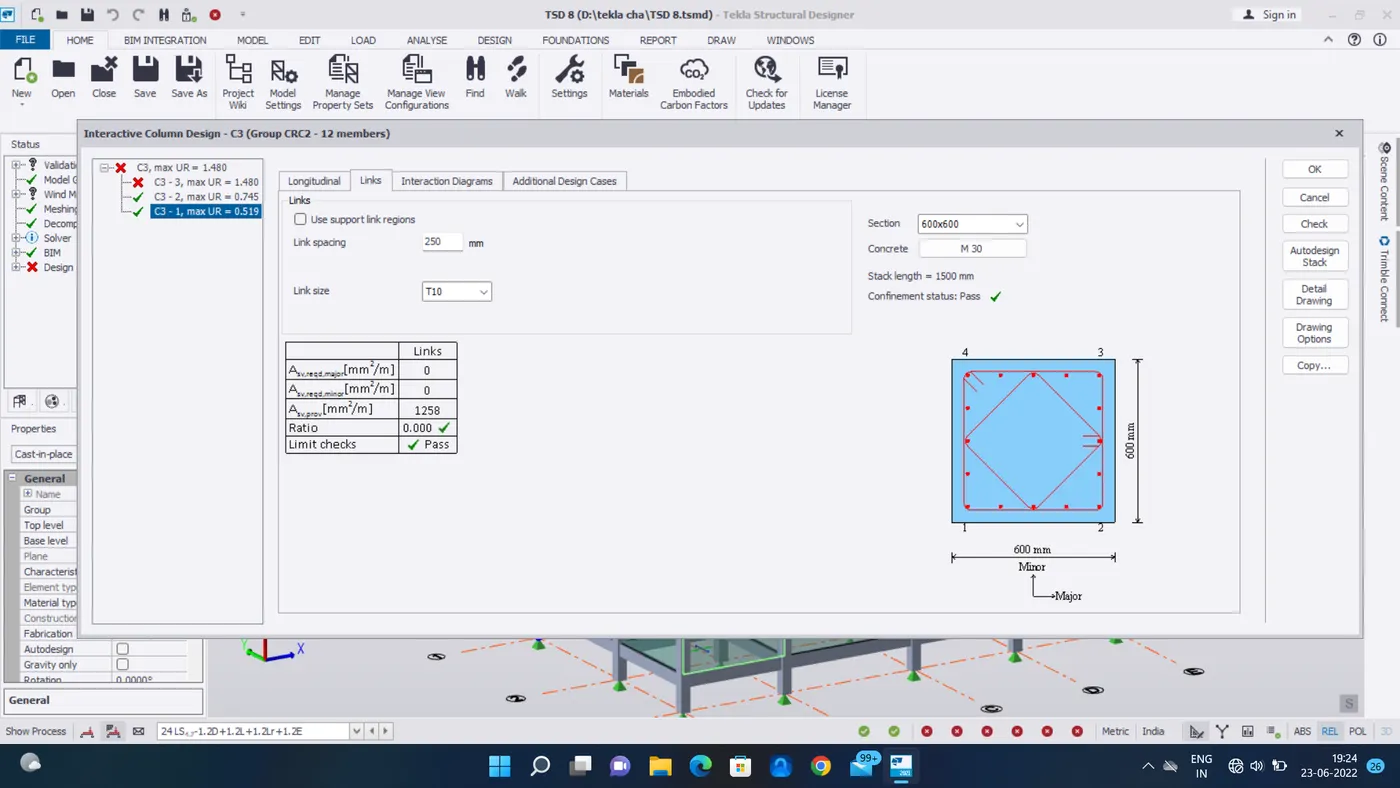

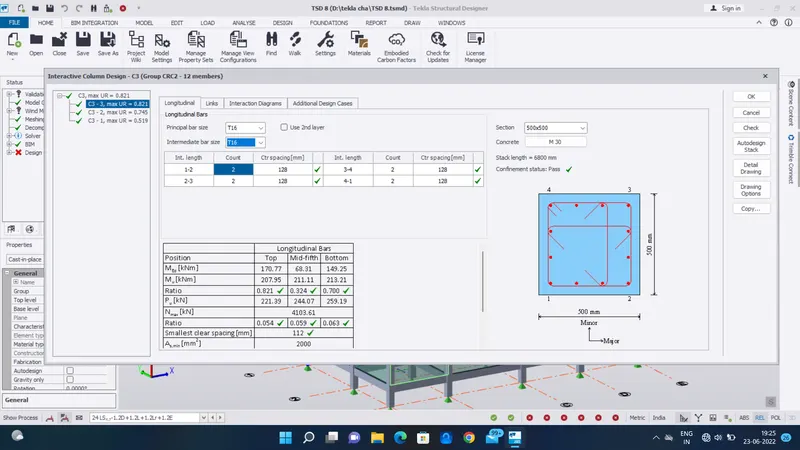

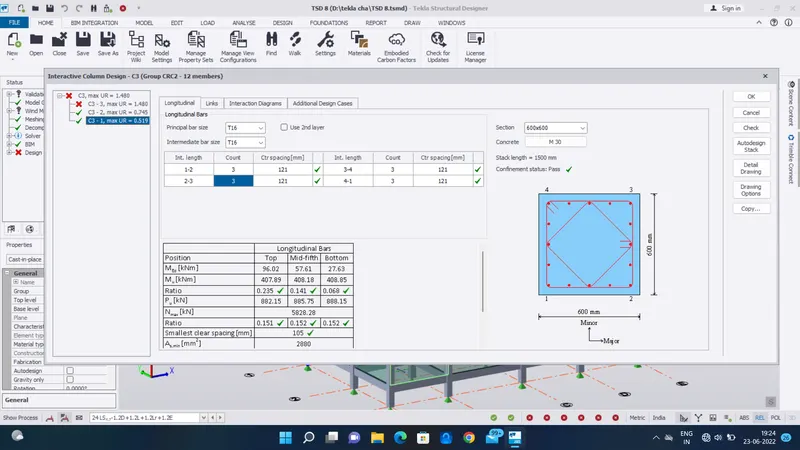

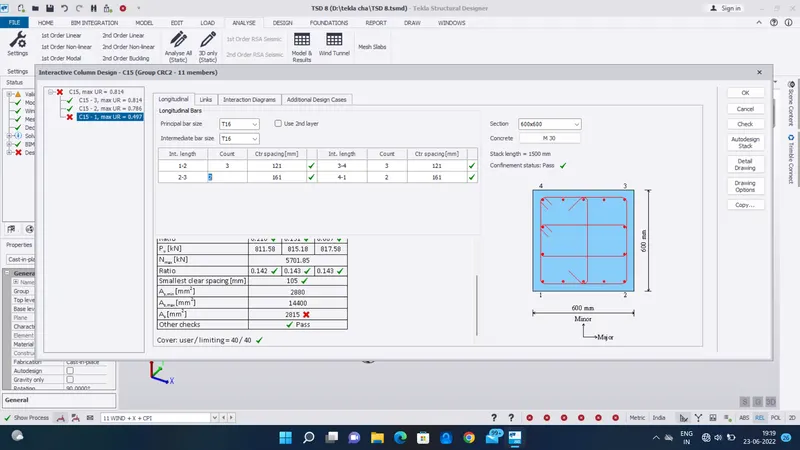

DESIGN THE COLUMN :

Open the tekla software and open previous file
After analysis the model

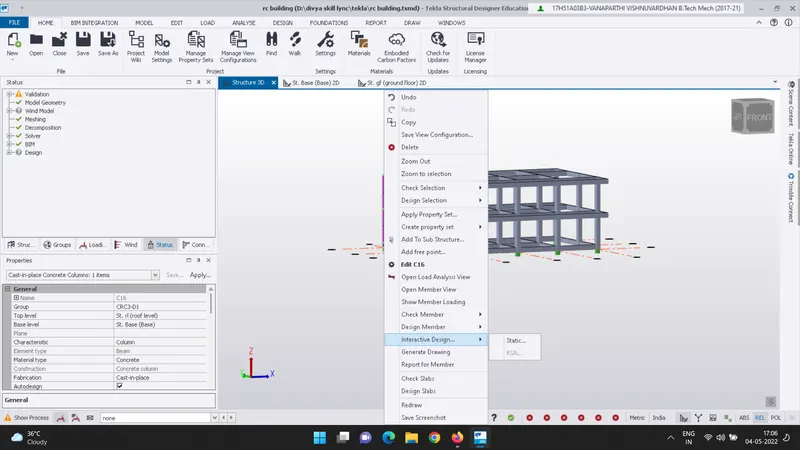

Select the column and right click
select the interactive design --> static
First we want to check the errors
And they have any errors shown
first change the principle bar size and intermidetate bar size
Again shows errors means just change the counts

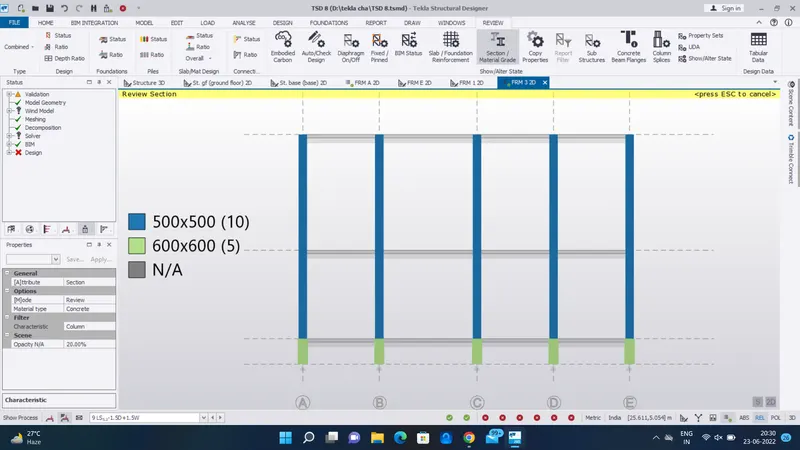

And again shows errors change the section size
Repeat the same procedure for all the columns
The procedure process image as been given below

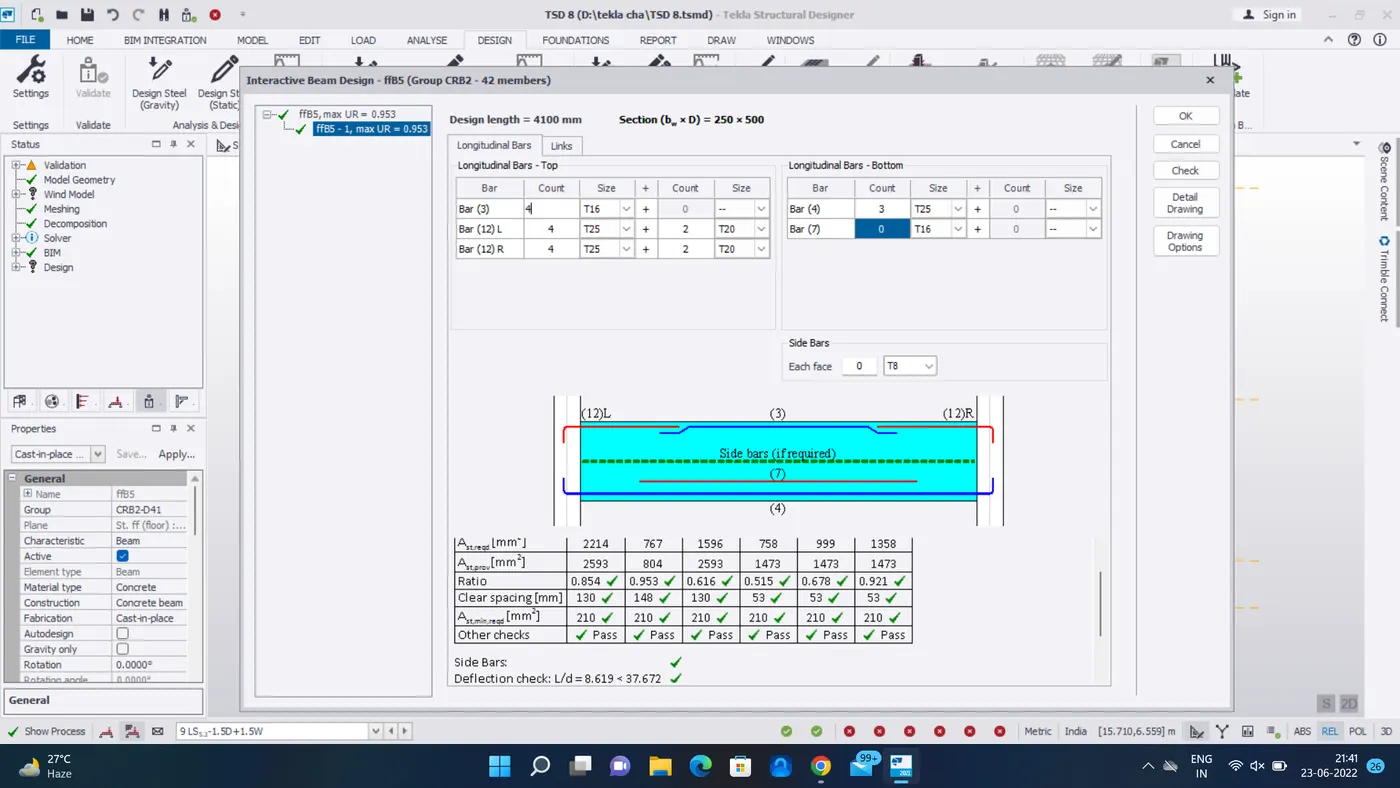

DESIGN THE BEAM :

Here we want to adjust the beam designs

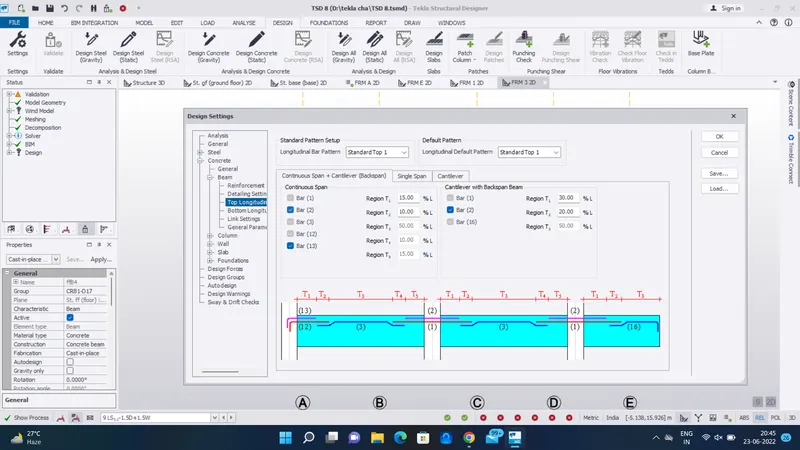

First go to the design setting under the design tab
Go to the concrete --> Beam --> Top longitudinal bar --> select the (Bar 2)

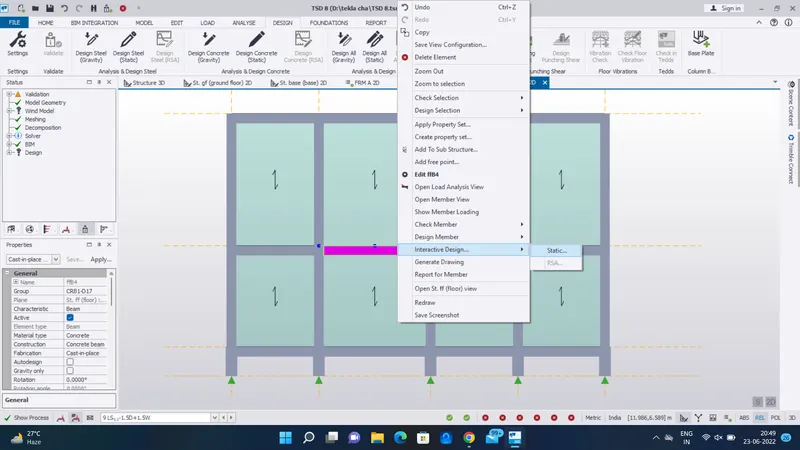

Select the beam and right click

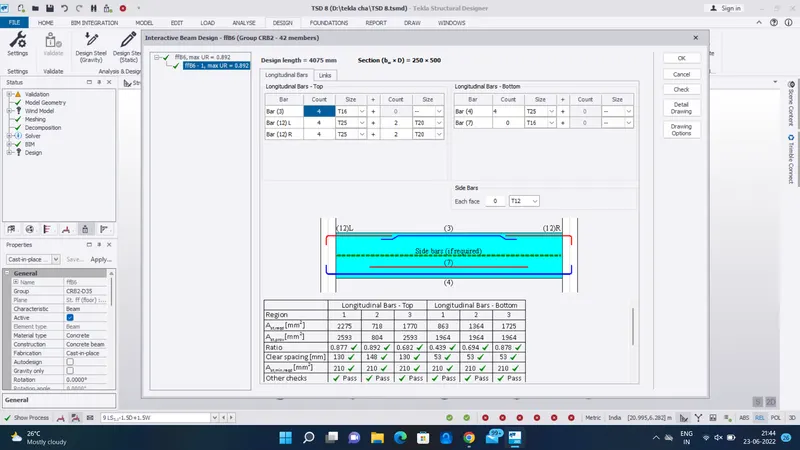

select the interactive design --> static
First we want to check the errors
And they have any errors shown

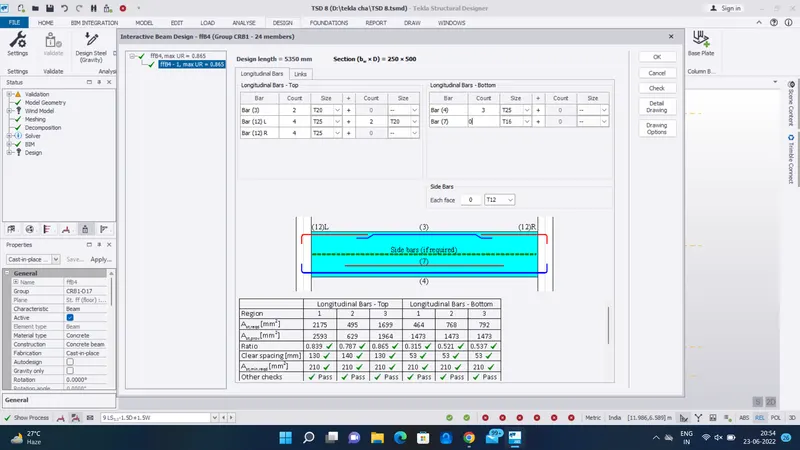

First adjust the size and count still the beam as been passed
Repeat the same procedure for all the beams

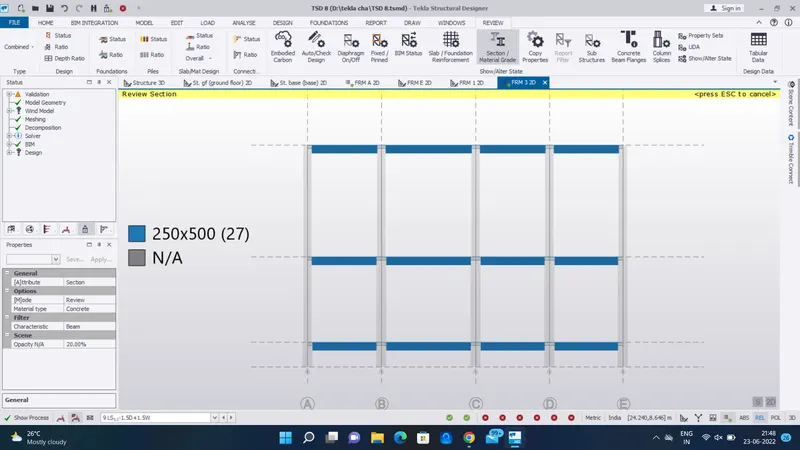

After finish all the beams we want select the status and we check the member are all passed
