STRUCTURAL SYSTEM of INDUSTRIAL STRUCTURE
Structural Systems of Industrial structures
Q.1 Chequered Plate design.

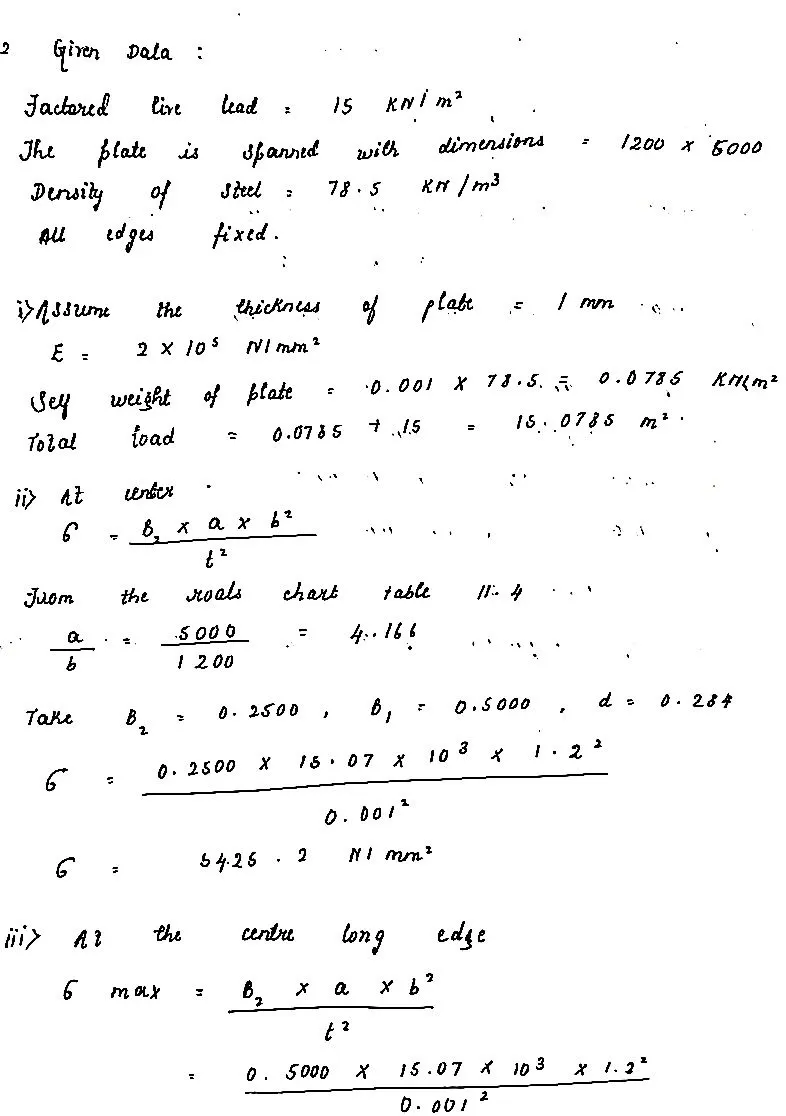

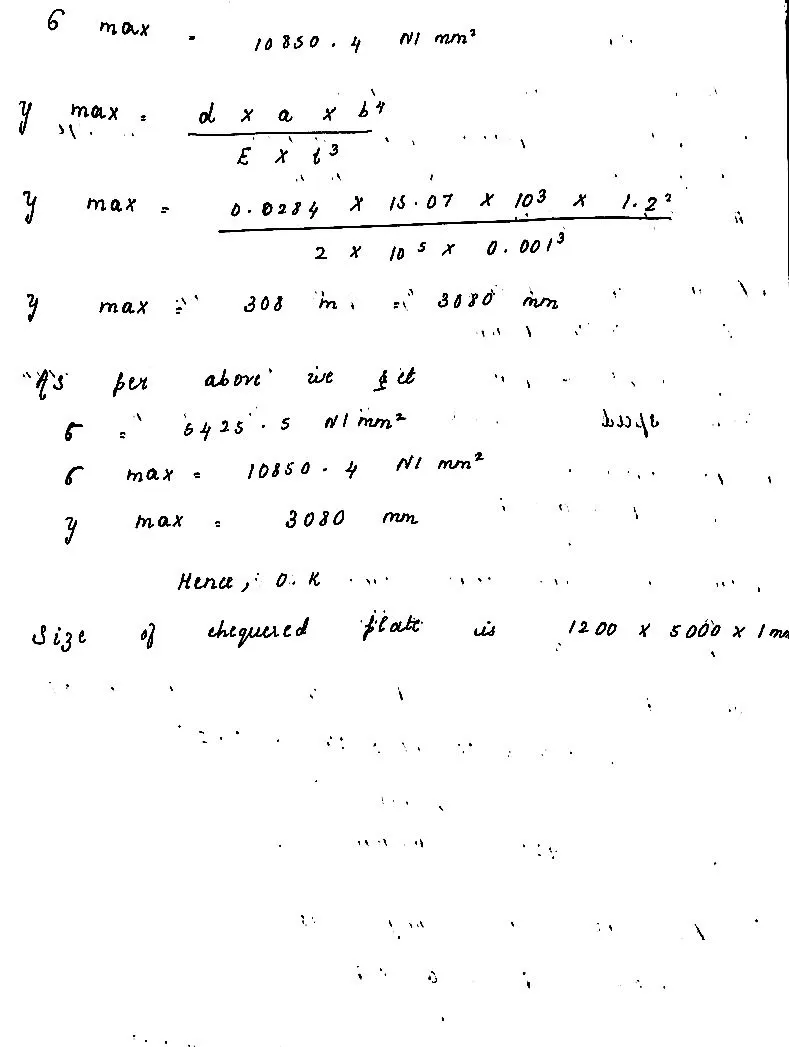

Soln:
Q.3 Lateral Load resisting system & Gravity Load resisting system.
Ans:
Axial Force Type - Pertaining to lateral or horizontal force in the presence of a pinned support.
Bracing Type - Utilizing diagonal bracing, specifically with a focus on the diagonal brace orientation.
Axial Force Type - Refers to lateral or horizontal force in the presence of a pinned support.
Bracing Type - Employing K-type bracing.
Axial Force Type - Denotes lateral or horizontal force in the presence of a pinned support.
Bracing Type - Utilizing X-type bracing.
Axial Force Type - Involves lateral or horizontal force when supported by pinned support.
Bracing Type - Utilizing eccentric type bracing.
Axial Force Type - Relates to gravity force or vertical force when supported by a pinned support.
Bracing Type - Involves K-type bracing.
Axial Force Type - Pertains to gravity force or vertical force when supported by a pinned support.
Bracing Type - Utilizes diagonal bracing, with emphasis on the bracing that extends backward in a diagonal orientation.
Axial Force Type - Relates to gravity force or vertical force when supported by a pinned support.
Bracing Type - Incorporates X-type bracing.
Axial Force Type - Involves gravity force or vertical force when supported by a pinned support.
Bracing Type - Utilizes eccentric type bracing.
